GUHRING Jobber Length Drill Bit 0.257″ Dia, 118 °, Cobalt Qty 10 9055230065300

Guhring
1 Lot of 10 Jobber Length Drill Bits

MSRP: $100.00

• Drill Bit Size (Letter) F
• Drill Bit Material Cobalt
• Cutting Direction Right Hand
• Drill Bit Finish/Coating Bright
• Drill Point Angle (Degrees) 118
• Spiral Type Regular
• Flute Type Spiral
• Point Type Four Facet, Split Point
• Shank Type Straight-Cylindrical
• Number of Flutes 2
• Drill Bit Size (Decimal Inch) 0.2570
• Overall Length (mm) 101.00
• Flute Length (mm) 63.00
• Series 5523
• Flute Length x Diamter Ratio 5xD
• Shank Diameter (mm) 6.53
• Drill Bit Diameter Tolerance +0.000 to -0.022 mm
• Web Thinning Web-Thinned
• Web Configuration Tapered
• Standards DIN 338
• Specification Number DIN 338
• Drill Bit Size Range (Decimal Inch) 0.2500 - 0.3000
• Material Grade M35
• Specification Designation DIN

These items are new and in great condition. SOLD AS IS.

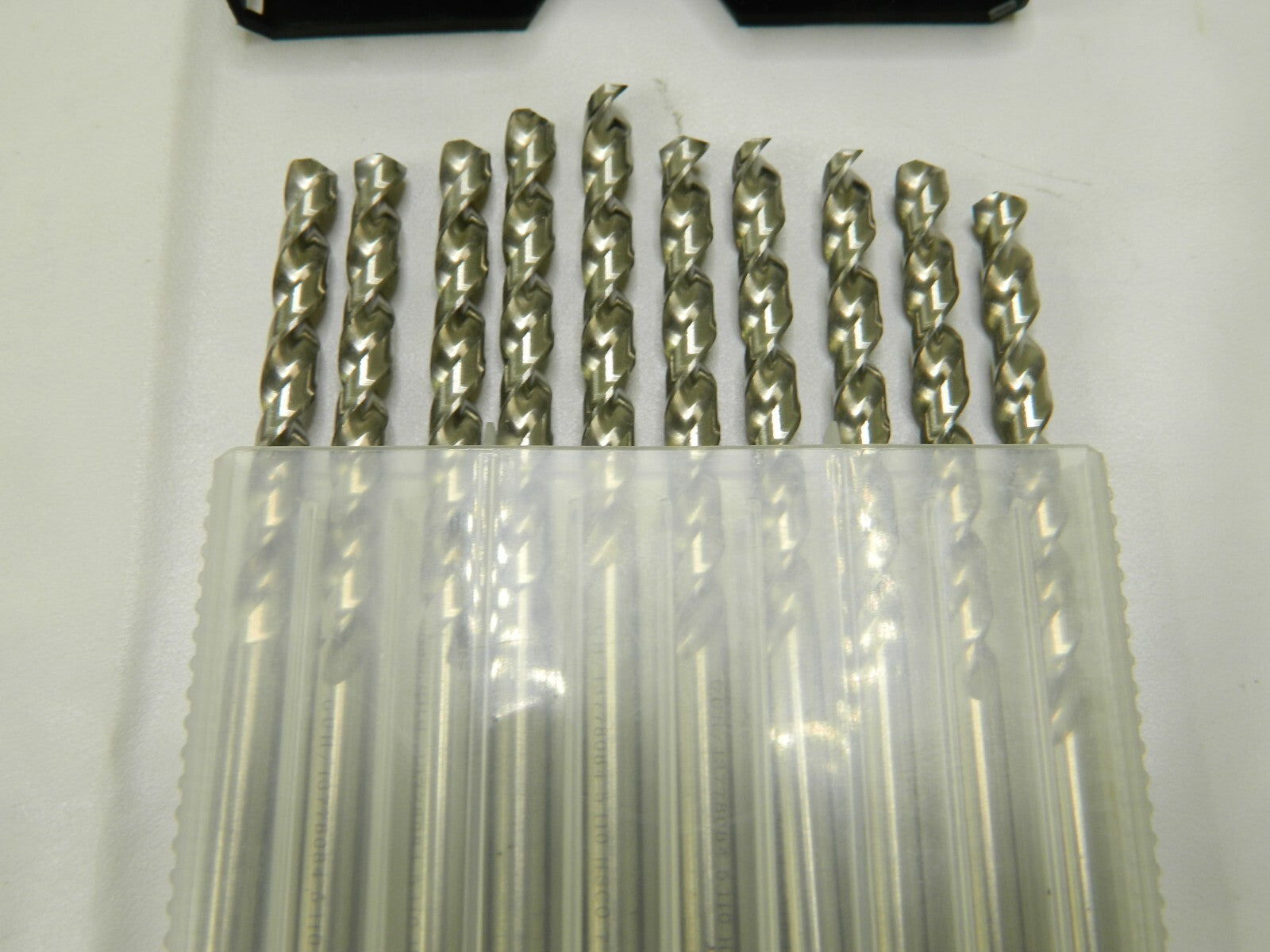

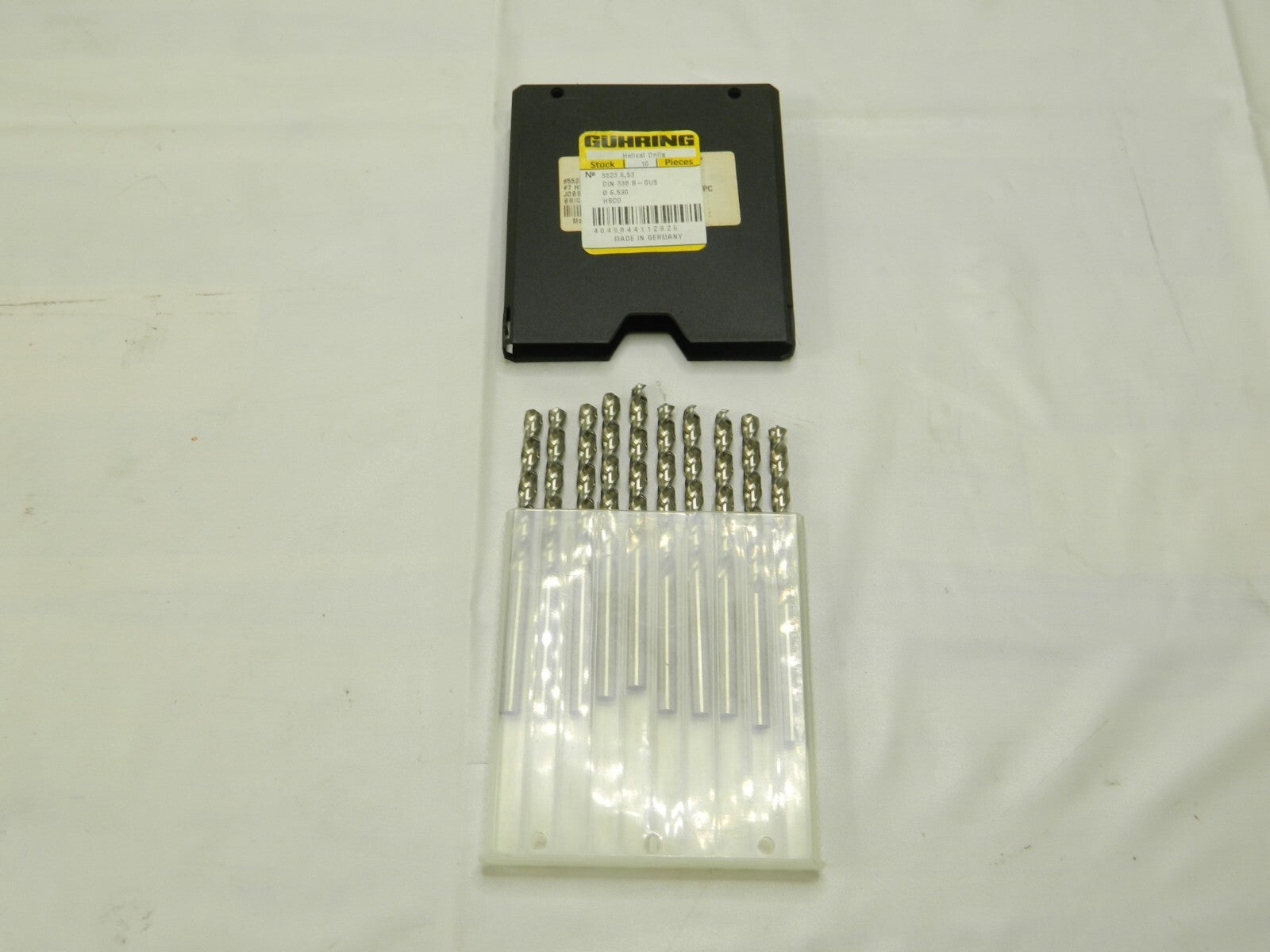

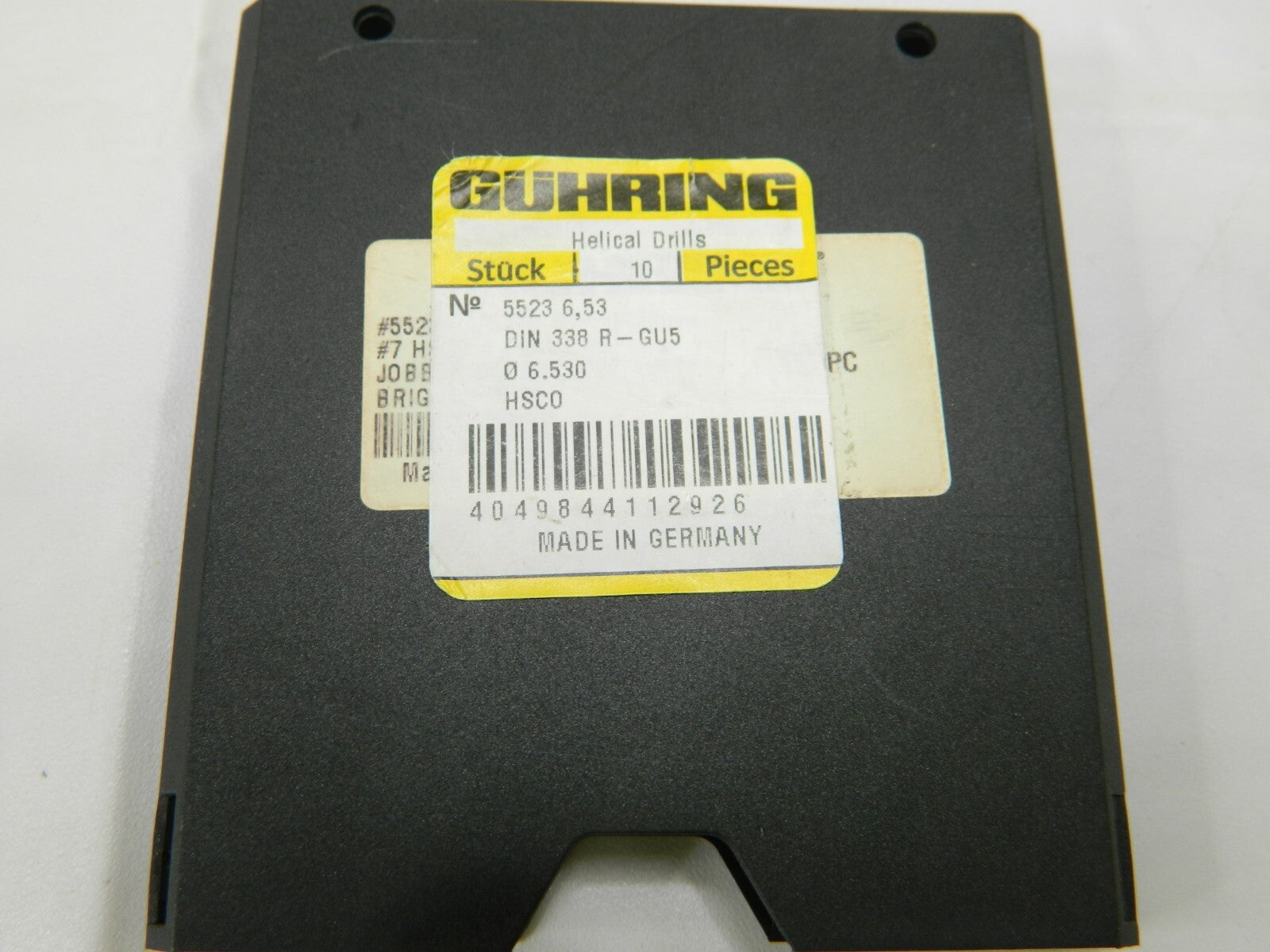

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
