GUHRING Extra Length Drill Bit: 3 mm Dia, 140 ° Point Carbide 9055250030000

GUHRING Extra Length Drill Bit: 3 mm Dia, 140 ° Point Carbide 9055250030000

MSRP: $240

• Drill Bit Size (mm) 3.00
• Overall Length (mm) 90.00
• Tool Material Solid Carbide
• Coating/Finish FIREX
• Coolant Through Yes
• Flute Type Spiral
• Shank Type Straight-Cylindrical
• Drill Point Angle 140
• Flute Length (mm) 50.00
• Point Type Standard
• Series 5525
• Cutting Direction Right Hand
• Tool Application Facet Point Grinding; Self-Centering
• Spiral Type Regular
• Drill Bit Diameter Tolerance +0.004 to +0.016 mm
• Number Of Flutes 2
• Web Thinning Web-Thinned
• Web Configuration Tapered
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code P; K
• Secondary Workpiece Material Aluminum; Titanium Alloy
• Secondary Workpiece Material Code S; H; M; N
• Standards California PROP 65; DIN 6537
• Drill Bit Grade High Performance
• Drill Bit Size (Decimal Inch) 0.1181
• Shank Diameter (mm) 6.00
• Shank Length (mm) 36.00
• Flute By Diameter Ratio 12xD
• Maximum Drilling Depth (mm) 44.00
• Material Grade Submicron
• UNSPSC Code 23241637
• Country of Origin Germany

(Description).

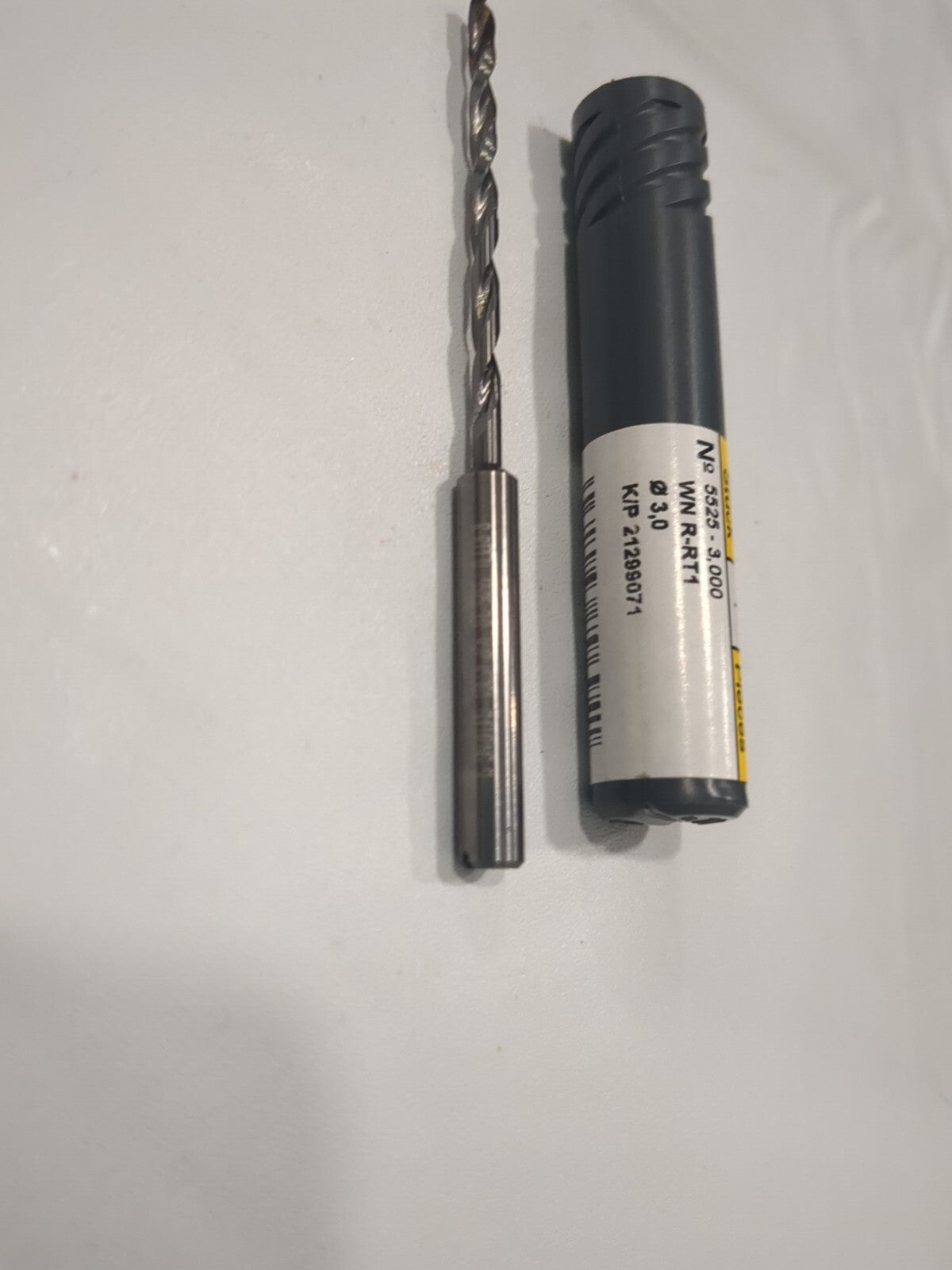

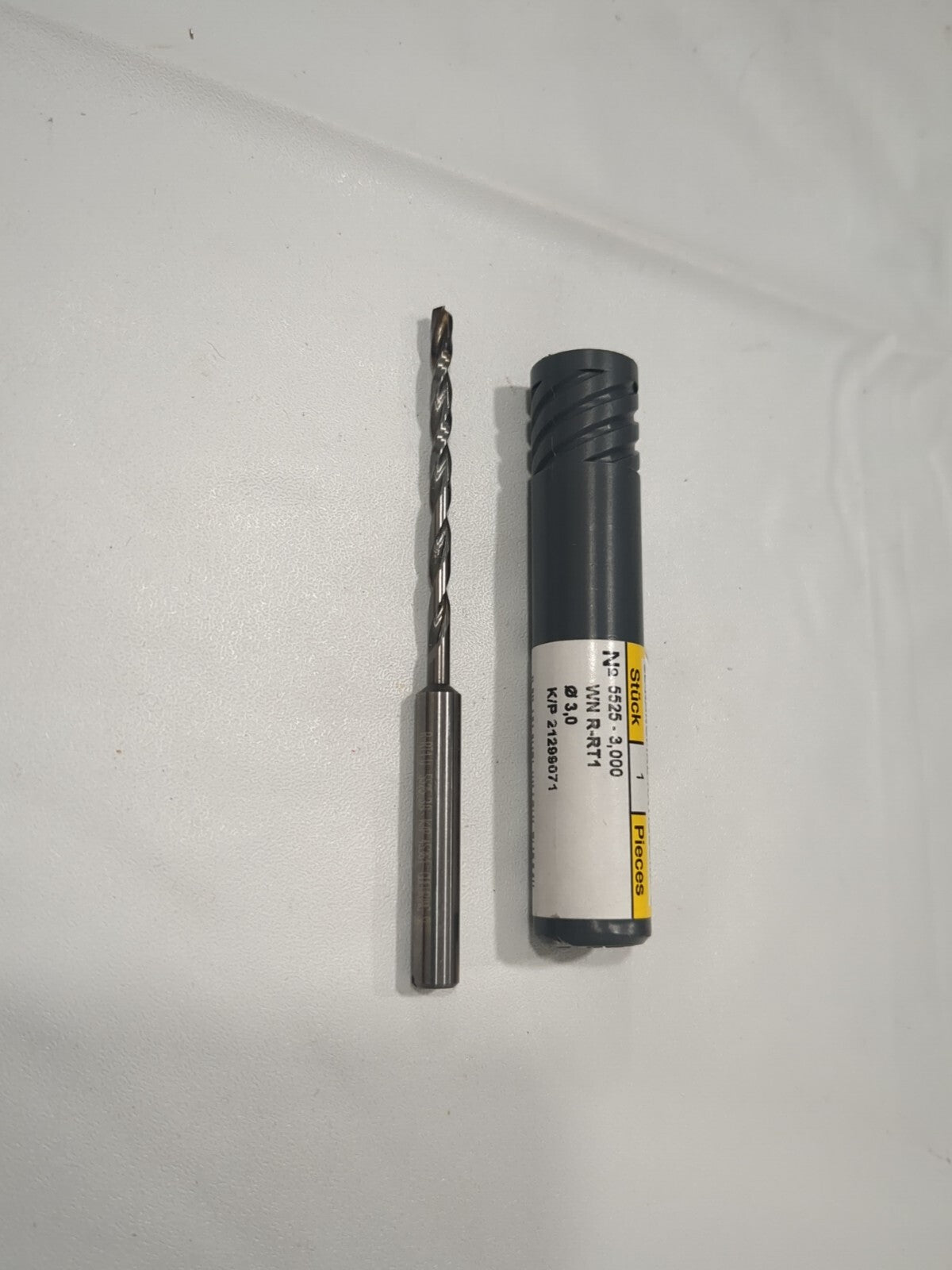

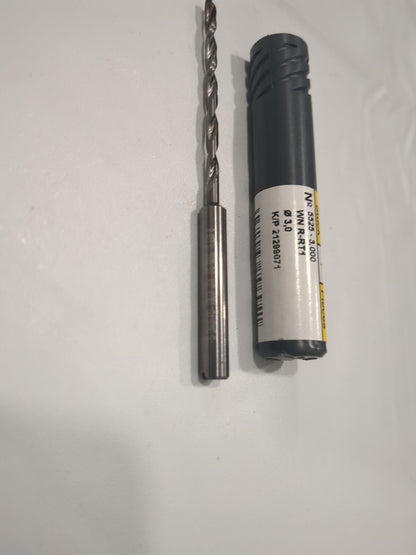

Please review photos, comes as shown.
