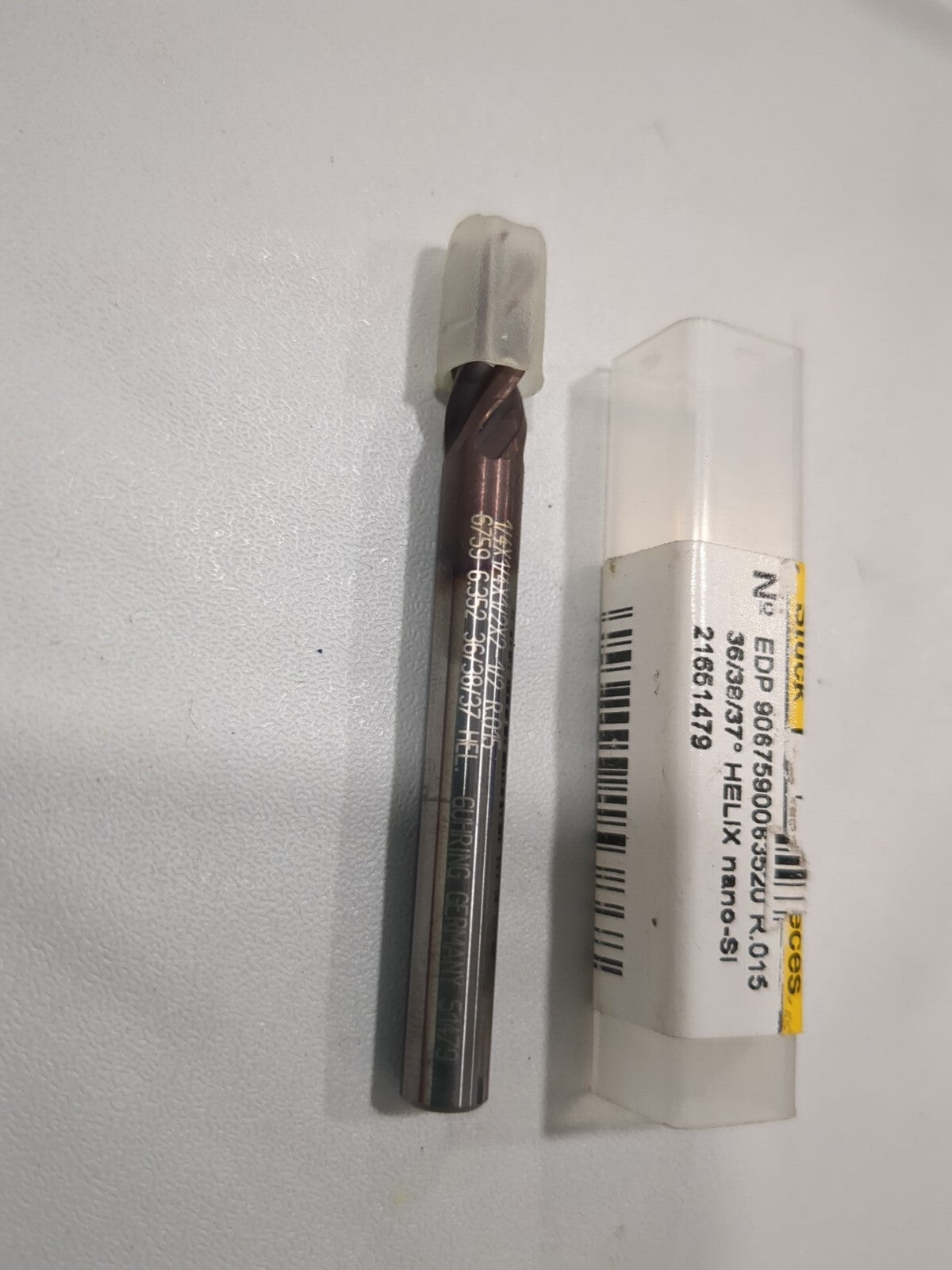

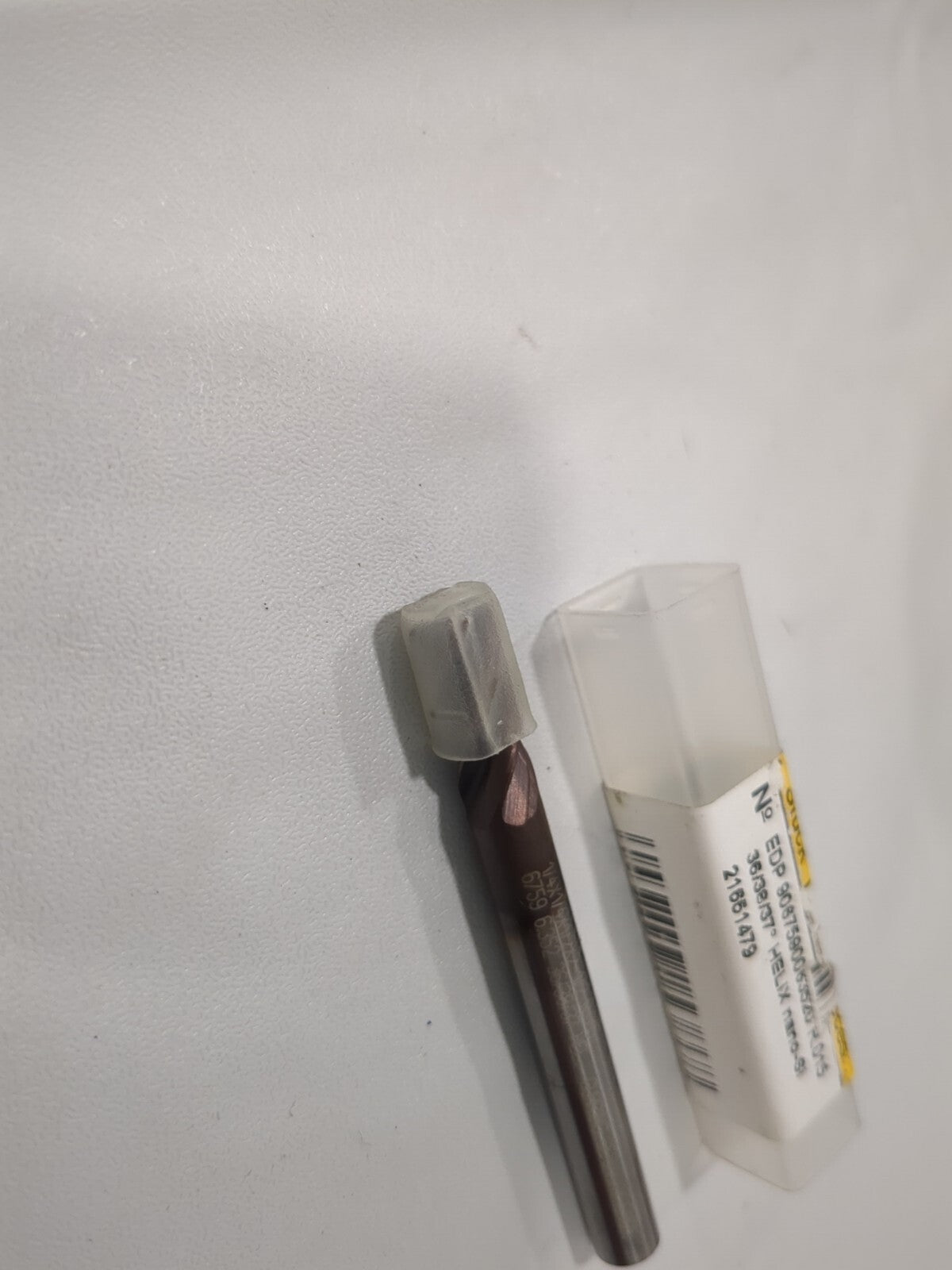

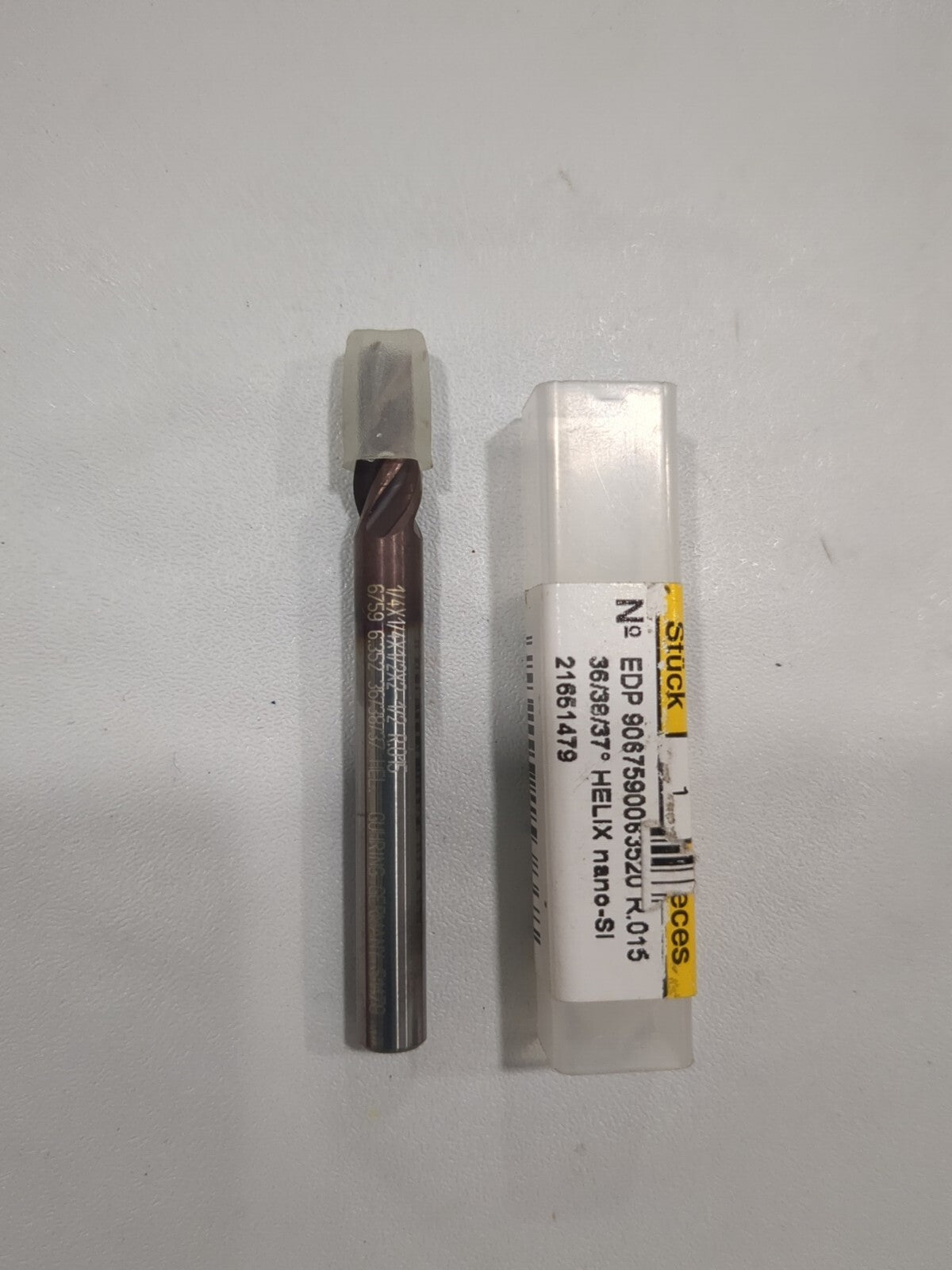

GUHRING Corner Radius End Mill: 1/4" Dia 4 Flute, Solid Carbide 9067590063520

GUHRING Corner Radius End Mill: 1/4" Dia 4 Flute, Solid Carbide 9067590063520
MSRP: $50

• Mill Diameter (Inch) 1/4
• Mill Diameter (Decimal Inch) 0.2500
• Number Of Flutes 4
• Length of Cut (Inch) 1/2
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish nano-Si
• Overall Length (Inch) 2-1/2
• Centercutting No
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0150
• Variable Index Yes
• Variable Helix Yes
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 2.5000
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.5000
• Length Type Standard
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.2500
• Shank Diameter (Inch) 1/4
• Corner Radius Tolerance -0.002 to 0.002 in
• Mill Diameter Tolerance h10
• Shank Diameter Tolerance h6
• Primary Workpiece Material Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• UNSPSC Code 27112803
• Primary Workpiece Material Code P; S; K; M
• Secondary Workpiece Material Non-Ferrous Metal; Hard Material
• Secondary Workpiece Material Code H; N
• Material Grade Extra Fine Micrograin
• Series 6759
• Material Application Non-Ferrous Metal; Hard Material; Other Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• For Use With. End Mill Toolholders
• Country of Origin Germany

(Description).

Please review photos, comes as shown.
