GUHRING Carbide Screw Machine Length Drill Bit 0.689″ Dia, 140 ° 9055100175000

GUHRING
Carbide Screw Machine Length Drill Bit

MSRP: $580

• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish Coated
• Drill Point Angle 140
• Spiral Type Regular
• Flute Type Spiral
• Point Type SU
• Coolant Through No
• Shank Type Straight-Cylindrical
• Number Of Flutes 2
• Drill Bit Size (Decimal Inch) 0.6890
• Overall Length (mm) 123.00
• Shank Diameter (mm) 18.00
• Series 5510
• Web Thinning Web-Thinned
• Web Configuration Parallel
• Drill Length Type Screw Machine
• Maximum Drilling Depth (mm) 46.75
• Flute By Diameter Ratio 3xD
• Tool Performance High Performance
• Drill Bit Diameter Tolerance +0.007 to +0.025 mm
• Standards DIN 6537 K
• Flute Length (mm) 73.00
• Drill Bit Size Range (Decimal Inch) 0.6000+
• Specification Number DIN 6537K
• Specification Designation DIN
• Material Grade Submicron

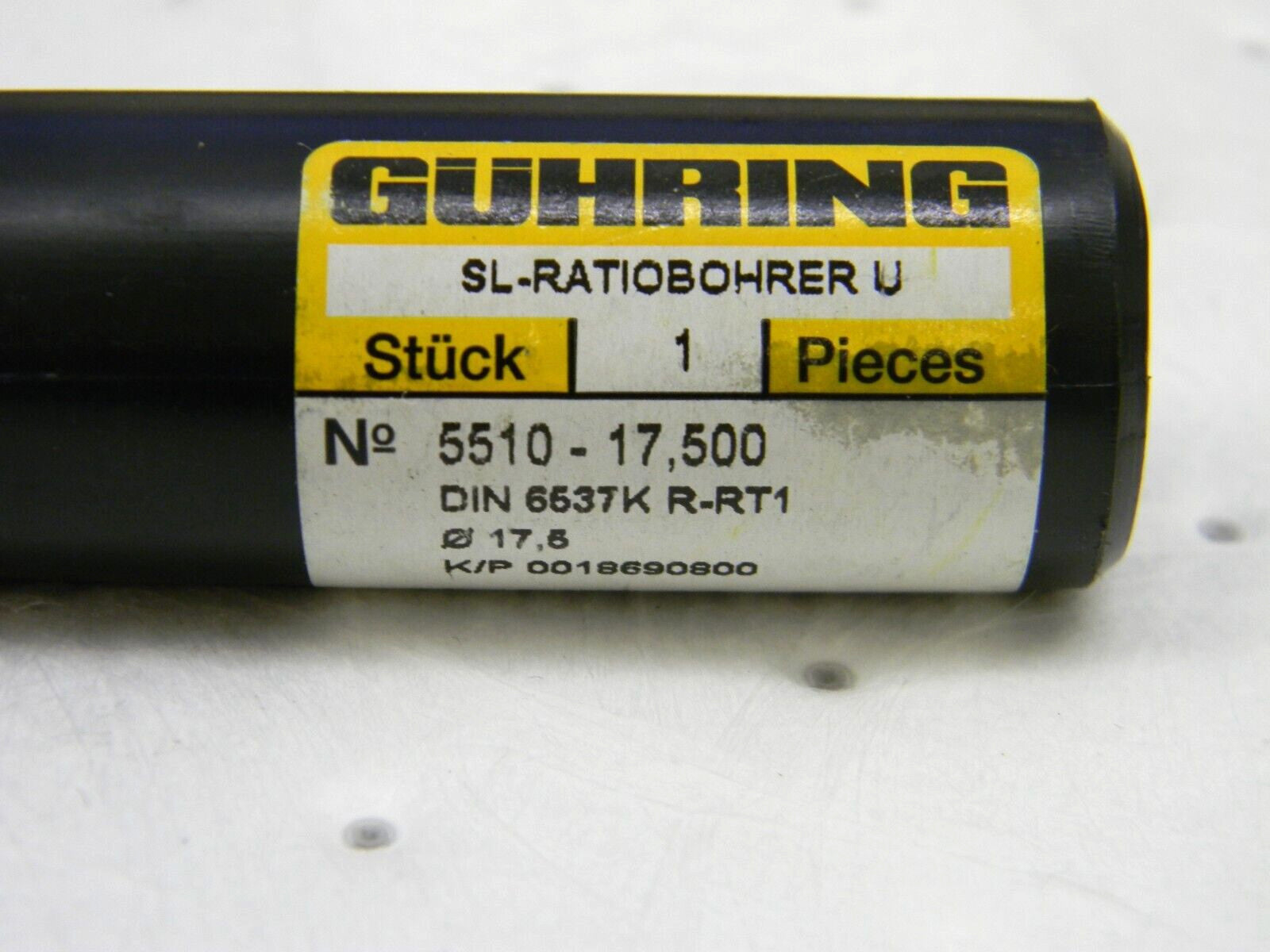

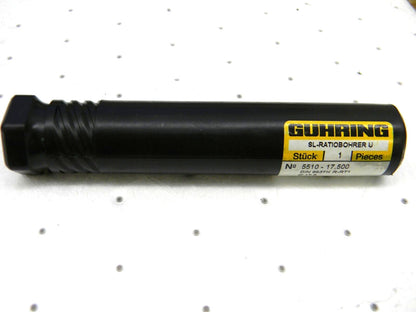

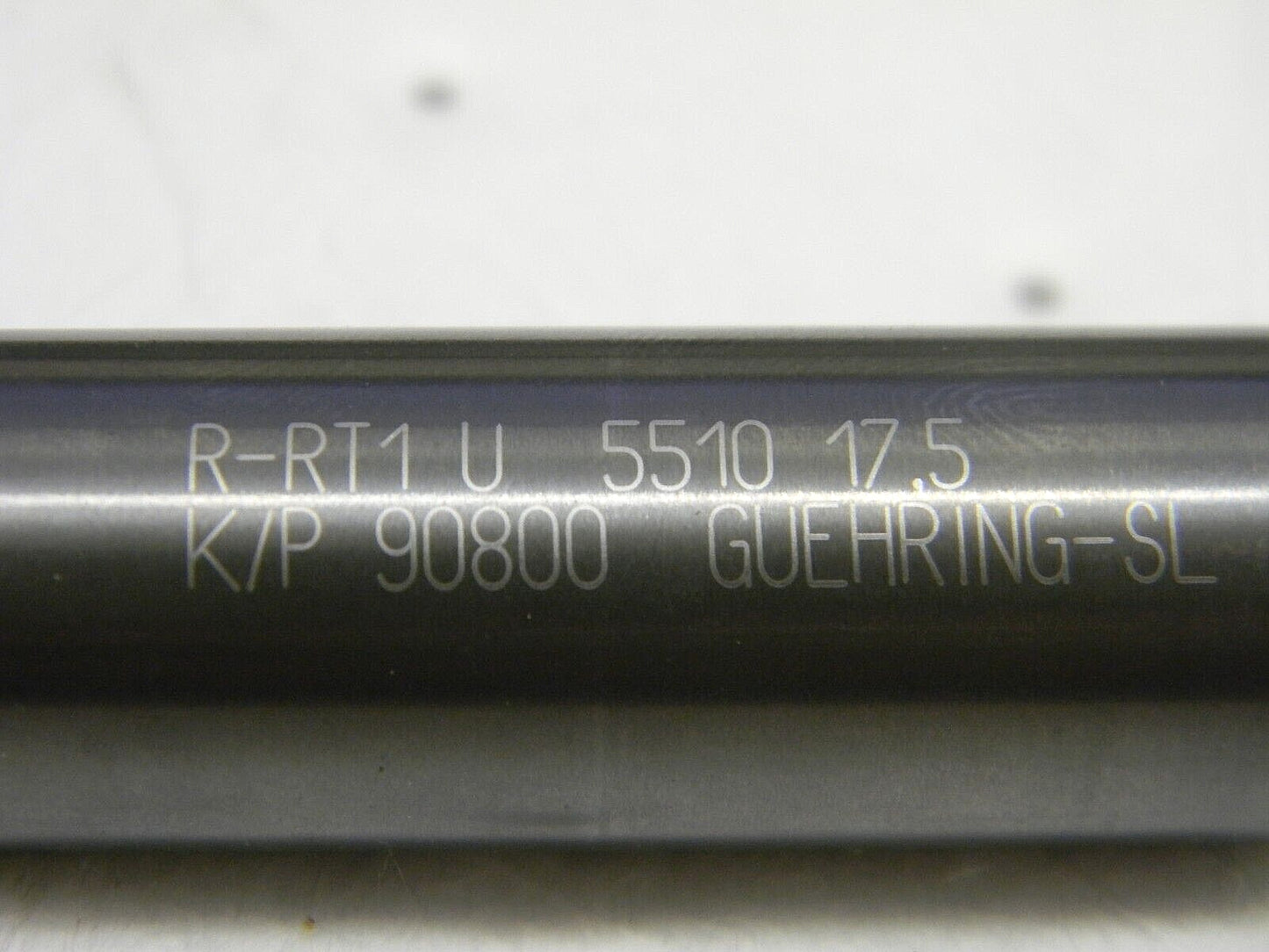

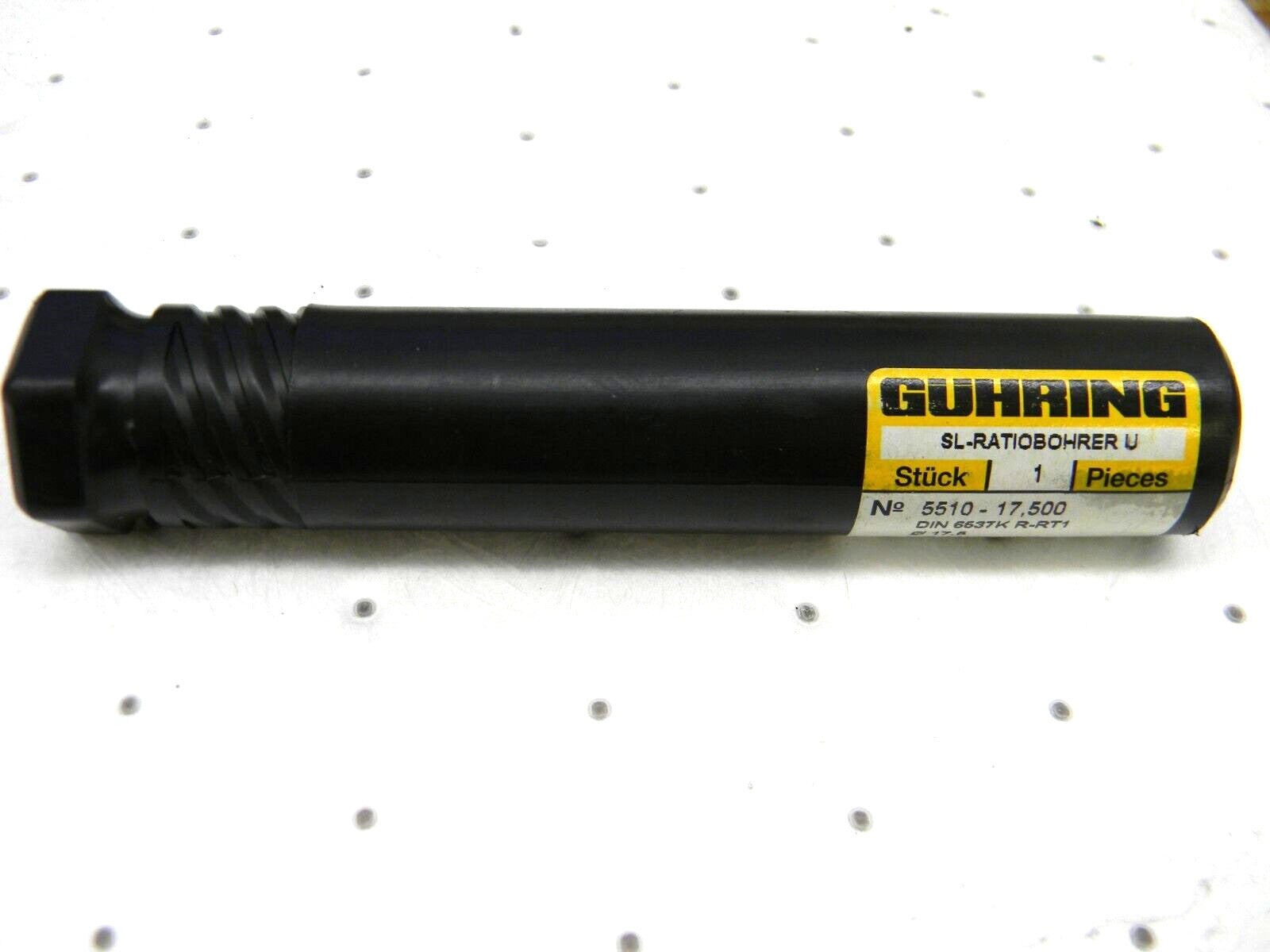

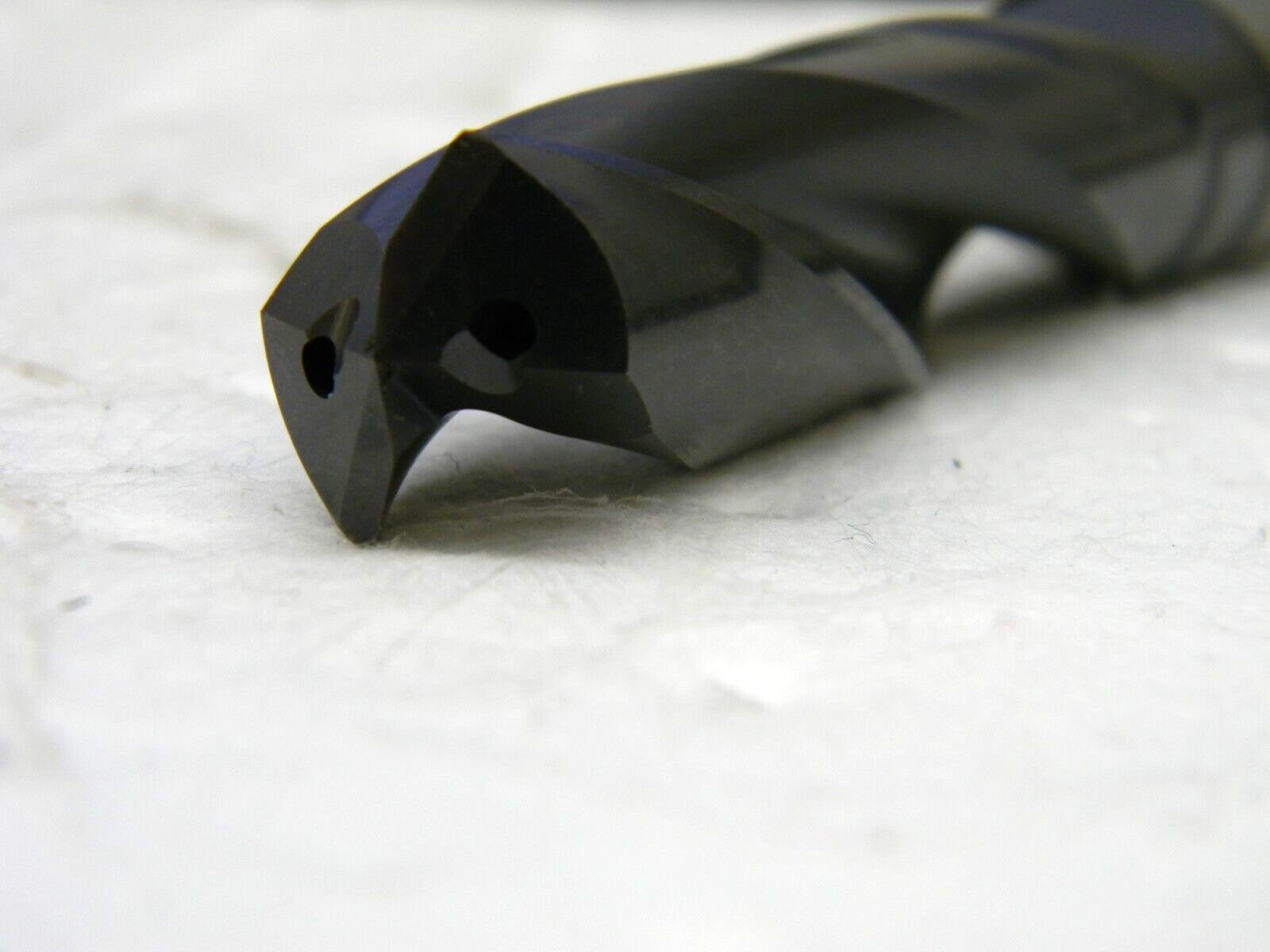

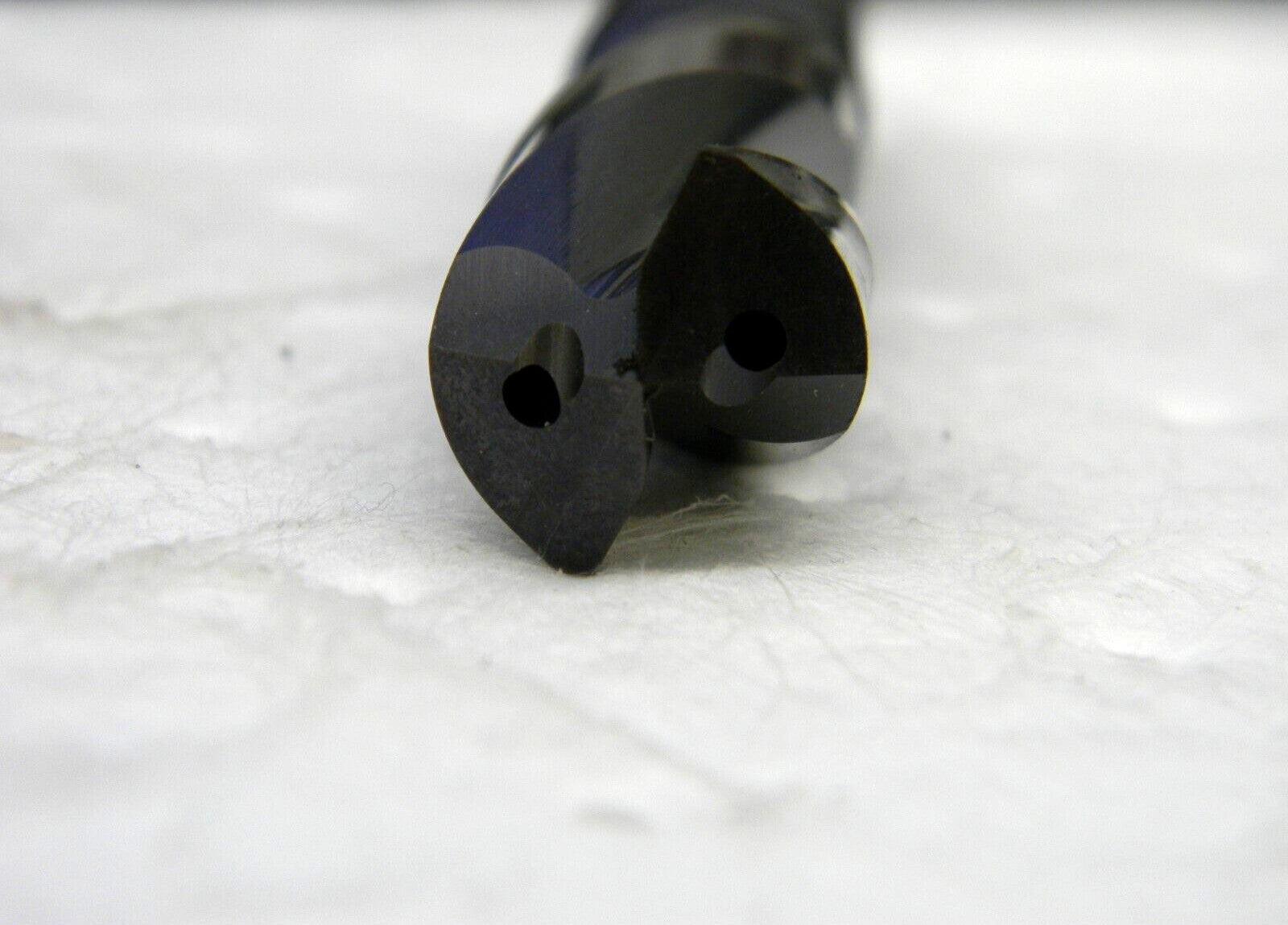

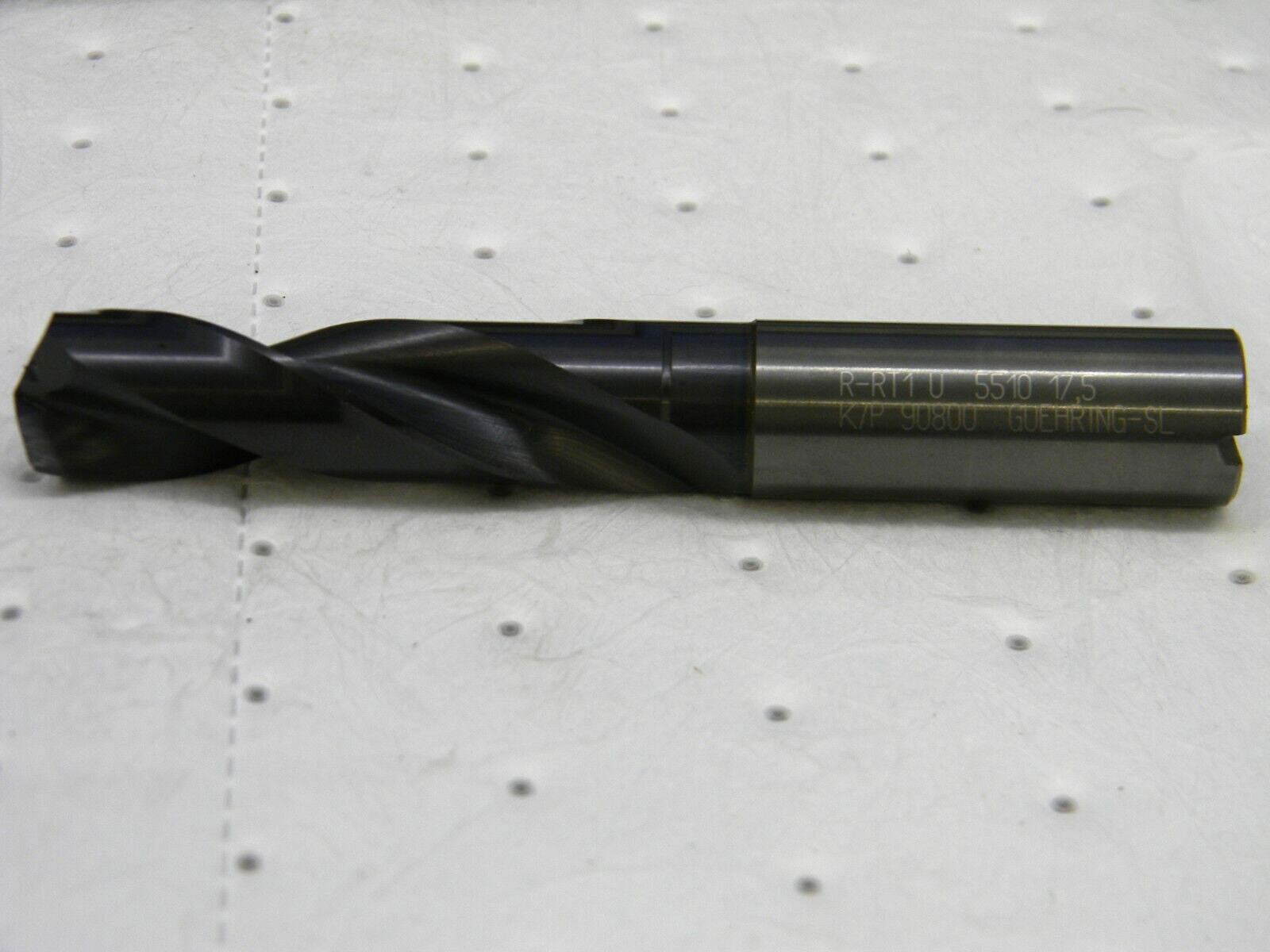

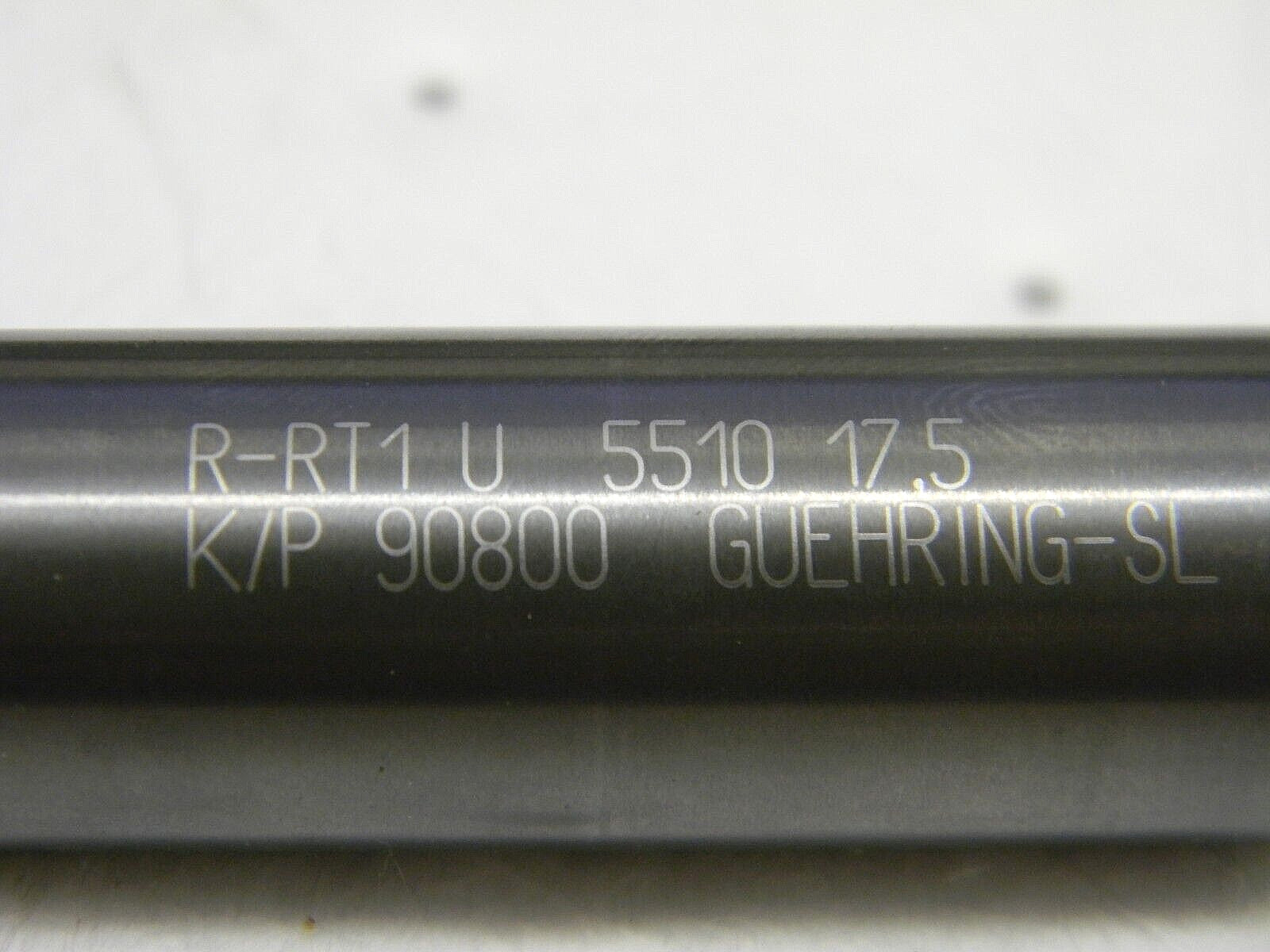

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
