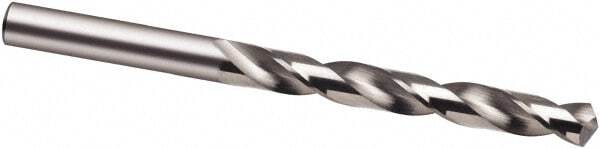

GUHRING 2pk Jobber Length Drill Bit 9/64" Dia 118 deg Solid Carbide 900732003570

GUHRING

 2pk Jobber Length Drill Bit 9/64" Dia 118 deg Solid Carbide 900732003570

MSRP: $40

• Drill Bit Size (Inch) 9/64
• Drill Bit Size (Wire) #28
• Drill Bit Size (Decimal Inch) 0.1406
• Drill Bit Material Solid Carbide
• Drill Point Angle (Degrees) 118
• Coating/Finish Bright/Uncoated
• Flute Type Regular Spiral
• Cutting Direction Right Hand
• Point Type Facet
• Primary Workpiece Material Aluminum & Non-Ferrous; High-Temp Alloy
• Coolant Through No
• Flute Length (Decimal Inch) 1.5354
• Flute Length (mm) 39.00
• Number of Flutes 2
• Primary Workpiece Material Code N
• Shank Diameter (Decimal Inch) 0.1406
• Overall Length (mm) 70.00
• Overall Length (Decimal Inch) 2.7559
• Spiral Type Regular
• Series 732
• Flute By Diameter Ratio 5xD
• Shank Diameter (mm) 3.57
• Maximum Drilling Depth (Decimal Inch) 1.3250
• Maximum Drilling Depth (mm) 33.65
• Shank Length (mm) 31
• Drill Bit Diameter Tolerance h8
• Web Thinning Web-Thinned
• Shank Type Straight
• Tool Performance General Purpose
• Drill Bit Grade General Purpose
• Drill Bit Size Range (Decimal Inch) 0.1000 - 0.1500
• Specification Designation DIN
• UNSPSC Code 23241634
• Country of Origin Germany

The product is a 2-pack of Guhring jobber length drill bits with a diameter of 9/64 inches. These solid carbide drill bits have a 118-degree point angle, providing precision drilling for various metalworking applications.

Please review photos, comes as shown.
