Gibraltar Knob Handle Plunge M10x1.5 3/4" Length 0.19" Max Qty 3 04455234
Gibraltar Knob Handle Plunge M10x1.5 3/4" Length 0.19" Max Qty 3 04455234
Regular price
$24.48 USD
Regular price
$50.00 USD
Sale price
$24.48 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Gibralter
MSRP: $50.00
Model:04455234
Description:
Thread Size M10x1.5
Thread Length (mm) 19.00
Thread Length (Decimal Inch) 0.7480
Plunger Type Non-Locking
Knob Style Knurled
Body Length (mm) 24.13
Body Length (Decimal Inch) 0.9500
Length Under Head/Shoulder (mm) 19.00
Length Under Head/Shoulder (Decimal Inch) 0.7480
Plunger Projection (mm) 6.00
Plunger Projection (Decimal Inch) 0.2360
Maximum Plunger Diameter (mm) 5.00
Maximum Plunger Diameter (Decimal Inch) 0.1900
Initial End Force (N) 4.45
Initial End Force (Lb.) 1.00
Final End Force (N) 35.60
Final End Force (Lb.) 8.00
Locking Element No
Plunger Length (mm) 32.00
Plunger Length (Decimal Inch) 1.2600
Head Diameter (mm) 19.00
Head Diameter (Decimal Inch) 0.7480
Head Height (mm) 8.00
Head Height (Decimal Inch) 0.3150
Head & Shoulder Height (mm) 13.00
Head & Shoulder Height (Decimal Inch) 0.5120
Material Steel
Finish/Coating Zinc Gold Chromate
Plunger Diameter Tolerance (mm) +0.000/-0.0254
Plunger Diameter Tolerance (Decimal Inch) +0.000/-0.001

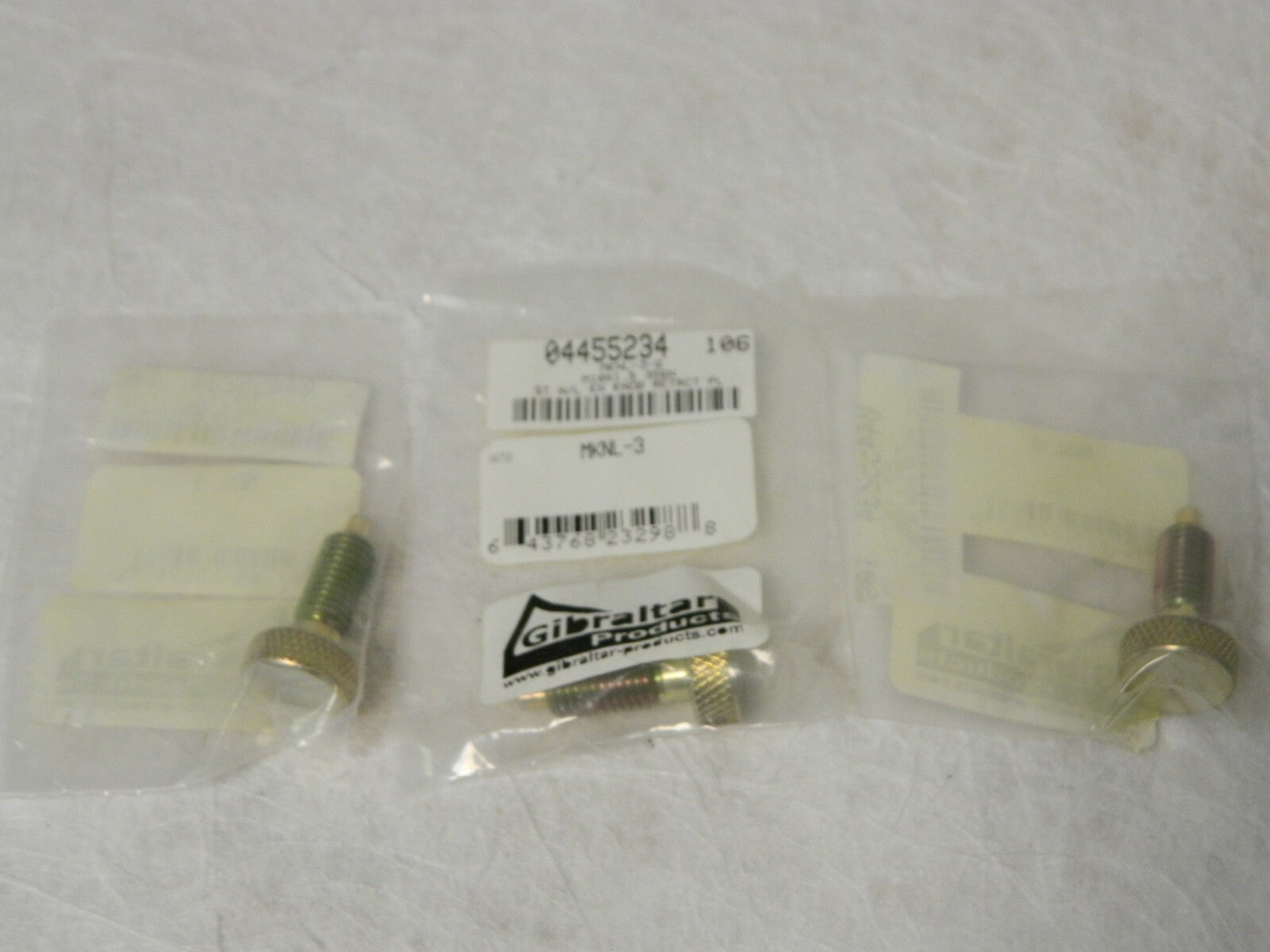

This listing is for One lot of 3 Plunges that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
Tina June 19 2019
TB 646
Cab Dex Bin 22
