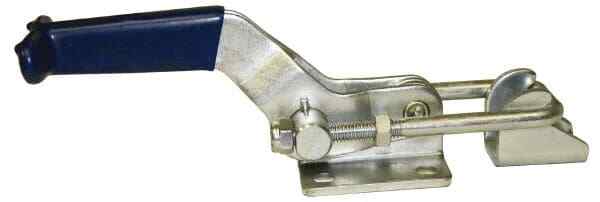

Gibraltar Heavy Duty 2000 Lb Capacity Pull U Hook Flange Base Clamp GIB-LU-400-3

Gibraltar
Latch Clamp

MSRP: $50.00

• Clamping Orientation Horizontal
• Bar Style U-Hook
• Load Capacity (Lb.) 2000
• Load Capacity 2000lb
• Base Style Flanged
• Material Carbon Steel
• Body Material Carbon Steel
• Handle Style Straight
• Overall Length 7.5in
• Overall Height 2.89in
• Drawing Movement 2.5in
• Base Width 2.13in
• Mounting Hole Diameter 0.33 in
• Width Distance Between Mount Holes 1.5in
• Overall Length (Decimal Inch) 7.5000
• Length Distance Between Mount Holes 1.63in
• Overall Height (Decimal Inch) 2.8900
• Drawing Movement (Decimal Inch) 2.500
• Bar Thickness 0.31in
• Base To Center Of Bar 0.94in
• Handle Color Blue
• Base Length (Decimal Inch) 2.38in
• Base Width (Decimal Inch) 2.1300
• Mounting Hole Diameter (Decimal Inch) 0.3300
• Width Distance Between Mount Holes (Decimal Inch) 1.5000
• Length Distance Between Mount Holes (Decimal Inch) 1.6300
• Bar Width (mm) 1.75in
• Bar Width (Decimal Inch) 1.7500
• Bar Thickness (Decimal Inch) 0.3100
• Base to Center of Bar (Decimal Inch) 0.9400
• Includes Latch Plate; U-Hook Assembly

This item is new and still in sealed package. SOLD AS IS.

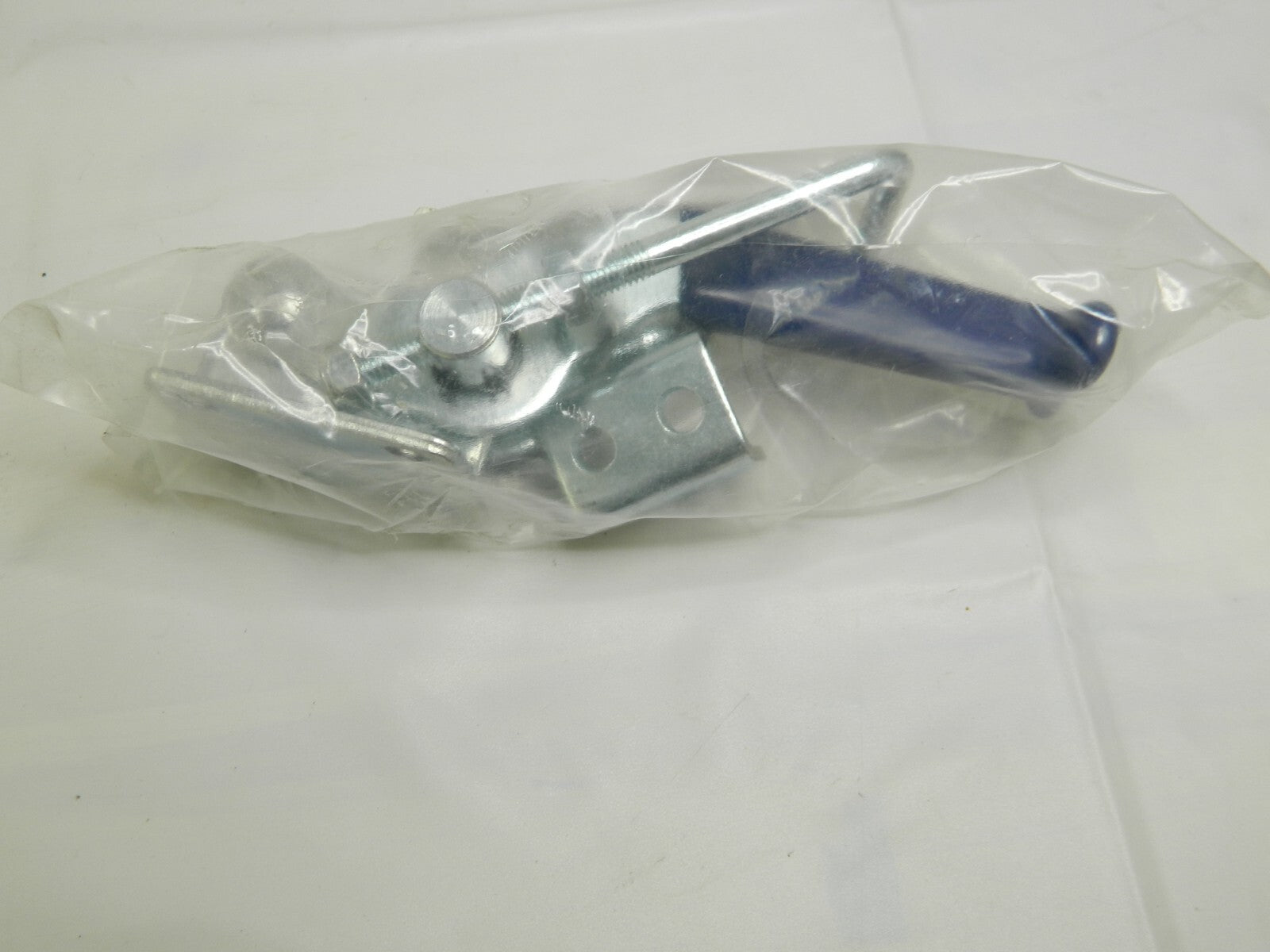

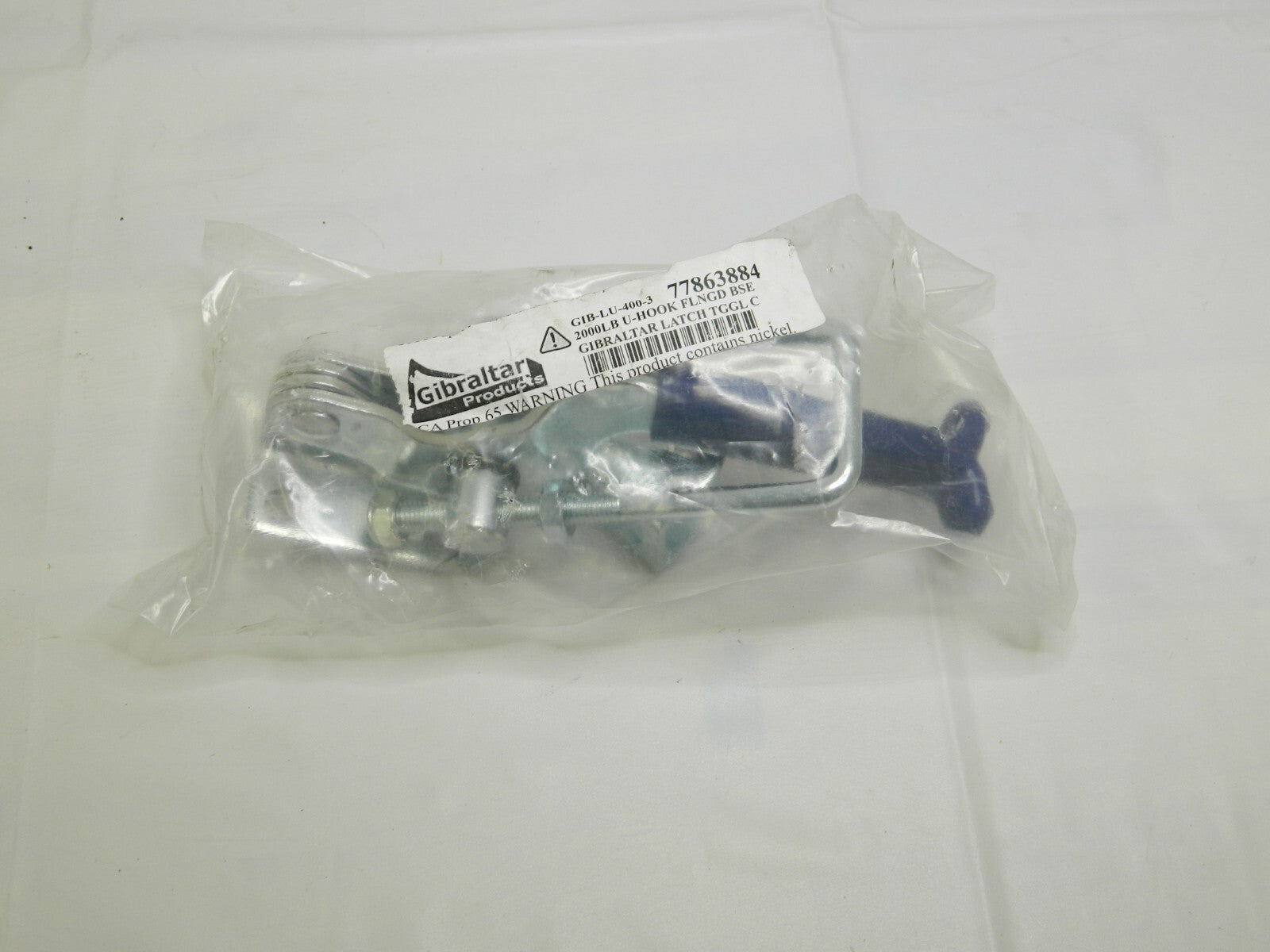

Please review photos, comes as shown.
