Chuck Type Independent
Nominal Chuck Size 10
Number of Jaws 4
Mount Plain Back
Through-Hole Diameter (mm) 75.00
Through-Hole Diameter (Decimal Inch) 2.9528
Body Material Cast Iron (Semi-Steel)
Reversible Jaws Reversible Jaws
Number of Jaw Pieces One-Piece
Chuck Diameter (mm) 254.00
Chuck Diameter (Inch) 10
Jaw Height (mm) 40.00
Adjustable No
Body Length (mm) 80.00
Overall Length (mm) 120.00
Maximum RPM 1600

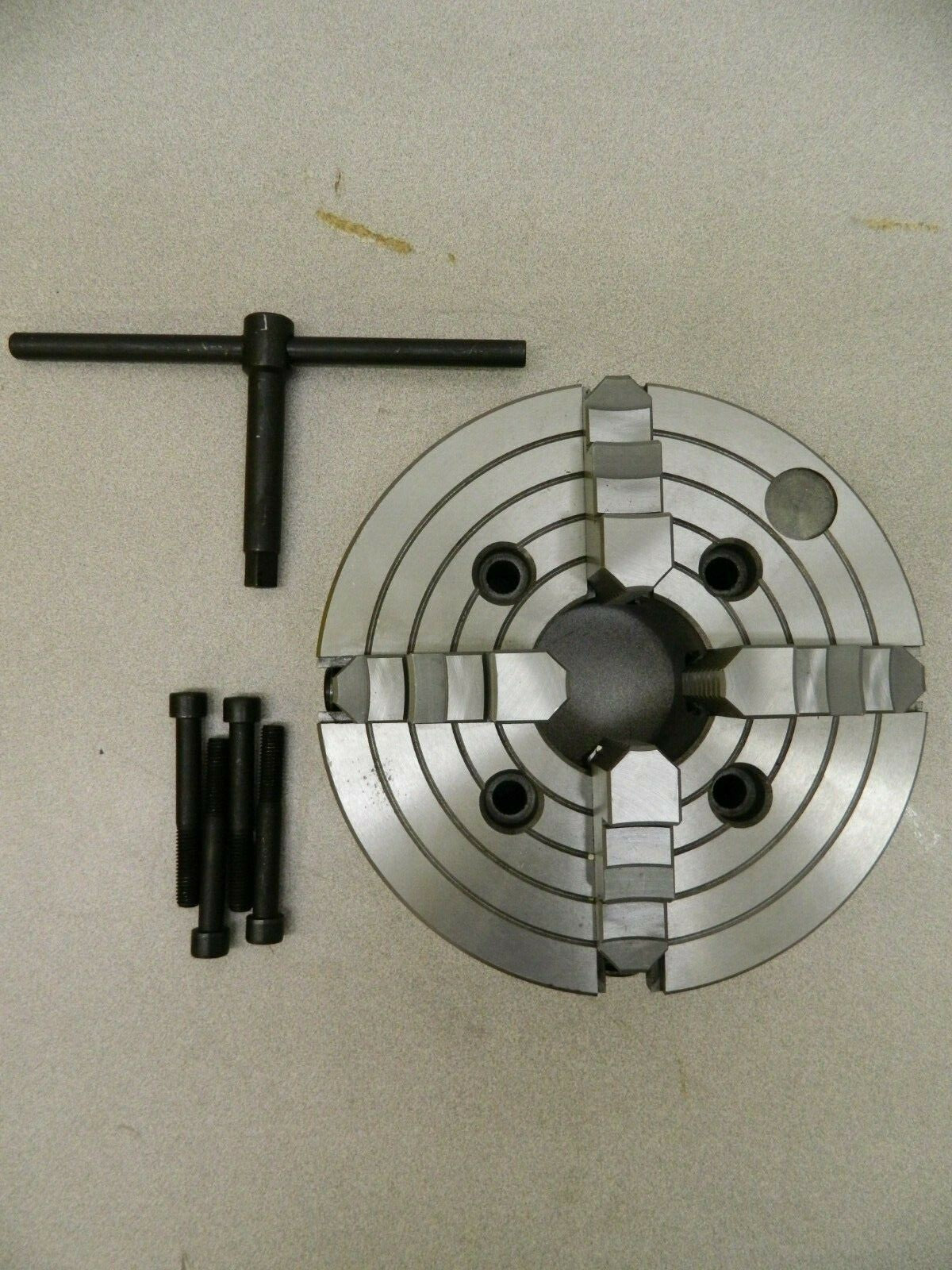

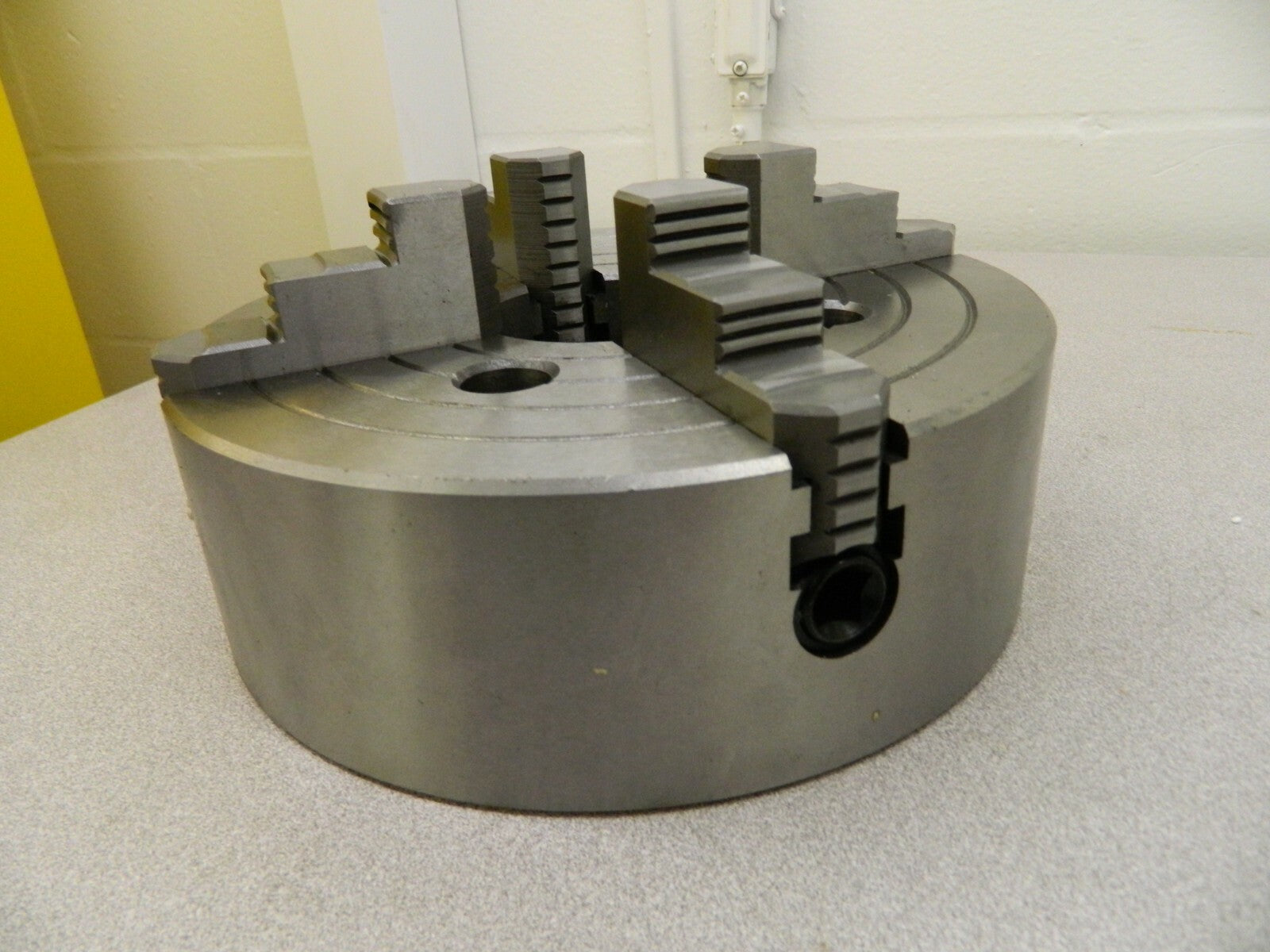

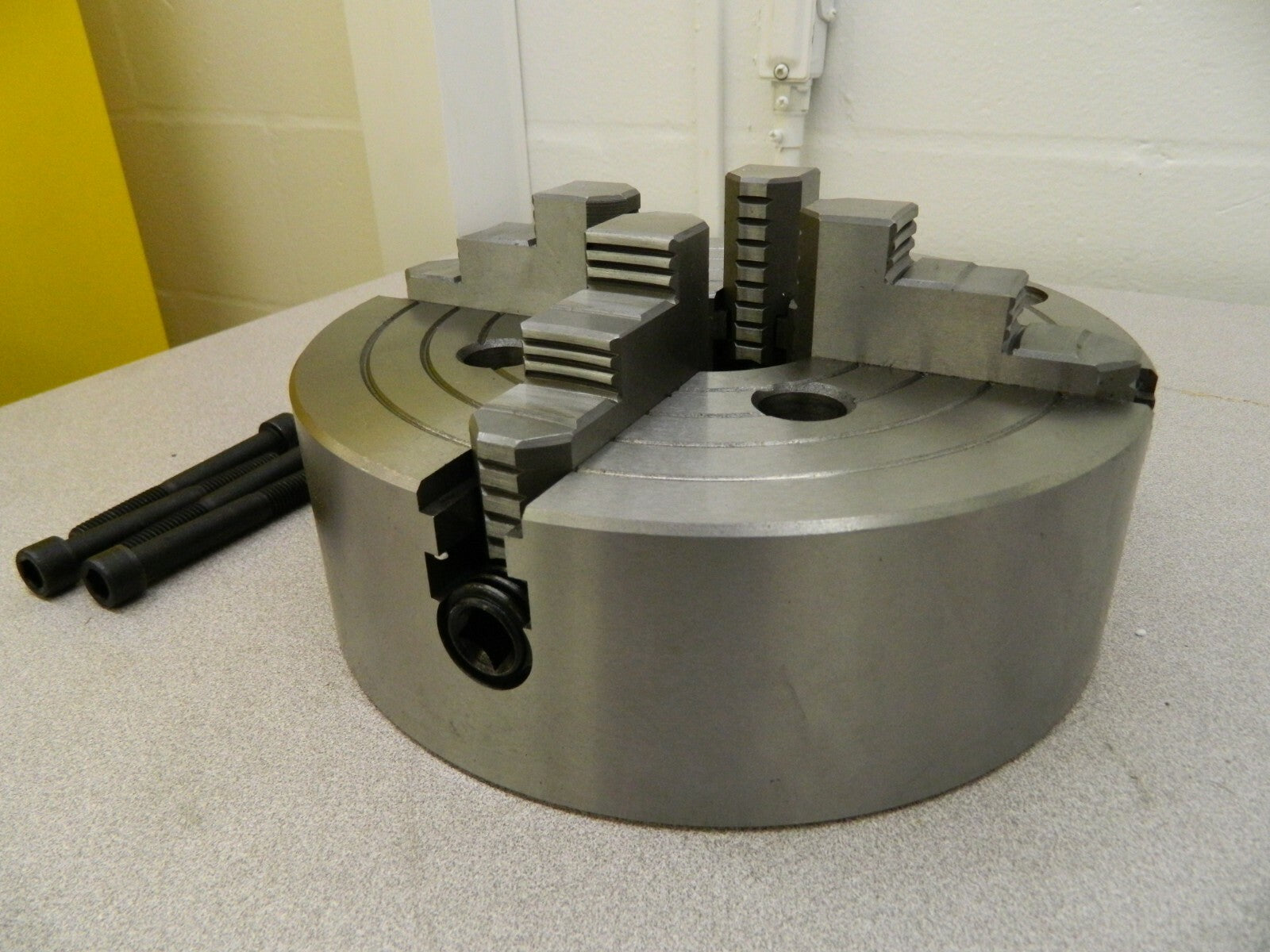

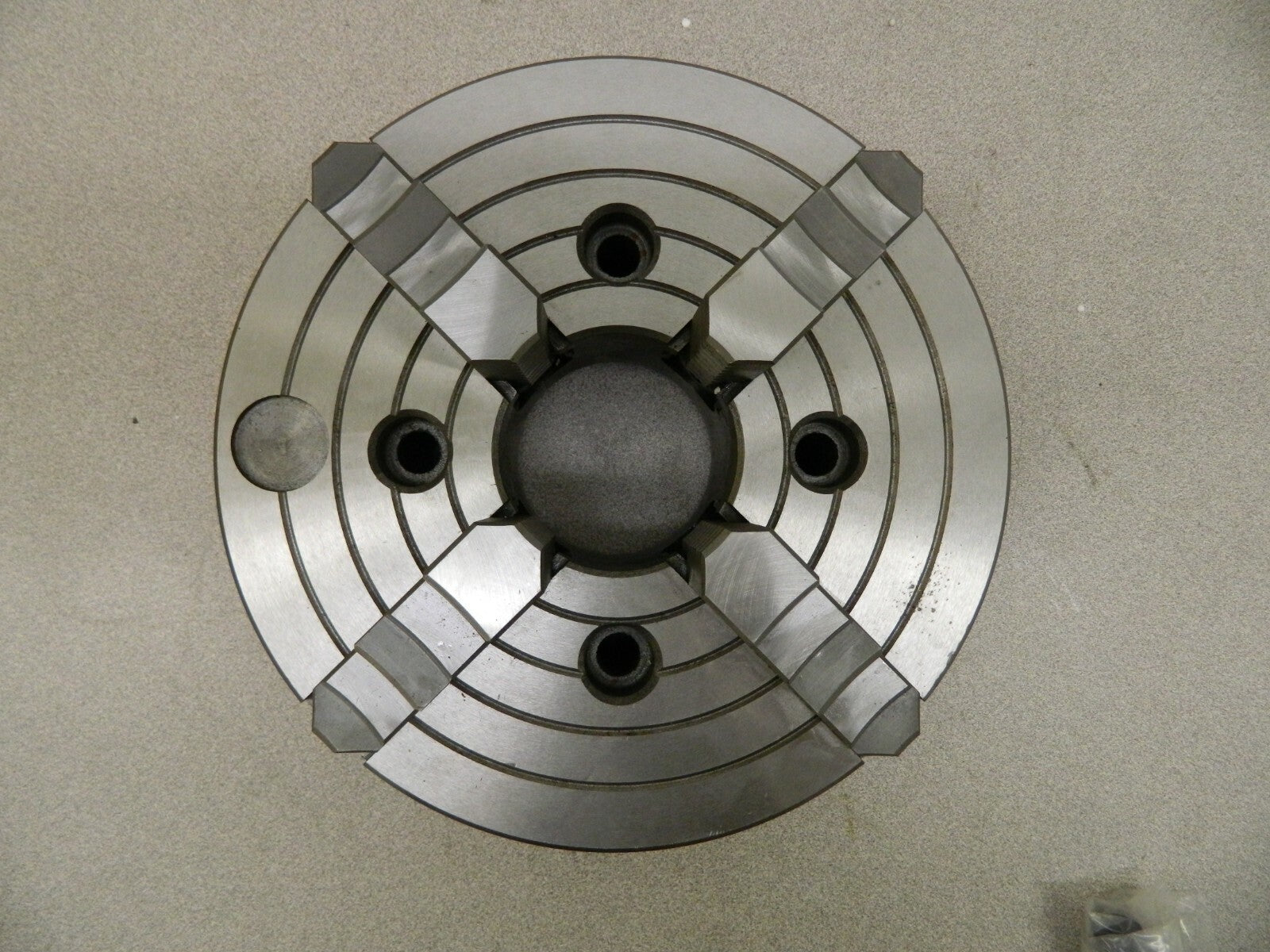

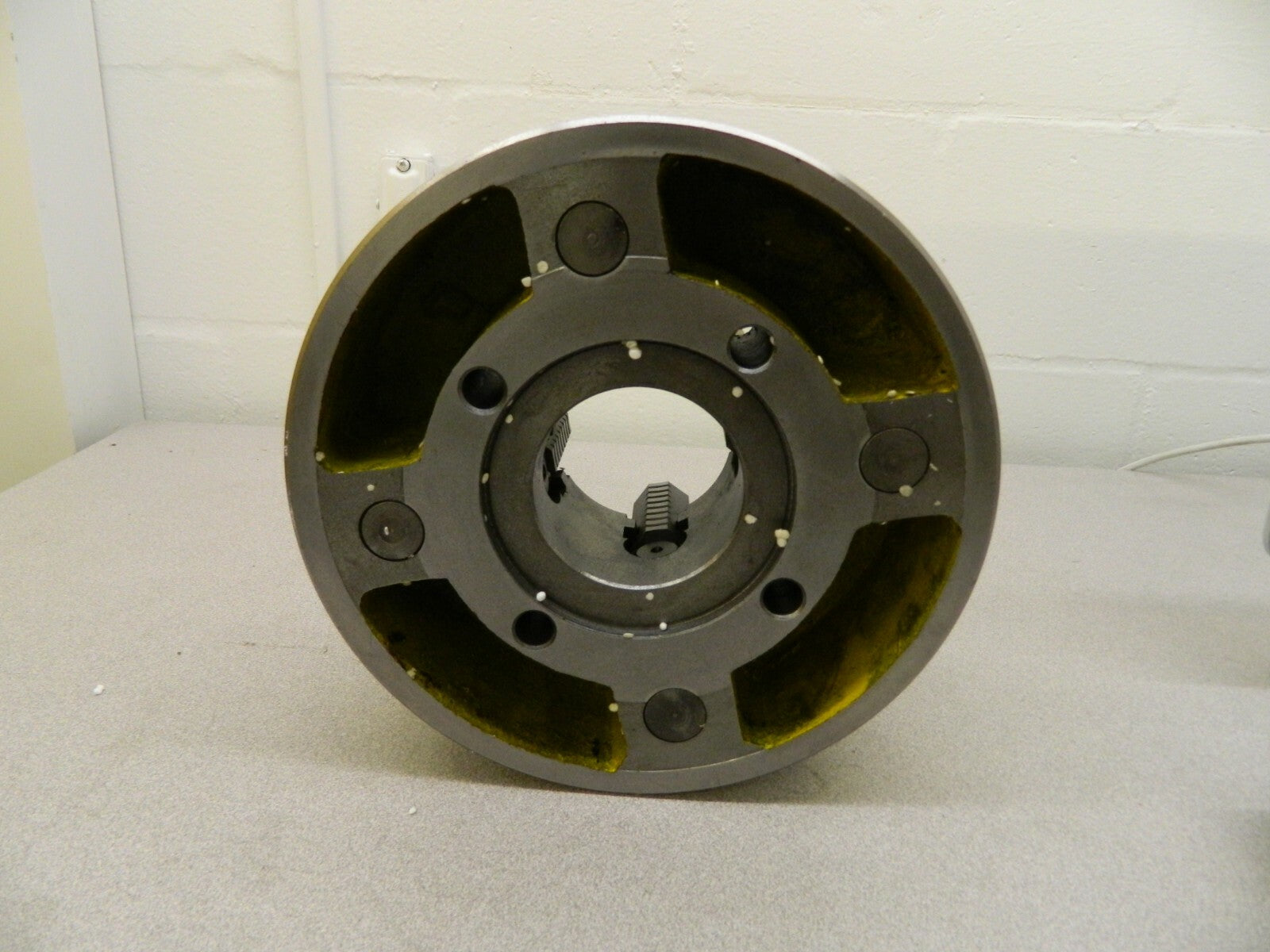

This listing is for One independent manual lathe chuck that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
