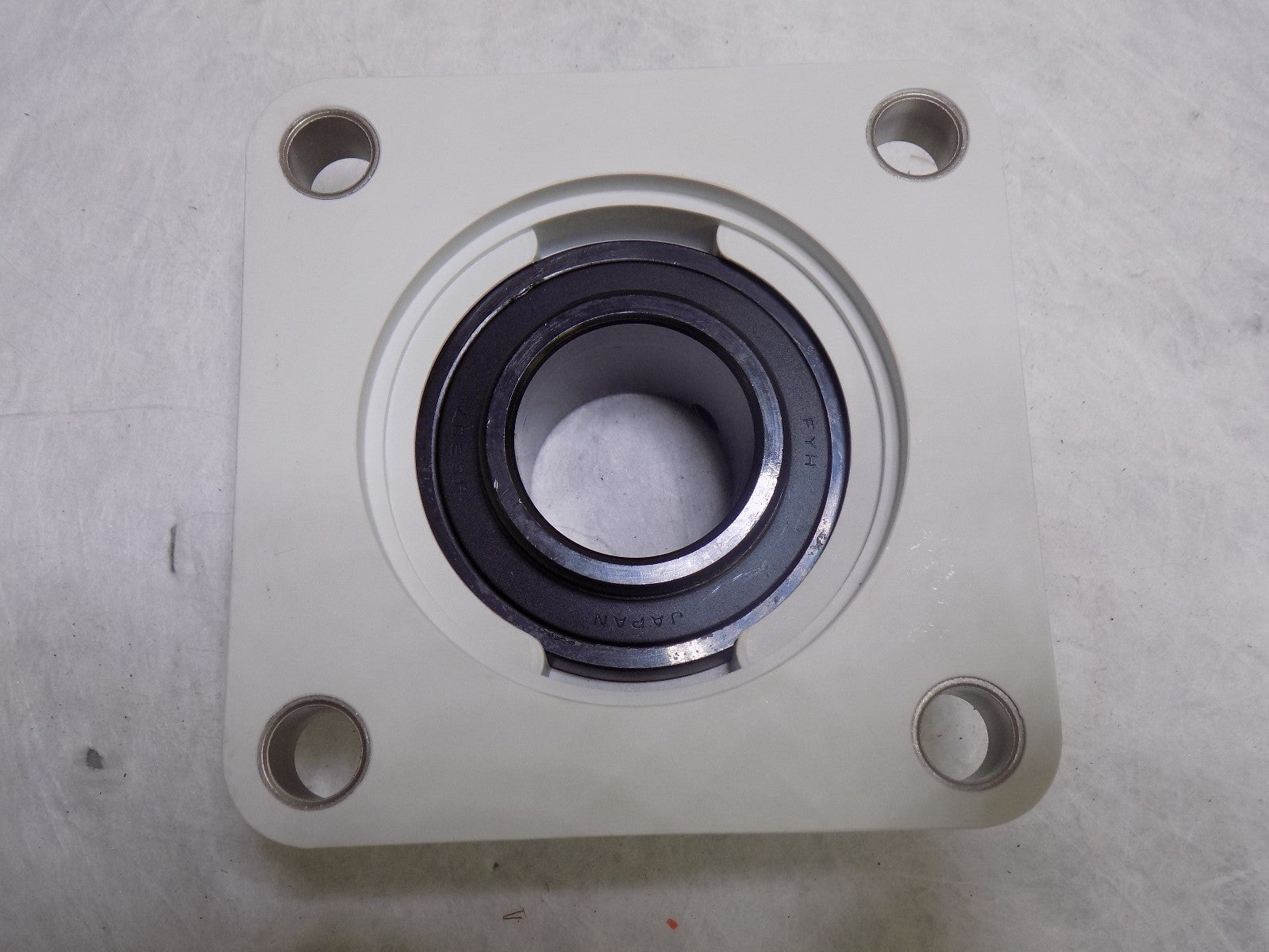

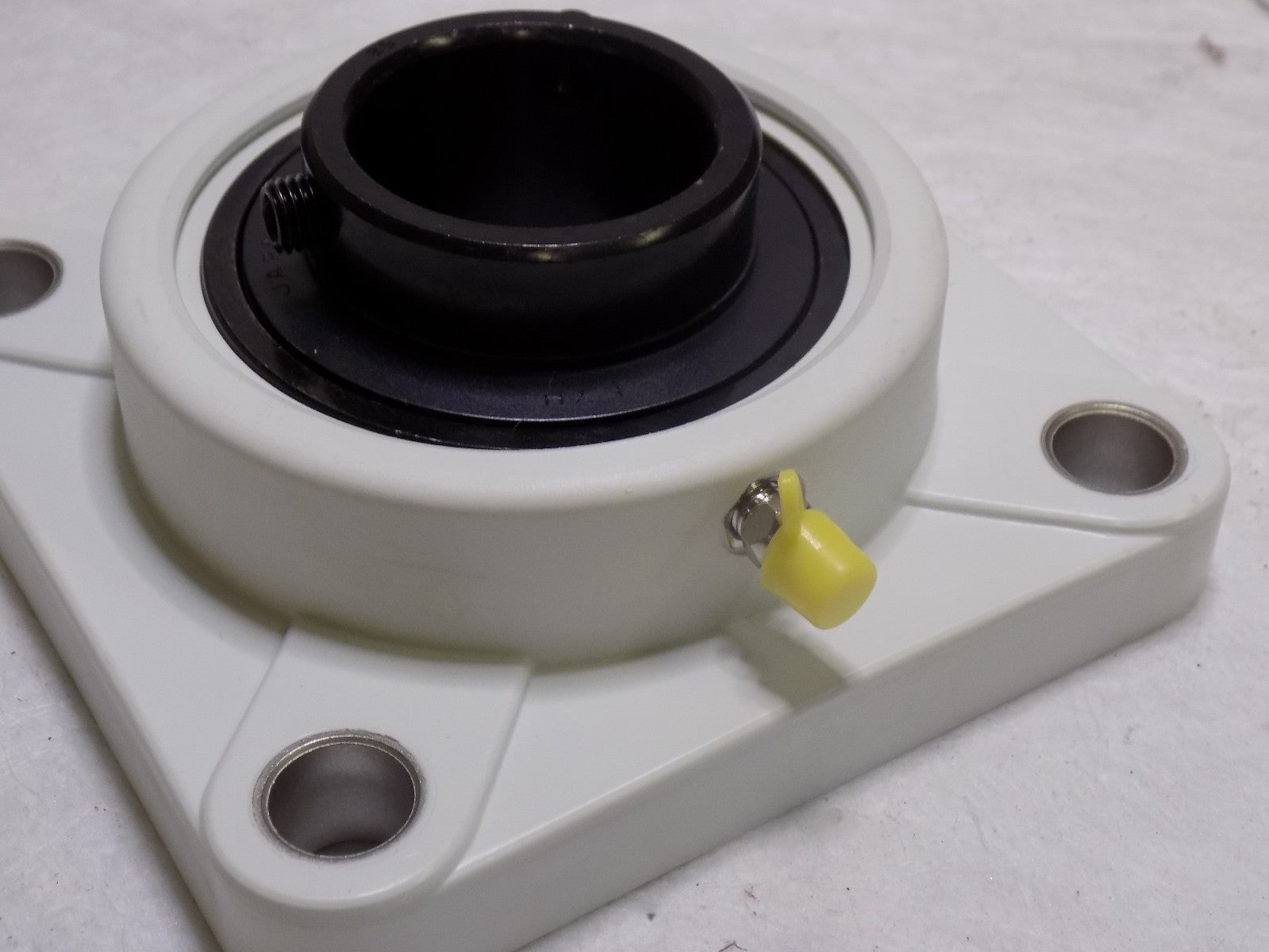

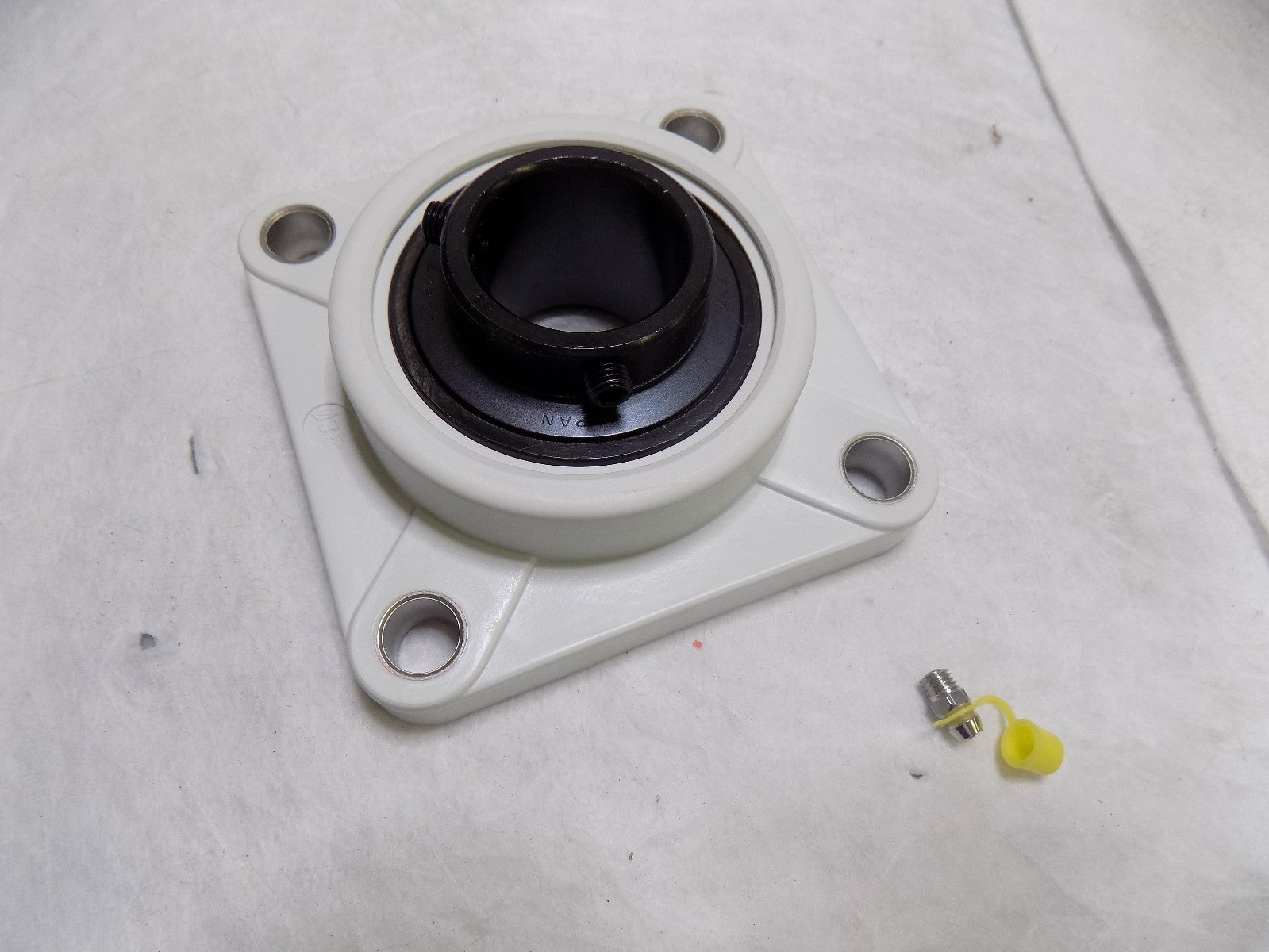

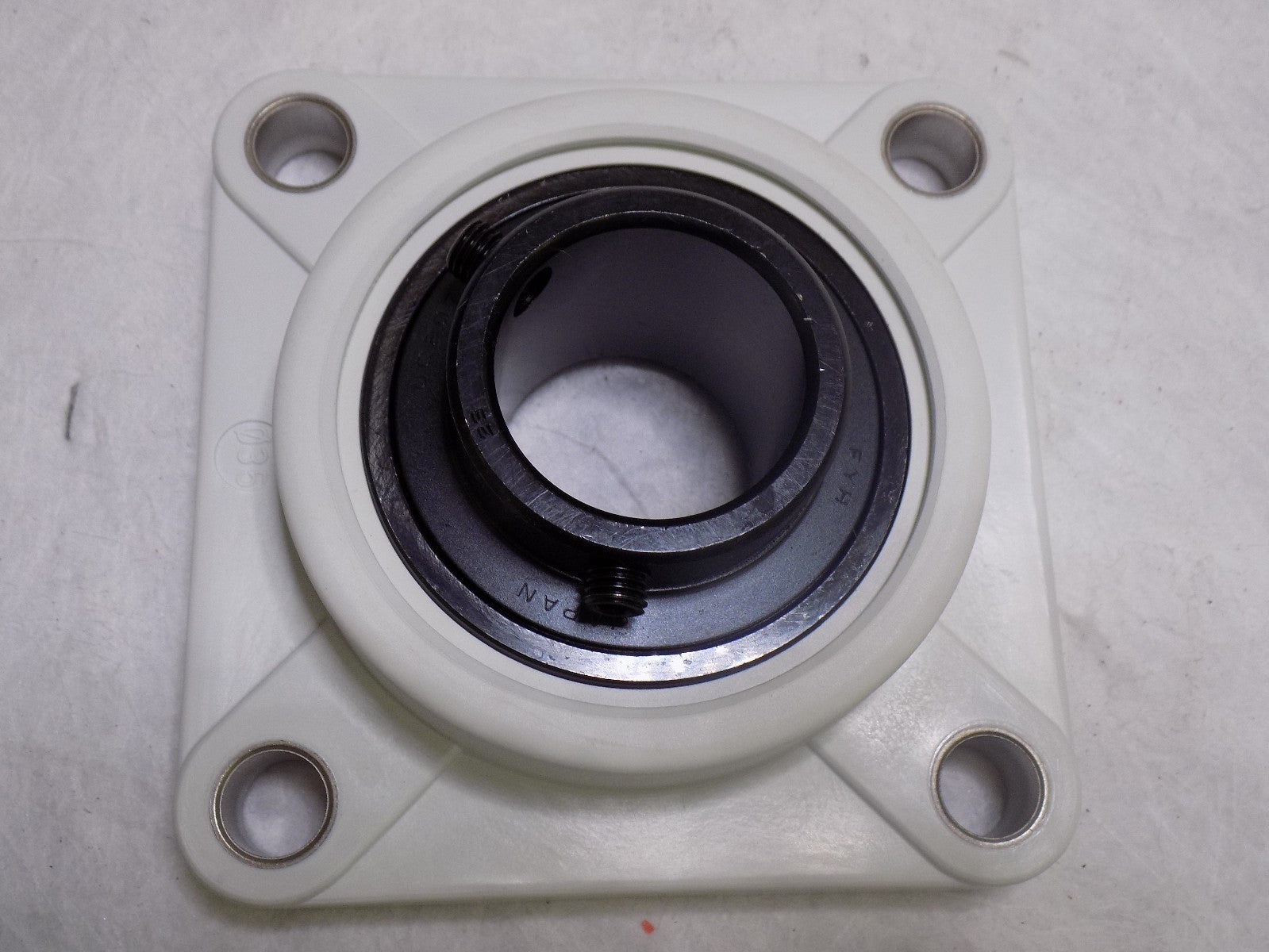

Type: 4 Bolt Flange Mounted Bearing
Inside Diameter (Decimal Inch): 1.4375"
Inside Diameter (Inch): 1-7/16"
Width (Inch): 4.656"
Width (Decimal Inch): 4.6563"
Overall Length (Inch): 4-21/32"
Overall Length (Decimal Inch): 4.6563"

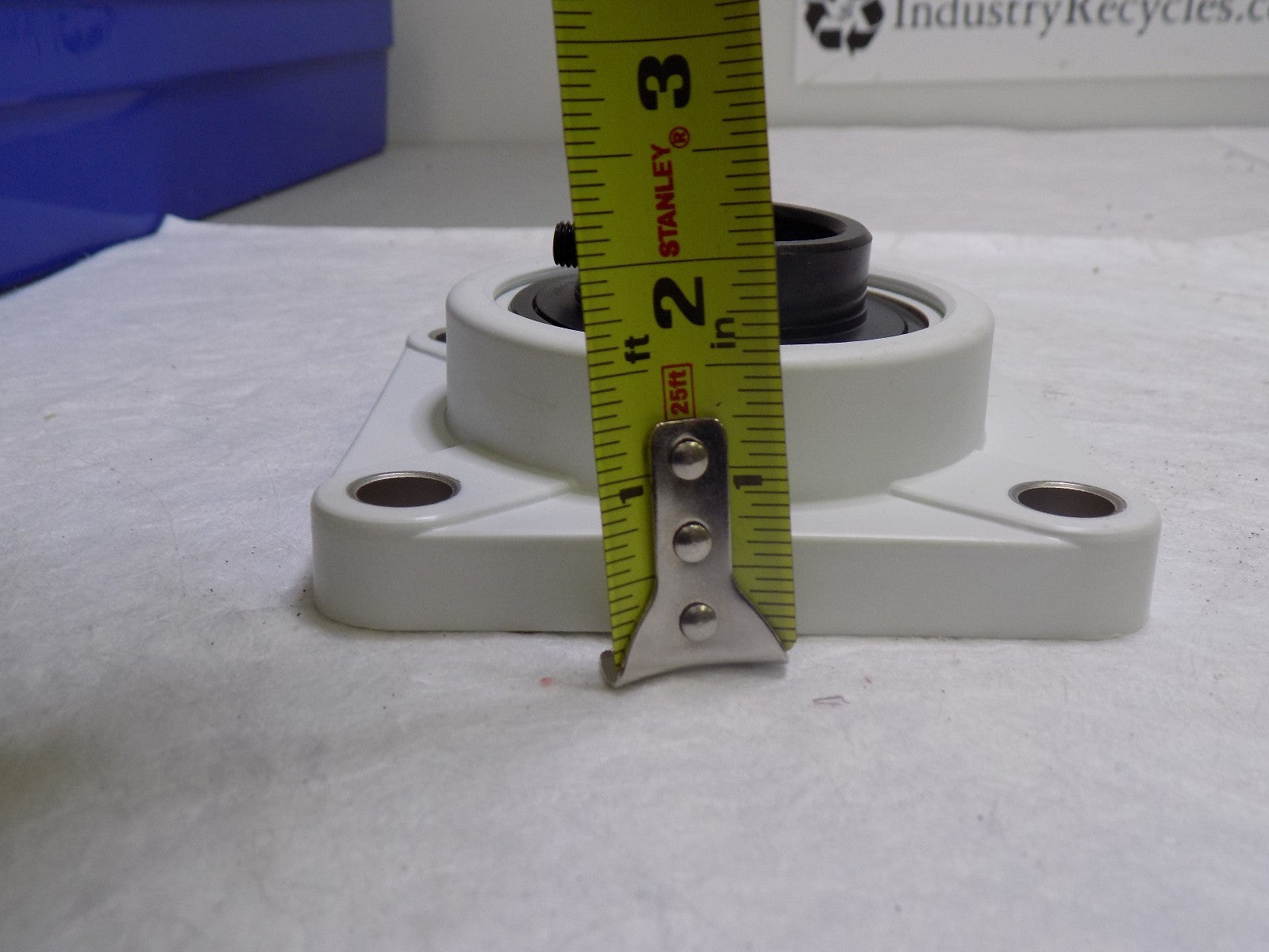

Overall Height (Inch): 1-27/32"
Overall Height (Decimal Inch): 1.8438"
Static Load Capacity (Pounds): 3462.00
Dynamic Load Capacity (Pounds): 5777
Distance Between Mounting Hole Centers (Decimal Inch): 3.6250"
Distance Between Mounting Hole Centers (Inch): 3-5/8"
Material: Thermoplastic Housing with Zinc Chromate Plated Bearing Insert
Distance Between Base And Center (Decimal Inch): 0.8438"
Distance Between Base And Center (Inch): 27/32"
Lock Type: Set Screw
Bolt Size (Inch): 1/2"
Bolt Size (Decimal Inch): 0.5000"
