FYH 2-Bolt Flange Mounted Bearing 1" ID 5-5/32" OAL 1-13/32" OAH 69973485

FYH
2-Bolt Flange Mounting Bearing

MSRP: $50.00

• Type 2 Bolt Flange Mounted Bearing
• Inside Diameter (Decimal Inch) 1.0000
• Inside Diameter (Inch) 1
• Width (Inch) 2-3/4
• Width (Decimal Inch) 2.7500
• Overall Length (Inch) 5-5/32
• Overall Length (Decimal Inch) 5.1563
• Overall Height (Inch) 1-13/32
• Overall Height (Decimal Inch) 1.4063
• Static Load Capacity (Pounds) 1764.00
• Dynamic Load Capacity (Pounds) 3147
• Distance Between Mounting Hole Centers (Decimal Inch) 3.8906
• Distance Between Mounting Hole Centers (Inch) 3-57/64
• Material Thermoplastic Housing with Zinc Chromate Plated Bearing Insert
• Distance Between Base And Center (Decimal Inch) 0.6250
• Distance Between Base And Center (Inch) 5/8
• Lock Type Set Screw
• Bolt Size (Inch) 7/16
• Bolt Size (Decimal Inch) 0.4375

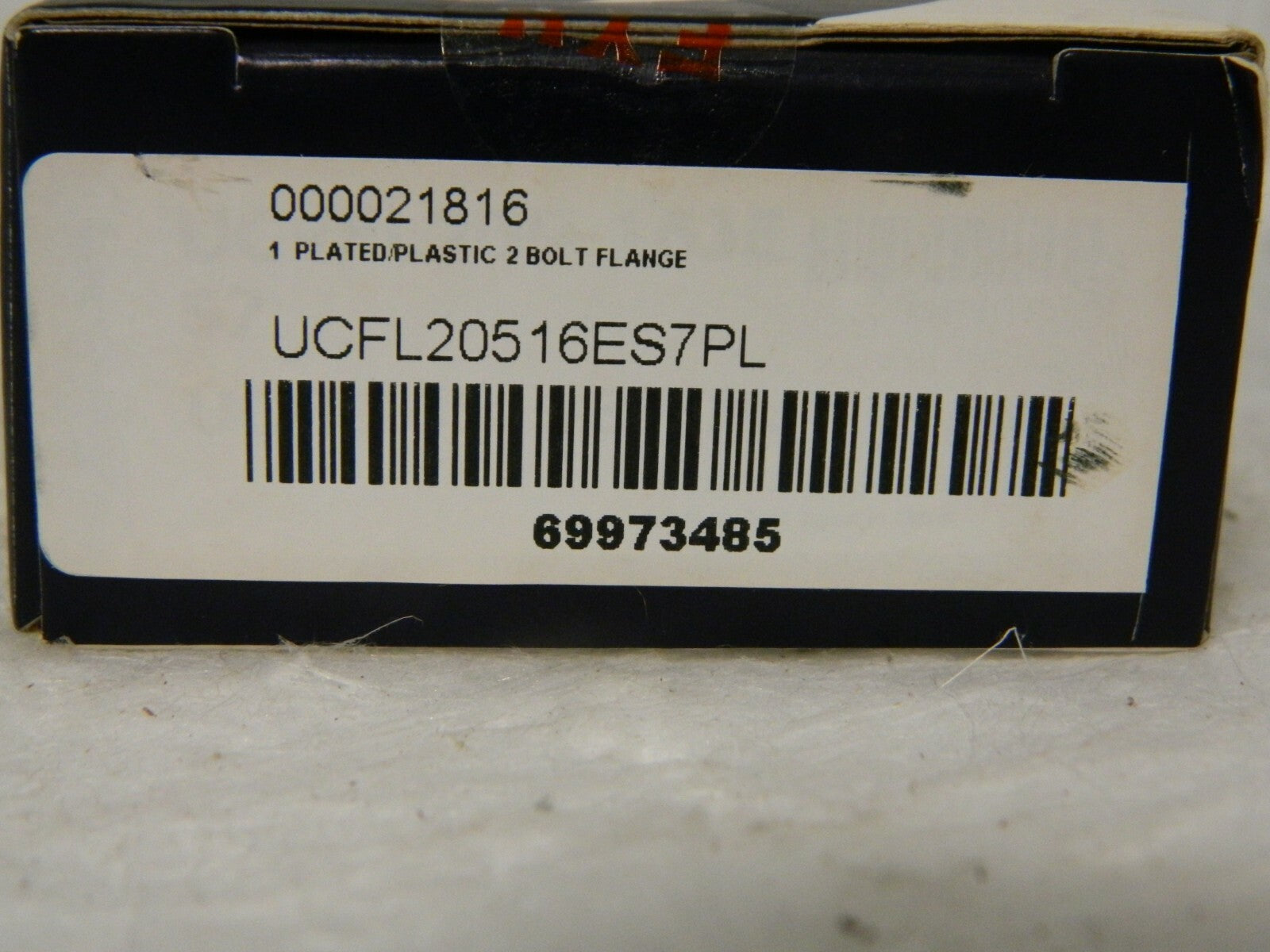

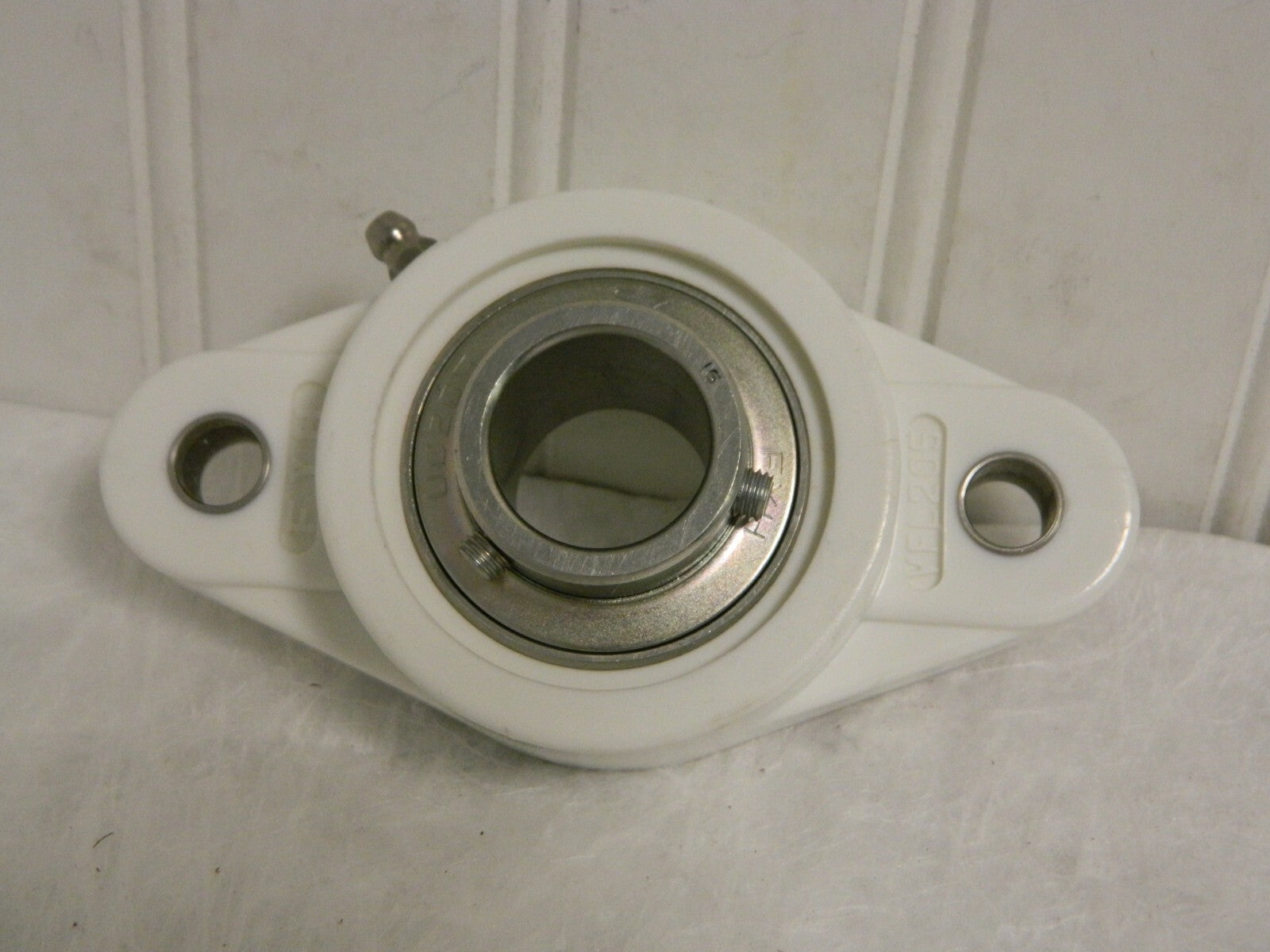

Please review photos, comes as shown.
