Fullerton Tool Carbide Radius End Mill 37662

Fullerton

 Carbide Radius End Mill 37662
MSRP: $200

• Cutting Diameter (Decimal Inch) 0.6250"
• Cutting Diameter (mm) 15.88mm
• Cutting Diameter (Inch) 5/8"
• Cutting Flute Length (Decimal Inch) 1.5000"
• Cutting Flute Length (mm) 38.10mm
• Cutting Flute Length (Inch) 1-1/2"
• Shank Diameter (Decimal Inch) 0.6250"
• Shank Diameter (mm) 15.88mm
• Shank Diameter (Inch) 5/8"
• Overall Length (Decimal Inch) 3.5000"
• Overall Length (mm) 88.90mm
• Overall Length (Inch) 3-1/2"
• Coating/Finish FC20
• Metric/Inch Inch
• Number of Flutes 5
• Helix Angle (Degrees) 40
• Flute Spiral Direction Right Hand
• Direction of Cut Right Hand
• Point End Type Corner Radius
• End Type Character Designation R
• Radius (Decimal Inch) 0.0350"
• Radius (mm) 0.89mm
• End Type Single End
• Coolant Through Non Coolant Through
• Weldon Flat No
• Length Standard
• Length Designator SD

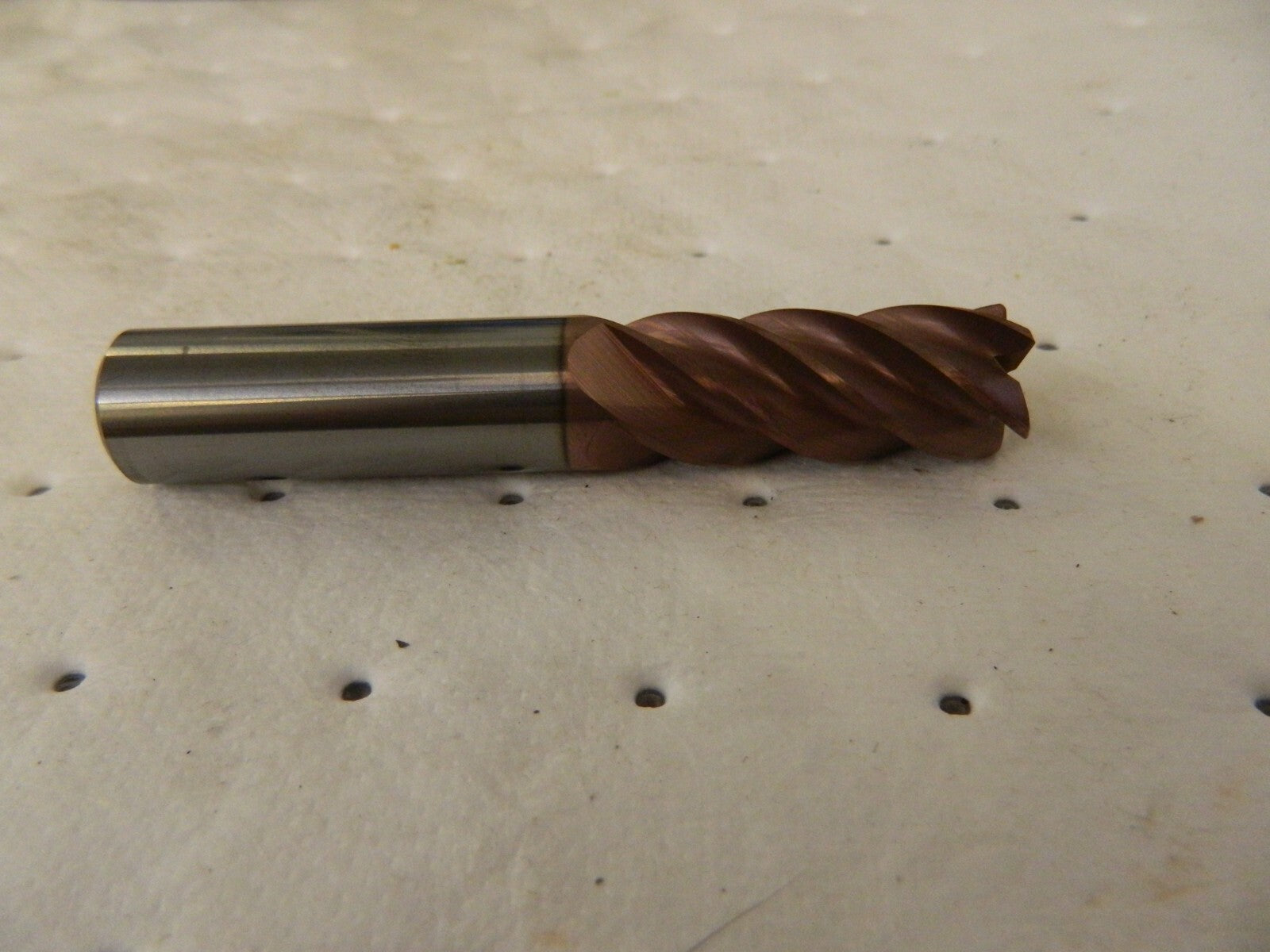

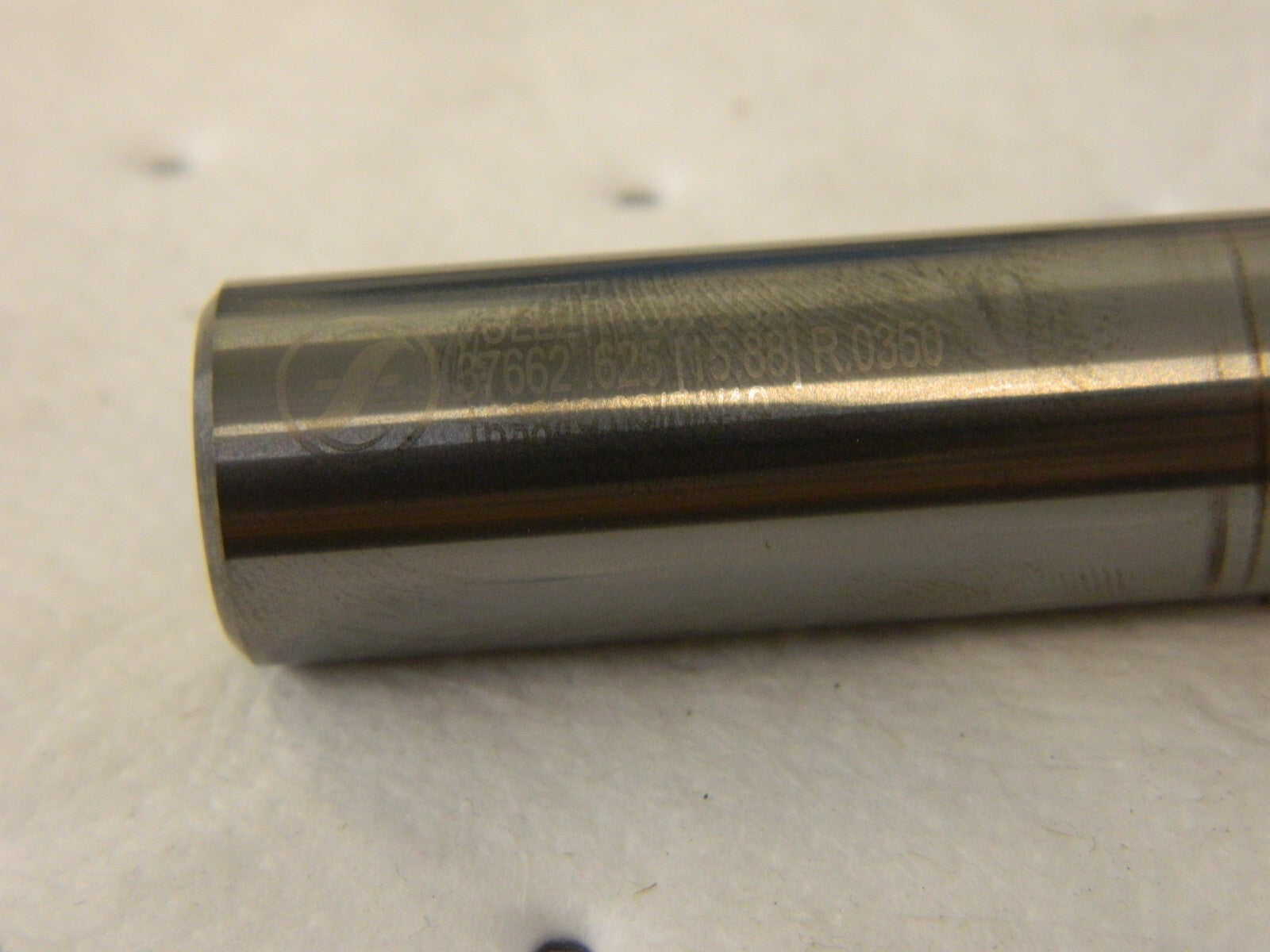

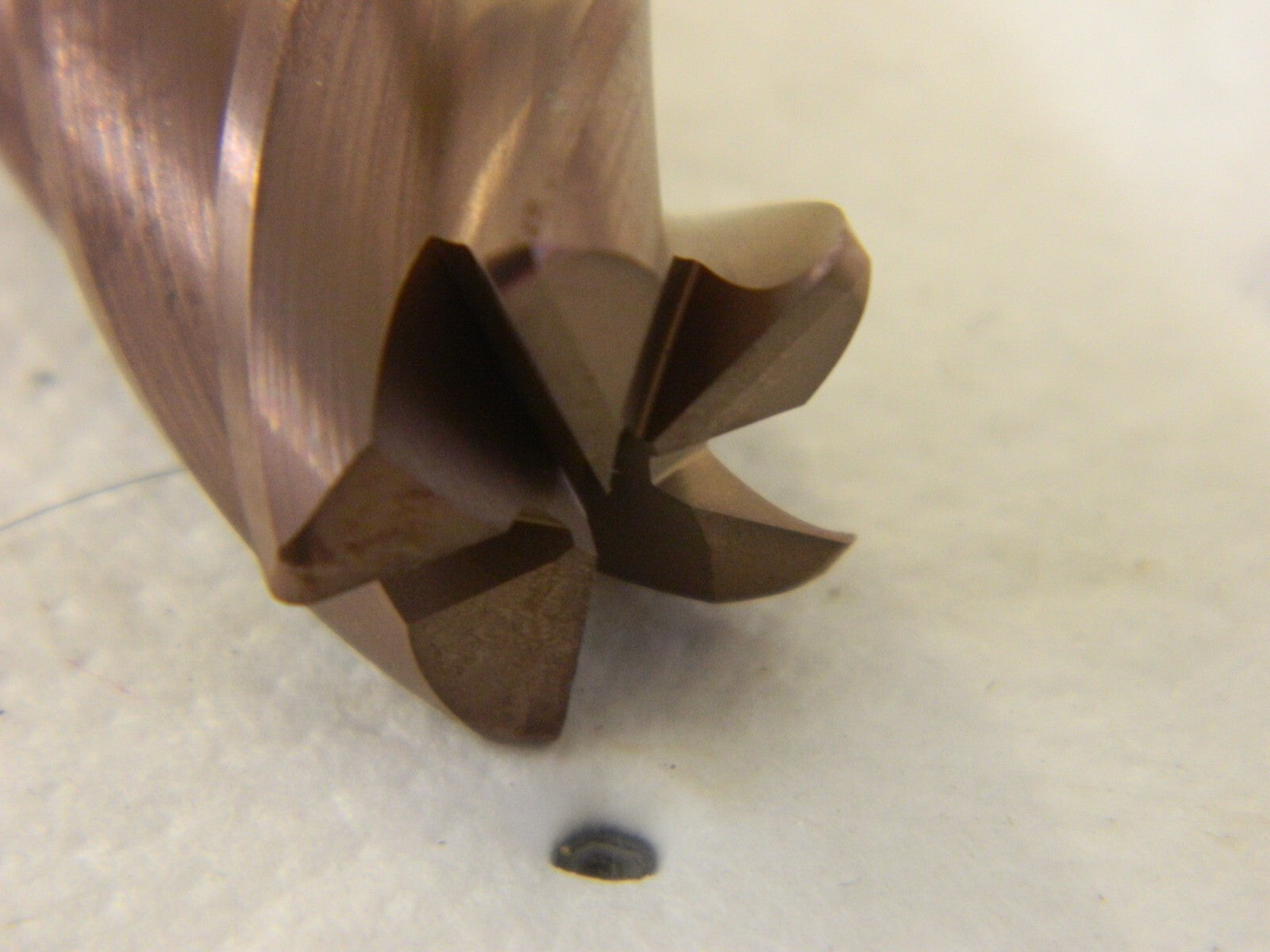

 Please review photos, comes as shown.
