Fraisa Carbide Corner Radius End Mills 1/2" Dia 1" LOC 4FL H98507530

Fraisa
Carbide Corner Radius End Mills

MSRP: $275

• Mill Diameter (Inch) 1/2
• Mill Diameter (Decimal Inch) 0.5000
• Number Of Flutes 4
• Length of Cut (Inch) 1
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish AlTiN
• Overall Length (Inch) 3-1/4
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0300
• Variable Index No
• Helix Angle 45
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 3.2500
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 1.0000
• Length Type Standard
• Flute Type Spiral
• Extended Reach Yes
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.5000
• Shank Diameter (Inch) 1/2
• Neck Diameter (Decimal Inch) 0.4600
• Reach Length (Decimal Inch) 1.3750
• Reach Length (Inch) 1-3/8
• Mill Diameter Tolerance -0.01/0.00 mm
• Shank Diameter Tolerance h4
• Primary Workpiece Material Steel
• UNSPSC Code 27112803
• Primary Workpiece Material Code P
• Series HX-RNVS
• Material Application Steel
• For Use With. End Mill Toolholders
• Helix Style High

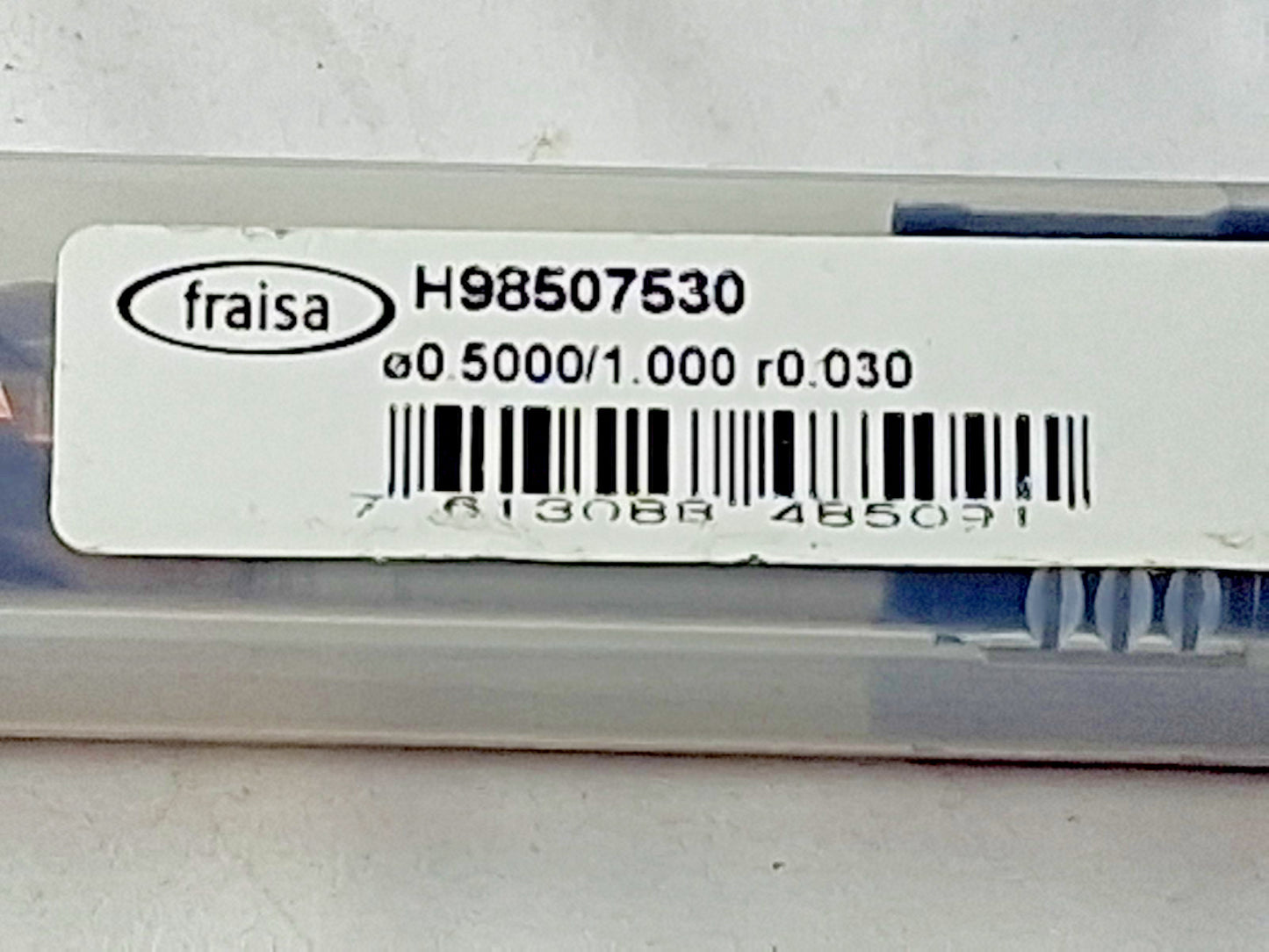

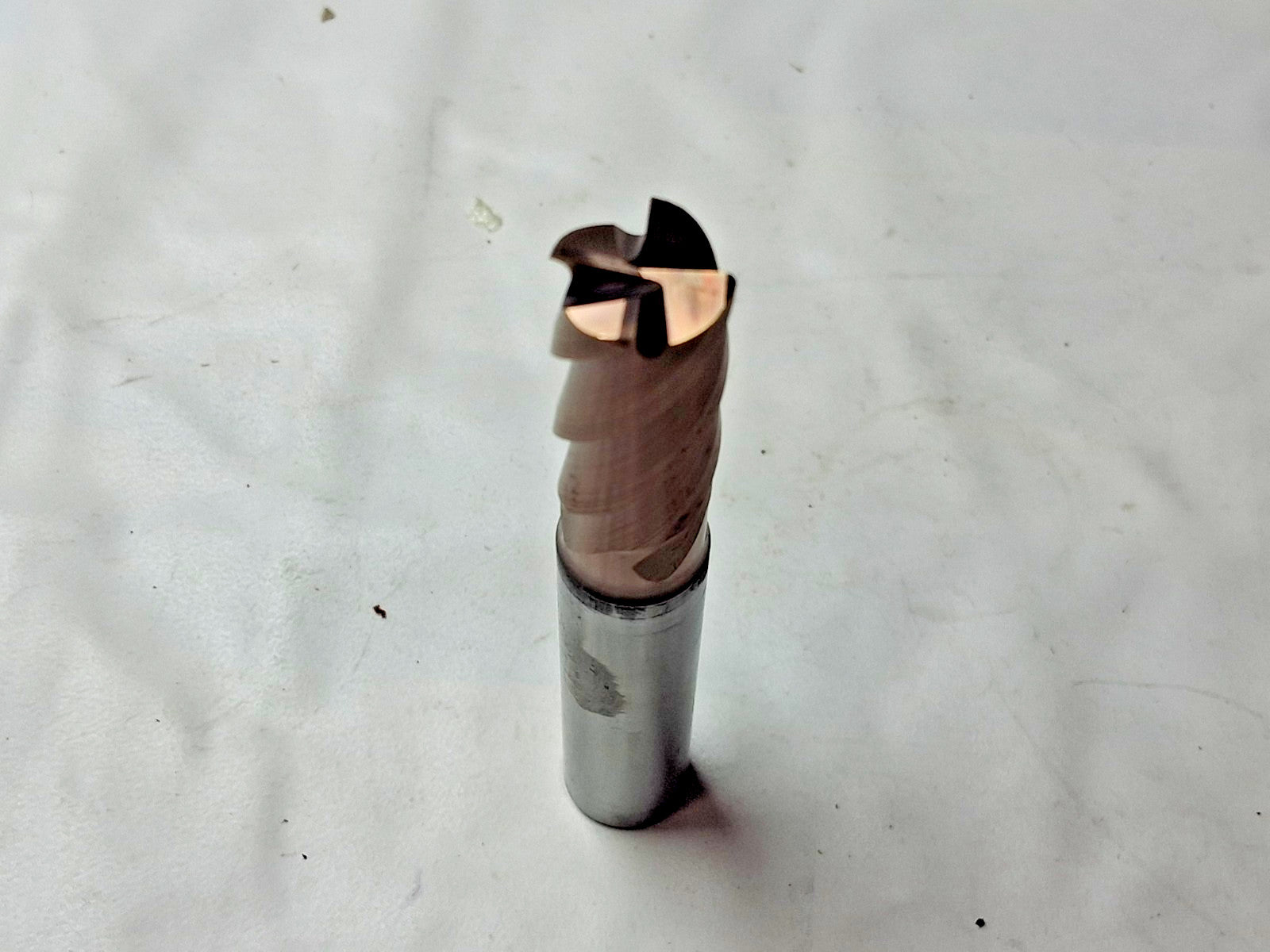

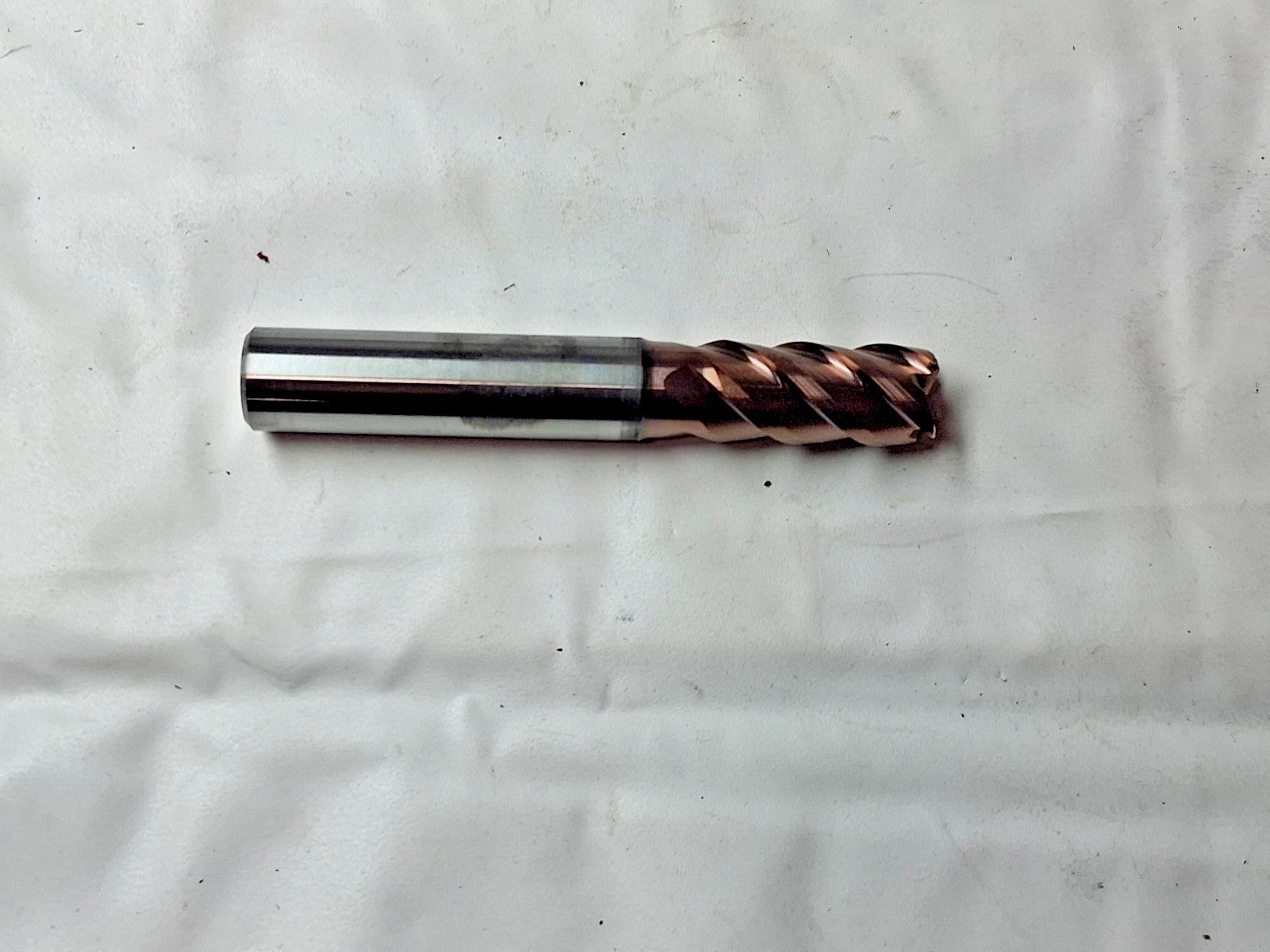

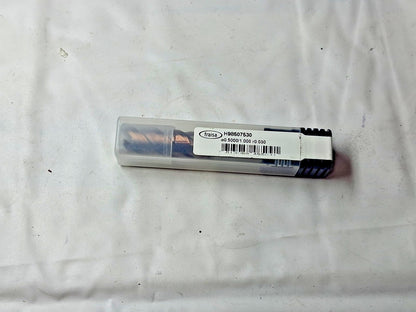

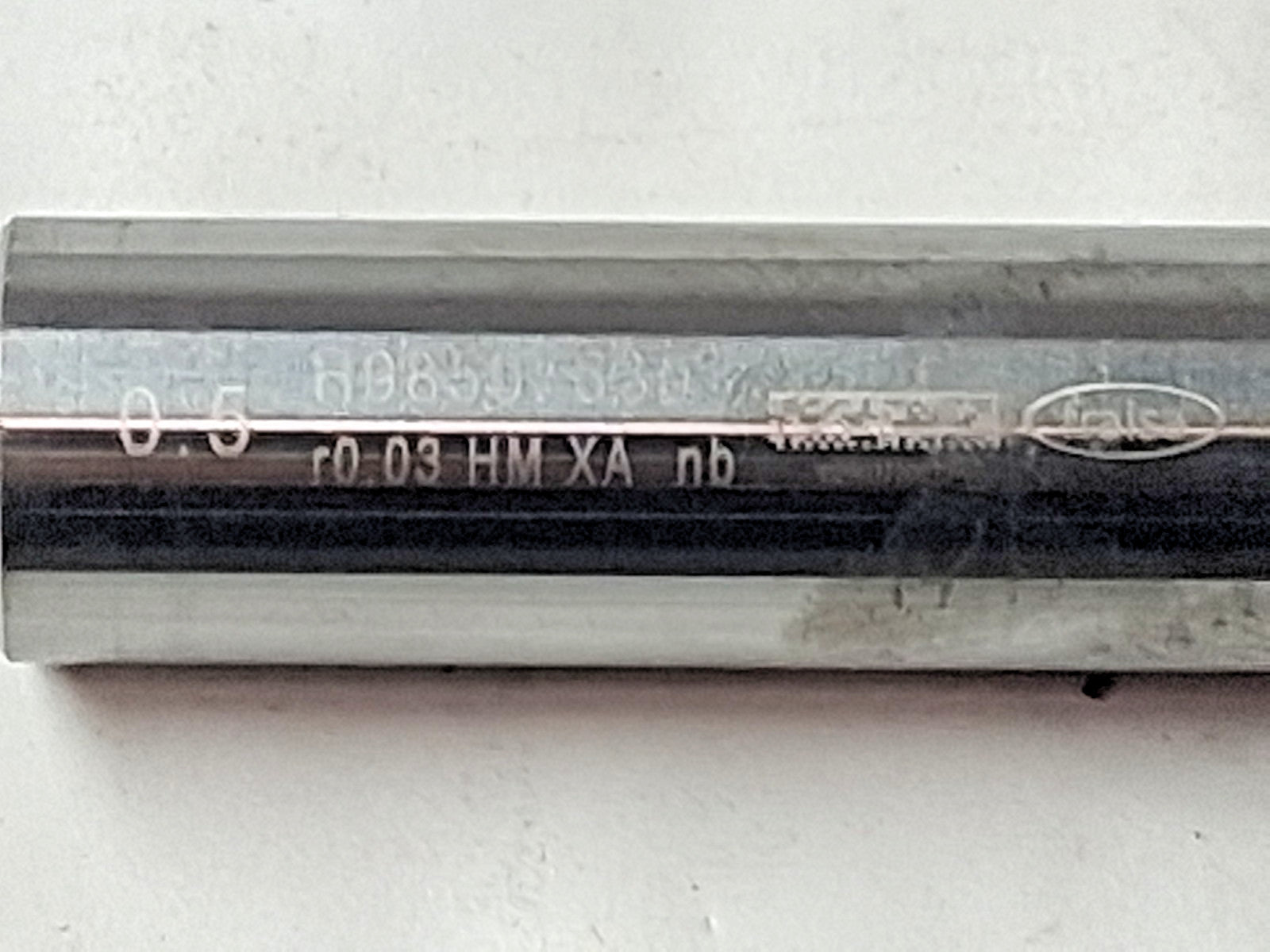

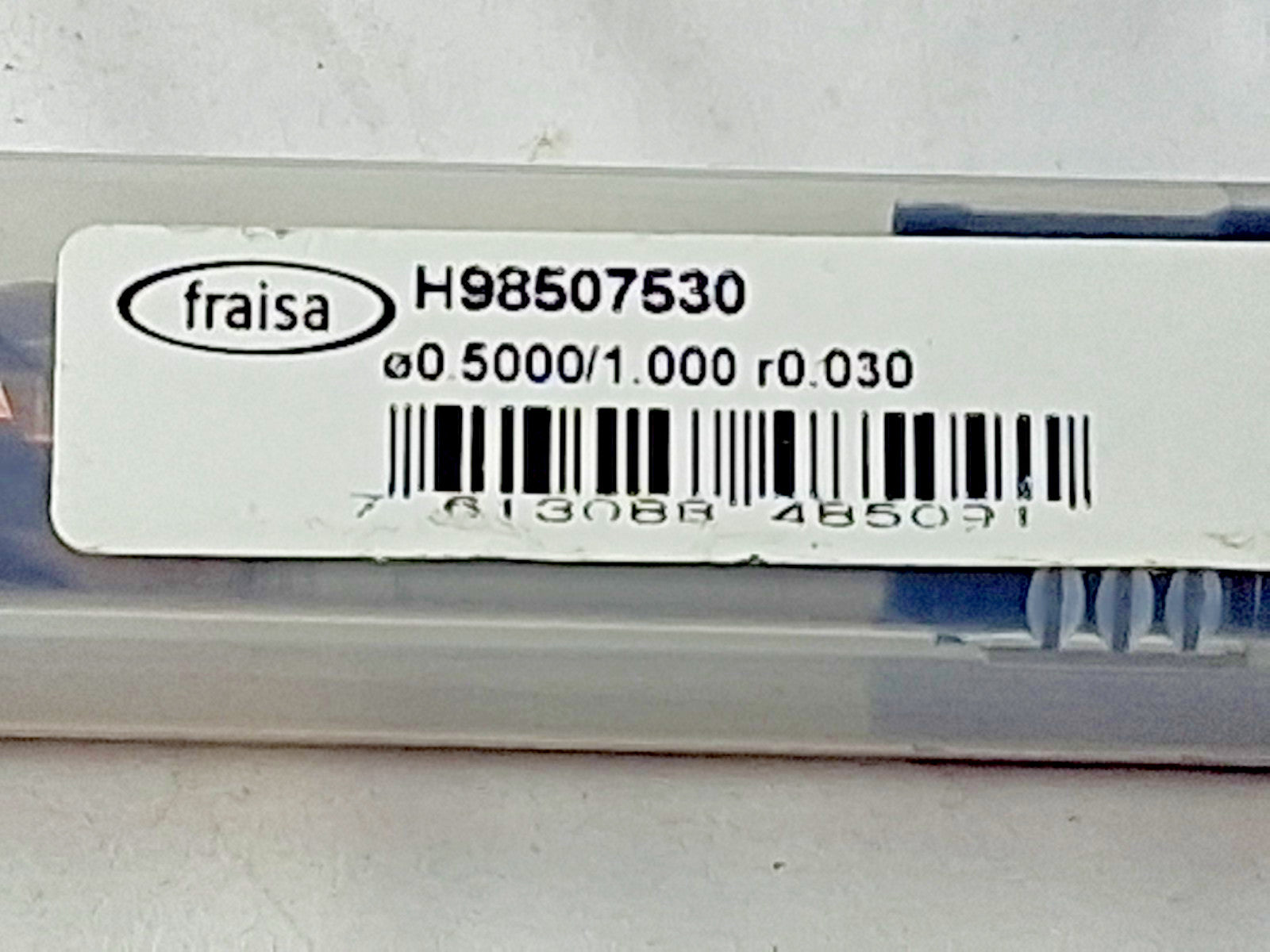

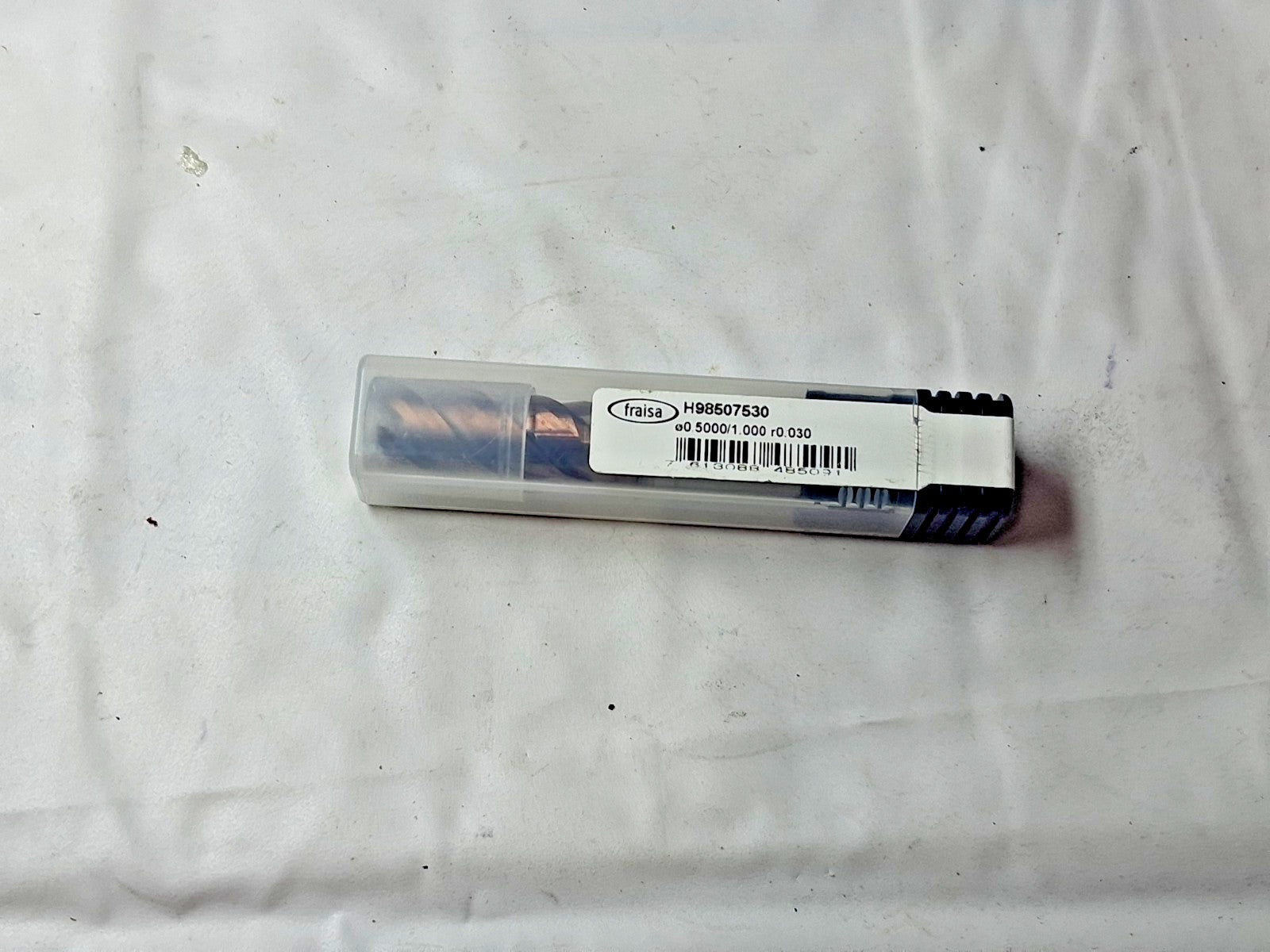

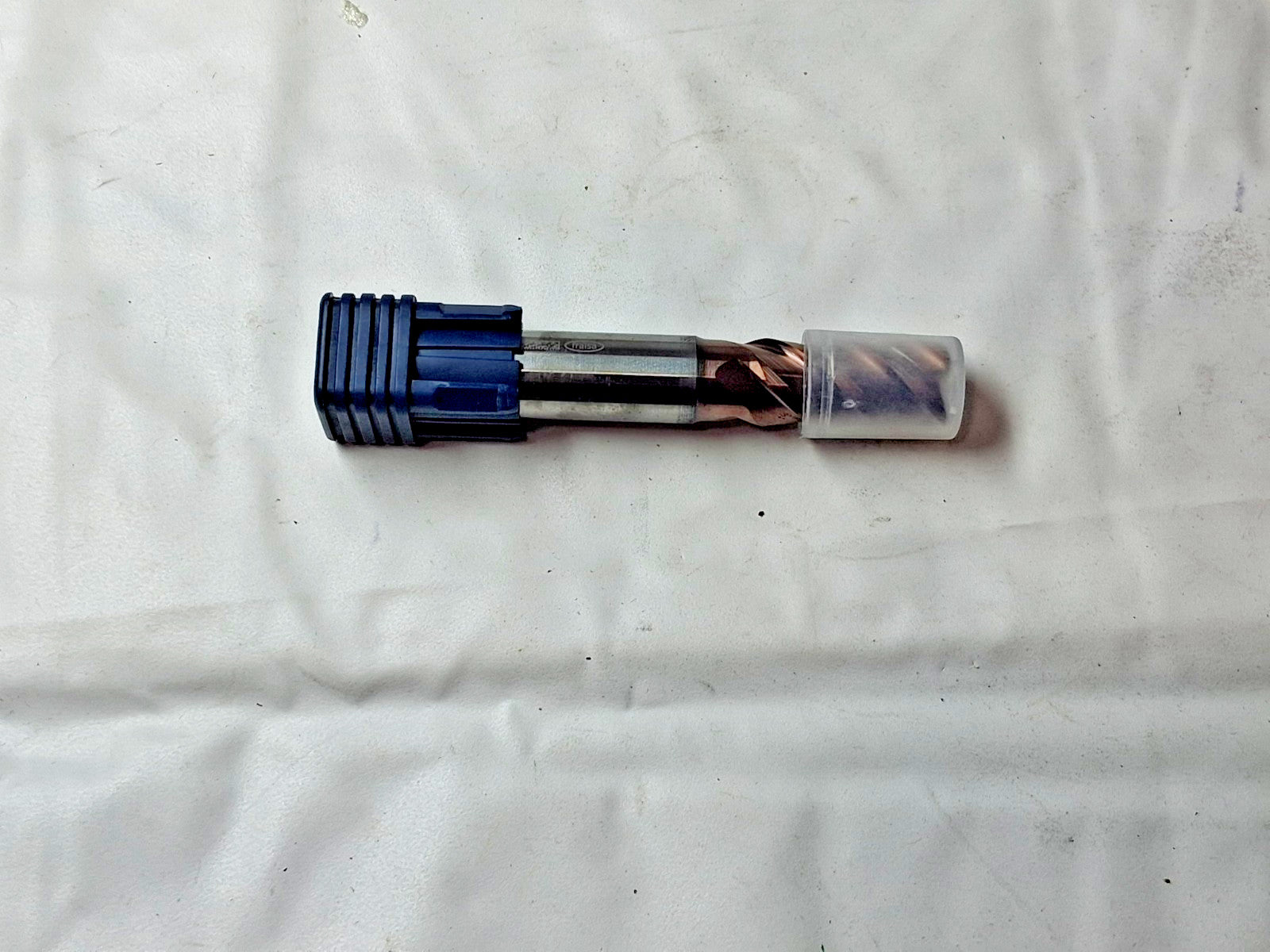

Please review photos, comes as shown.
