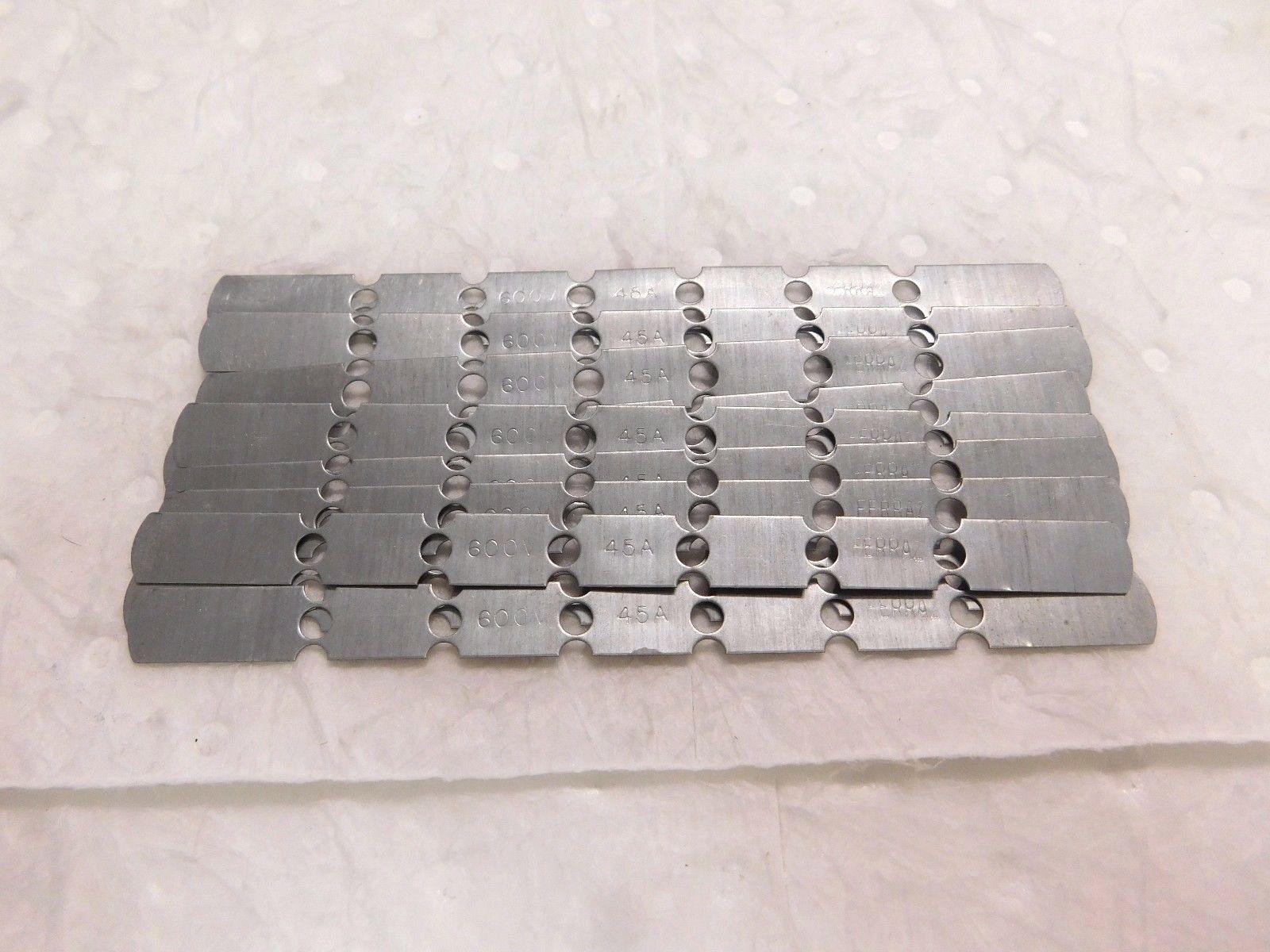

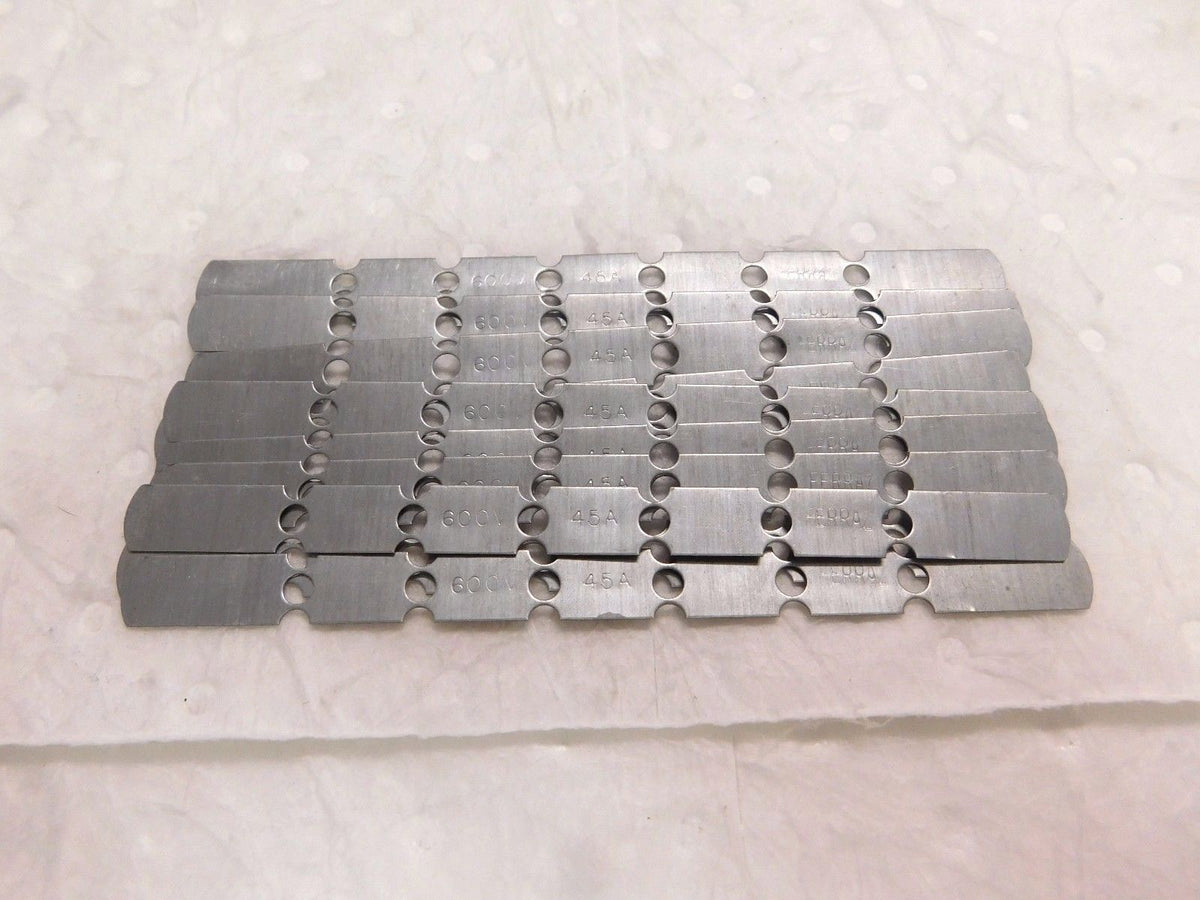

Ferraz Shawmut Renewable Fuse Link 600V 45A Lot of 11 #RLS45

Ferraz Shawmut Renewable Fuse Link 600V 45A Lot of 11 #RLS45

Ferraz Shawmut

Model: RLS45

Specs:

Fuse Type: Renewable
Fuse Class: H
Amperage: 45
Voltage: 600 VAC
Fuse Timing: Fast-Acting
Fuse Body Type: Cylindrical
Overall Length (Decimal Inch): 5.50
Mounting Type: Fuse Holder
Reusability: Renewable
Interrupting Rating (kA): 10 @ AC
Overall Diameter (mm): 27.00
Overall Diameter (Inch): 1-1/16
Overall Diameter (Decimal Inch): 1-1/16
Overall Length (mm): 139
Overall Length (Inch): 5-1/2
Standards Met: CSA C22.2 No. 248.7 Certified; UL Listed 248-7 File E2137
