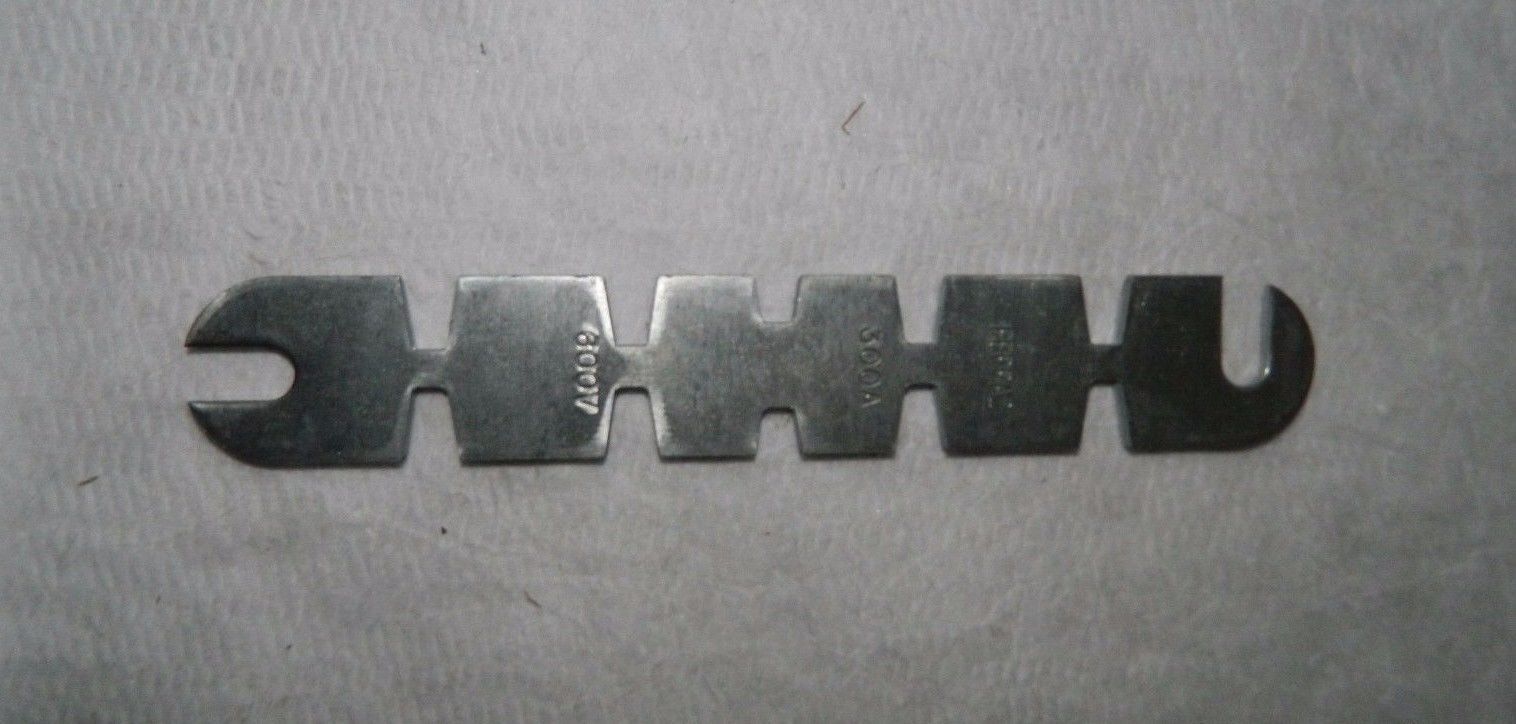

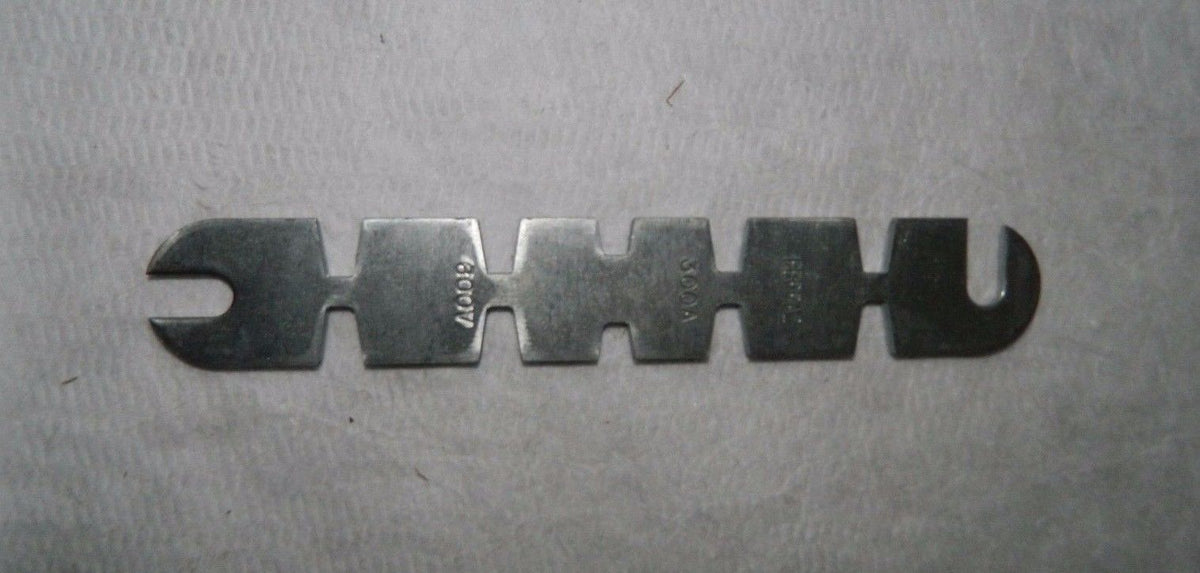

Ferraz Shawmut Fast Acting Renewable Fuse Link 600 VAC 300A #RLS300

Ferraz Shawmut Fast Acting Renewable Fuse Link 600 VAC 300A #RLS300

Ferraz Shawmut

Model: RLS300

Specs:

Fuse Type: Renewable
Fuse Class: H
Amperage: 300
Voltage: 600 VAC
Fuse Timing: Fast-Acting
Fuse Body Type: Cylindrical
Overall Length (Decimal Inch): 11.63
Mounting Type: Fuse Holder
Reusability: Renewable
Interrupting Rating (kA): 10 @ AC
Overall Diameter (mm): 66.00
Overall Diameter (Inch): 2-9/16
Overall Diameter (Decimal Inch): 2-9/16
Overall Length (mm): 295
Overall Length (Inch): 11-5/8
Standards Met: CSA C22.2 No. 248.7 Certified; UL Listed 248-7 File E2137
