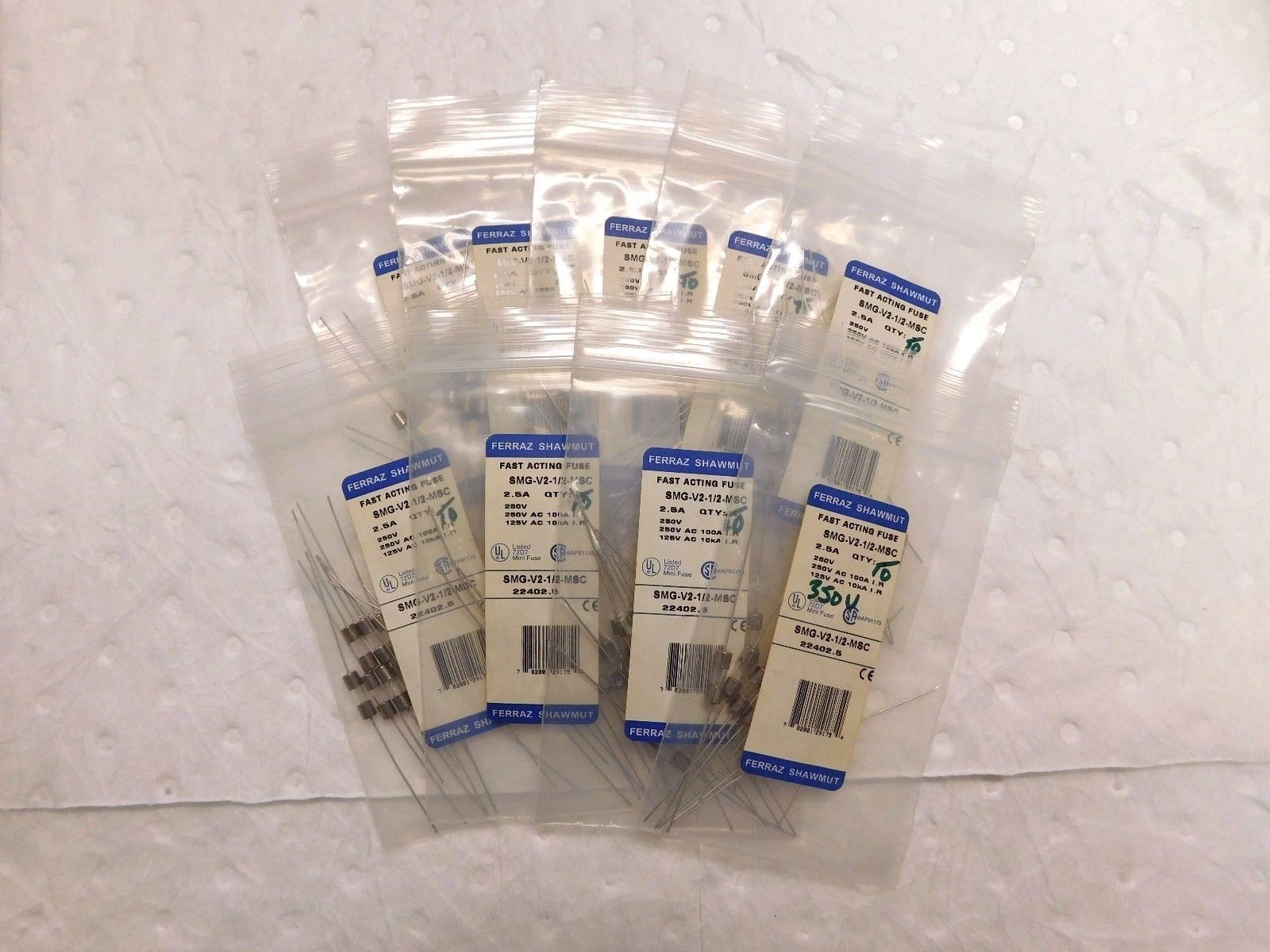

Ferraz Shawmut Fast Acting Mini Glass Fuse 350V 2.5A 10PK #SMG-V2-1/2

Specs:

Fuse Type: Miniature Glass
Fuse Class: SMG-V
Amperage: 2.50
Voltage: 140 VDC; 350 VAC
Fuse Timing: Fast-Acting
Fuse Body Type: Cylindrical
Material: Glass
Mounting Type: Surface Mount
Rejection Setting: NonRejecting
Interrupting Rating (A): 100 @ 350 V; 150 @140 V
Interrupting Rating (kA): 10 @ 125 V
Overall Diameter (mm): 5.00
Overall Length (mm): 15
Standards Met: CSA Recognized; UL File 90660; UL Listed
