Erickson Collet Chuck: 2.03 to 20 mm Capacity, ER Collet, Taper Shank 1261619

Erickson
Collet Chuck

MSRP: $125.00

• Collet System ER
• Collet Series ER32
• Shank Type Taper
• Taper Size CAT40
• Projection (Decimal Inch) 2.7500
• Projection (Inch) 2-3/4
• Through Coolant Yes
• Minimum Collet Capacity (mm) 2.03
• Minimum Collet Capacity (Decimal Inch) 0.0800
• Maximum Collet Capacity (mm) 20.00
• Maximum Collet Capacity (Decimal Inch) 0.7874
• Overall Length (Decimal Inch) 5.4370
• Actuator Type Wrench
• Nose Diameter (Decimal Inch - 4 Decimals) 1.9700
• Coolant Type Through-Spindle & DIN Flange
• Collet Nut Diameter (mm) 50.01
• Collet Nut Diameter (Decimal Inch) 1.9690
• Product Service Code 5136
• Balanced To Rpm 12000

This item appears to be new and in great condition. SOLD AS IS.

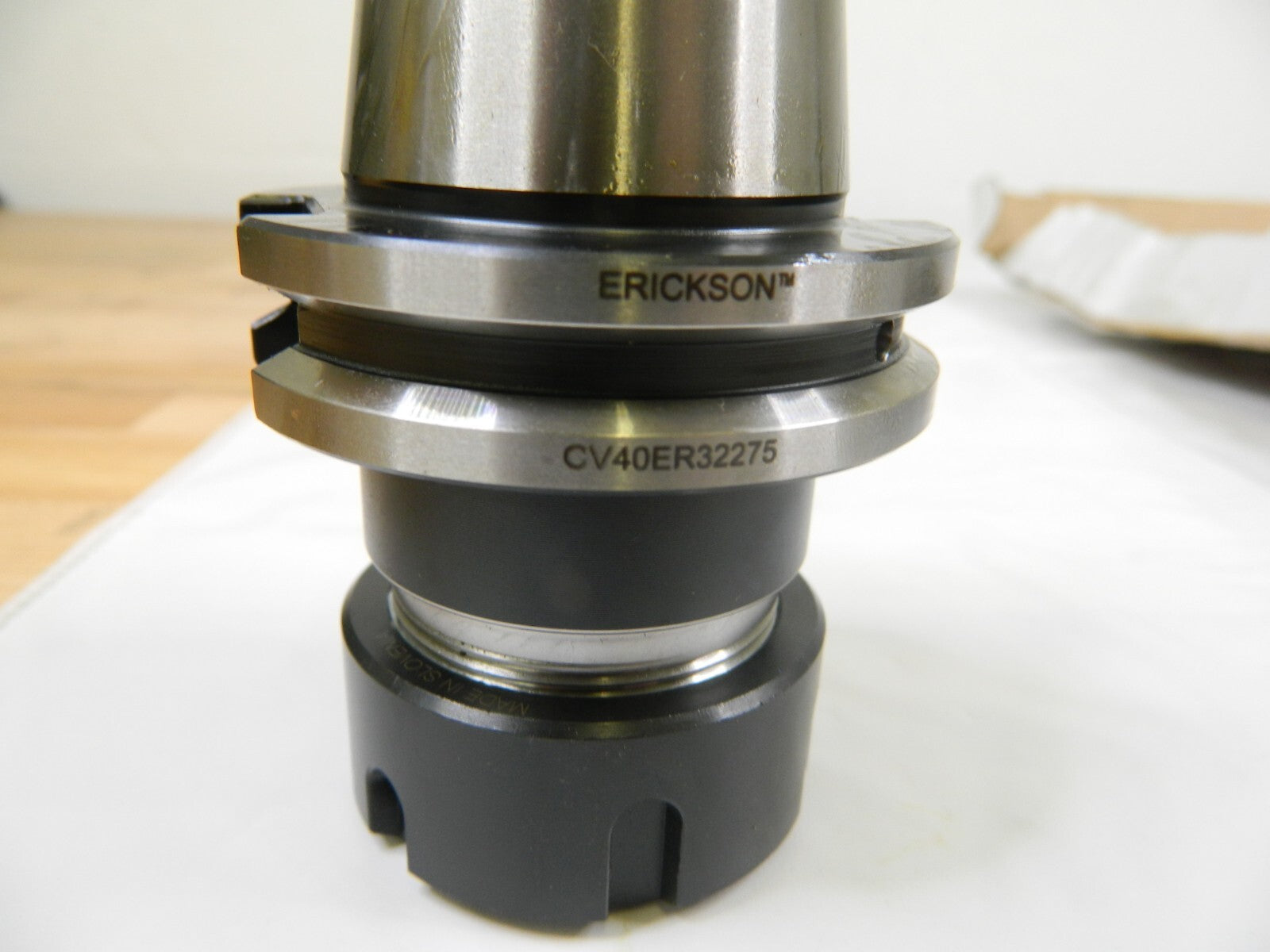

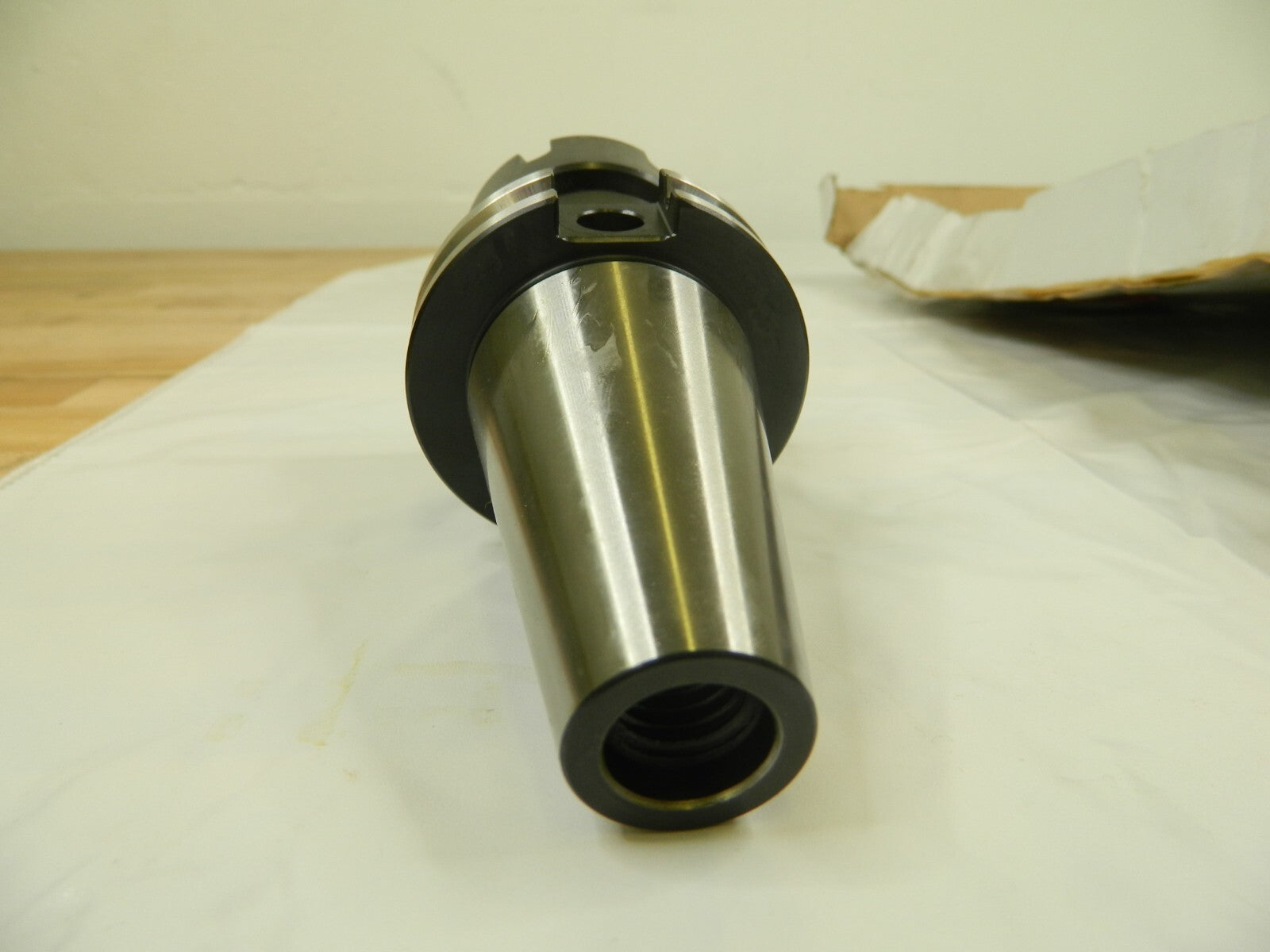

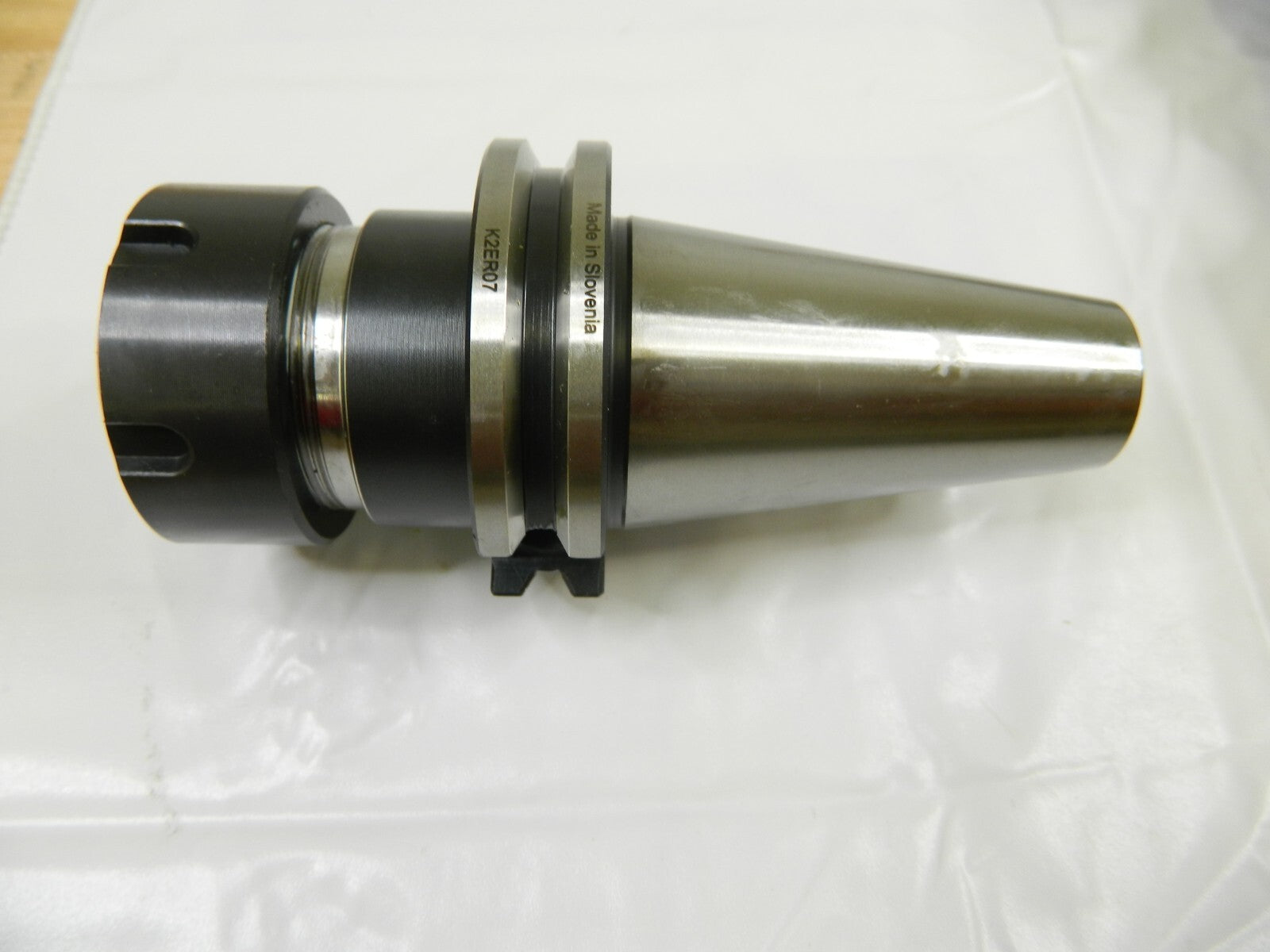

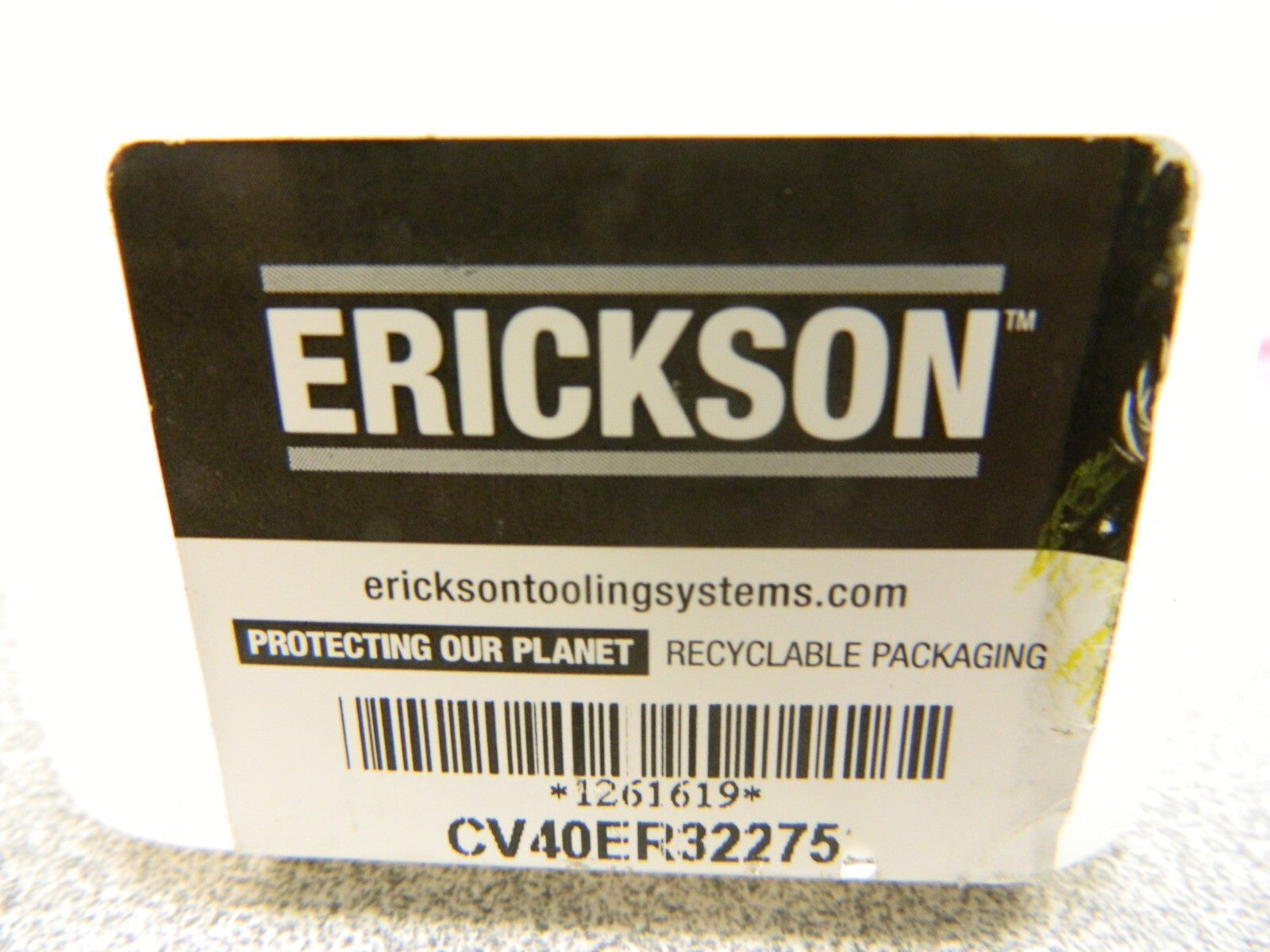

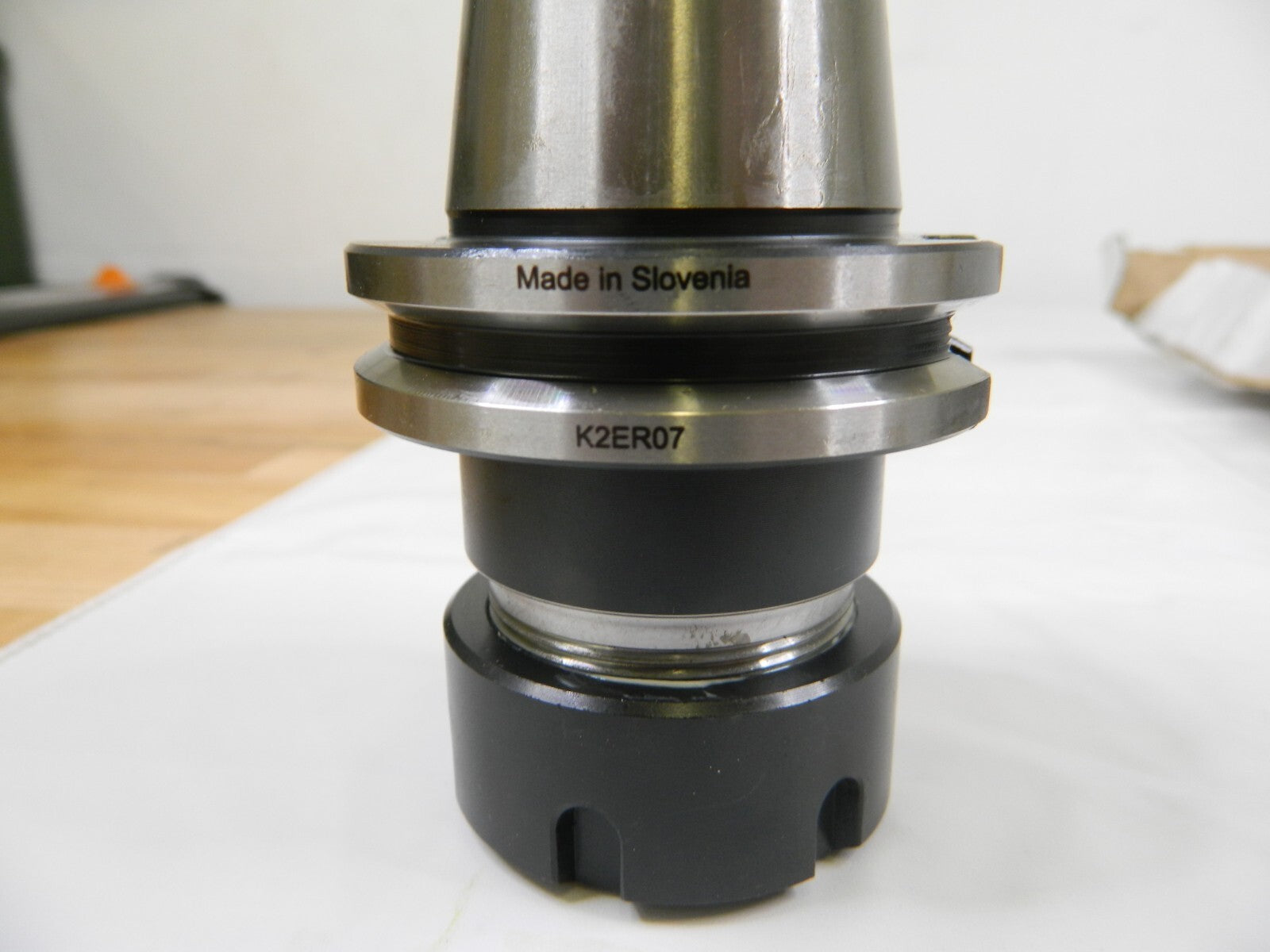

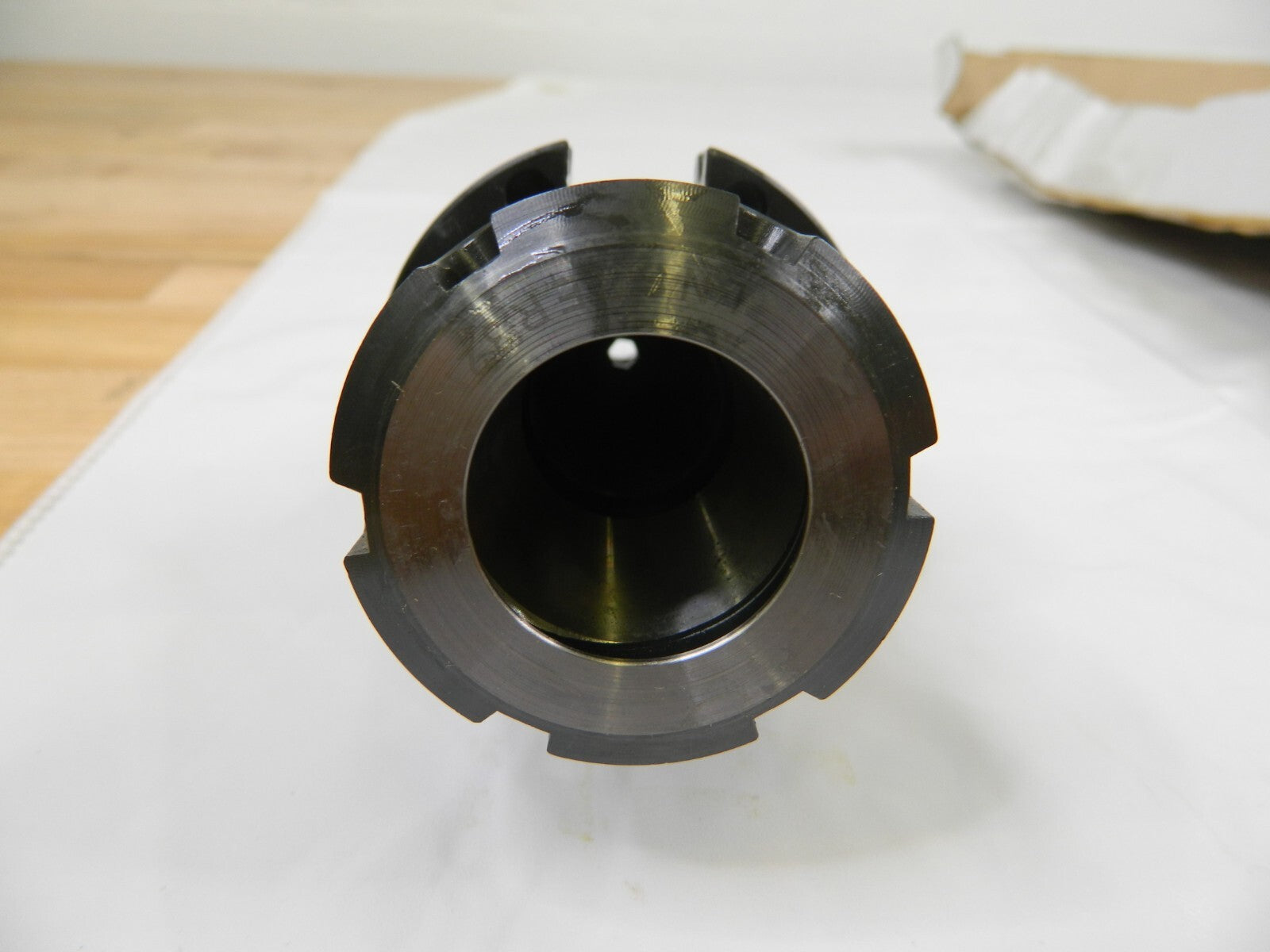

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
