EMUGE 2pk ThreadFormingTap #5-40 UNC HSS-E Titanium Nitride Coated BU591410.5004

EMUGE 2pk ThreadFormingTap #5-40 UNC HSS-E Titanium Nitride Coated BU591410.5004

MSRP: $50

• Thread Size (Inch) #5-40
• Thread Standard UNC
• Chamfer Bottoming
• Chamfered Threads 1.5-2P
• Material High-Speed Steel-E
• Coating/Finish Titanium Nitride
• Coolant Through No
• Class Of Fit 3BX
• Thread Limit H9
• Overall Length (Decimal Inch) 2.2047
• Overall Length (mm) 56.00
• Thread Direction Right Hand
• Thread Length (Decimal Inch) 0.4331
• Thread Length (mm) 11.00
• Shank Diameter (Decimal Inch) 0.1410
• Material Application Non-Ferrous Metal; Stainless Steel; Steel
• Application Blind Hole Threading
• Series BU591410
• Tapping Depth (Decimal Inch) 0.7087
• Tapping Depth (mm) 18.00
• Square Size (Decimal Inch) 0.1100
• Flute By Diameter Ratio 3xD
• Material Application Code P; M; N
• Trade Name InnoForm 1-MULTI/E-SN-TiN
• UNSPSC Code 23241600
• Country of Origin Germany
• Ordered as Part # BU591410.5004

Experience precision tapping with the EMUGE 2-pack ThreadFormingTap, designed to deliver exceptional performance and durability. These taps feature a #5-40 UNC thread size, perfect for a variety of threading tasks. The HSS-E titanium nitride coated construction ensures longevity, even in demanding applications, making them a reliable choice for both professionals and enthusiasts alike. Each tap in this duo is crafted with the attention to detail that EMUGE is known for, although the country of origin remains unspecified. Please note the California Prop 65 warning that accompanies this product. Regardless, these taps are a steadfast addition to any toolset, promising consistent, accurate results with every use.

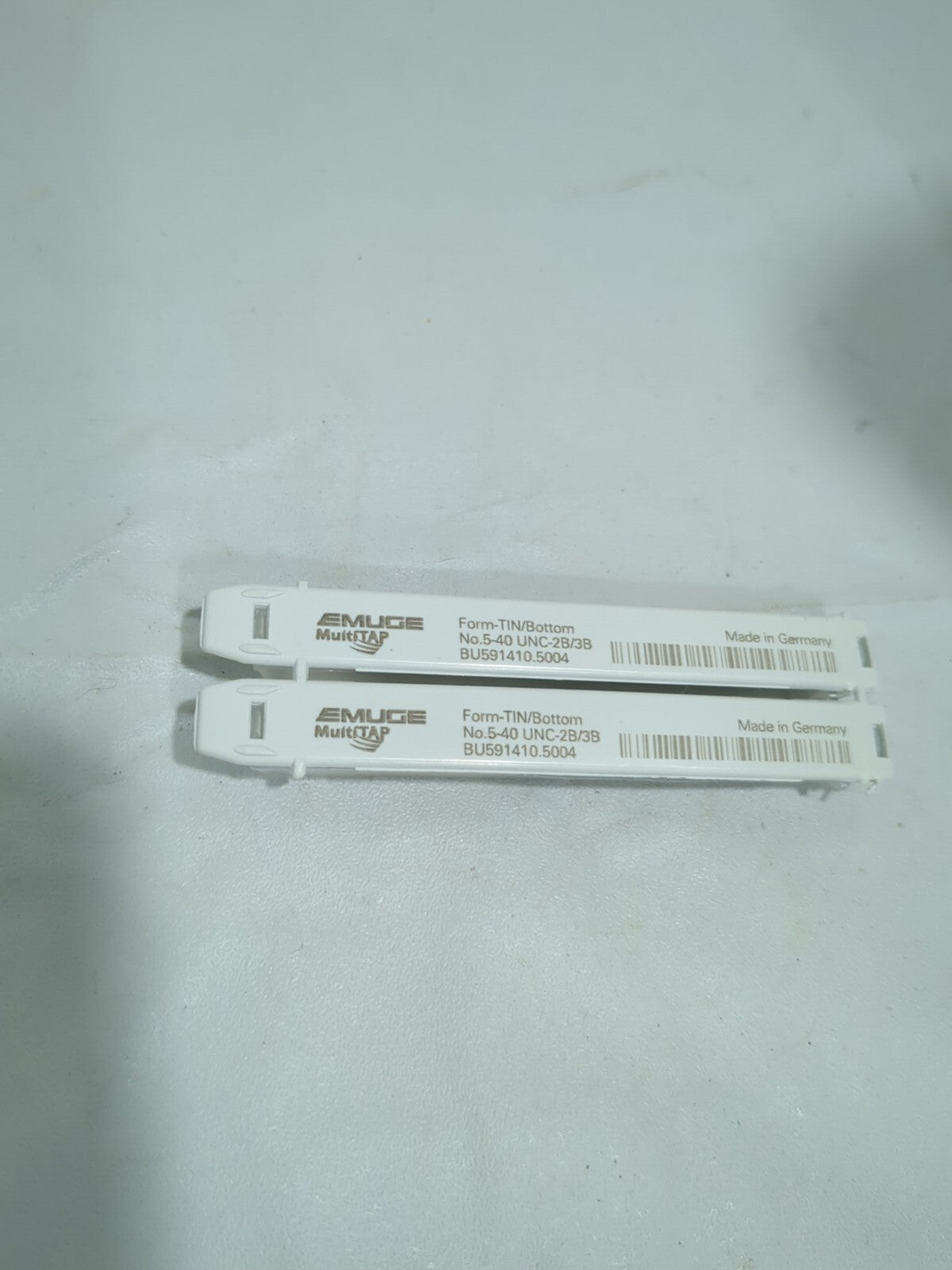

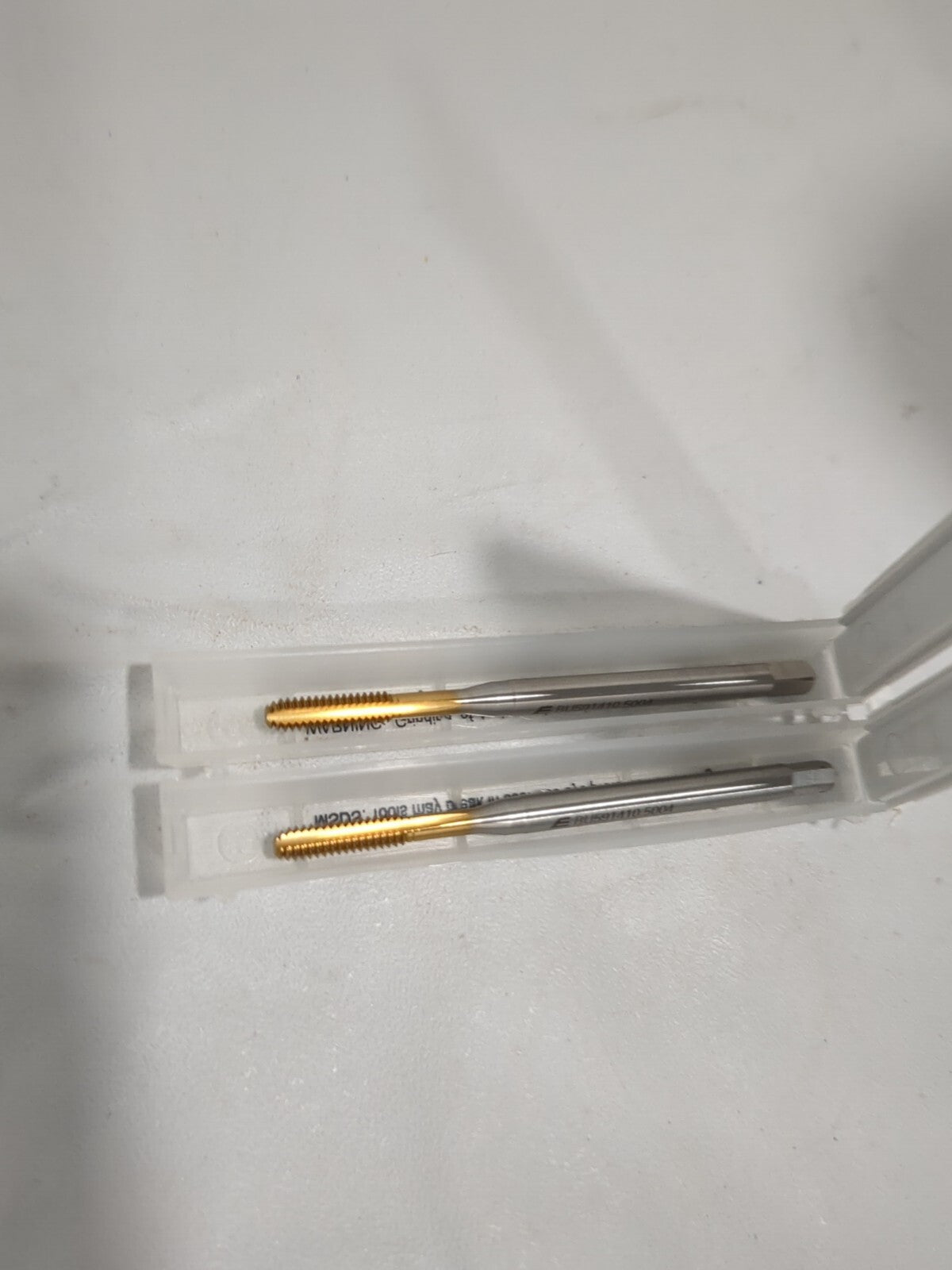

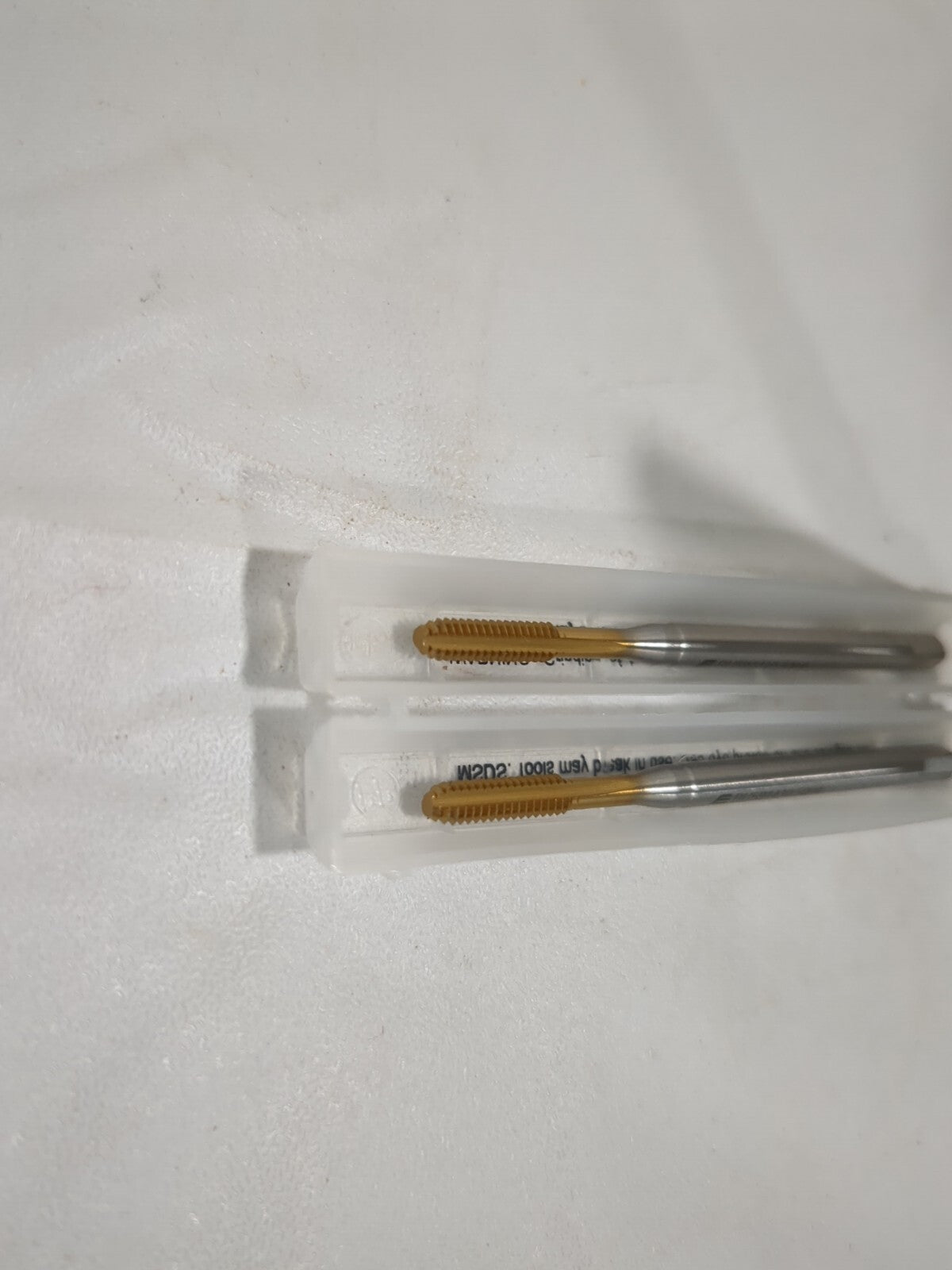

Please review photos, comes as shown.
