Enclosure Type Standard Enclosure
Cover Type Hinge Flat Cover
Enclosure Material Steel
NEMA Rating 12; 13
Overall Width (Inch) 24
Overall Width (Decimal Inch) 24
Overall Height (Inch) 24
Overall Height (Decimal Inch) 24
Overall Depth (Inch) 6
Overall Depth (Decimal Inch) 6
Cover Color Gray
Finish/Coating Polyester Powder Coat Finish
Material Gauge 14

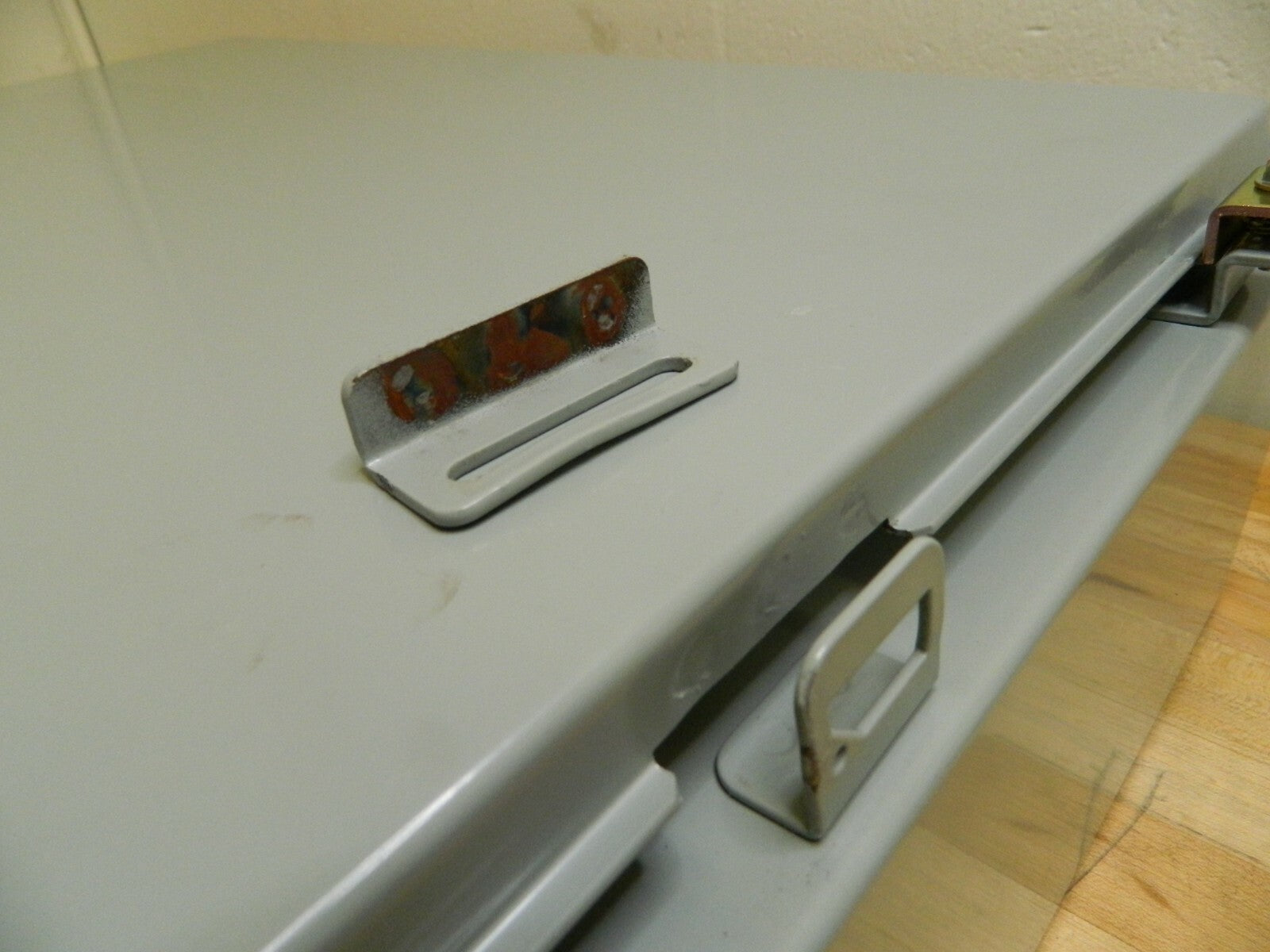

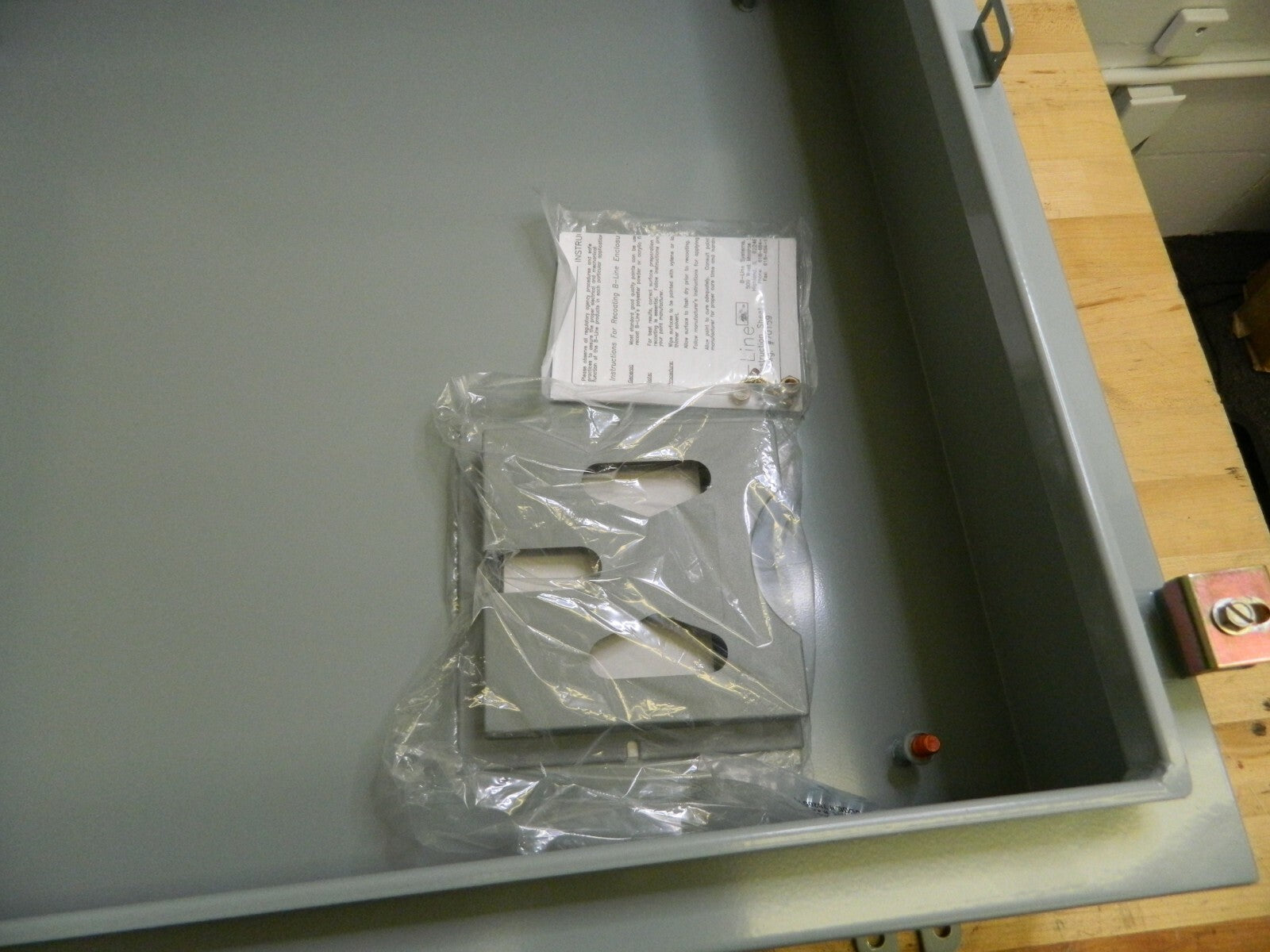

Includes 0.375-16 Collar Studs; Continuous Hinge; External Mounting Feet; Ground Stud; Padlock Hasp; Print Pocket; Seamless Poured-in-place Gasket

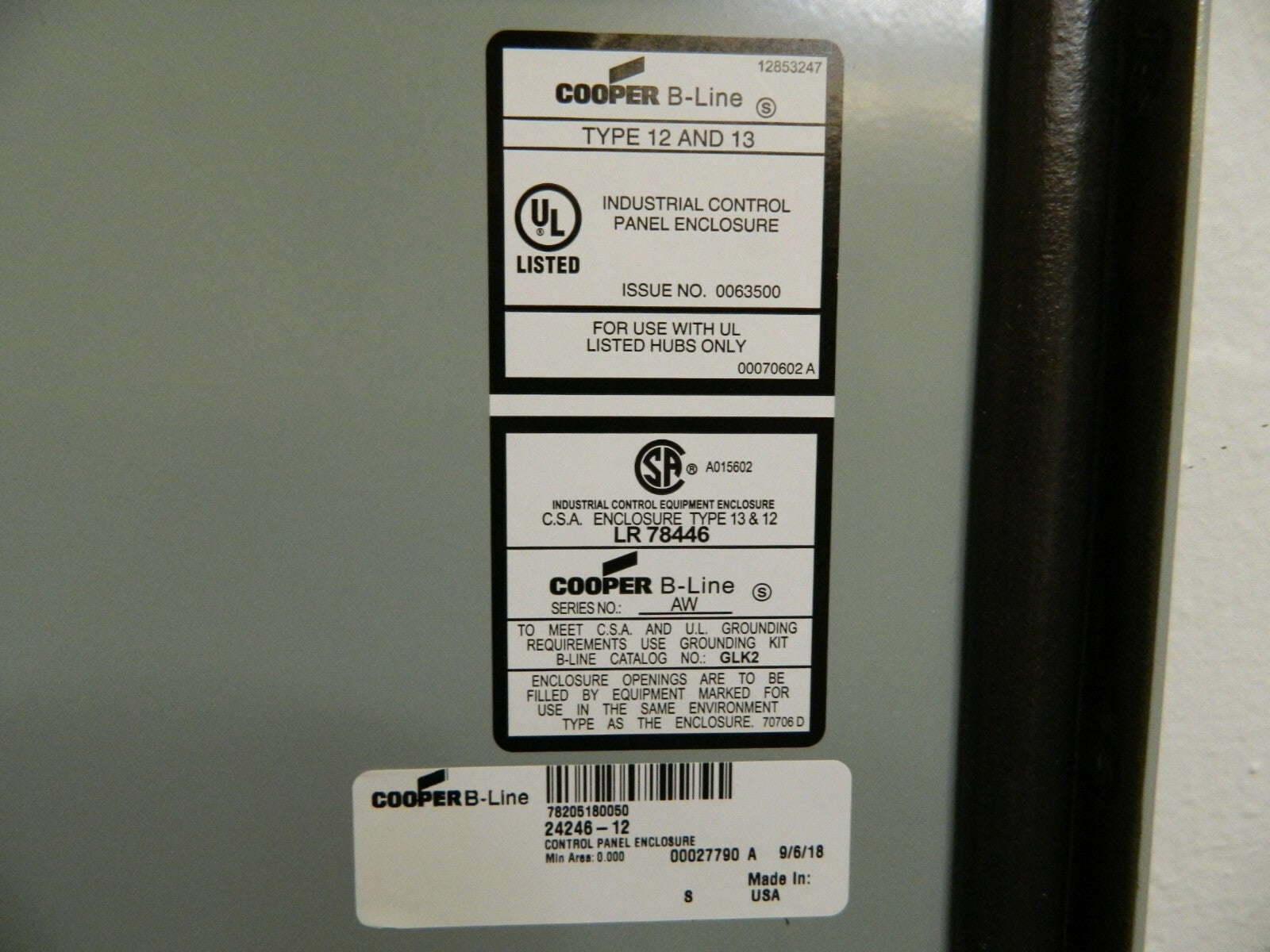

Standards Met ANSI 61; CSA C22.2 No. 94 Certified; UL Listed 508
Overall Width (mm) 610
Overall Height (mm) 610
Overall Depth (mm) 152

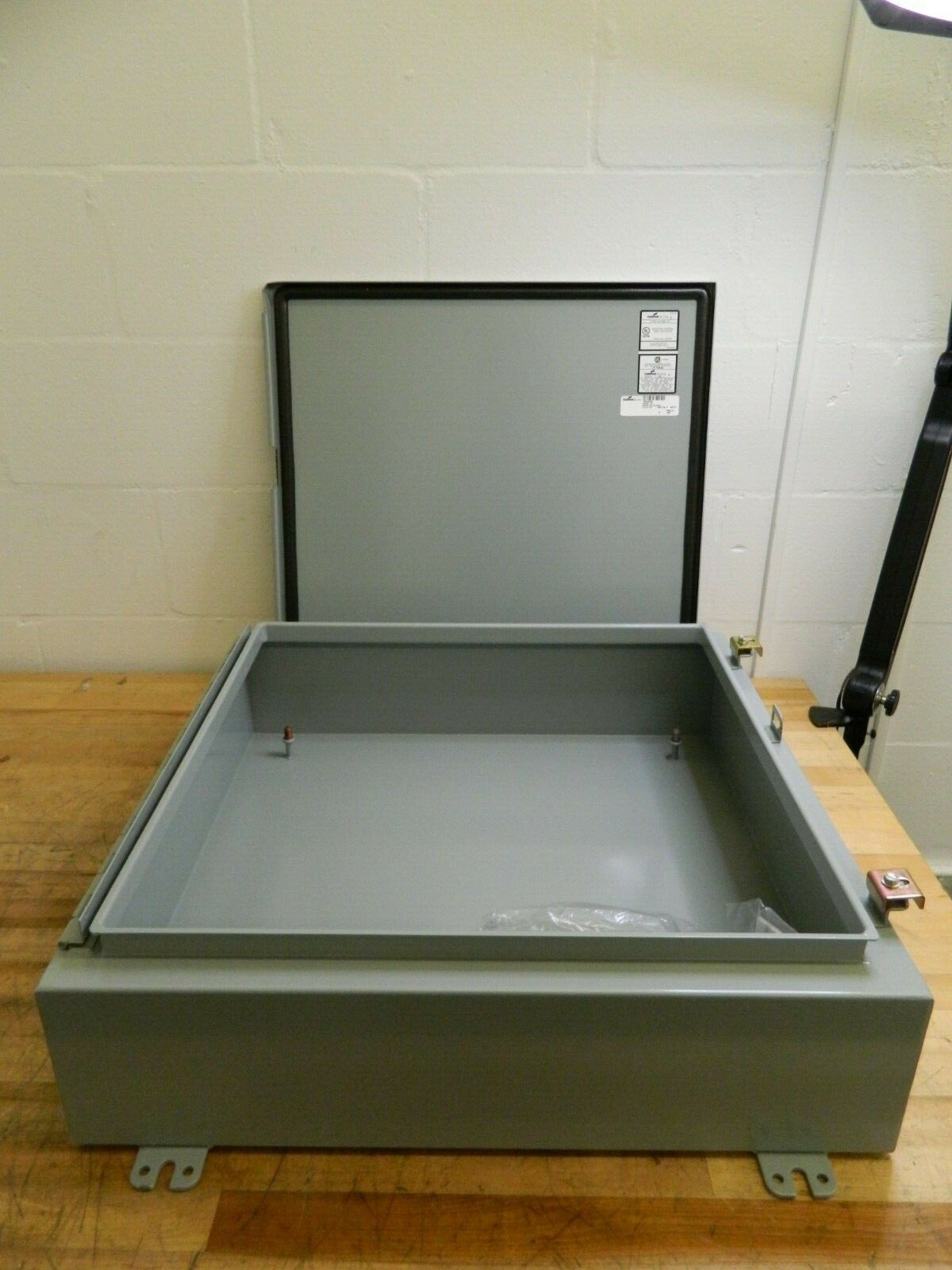

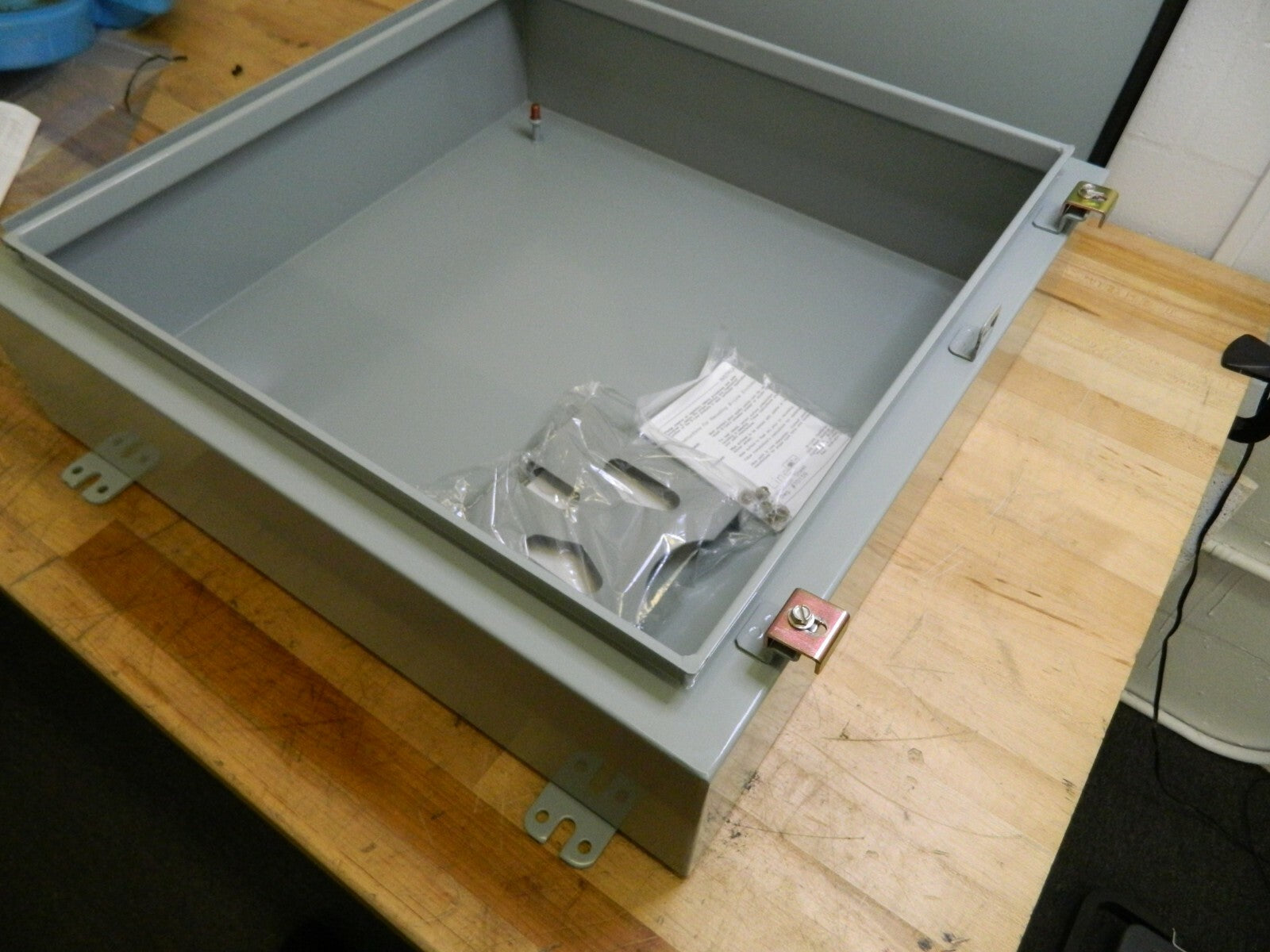

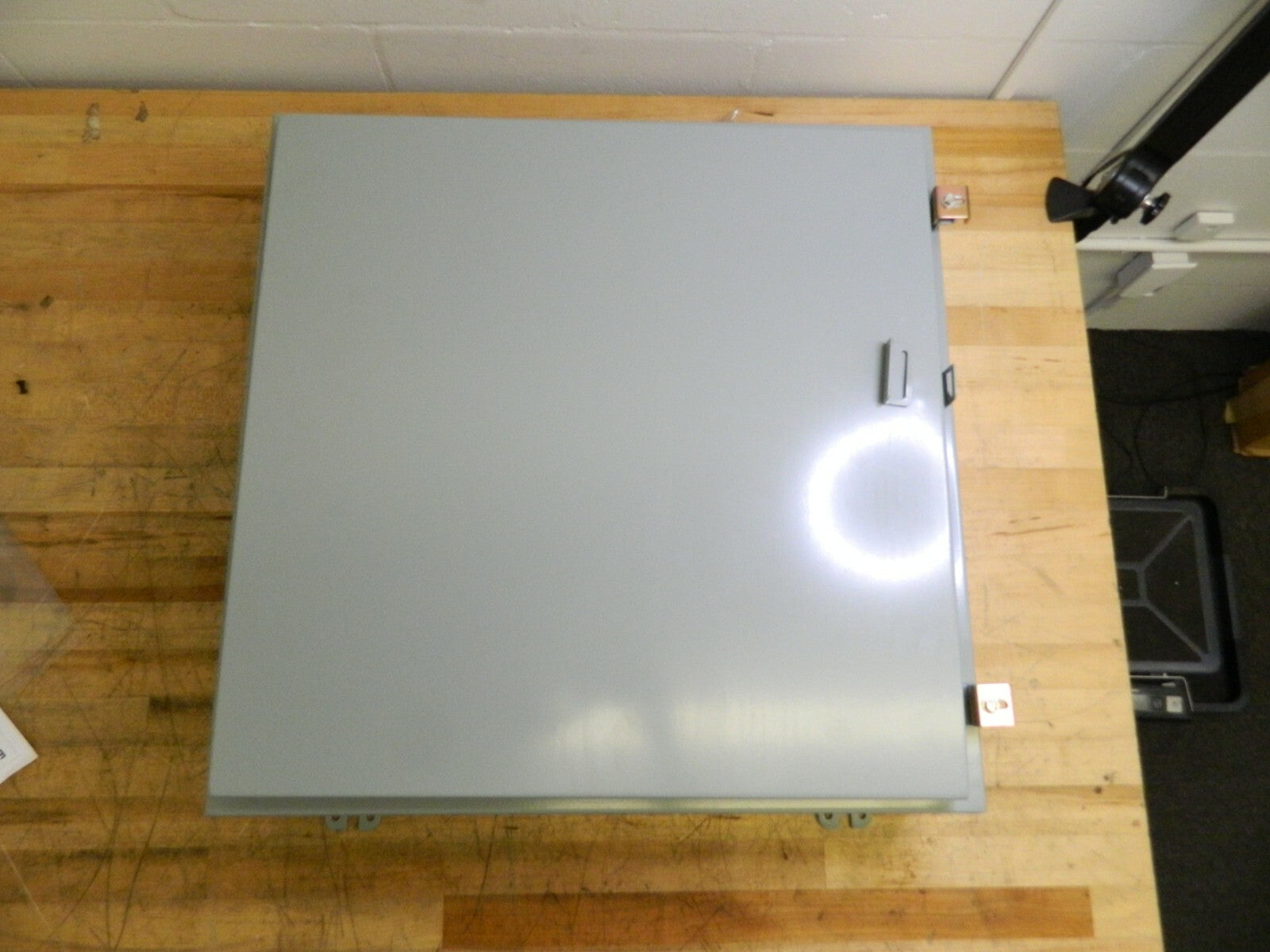

This listing is for One Steel Standard Enclosure that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
