NEMA Enclosure Rating 1
Fused NonFused
Number of Poles 3
Amperage 30
Voltage 250 VDC; 480-600 VAC
Horsepower at 1 Phase 7-1/2 HP @ 480 VAC, 10 HP @ 600 VAC
Horsepower at 3 Phase 20 HP @ 480 VAC, 30 HP @ 600 VAC
Number of Phases 1
Contact Form 3PST
Number of Wires 3
Overall Height (mm) 403.40
Overall Height (Decimal Inch) 15.8800
Overall Width (mm) 206-1/2
Overall Width (Decimal Inch) 8.1300
Overall Depth (Decimal Inch) 5-1/4
Overall Depth (mm) 133.30
Standards Met NEMA Std KS-1; UL 98; UL Listed File E5239

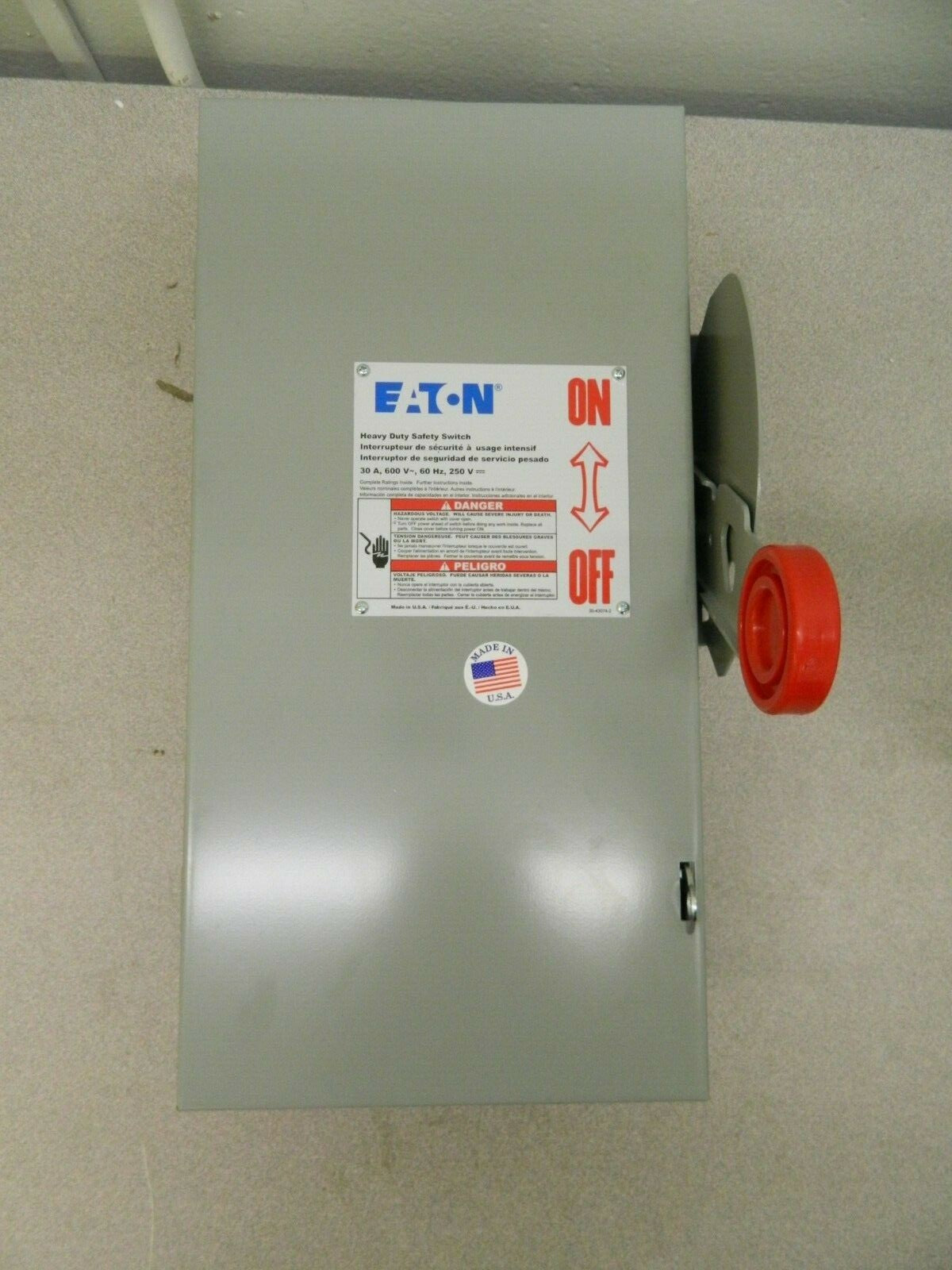

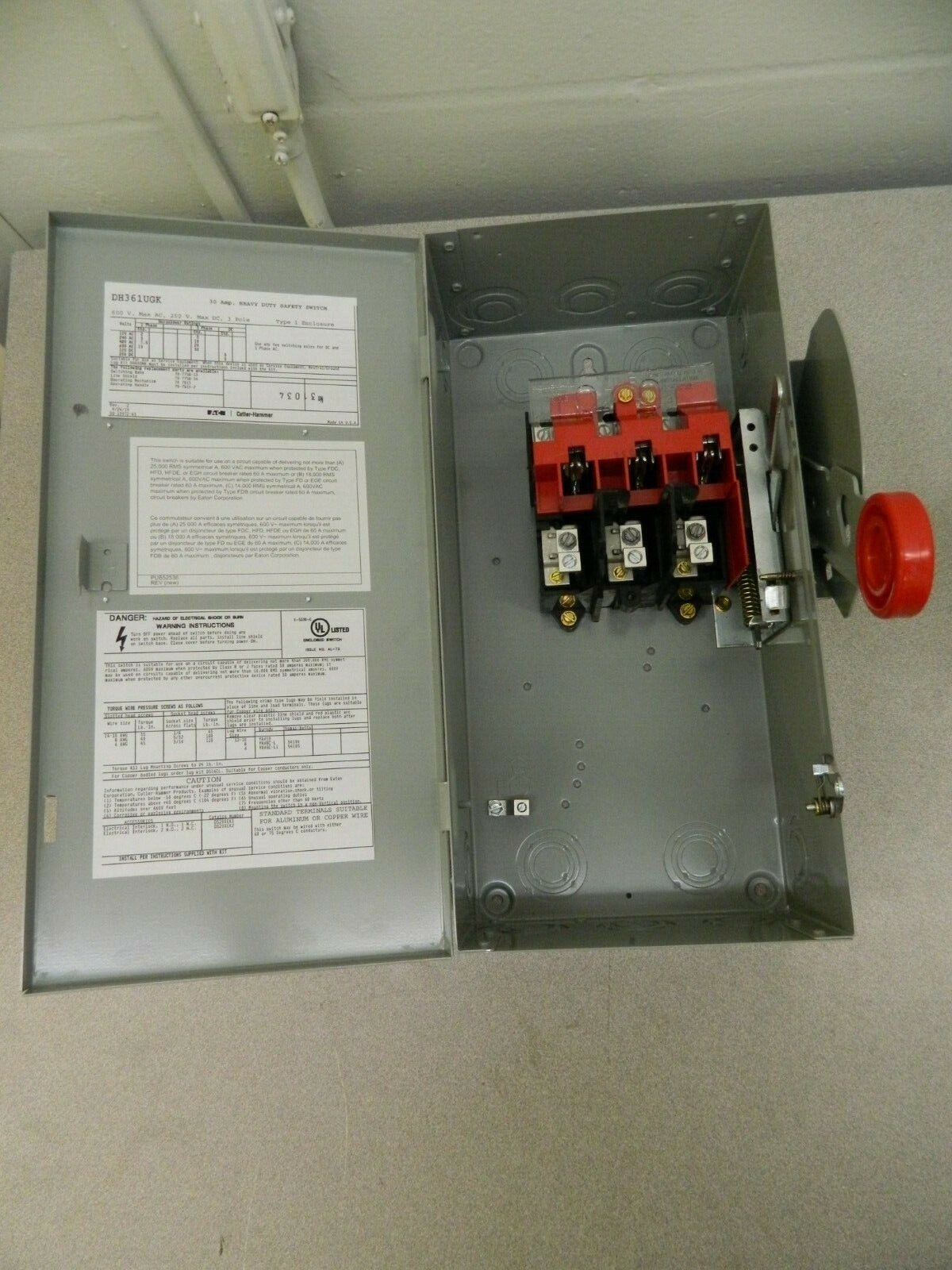

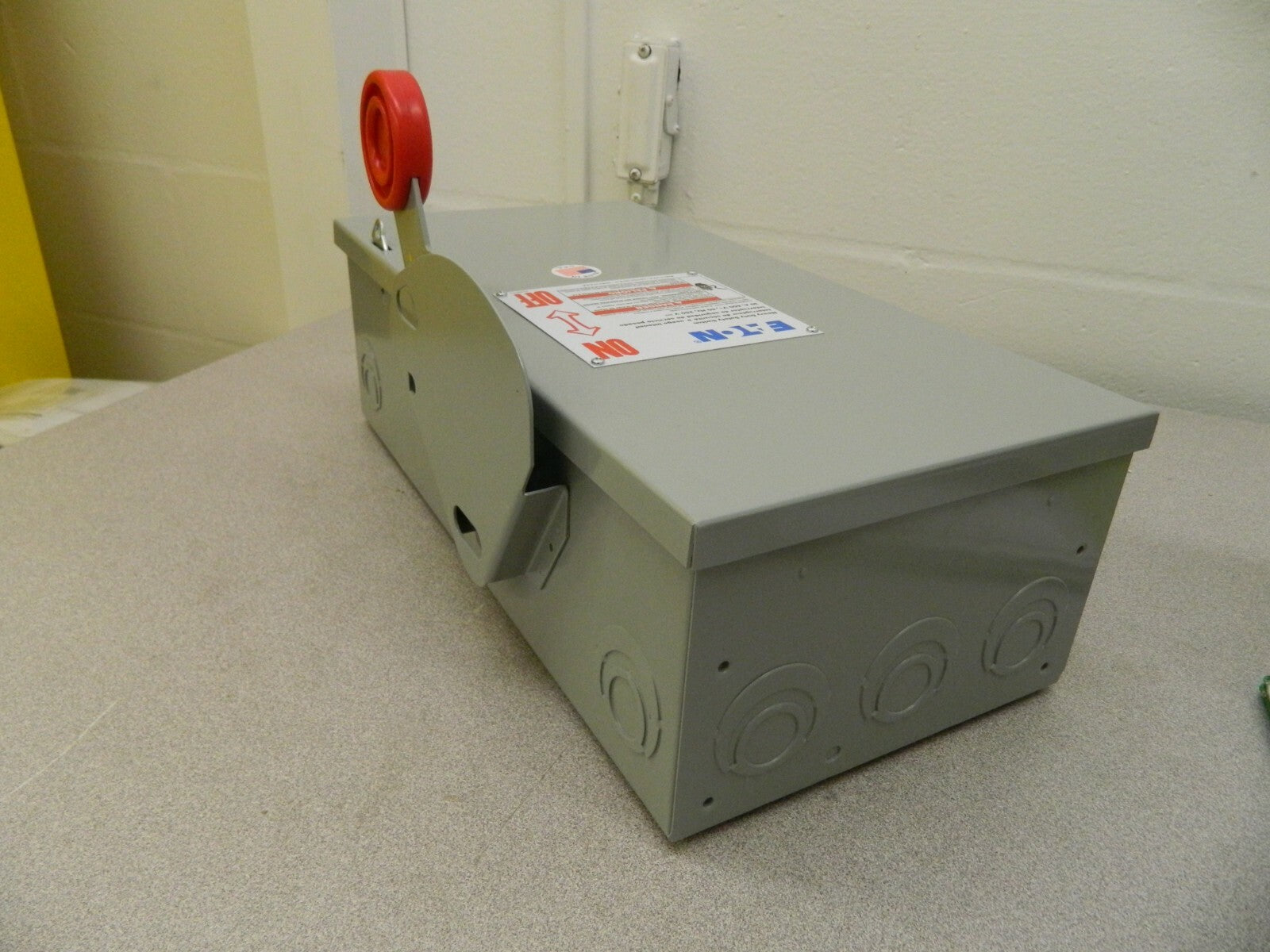

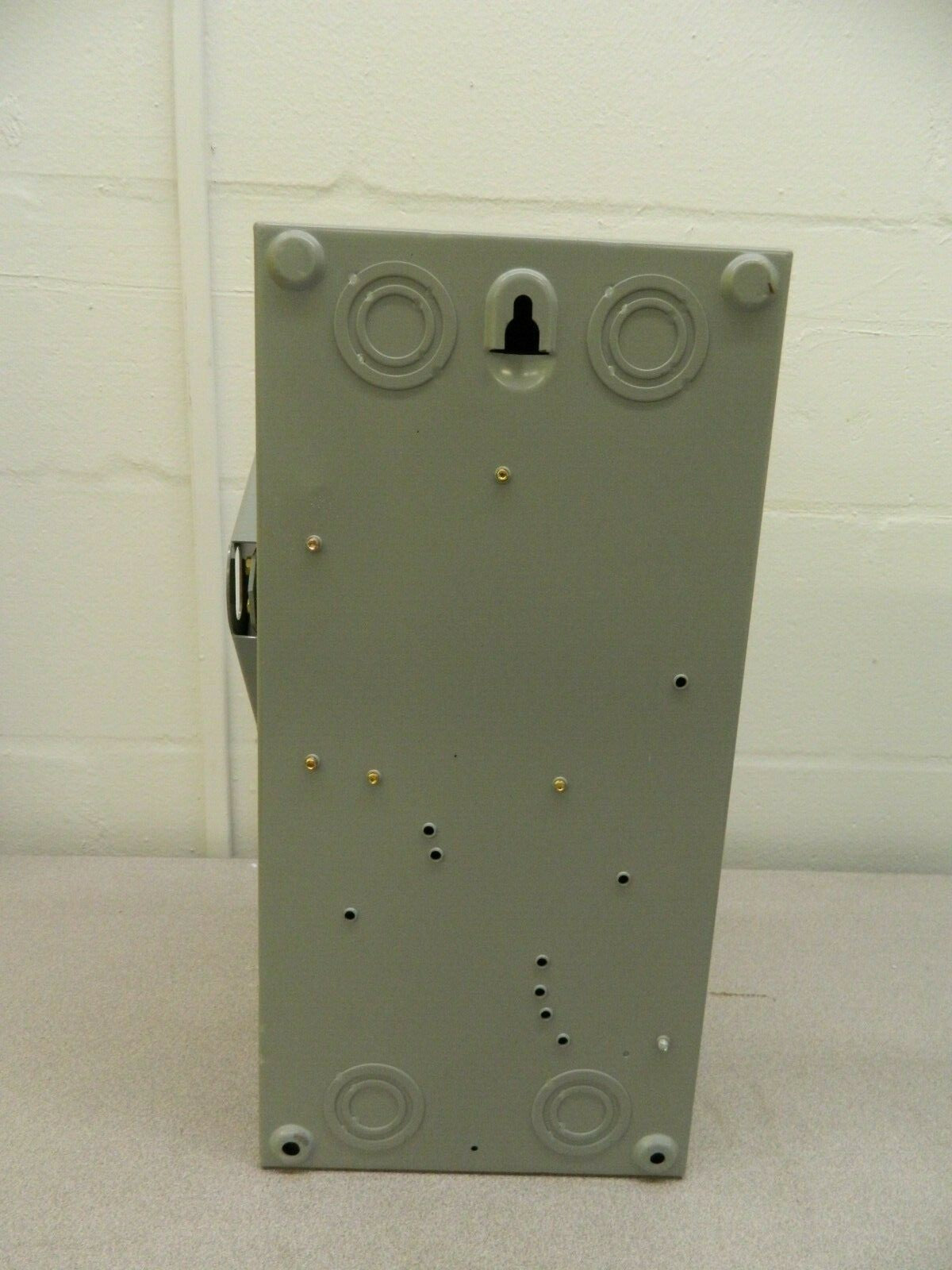

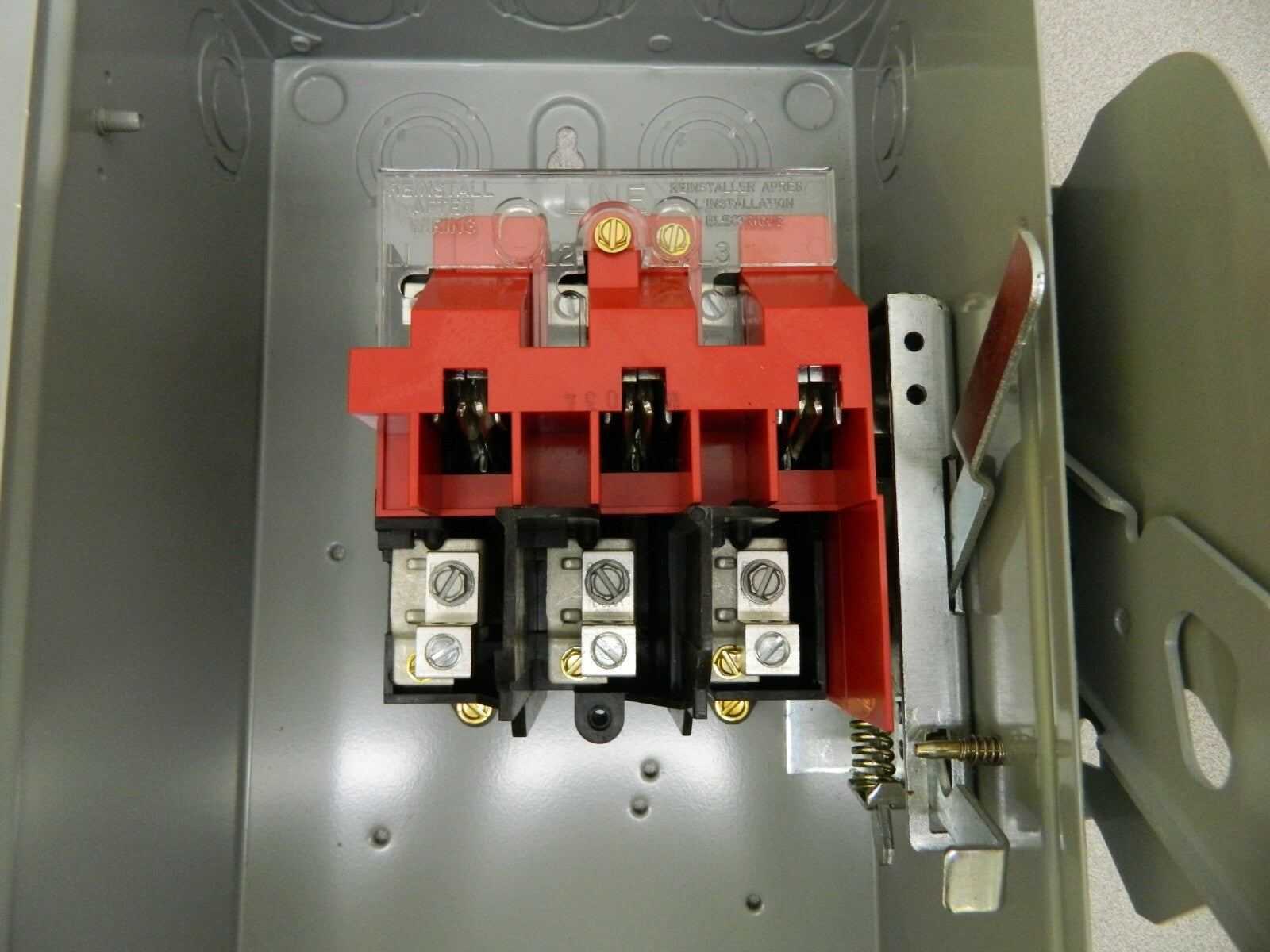

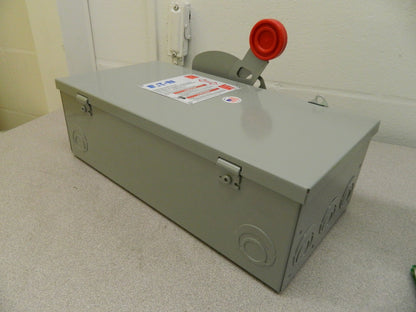

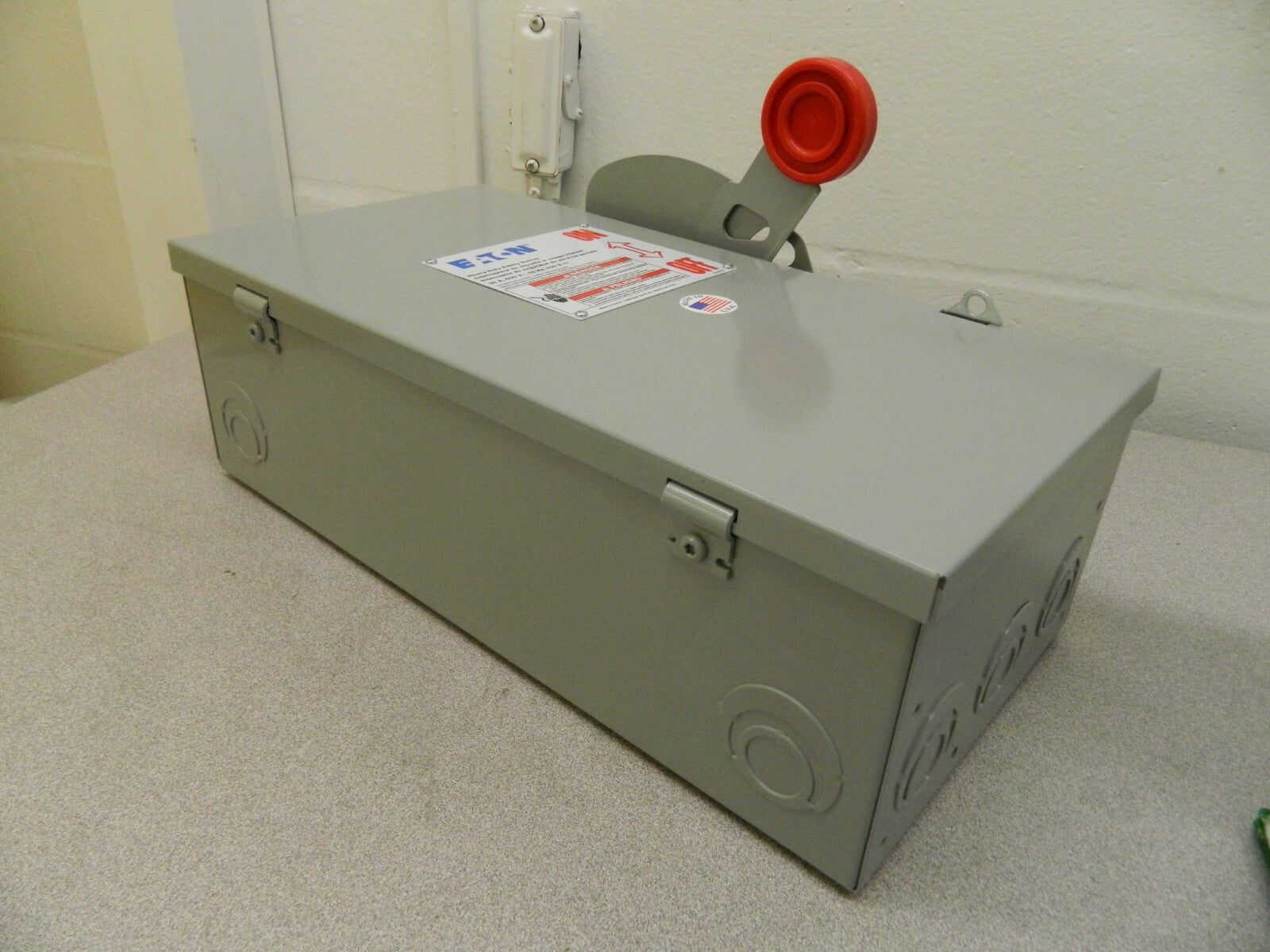

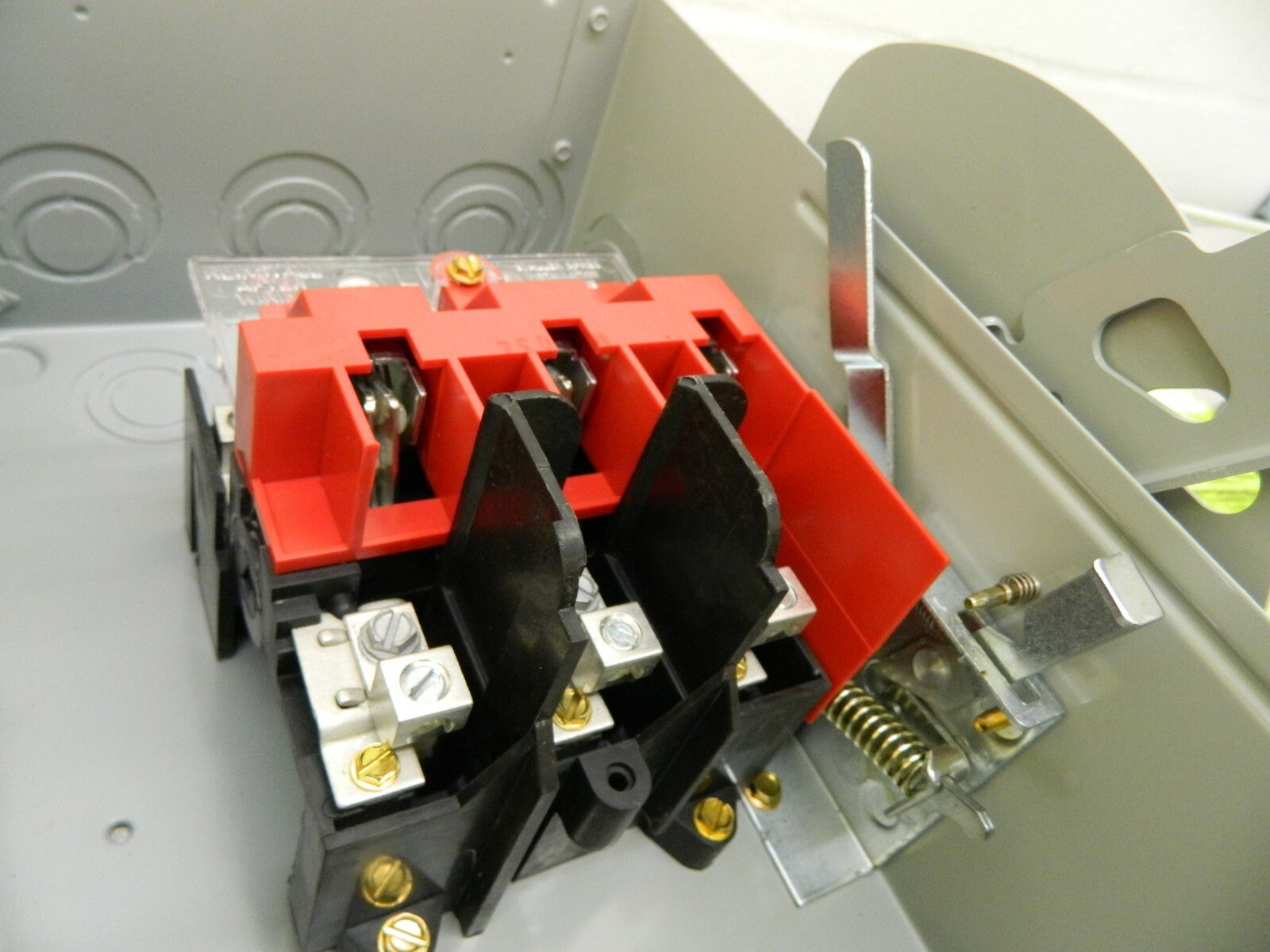

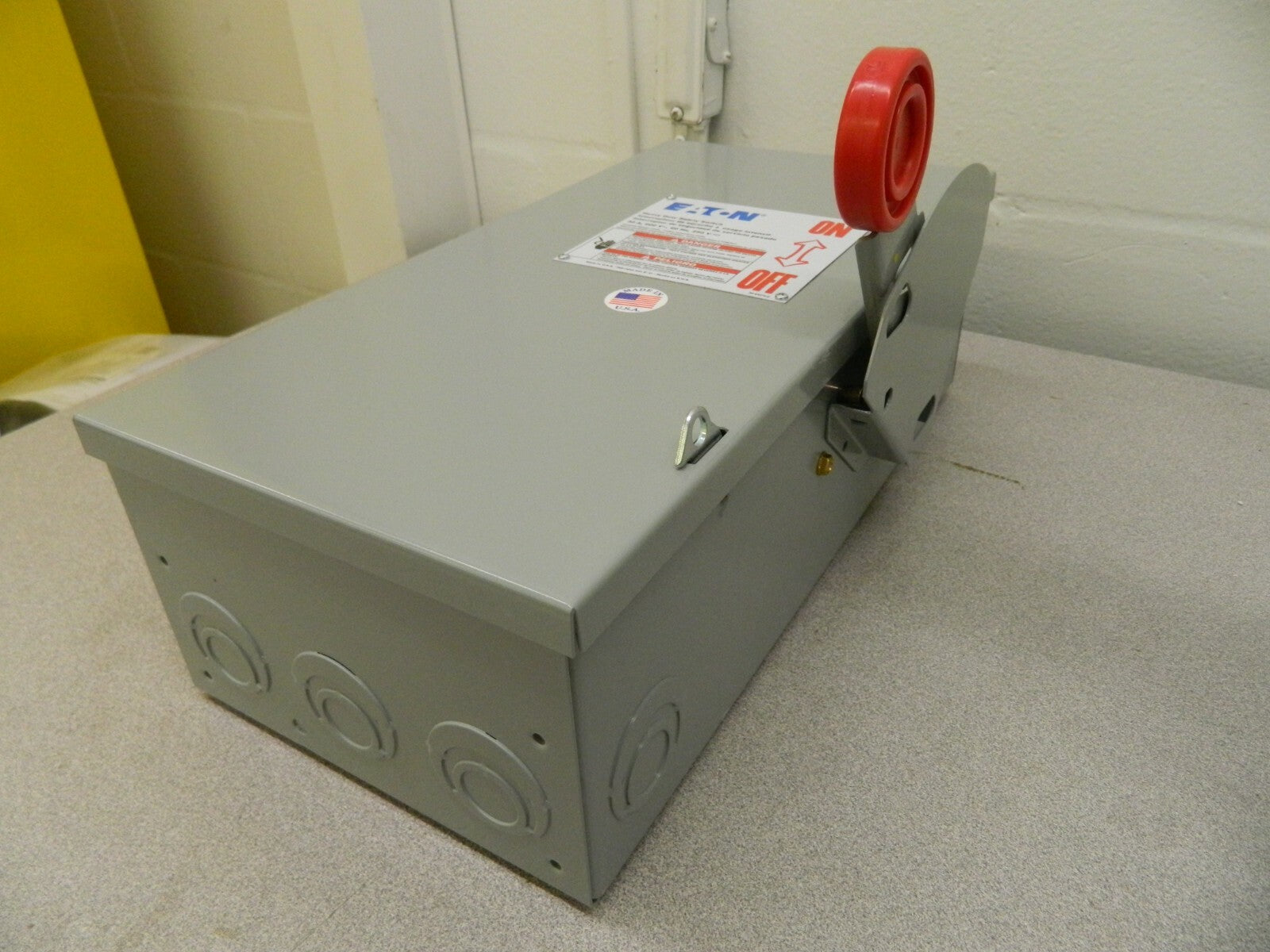

This listing is for One Nonfused Safety Switch that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
