DE-STACO-CO Pneumatic Hold Down Toggle Clamp 948 lb Inner Clamping Force 847-U

DE-STACO-CO
Pneumatic Hold Down Toggle Clamp 948 lb Inner Clamping Force

MSRP: $605

• Power Type: Pneumatic Bar End Type: Open
• Holding Capacity - Inner (Lb.): 1000 Bar Opening (Degrees): 94
• Bar Style: Solid Cylinder Bore Size (Decimal Inch): 2.0500
• Cylinder Bore Size (mm): 52.07 Height Under Bar (mm): 57.15
• Height Under Bar (Decimal Inch): 2.2500 Bar Extension (Decimal Inch): 4.8700
• Bar Extension (mm): 123.70 Length Distance Between Mount Holes (Decimal Inch): 1.2500
• Length Distance Between Mount Holes (mm): 31.75 Maximum Air Pressure (bar): 10.00
• Maximum Air Pressure (psig): 145.00 Maximum Mechanical Advantage: 1.9:1; 4.0:1
• Mounting Hole Size (Decimal Inch): 0.3400 Mounting Hole Size (mm): 8.64
• Mounting Orientation: Horizontal Outer Clamping Force (Lb.): 450
• Outer Clamping Force (N): 2018 Outer Load Capacity (Lb.): 400
• Outer Load Capacity (N): 2135 Overall Closed Height (mm): 111.70
• Overall Closed Height (Decimal Inch): 4.40 Overall Closed Length (mm): 387.20
• Overall Closed Length (Decimal Inch): 15.25 Overall Open Height (Decimal Inch): 9.27
• Overall Open Height (mm): 235.30 Overall Open Length (mm): 263.40
• Overall Open Length (Decimal Inch): 10.3800 Sensor Compatibility: Round; T-Slot
• Width Distance Between Mount Holes (Decimal Inch): 1.7800 Width Distance Between Mount Holes (mm): 45.21
• UNSPSC Code: 31162900 Port Size: 1/4 NPT
• Includes: Flanged Washer K (In): 3.0600
• Minimum Operating Temperature F: 14.000 Maximum Operating Temperature F: 194.000
• Minimum Operating Temperature C: -10.00 Maximum Operating Temperature C: 90.000

(New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included).

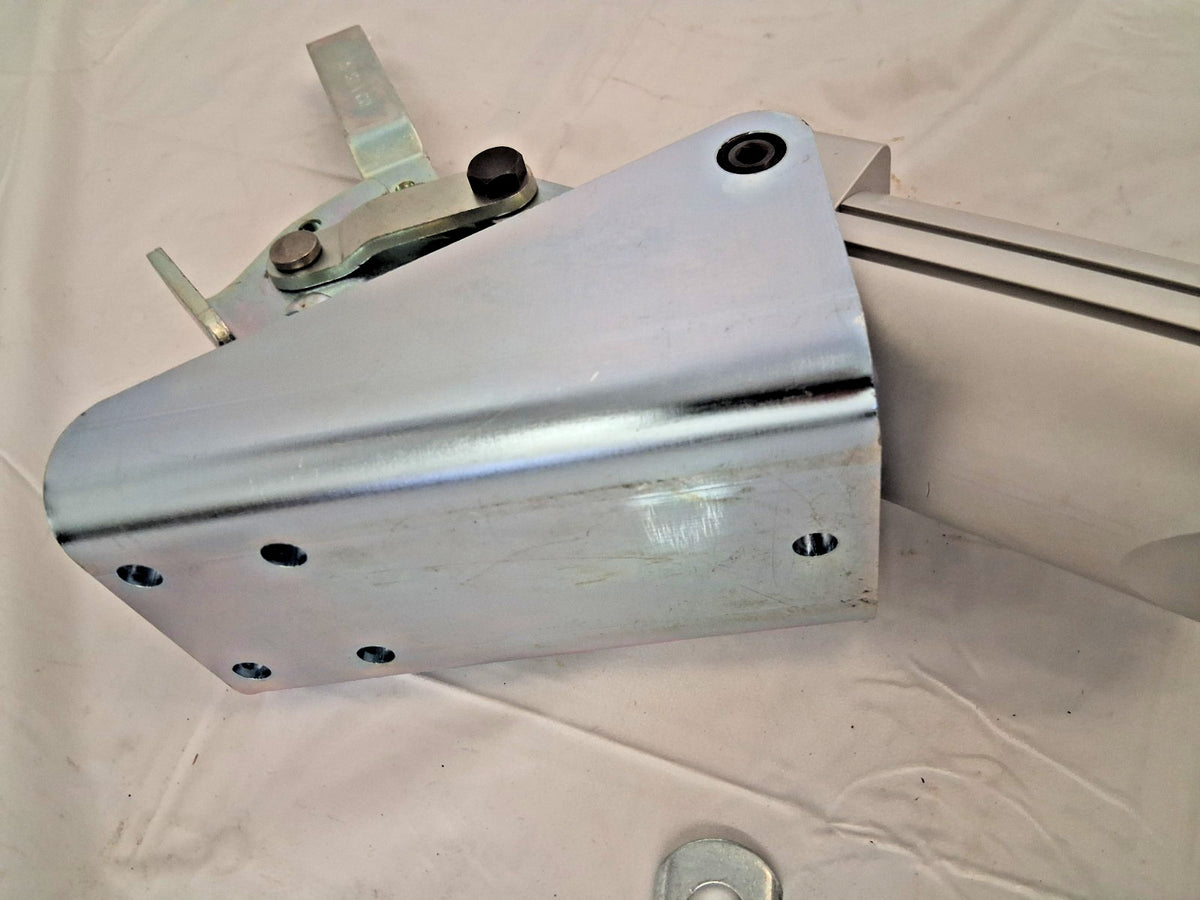

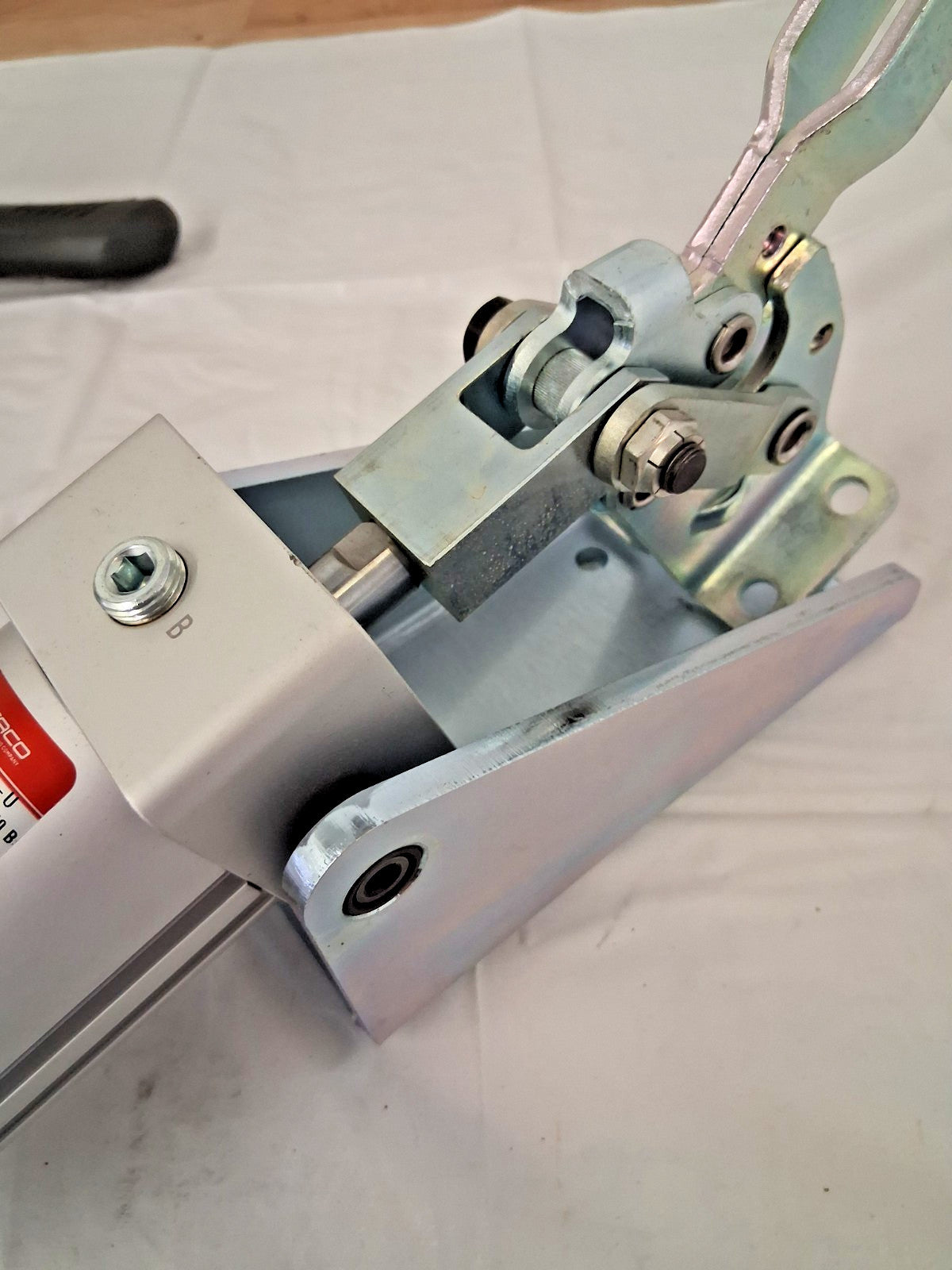

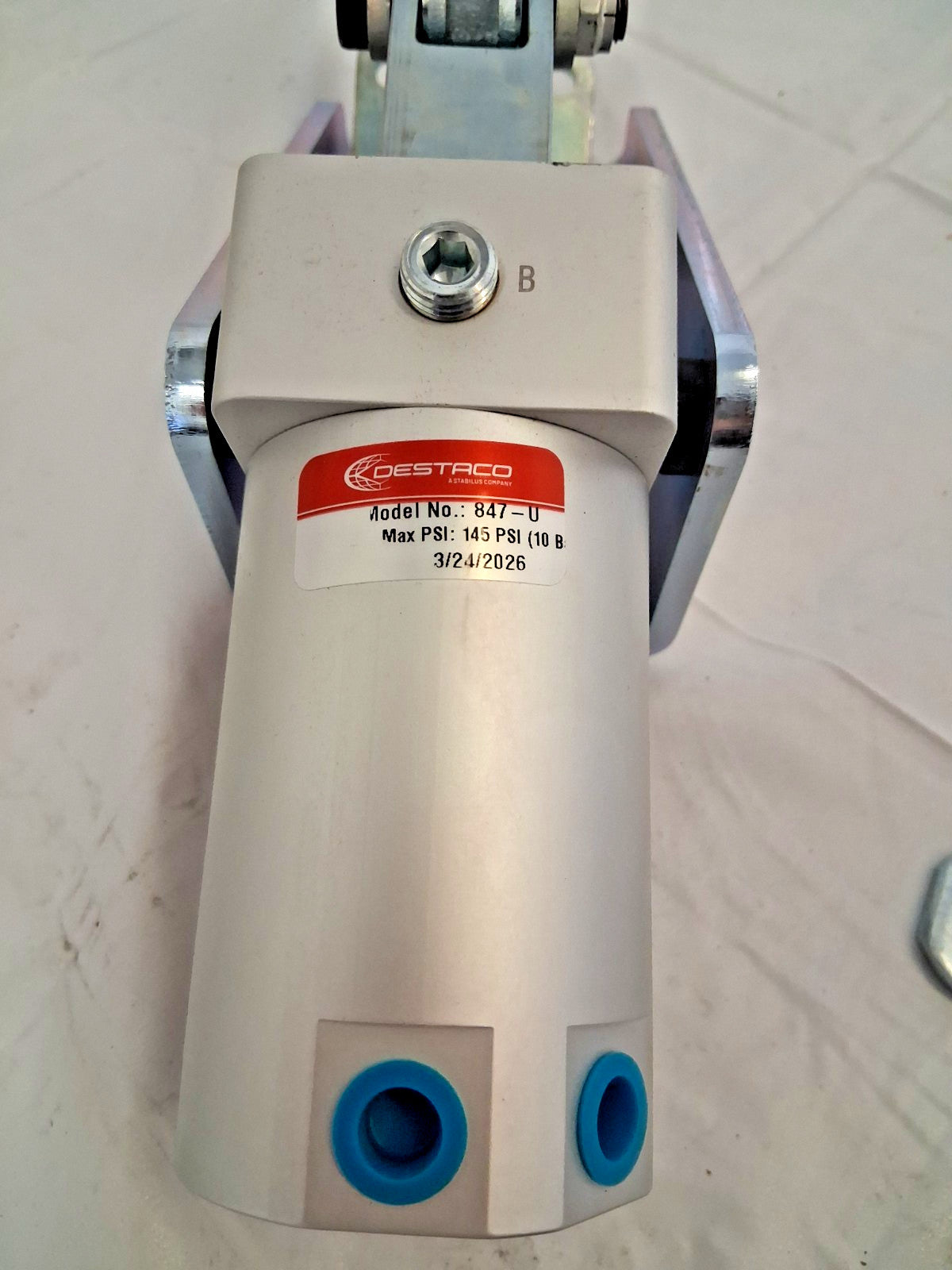

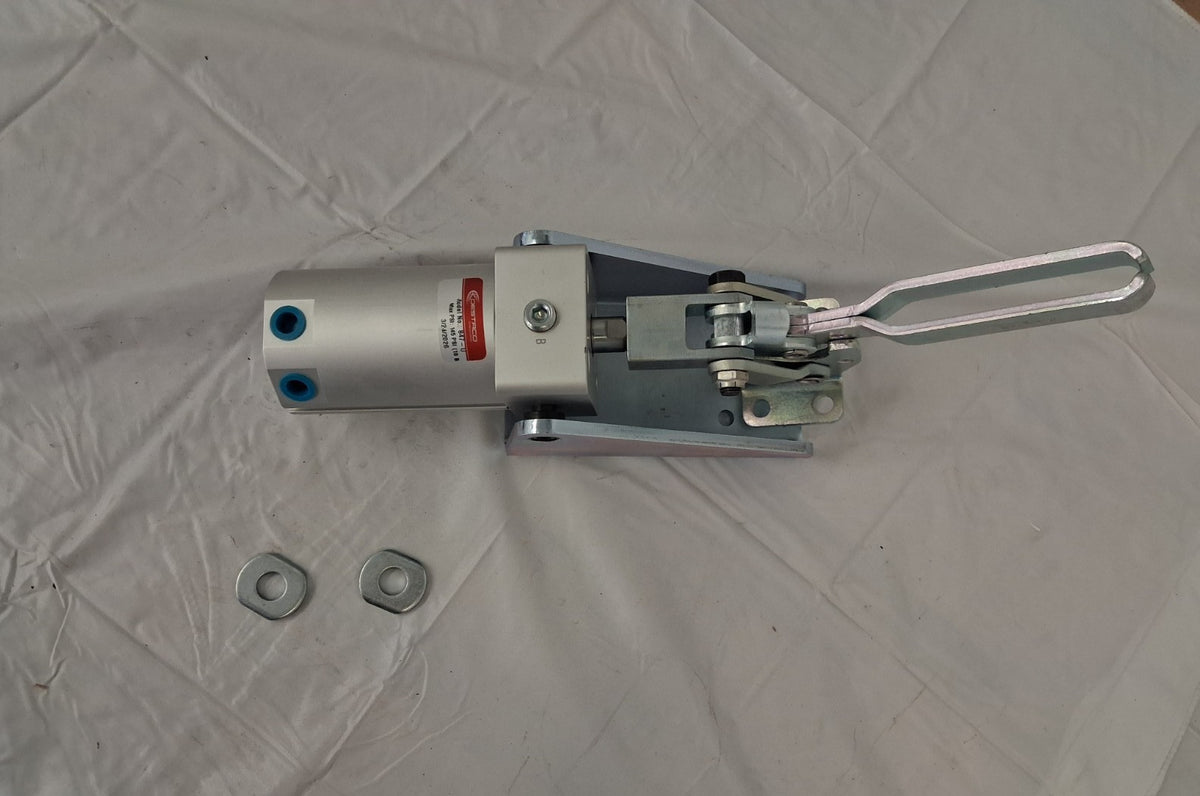

Please review photos, comes as shown.
