DE-STA-CO Standard Straight Line Action Clamp 614-M

DE-STA-CO

 Standard Straight Line Action Clamp 614-M
MSRP: $300

• Load Capacity (Lb. - 3 Decimals) 1124.05
• Load Capacity (N) 5000.00
• Load Capacity 5000 N; 1124.05 lb
• Plunger Travel (Decimal Inch) 1.2600
• Plunger Travel 32 mm; 1.26 in
• Plunger Travel (mm) 32.00

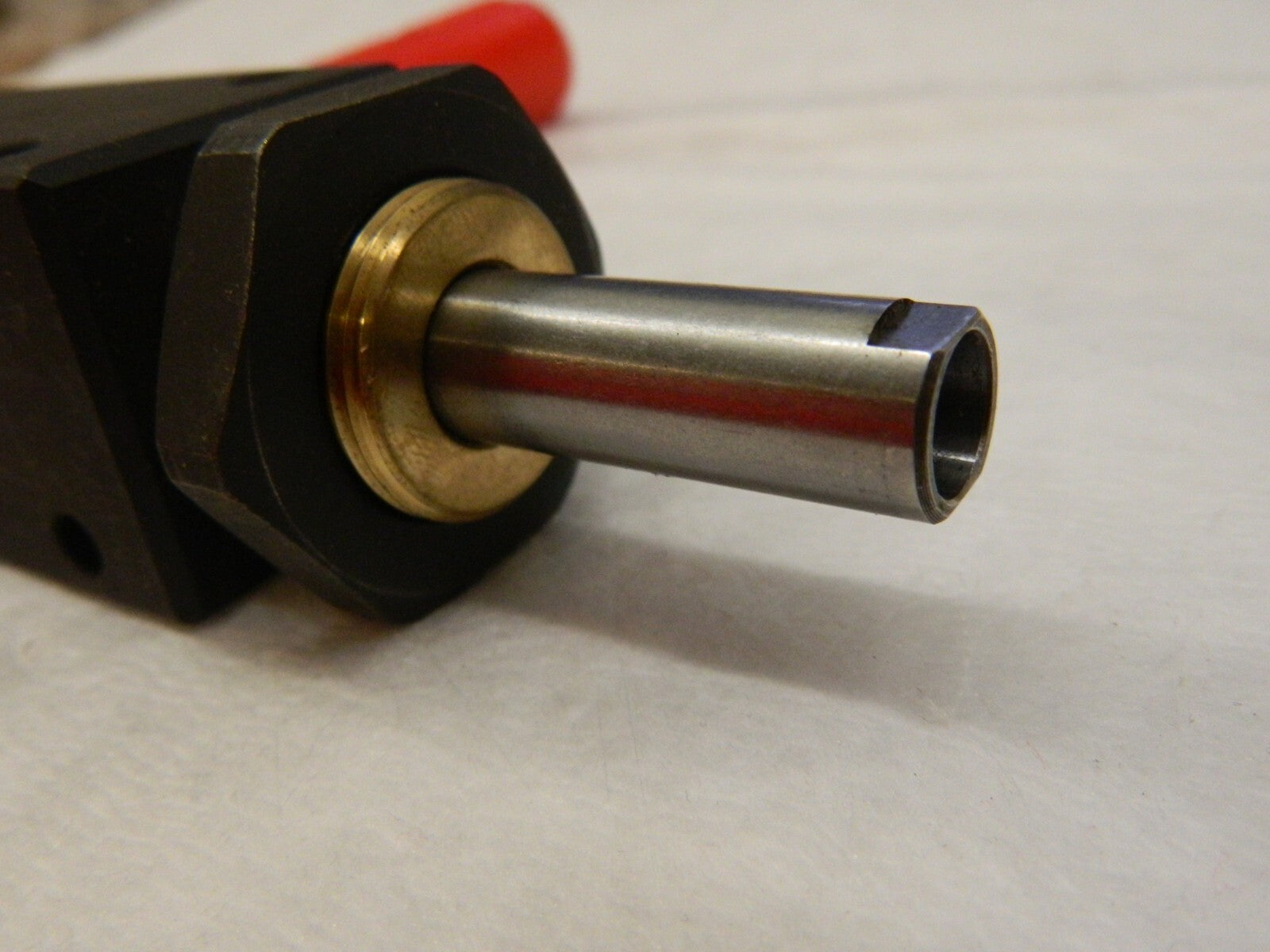

• Plunger Shape Round
• Plunger Thread Style Internal
• Plunger Thread Size M8x1.25
• Plunger Centerline Height (mm) 17.53
• Plunger Centerline Height (Decimal Inch) 0.6900
• Plunger Centerline Height 0.69 in; 17.53 mm
• Plunger Diameter (mm) 8.89
• Plunger Diameter (Decimal Inch) 0.3500
• Base Style Flanged
• Handle Style Straight
• Clamp Material Carbon Steel
• Material Carbon Steel
• Overall Length (Decimal Inch) 5.7000
• Overall Height (Mm - 5 Decimals) 152.40
• Overall Height (Decimal Inch) 6.0000
• Base Length (mm) 92.96
• Base Length (Decimal Inch) 3.6600
• Base Width (Inch) 1.3800
• Base Width 35.05

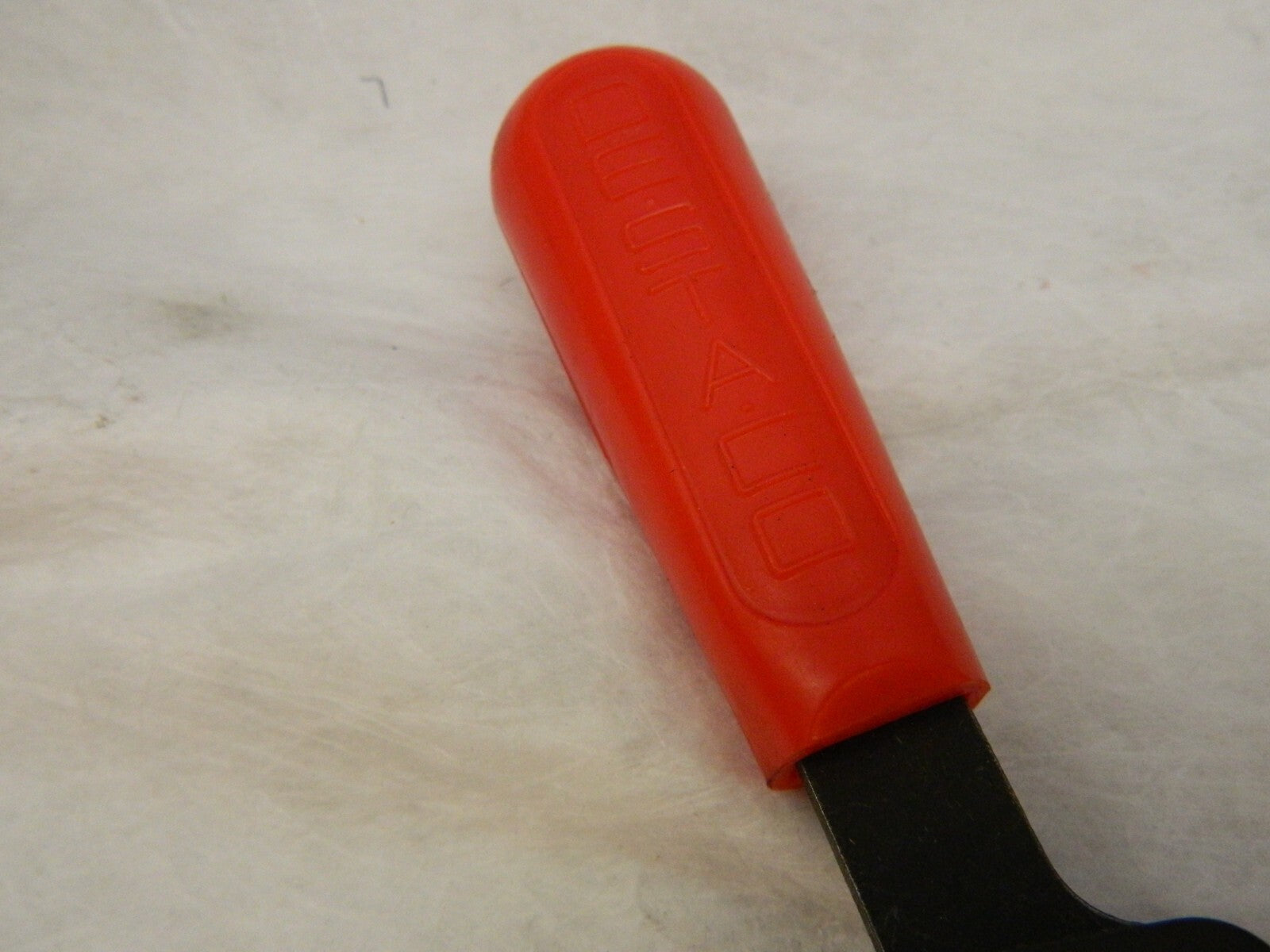

• Handle Color Red
• Width Distance Between Mount Holes (Decimal Inch) 0.9400
• Width Distance Between Mount Holes (mm) 23.88
• Mounting Hole Diameter (mm) 5.59
• Jam Nut Height (Decimal Inch) 0.3100
• Jam Nut Height (mm) 7.87
• Jam Nut Hex Size (mm) 36.07
• Jam Nut Hex Size (Decimal Inch) 1.4200
• Jam Nut Thread Size M24x1.5
• Number Of Mounting Holes 2

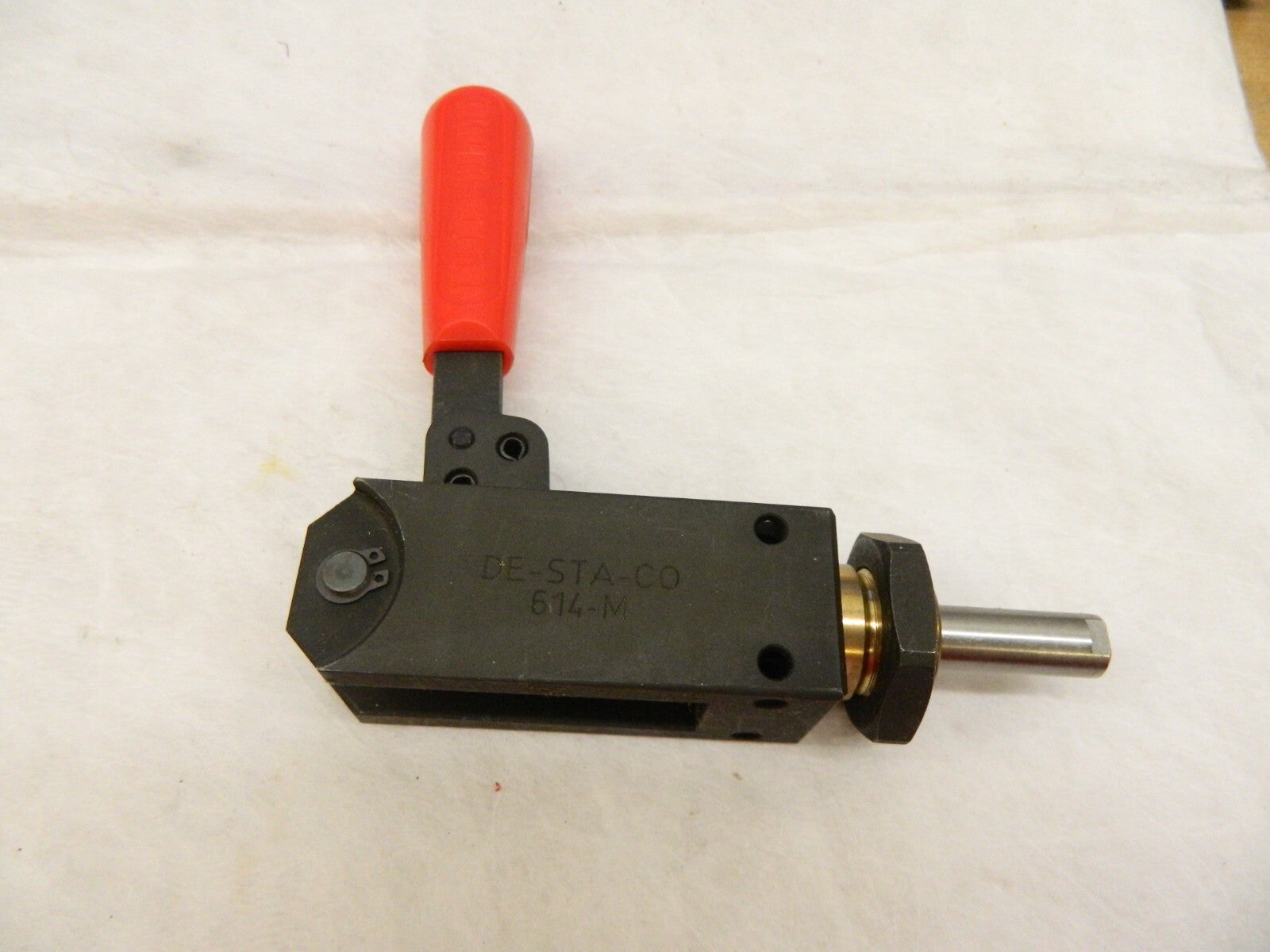

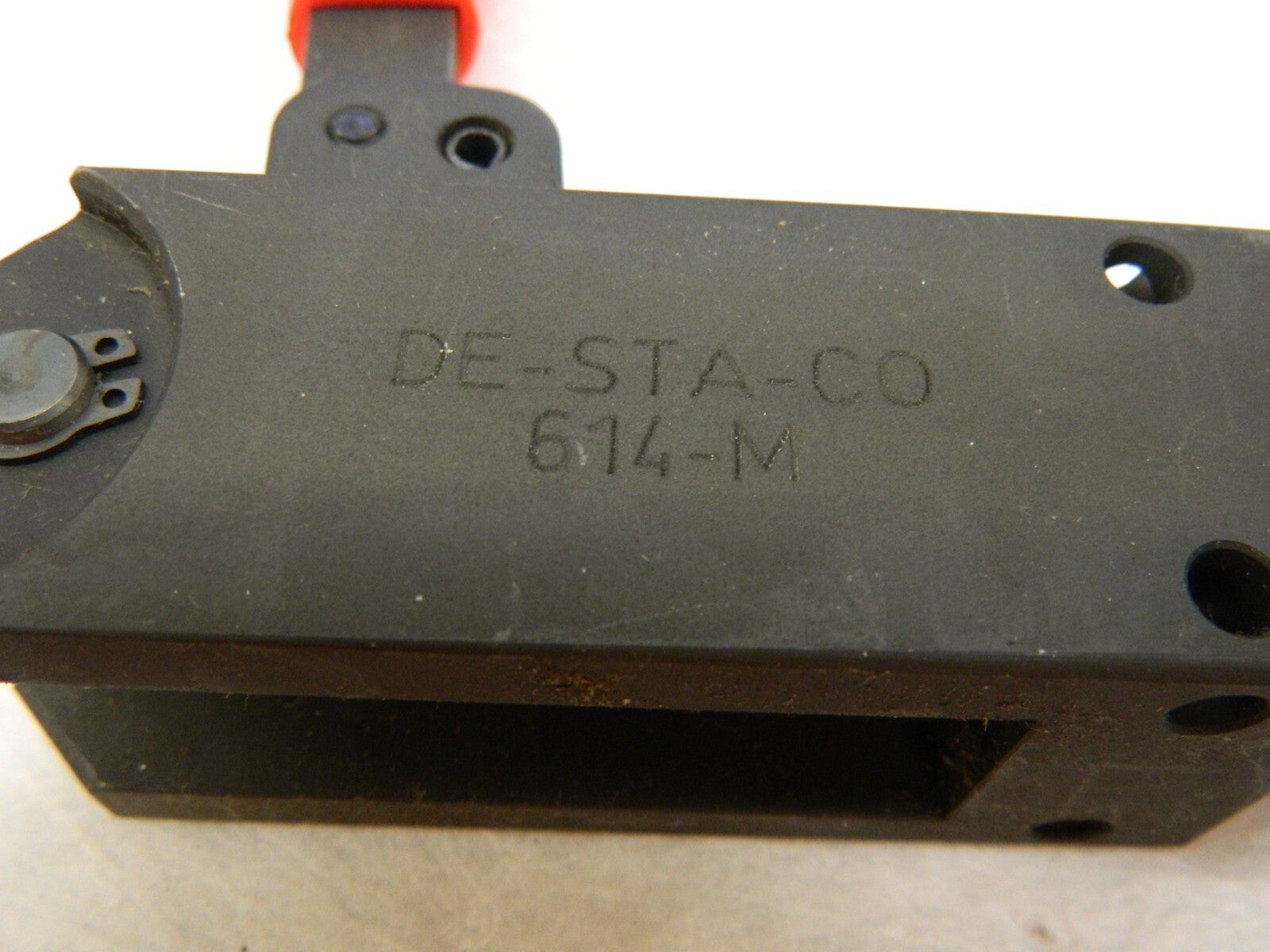

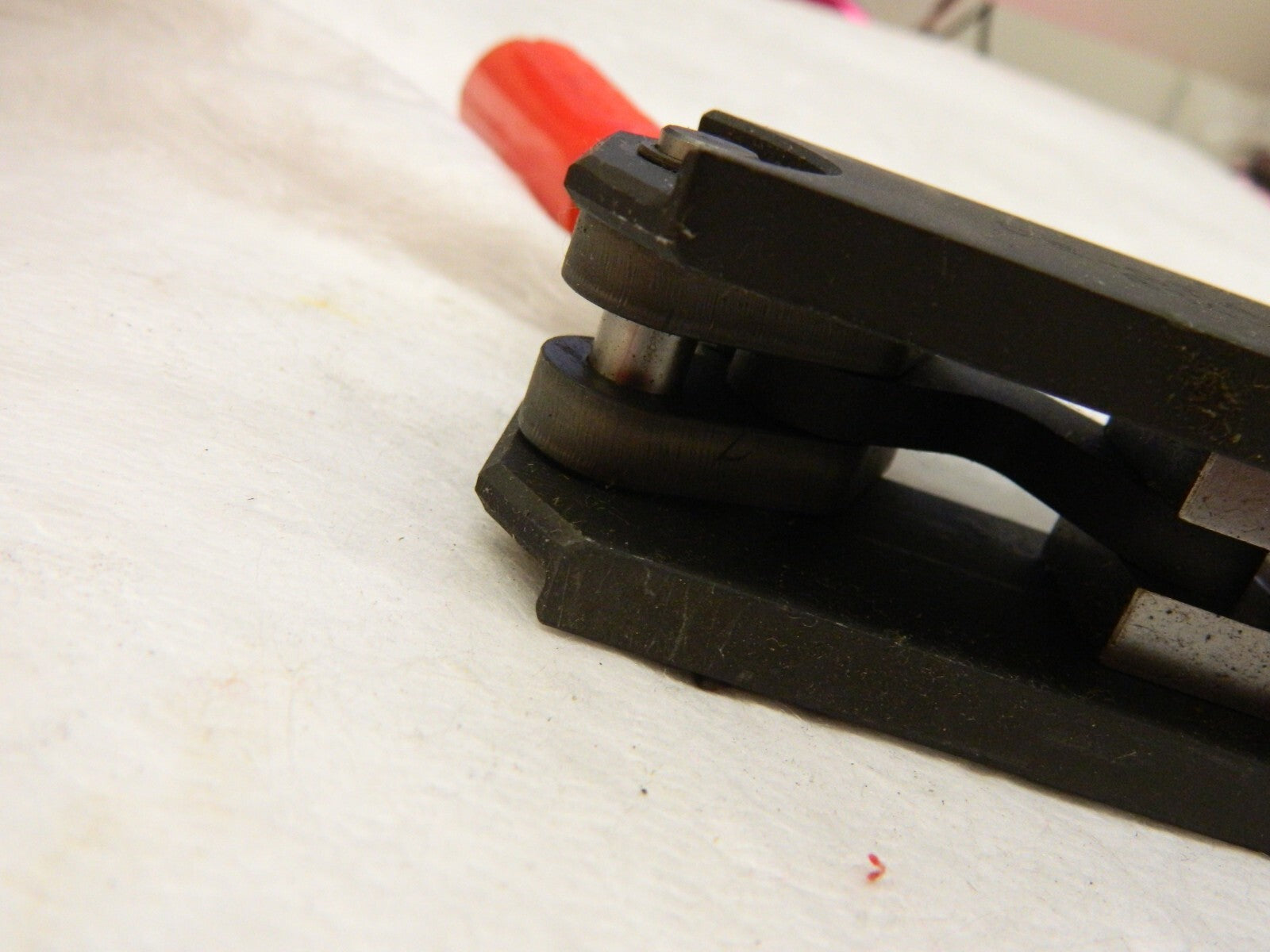

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
