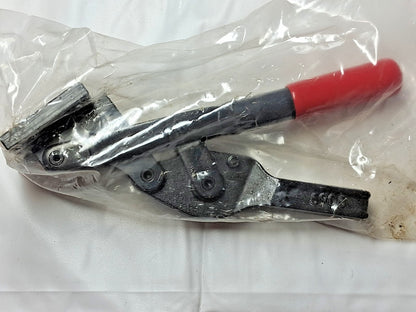

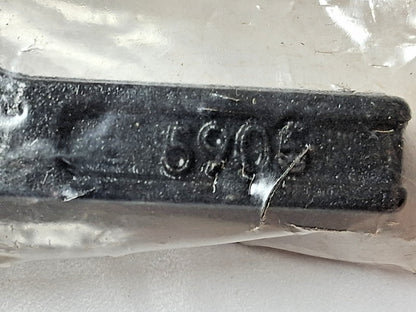

De-Sta-Co Solid Bar Manual Vertical Hold-Down Toggle Clamps 5905

De-Sta-Co
Solid Bar Manual Vertical Hold-Down Toggle Clamps

MSRP: $70

• Handle Orientation Vertical
• Bar Style Solid
• Base Style Flanged
• Bar End Type Closed
• Holding Capacity (N) 3340.00
• Holding Capacity (Lb.) 750.86
• Length Distance Between Mount Holes (mm) 25.40
• Length Distance Between Mount Holes 1 in; 25.4 mm
• Length Distance Between Mount Holes (Inch) 1.0
• Width Distance Between Mount Holes (mm) 38.10
• Width Distance Between Mount Holes 1.5 in; 38.1 mm
• Width Distance Between Mount Holes (Decimal Inch) 1.5000
• Height Under Bar (Decimal Inch) 1.2700
• Height Under Bar (mm) 32.26
• Overall Length (mm) 102.11
• Overall Length (Decimal Inch) 4.0200
• Overall Height (Decimal Inch) 6.5100
• Overall Height (mm) 165.35
• Base Length (Inch) 1-1/2
• Base Length (mm) 38.10
• Base Width (Inch) 2.1300
• Base Width (mm) 54.10
• Handle Style Straight
• Material Forged Alloy Steel
• Handle Material Forged Alloy Steel
• Handle Color Red
• Mounting Hole Diameter (mm) 7.37
• Mounting Hole Diameter (Decimal Inch) 0.2900
• Bar Opening (Degrees) 135
• Handle Movement (Degrees) 70
• Bar Width (mm) 12.95
• Bar Width (Decimal Inch) 0.5100
• UNSPSC Code 31162902
• Front Of Base To Toggle Tip 2.49 in
• Front of Base To Tip Of Toggle Bar (Decimal Inch) 2.4900
• Front of Base To Tip Of Toggle Bar (mm) 63.25
• Number Of Mounting Holes 4
• Finish Coating Oxide

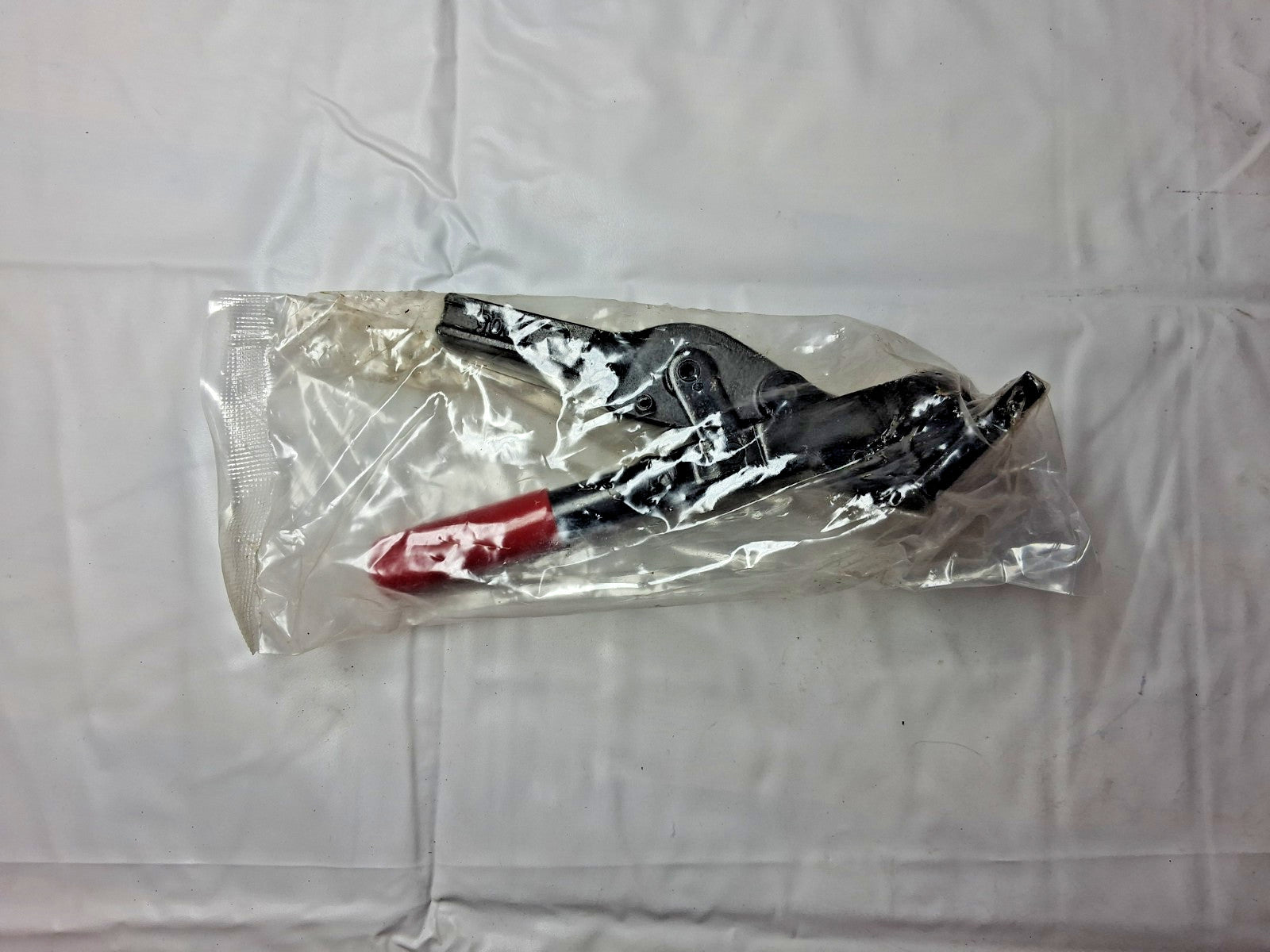

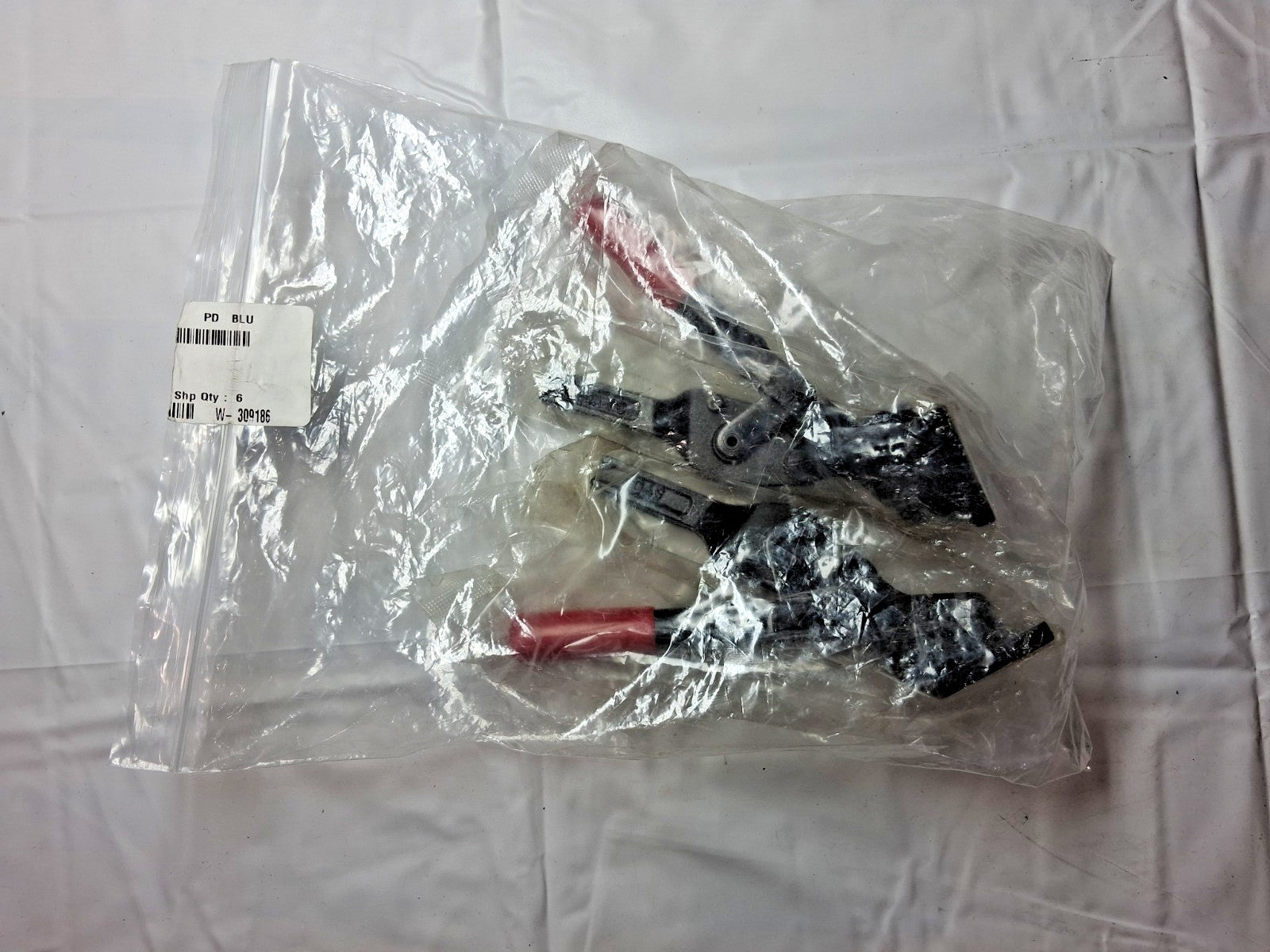

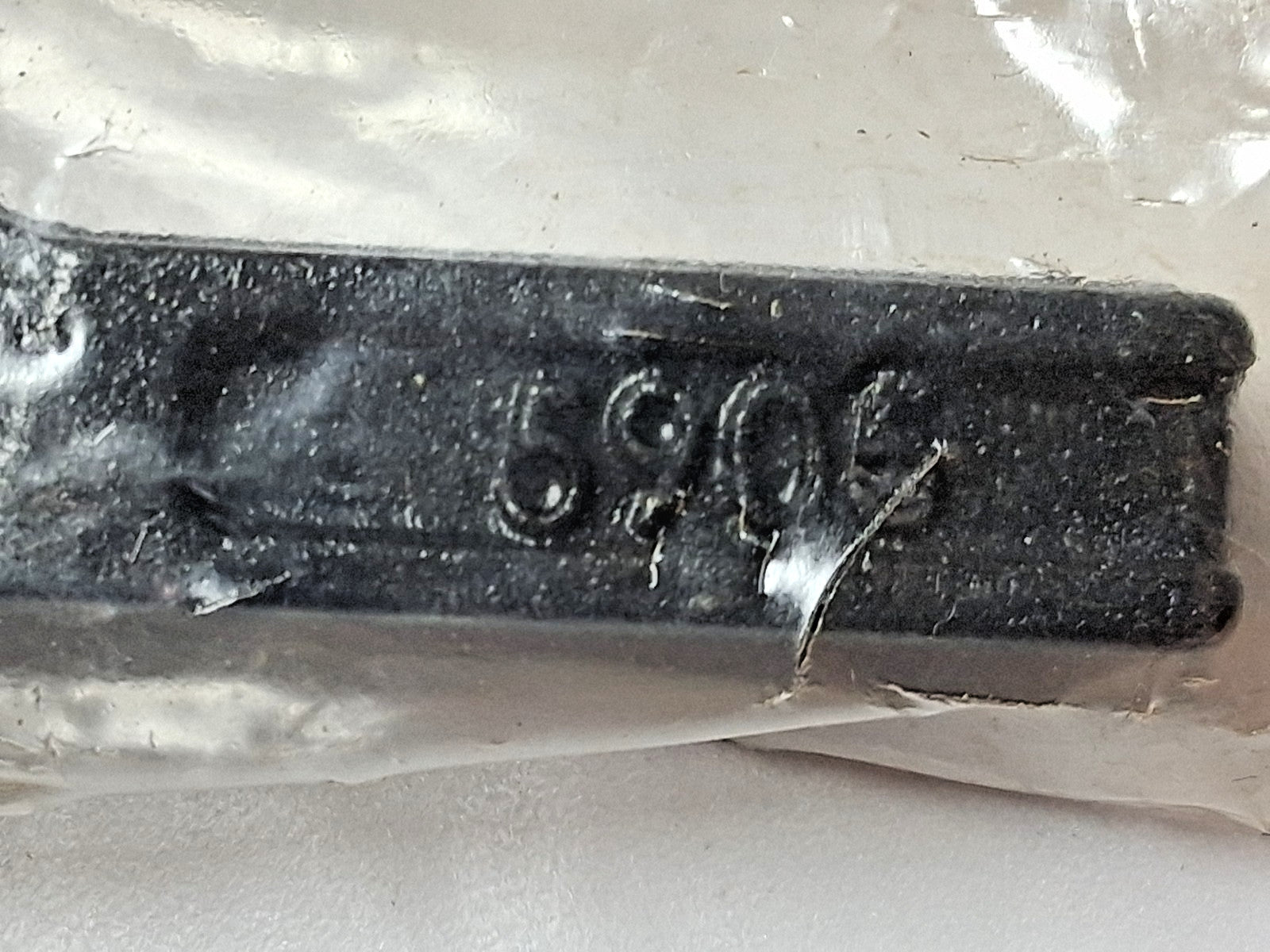

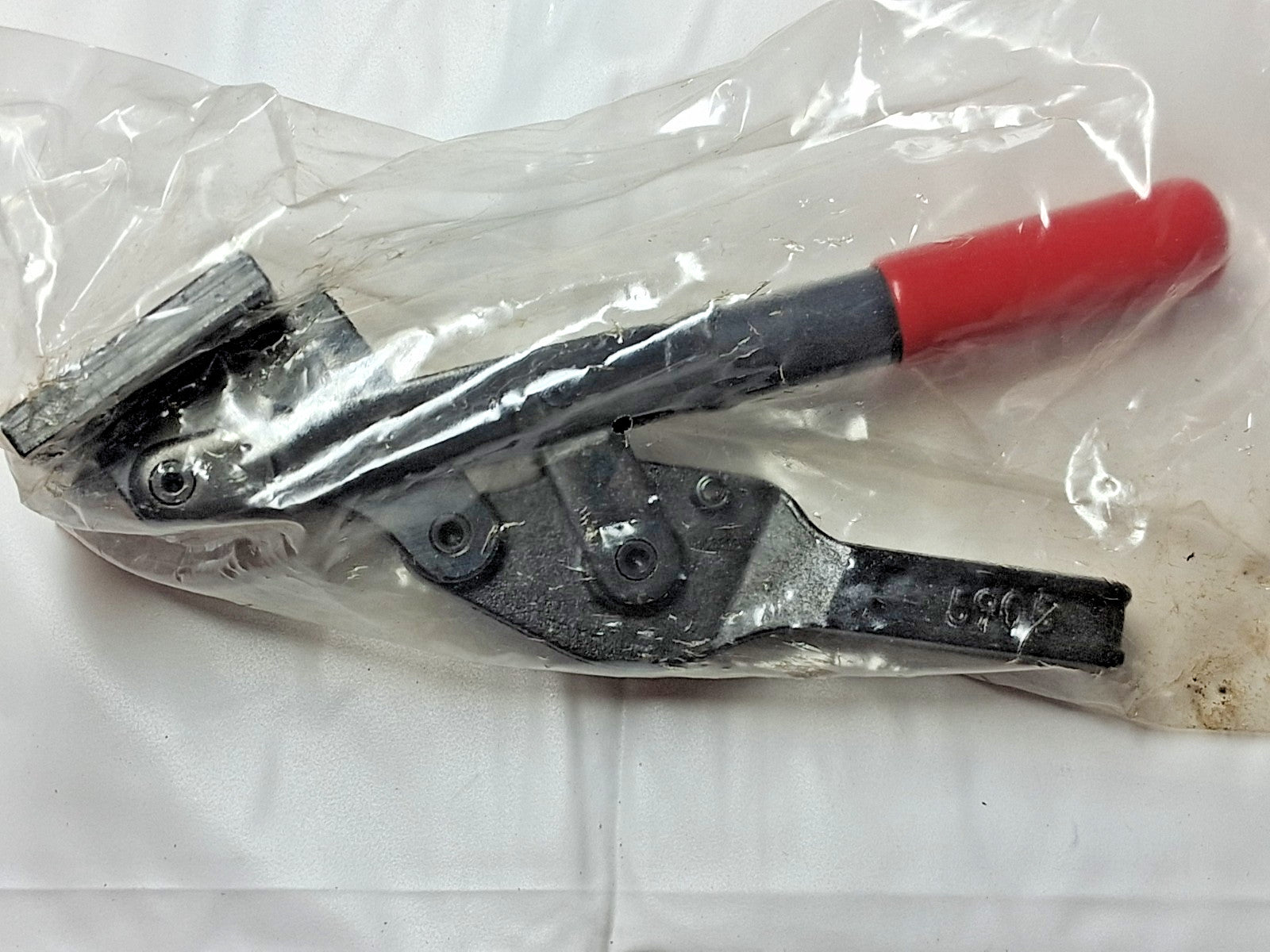

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
