DE-STA-CO Pull-Action Latch Clamp: Horizontal, 4,000 lb U-Hook, Flanged Base 375

DE-STA-CO

 Pull-Action Latch Clamp: Horizontal, 4,000 lb U-Hook, Flanged Base 375
MSRP: $80

• Clamping Orientation Horizontal
• Bar Style U-Hook
• Load Capacity (N) 17792.90
• Load Capacity (Lb. - 3 Decimals) 4000.00
• Load Capacity 17792.9 N; 4000 lb
• Base Style Flanged
• Material Carbon Steel
• Body Material Carbon Steel
• Handle Style Straight
• Overall Length (Decimal Inch) 10.1900
• Overall Length (mm) 258.83
• Overall Height (Mm - 5 Decimals) 106.43
• Overall Height (Decimal Inch) 4.1900
• Drawing Movement (mm) 88.90
• Drawing Movement (Decimal Inch) 3.5000

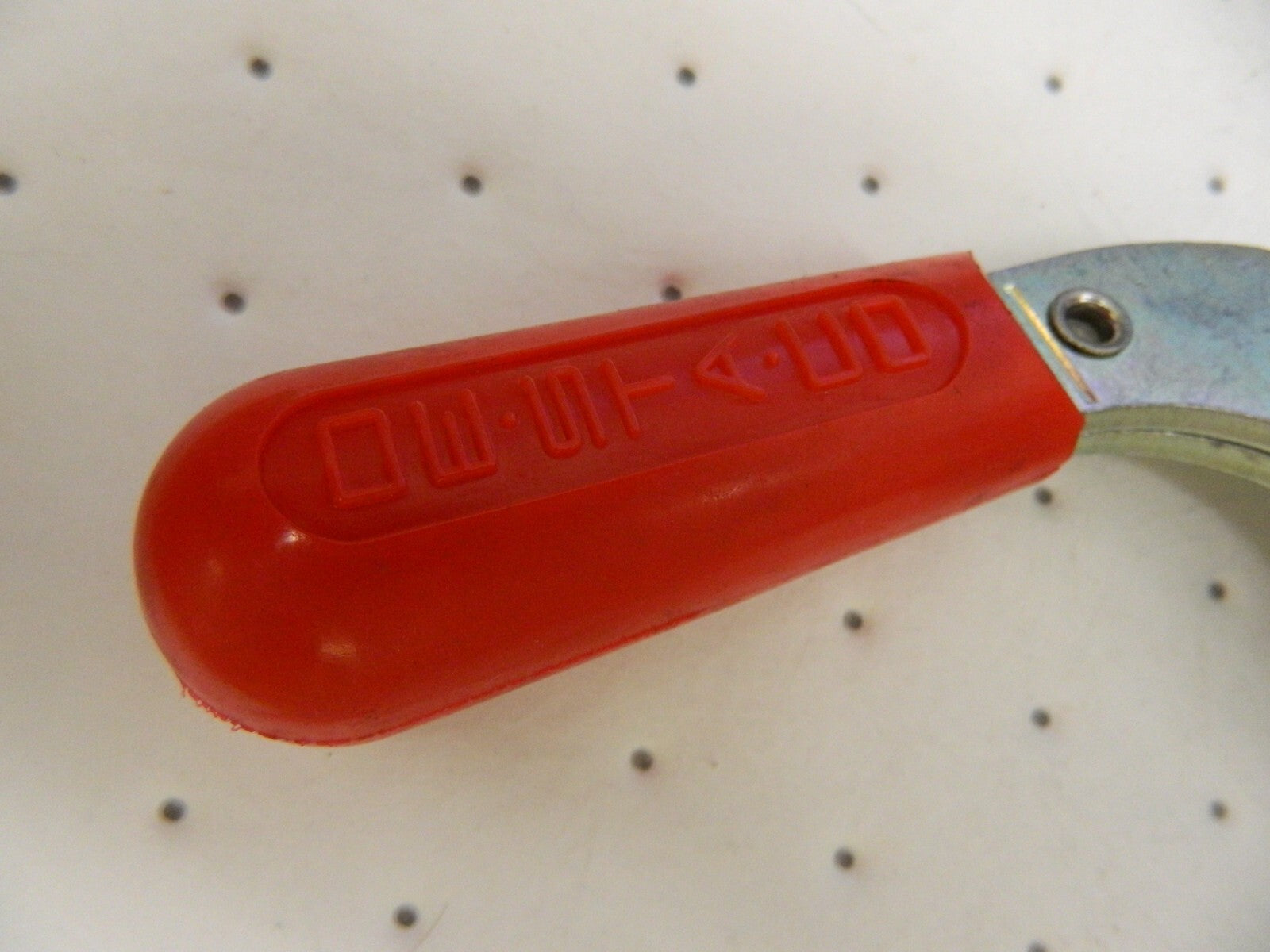

• Handle Color Red
• Base Length 3.44
• Base Length (mm) 87.38
• Base Width (Inch) 3.1300
• Base Width 79.50
• Mounting Hole Diameter (mm) 10.41
• Mounting Hole Diameter 0.4100
• Width Distance Between Mount Holes (Inch) 2-1/4
• Width Distance Between Mount Holes (mm) 57.15
• Length Distance Between Mount Holes (Inch) 2-1/4
• Length Distance Between Mount Holes (Decimal Inch) 2.2500
• Length Distance Between Mount Holes (mm) 57.15
• Bar Width (Decimal Inch) 1.7500
• Bar Width 44.45 mm; 1.75 in
• Bar Thickness (Decimal Inch) 0.3900
• Bar Thickness (mm) 9.91
• Base to Center of Bar (mm) 28.70
• Base to Center of Bar (Decimal Inch) 1.1300
• Includes Threaded U-Hook; Patented Thumb Control Lever
• Industry Number 375
• Width Distance Between Mounting Holes 2.2500

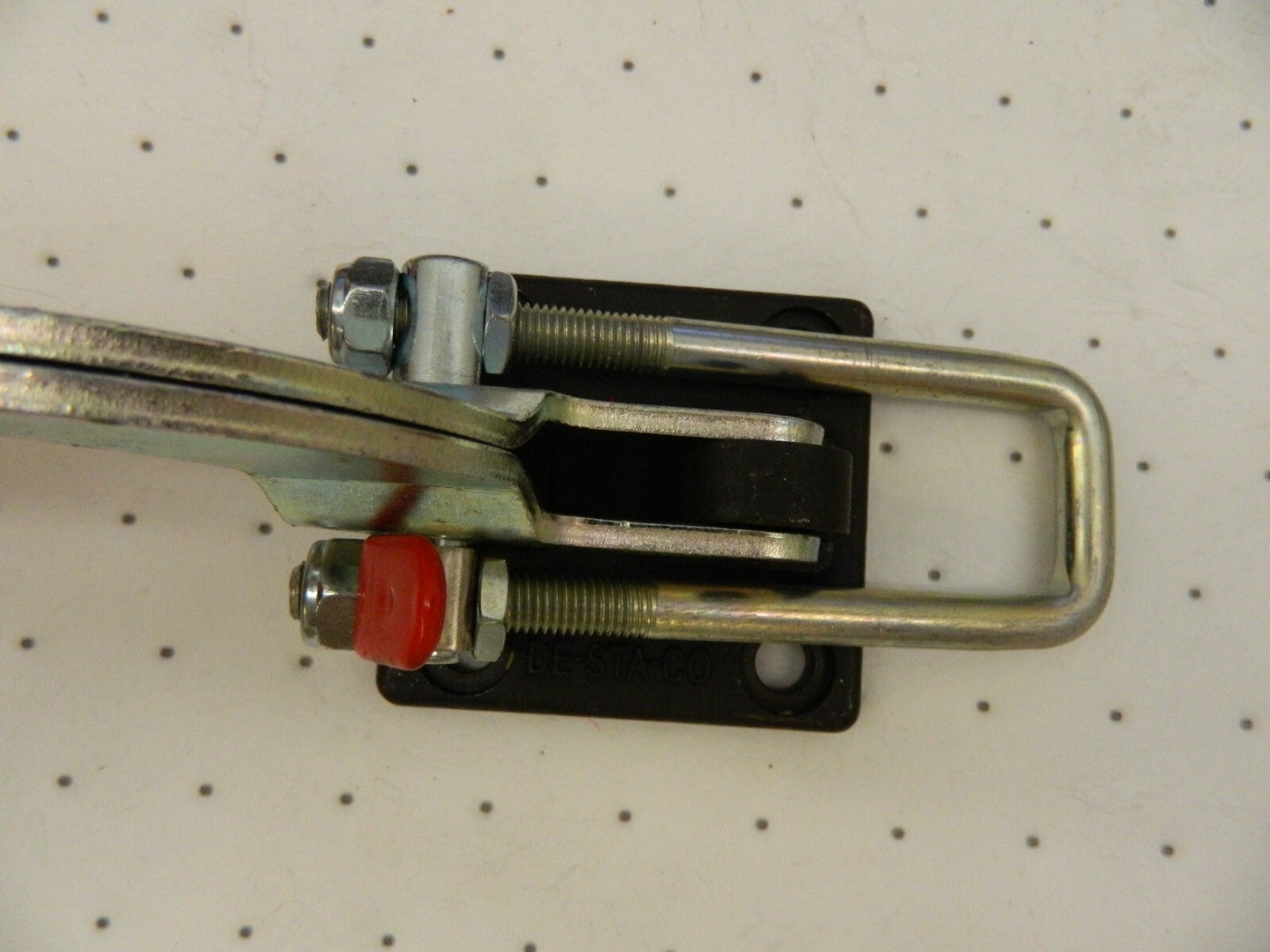

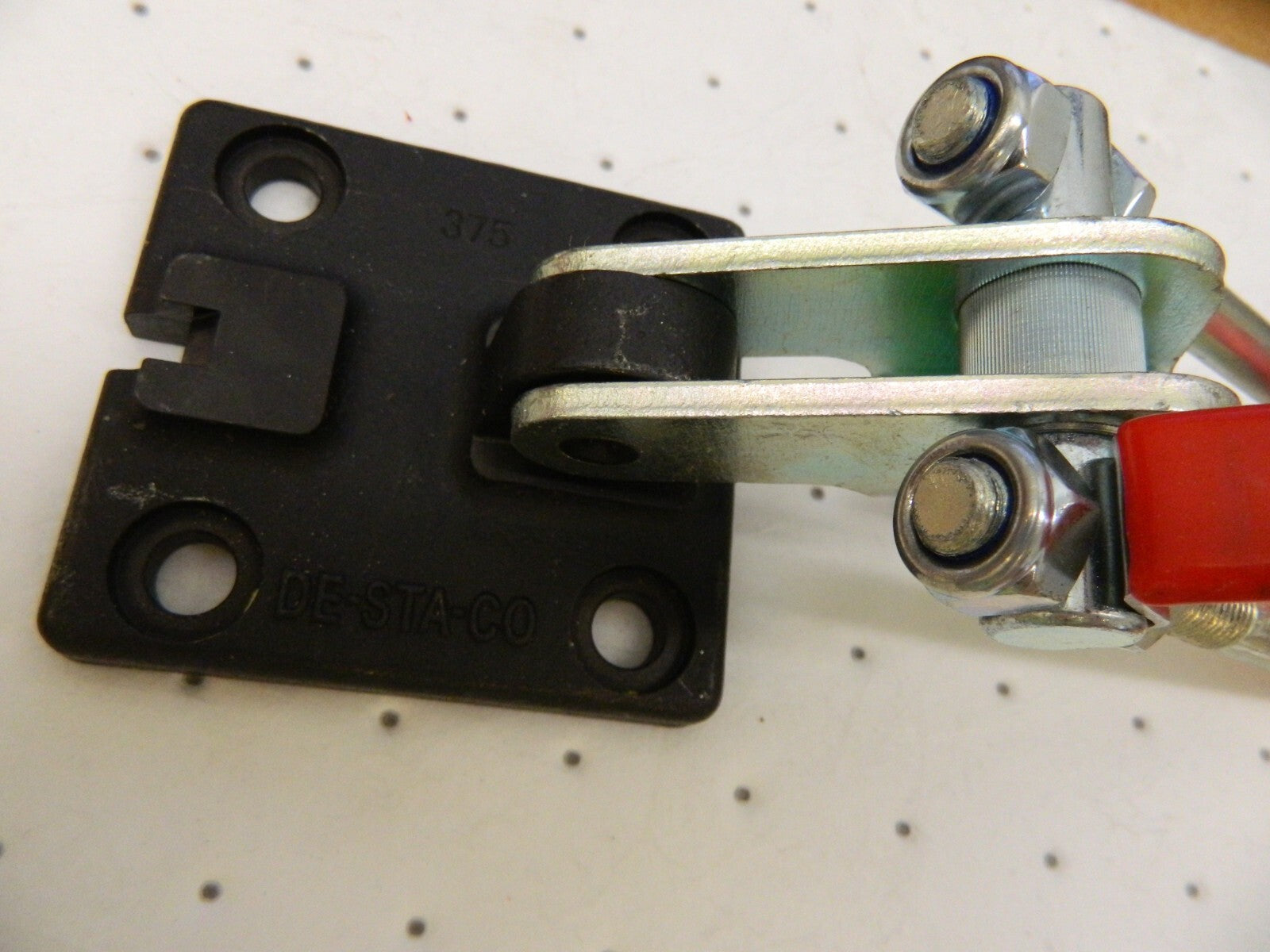

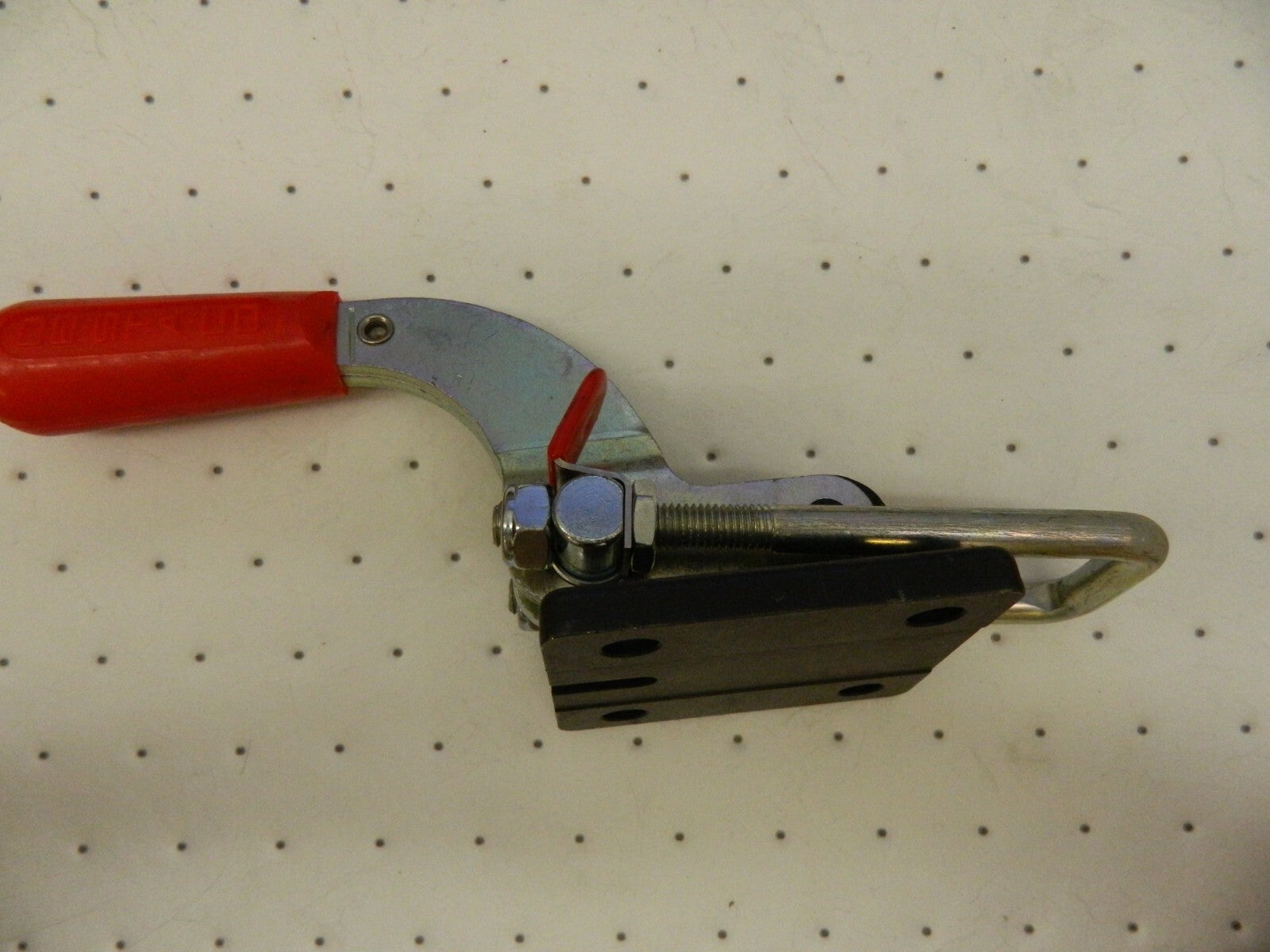

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
