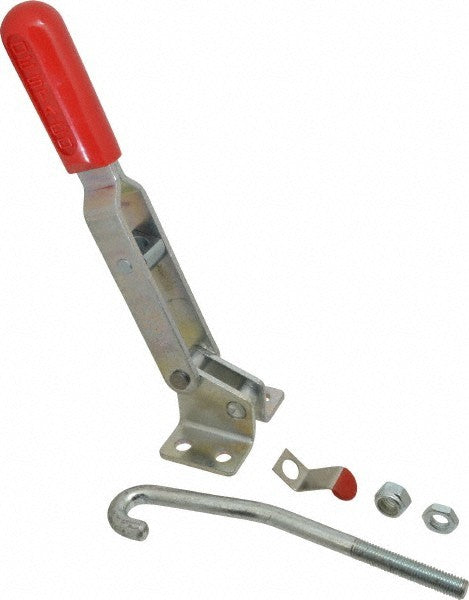

De-Sta-Co Pull-Action Latch Clamp Horizontal 1,000 lb J-Hook Flanged Base 381

De-Sta-Co
Pull-Action Latch Clamp

MSRP: $60

• Clamping Orientation Horizontal
• Bar Style J-Hook
• Load Capacity (N) 4448.22
• Load Capacity (Lb) 1000.000
• Load Capacity (Kg) 454.00
• Load Capacity 1000 lb; 4448.22 N
• Base Style Flanged
• Material Carbon Steel
• Body Material Carbon Steel
• Handle Style Straight
• Overall Length (Decimal Inch) 13.4500
• Overall Length (mm) 341.6300
• Overall Height (mm) 73.66000
• Overall Height (Decimal Inch) 2.9000
• Drawing Movement (mm) 155.70
• Drawing Movement (Inch - 2 Decimals) 6.13
• Handle Color Red
• Base Length 2.1300
• Base Length (mm) 54.1000
• Base Width (Inch) 3.3800
• Base Width (mm) 85.85
• Mounting Hole Diameter (mm) 10.41
• Mounting Hole Diameter 0.4100
• Width Distance Between Mount Holes (mm) 60.20
• Length Distance Between Mount Holes (Decimal Inch) 1.1300
• Length Distance Between Mount Holes (mm) 28.70
• Bar Width (Decimal Inch) 0.6300
• Bar Width 0.63 in
• Bar Thickness (Decimal Inch) 0.4700
• Base to Center of Bar (mm) 45.97
• Base to Center of Bar (Decimal Inch) 1.8100
• Includes Threaded J-Hook; Patented Thumb Control Lever
• Industry Number 381
• Width Distance Between Mounting Holes 2.3700
• UNSPSC Code 31162900

(New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included).

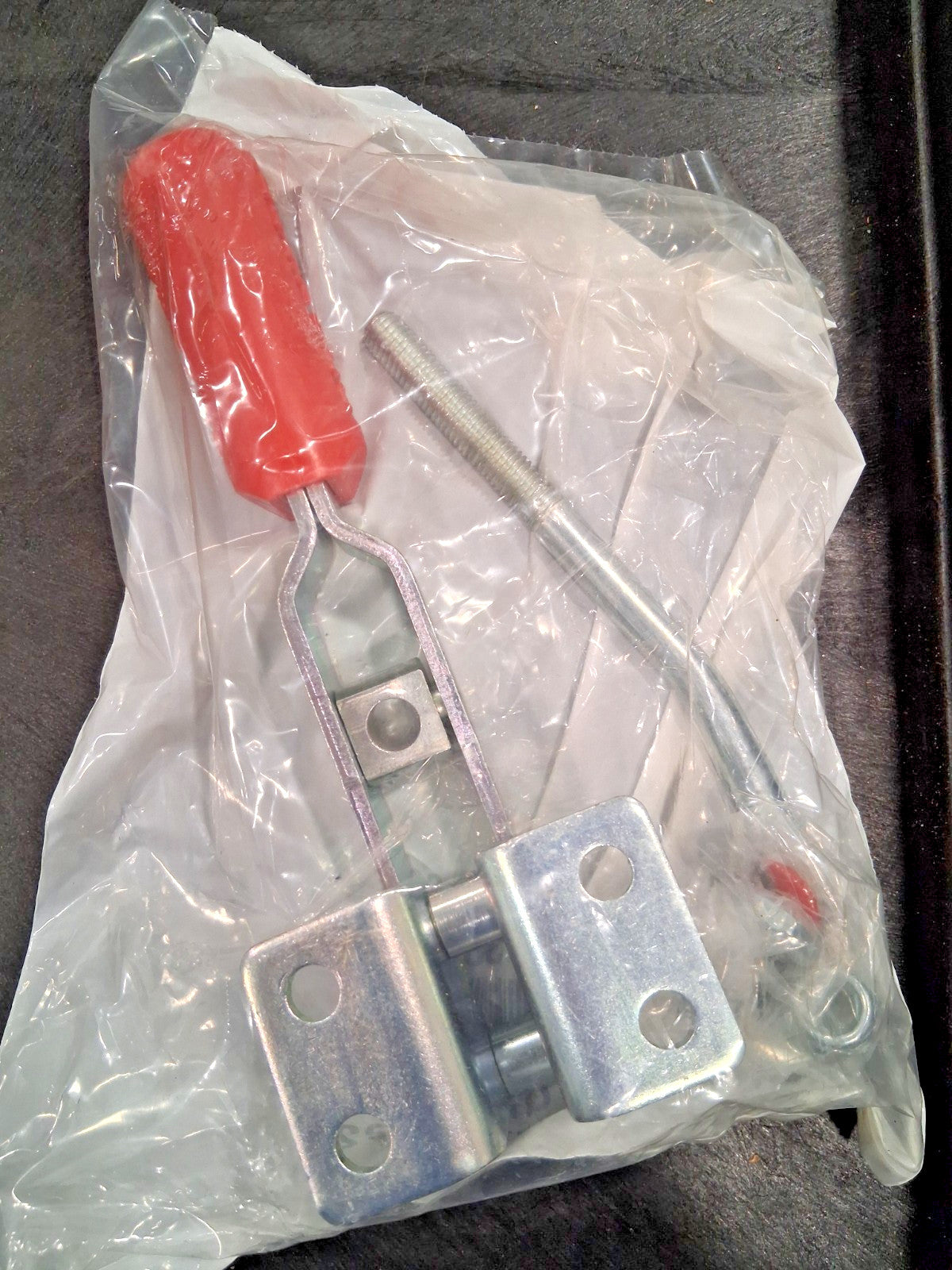

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
