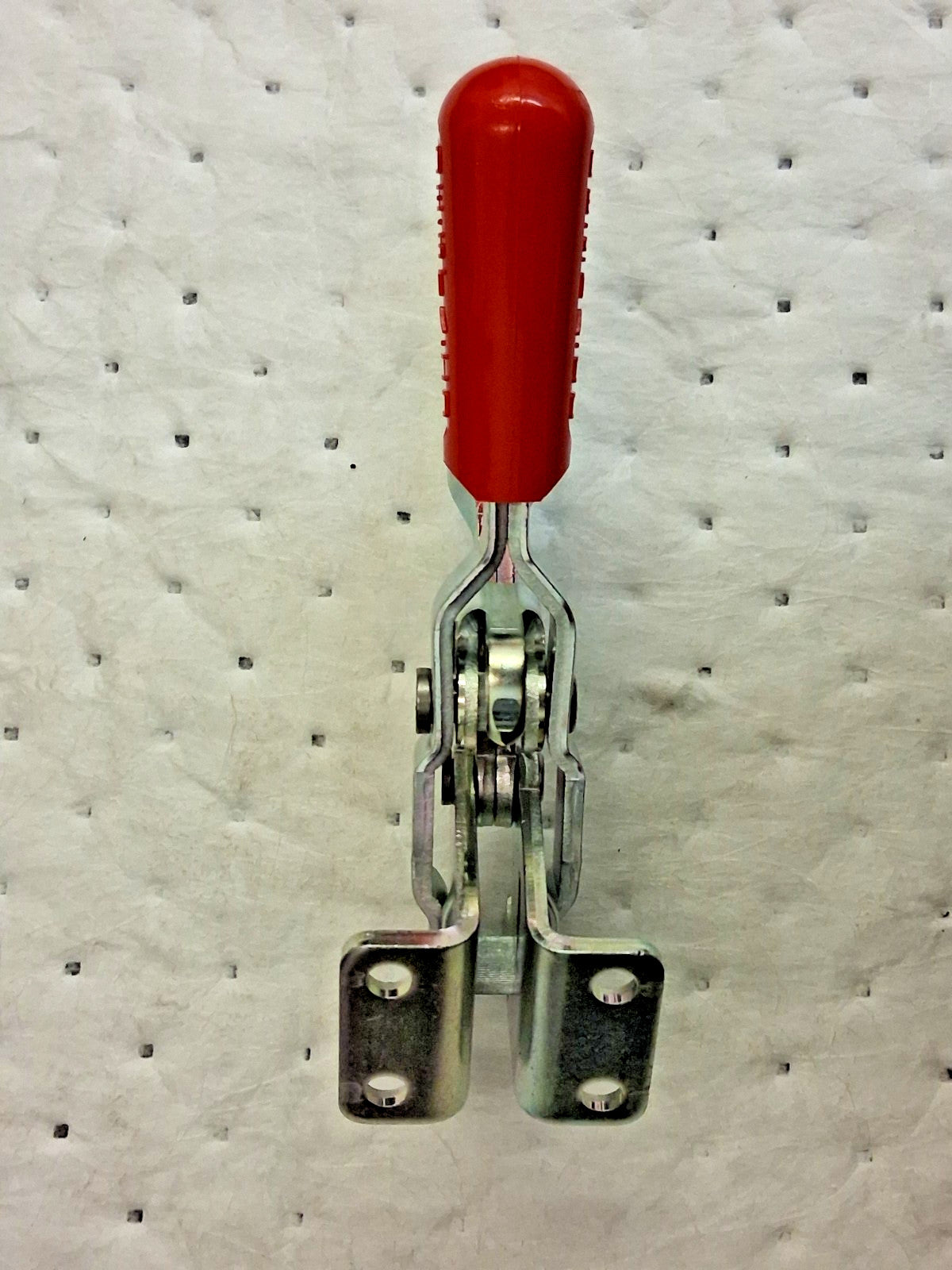

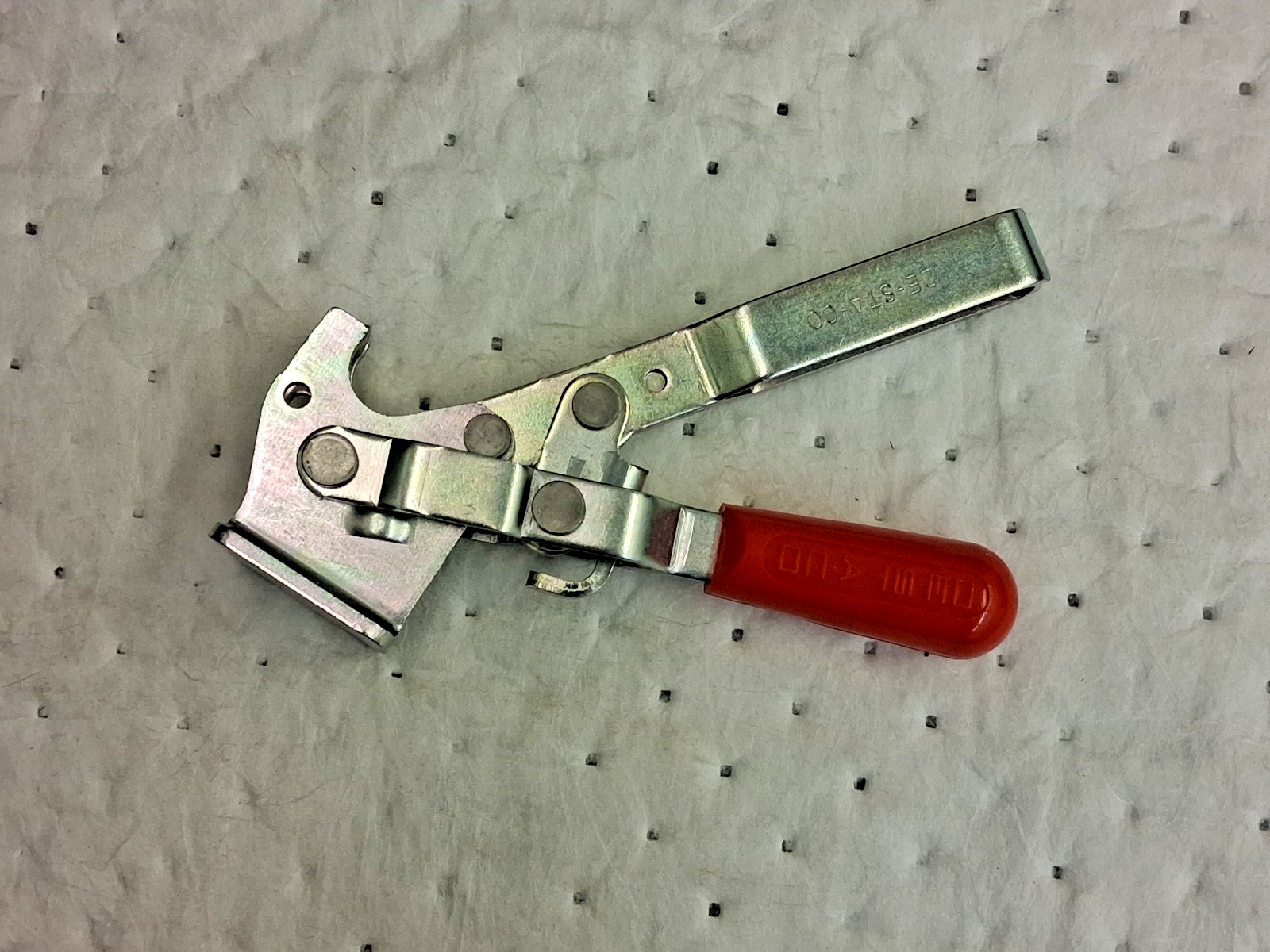

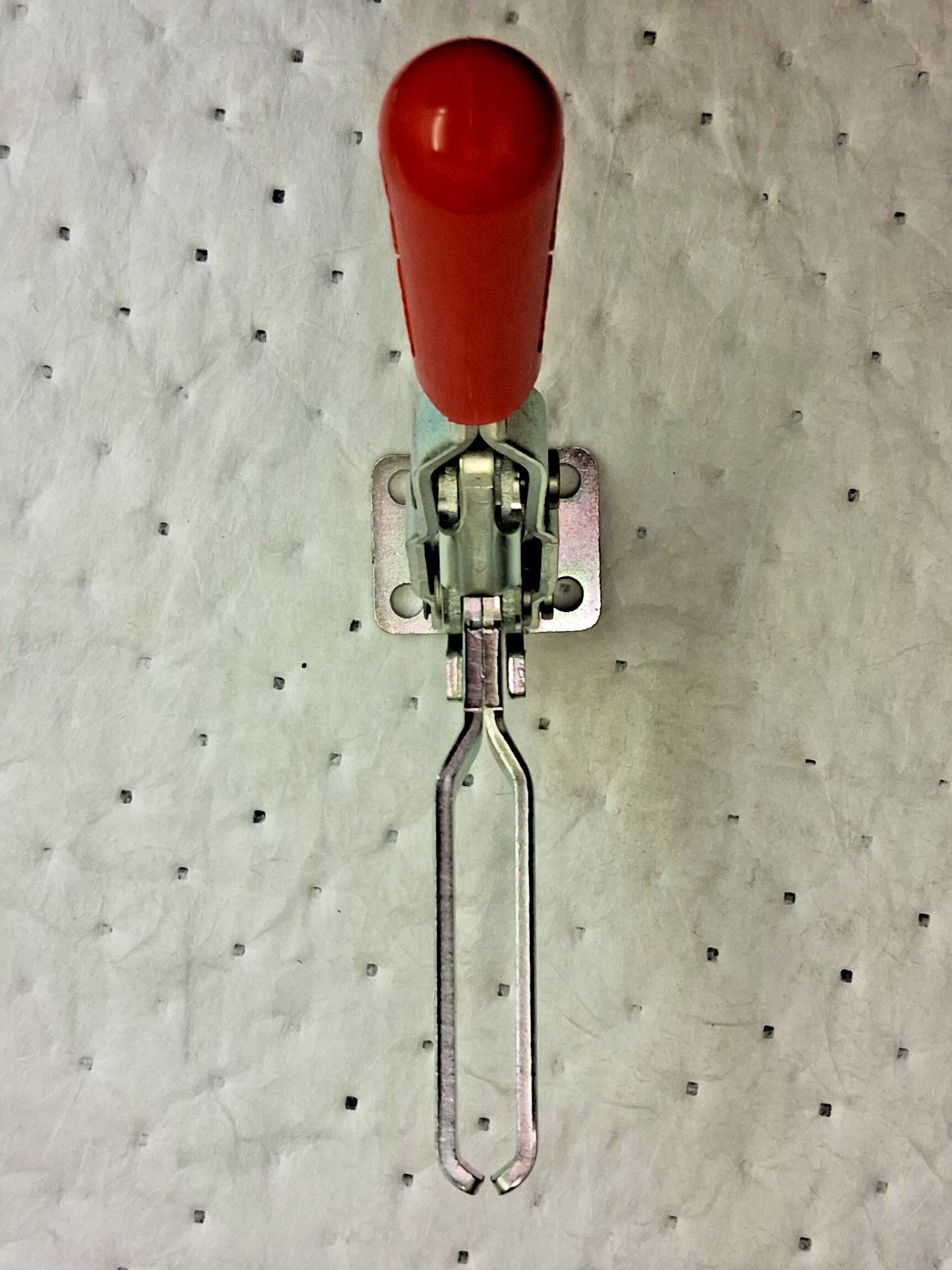

• Handle Orientation: Vertical Bar Style: U-Bar
• Base Style: Flanged Bar End Type: Fixed Spindle
• Holding Capacity (N): 4450.00 Holding Capacity (Lb.): 1000.00
• Length Distance Between Mount Holes (mm): 32.00 Length Distance Between Mount Holes: 32 mm; 1.26 in
• Length Distance Between Mount Holes (Inch): 1.26 Width Distance Between Mount Holes (mm): 44.96
• Width Distance Between Mount Holes: 1.77 in; 44.96 mm Width Distance Between Mount Holes (Decimal Inch): 1.7700
• Height Under Bar (Decimal Inch): 2.0000 Height Under Bar (mm): 50.80
• Overall Length (mm): 174.75 Overall Length (Decimal Inch): 6.8800
• Overall Height (Decimal Inch): 8.8600 Overall Height (mm): 225.04
• Base Length (mm): 50.80 Base Width (Inch): 2.5200
• Base Width (mm): 64.01 Handle Style: Straight
• Material: Carbon Steel Handle Material: Carbon Steel
• Handle Color: Red Mounting Hole Diameter (mm): 8.89
• Mounting Hole Diameter (Decimal Inch): 0.3500 Bar Opening (Degrees): 120
• Handle Movement (Degrees): 67 Maximum Mechanical Advantage: 10:01; 05:01
• Spindle Thread Size: M12x1.75 Spindle Travel (Inch): 3.1500
• Spindle Travel (mm): 80.01 Bar Width (mm): 22.10
• Bar Width (Decimal Inch): 0.8700 UNSPSC Code: 31162902
• Front Of Base To Toggle Tip: 4.88 in Includes: (2) Nuts; Spindle; (2) Flanged Washers
• Front of Base To Tip Of Toggle Bar (Decimal Inch): 4.8800 Front of Base To Tip Of Toggle Bar (mm): 123.95
• Number Of Mounting Holes: 4.000 Finish Coating: Zinc

New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included
