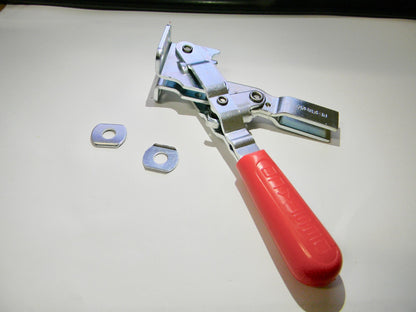

De-Sta-Co Manual Hold Down Toggle Clamp Vertical Handle QTY 2 207-U-L

BRAND De-StaCo
Item QTY 2

• specs
• Handle Orientation: Vertical
• Bar Style: U-Bar
• Base Style: Flanged
• Bar End Type: Open
• Holding Capacity (N): 1670.00
• Holding Capacity (Lb.): 375.43
• Length Distance Between Mount Holes (mm) :19.05
• Length Distance Between Mount Holes (Decimal Inch): 0.75
• Width Distance Between Mount Holes (mm): 31.75
• Width Distance Between Mount Holes (Decimal Inch): 1.2500
• Height Under Bar (mm): 31.75
• Height Under Bar (Decimal Inch): 1.2500
• Overall Height (mm): 176.02
• Overall Height (Decimal Inch): 6.9300
• Base Length (mm): 35.05
• Base Length (Decimal Inch): 1.3800
• Base Width (mm): 43.94
• Base Width (Decimal Inch): 1.7300
• Handle Style: Straight
• Material: Carbon Steel
• Handle: Color Red
• Number of Mounting Holes: 4
• Mounting Hole Diameter (mm): 7.11
• Mounting Hole Diameter (Decimal Inch): 0.2800
• Front of Base To Tip Of Toggle Bar (mm): 97.54
• Front of Base To Tip Of Toggle Bar (Decimal Inch): 1.8100
• Bar Opening ( ): 99.00
• Handle Movement ( ): 57.00
• Maximum Mechanical Advantage: 4:1; 7:1
• Spindle Thread Size: 5/16; M8
• Spindle Travel (mm): 74.68
• Spindle Travel (Decimal Inch): 2.9400
• Bar Width (Decimal Inch): 0.6300
• Bar Width (mm): 16.00
• Includes: Flanged Washers

(Description).

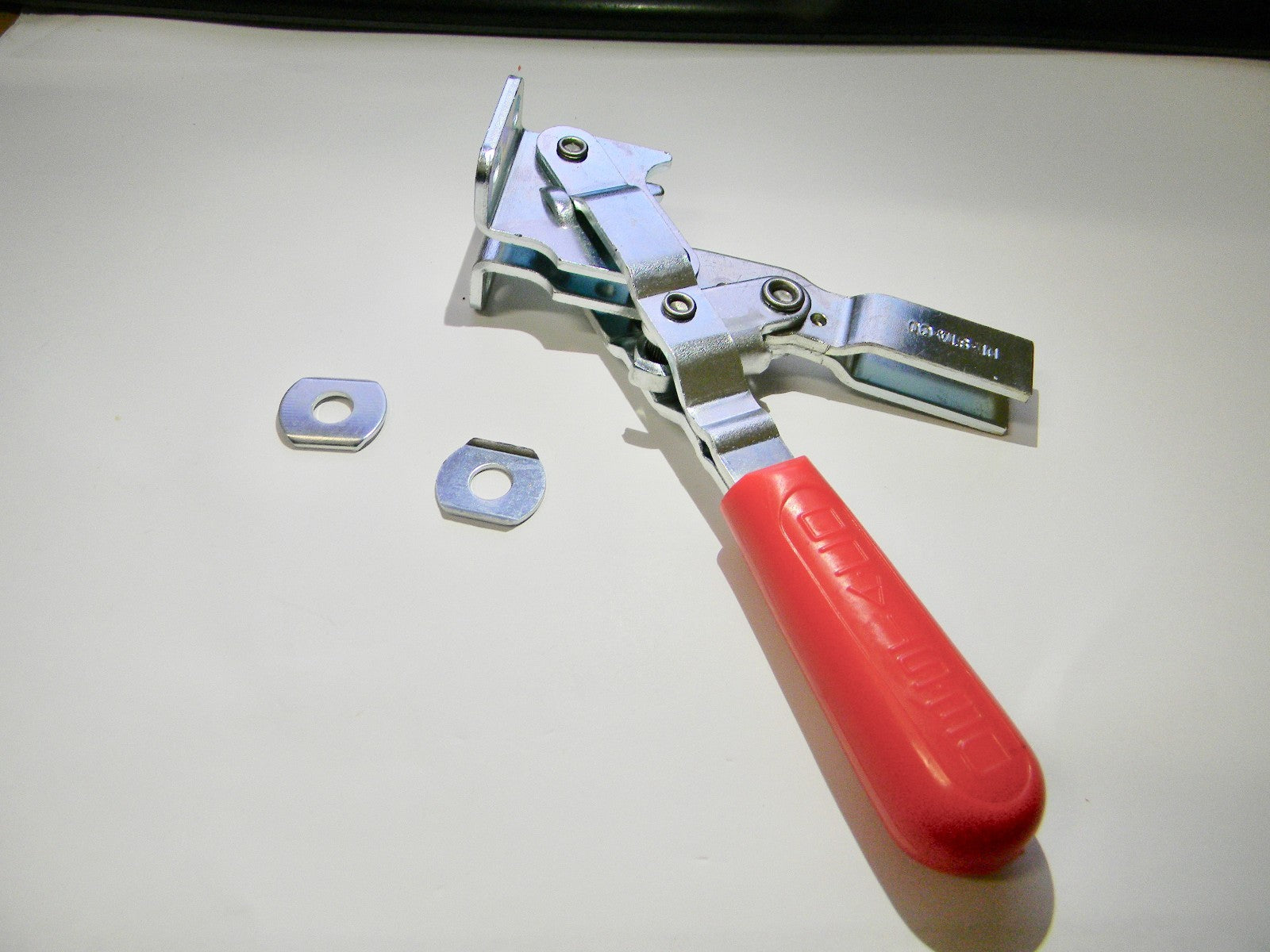

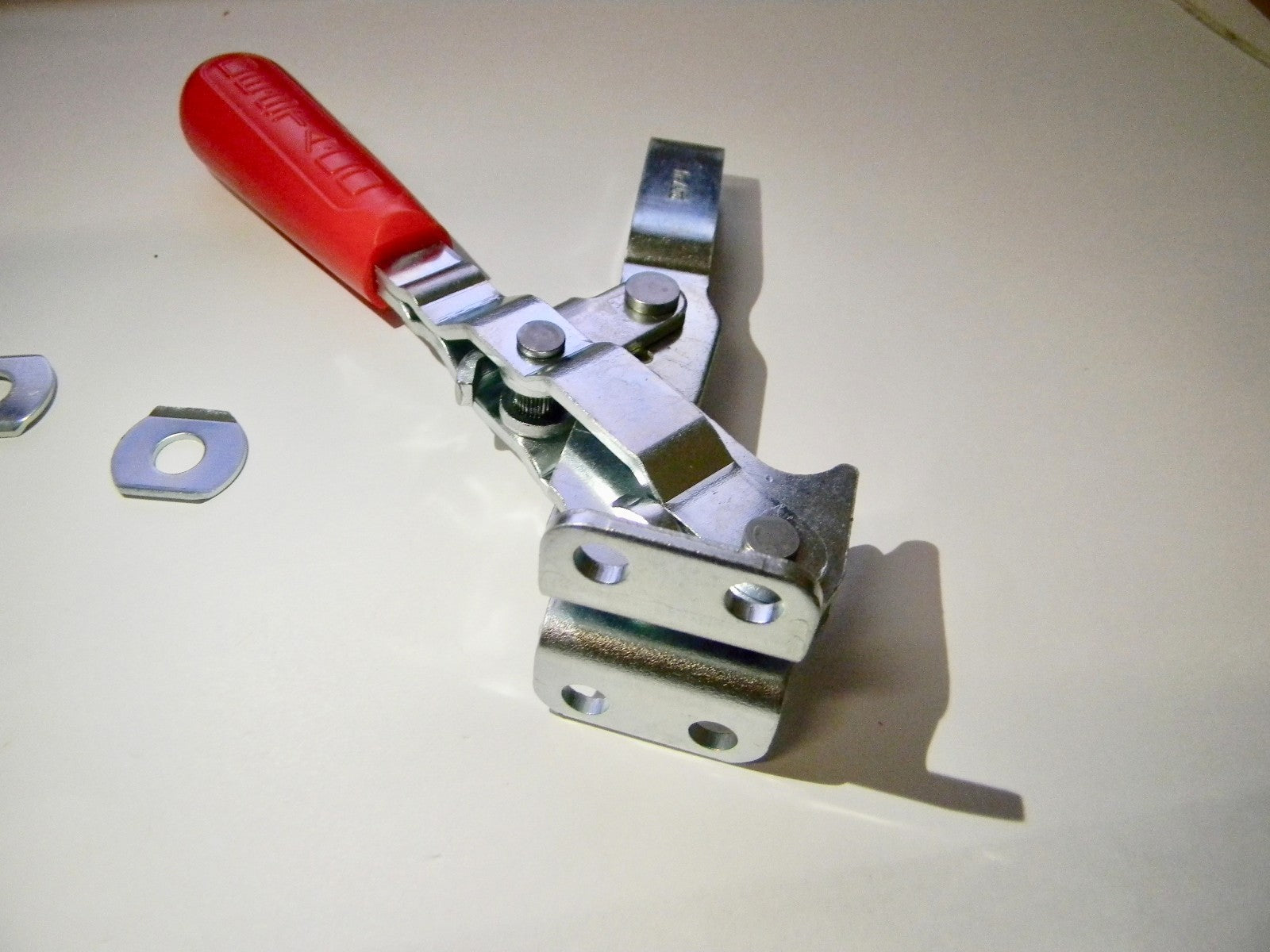

Please review photos, comes as shown.
