De-Sta-Co Manual Hold-Down Toggle Clamp: Vertical, 750.00 lb Cap. 210-21

De-Sta-Co
Manual Hold-Down Toggle Clamp

MSRP: $50.00

• Handle Orientation: Vertical
• Bar Style: Solid
• Base Style: Flanged
• Bar End Type: Closed
• Holding Capacity (N): 3340.00
• Holding Capacity (Lb.): 750.00
• Length Distance Between Mount Holes (mm): 32.00
• Length Distance Between Mount Holes: 32 mm; 1.26 in
• Length Distance Between Mount Holes (Inch): 1.26
• Width Distance Between Mount Holes (mm): 44.96
• Width Distance Between Mount Holes: 1.77 in; 44.96 mm
• Width Distance Between Mount Holes (Decimal Inch): 1.7700
• Height Under Bar (Decimal Inch): 1.6700
• Height Under Bar (mm): 42.42
• Overall Length (mm): 170.18
• Overall Length (Decimal Inch): 6.7000
• Overall Height (Decimal Inch): 8.1900
• Overall Height (mm): 208.03
• Base Length (mm): 48.01
• Base Width (Inch): 2.5600
• Base Width (mm): 65.02
• Handle Style: Straight
• Material: Carbon Steel
• Handle Material: Carbon Steel
• Handle Color: Red
• Mounting Hole Diameter (mm): 8.38
• Mounting Hole Diameter (Decimal Inch): 0.3300
• Bar Opening (Degrees): 103
• Handle Movement (Degrees): 58
• Maximum Mechanical Advantage: 11:01; 09:01
• Spindle Thread Size: 3/8-16
• Spindle Length: 3-1/4
• Bar Width (mm): 20.07
• Bar Width (Decimal Inch): 0.7900
• Bar Thickness (mm): 7.87
• UNSPSC Code: 31162902
• Bar Thickness (Decimal Inch): 0.3100
• Front Of Base To Toggle Tip: 3.65 in
• Includes: Bolt Retainer
• Front of Base To Tip Of Toggle Bar (Decimal Inch): 3.6500
• Front of Base To Tip Of Toggle Bar (mm): 92.71
• Number Of Mounting Holes: 4
• Finish Coating: Zinc
• Country of Origin: UNITED STATES

This item is new and in good condition. SOLD AS IS.

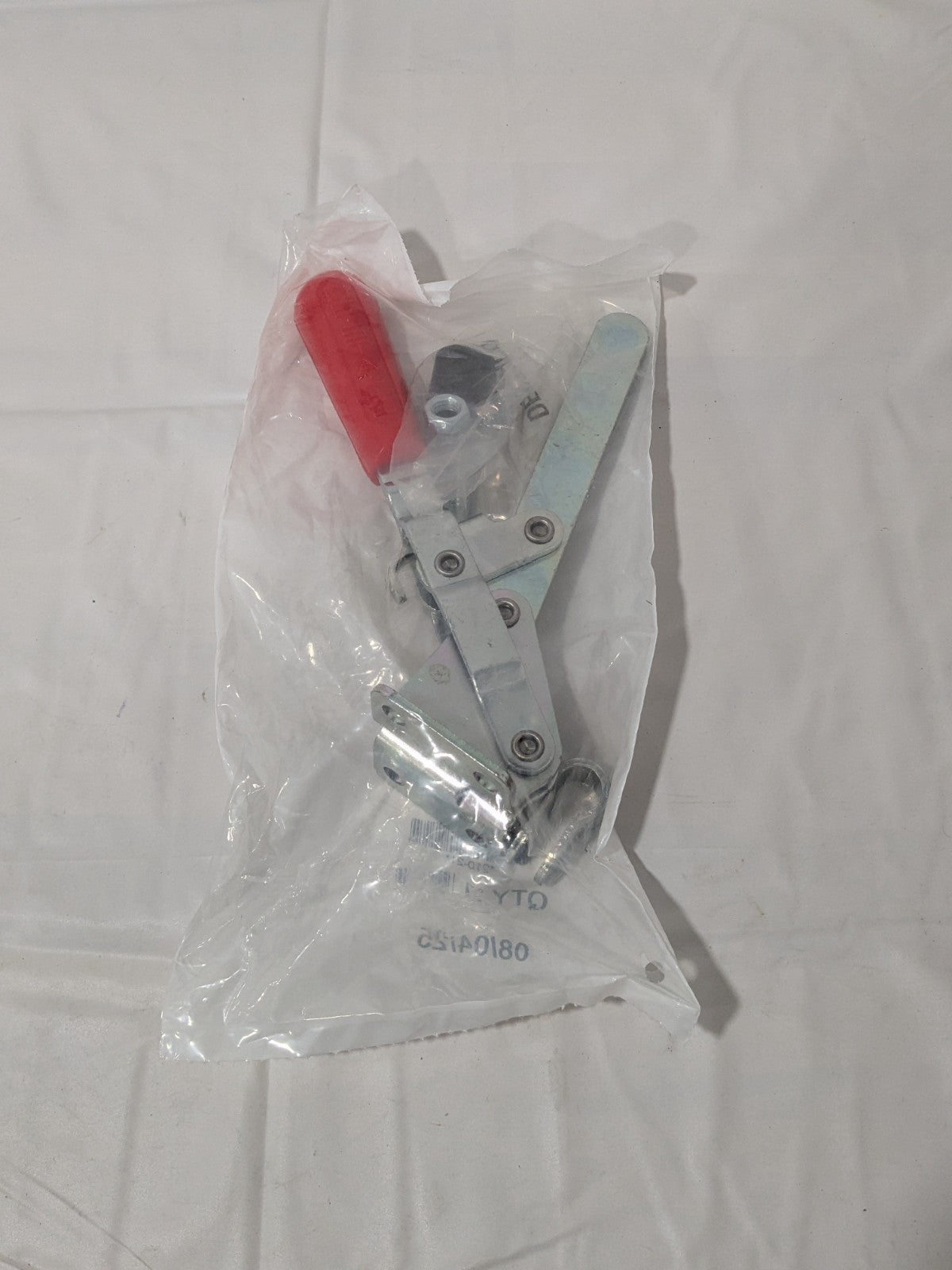

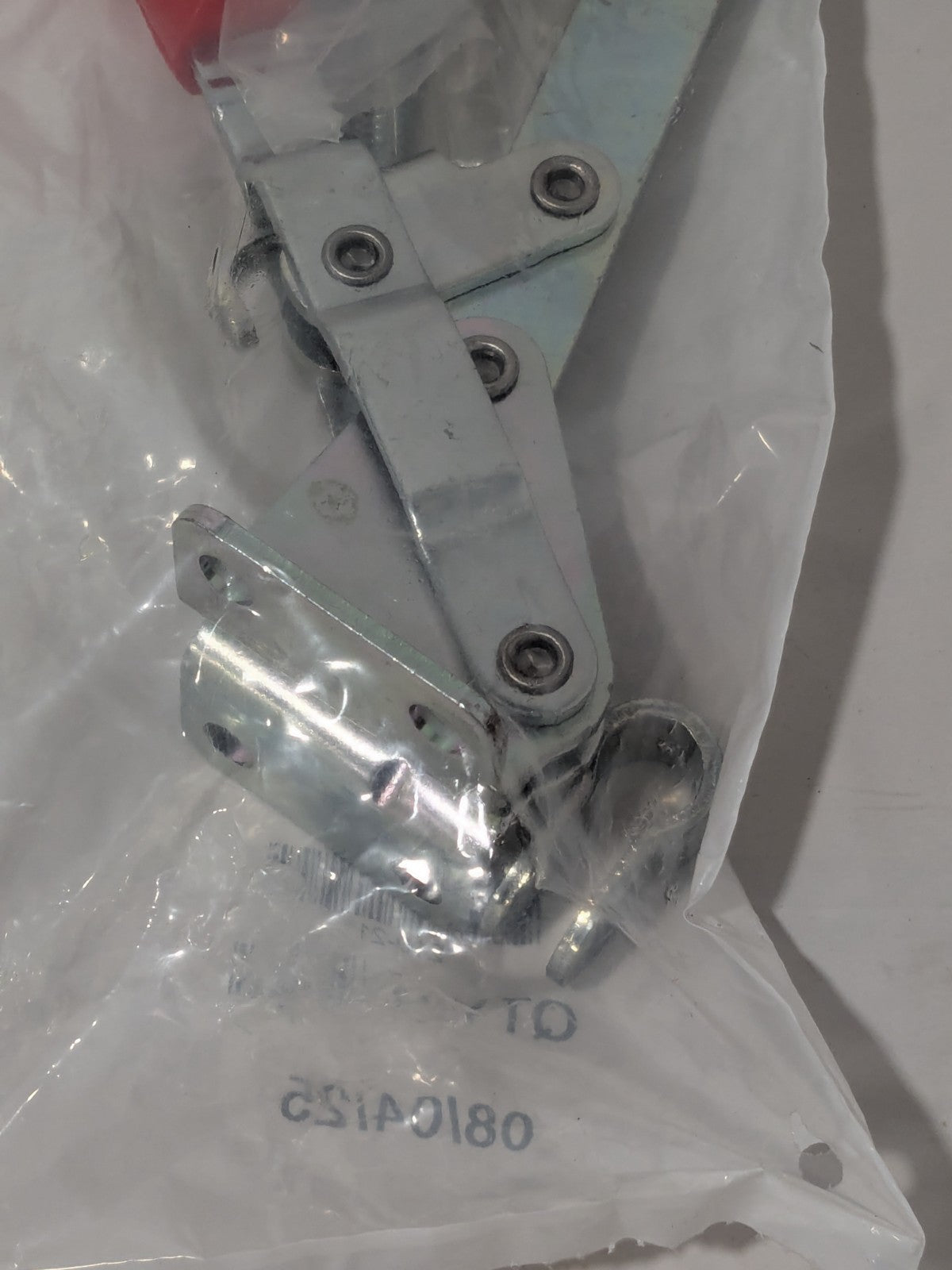

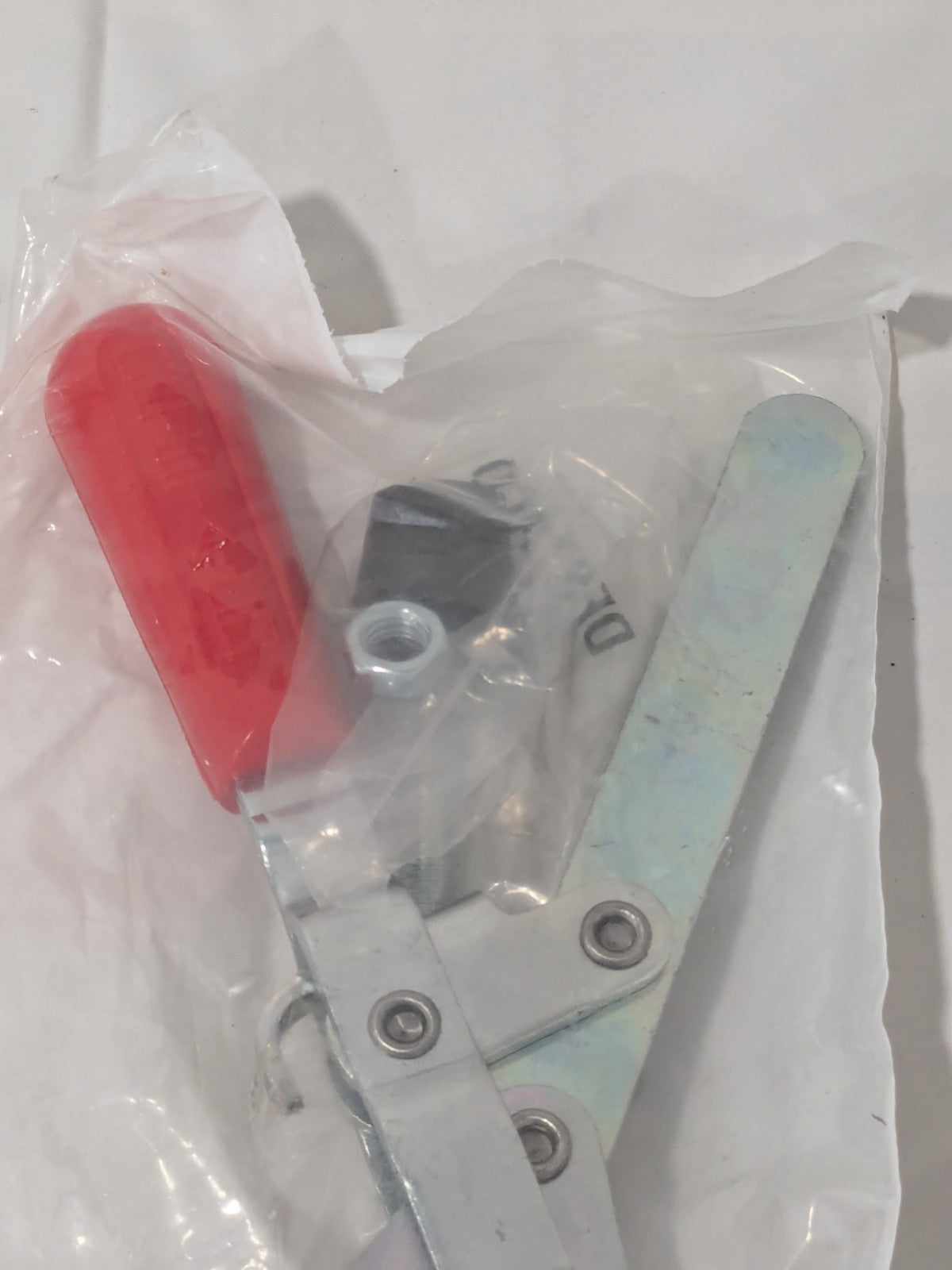

Please review photos, comes as shown.
