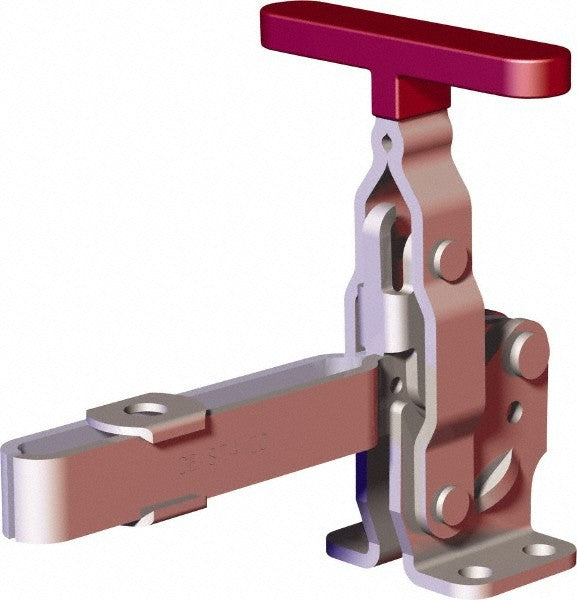

DE-STA-CO Manual Hold-Down Toggle Clamp: Vertical, 375.43 lb Cap. 207-TUL

• Handle Orientation: Vertical
• Bar Style: U-Bar
• Base Style: Flanged
• Bar End Type: Closed
• Holding Capacity (N): 1670.00
• Holding Capacity (Lb.): 375.43
• Length Distance Between Mount Holes (mm): 19.05
• Length Distance Between Mount Holes: 0.75 in; 19.05 mm
• Length Distance Between Mount Holes (Inch): 0.75
• Width Distance Between Mount Holes (mm): 31.75
• Width Distance Between Mount Holes: 31.75 mm; 1.25 in
• Width Distance Between Mount Holes (Decimal Inch): 1.2500
• Height Under Bar (Decimal Inch): 1.2500
• Height Under Bar (mm): 31.75
• Overall Height (Decimal Inch): 6.9300
• Overall Height (Decimal Inch): 176.02
• Base Length (mm): 35.05
• Base Width (Inch): 1.7300
• Base Width (mm): 43.94
• Handle Style: T-Handle
• Material: Carbon Steel
• Handle Material: Carbon Steel
• Handle Color: Red
• Mounting Hole Diameter (mm): 7.11
• Mounting Hole Diameter (Decimal Inch): 0.2800
• Bar Opening (Degrees): 99
• Handle Movement (Degrees): 57
• Maximum Mechanical Advantage: 03:01; 04:01
• Spindle Travel (Inch): 2.9400
• Spindle Travel (mm): 74.68
• UNSPSC Code: 31162902
• Front Of Base To Toggle Tip: 3.84 in
• Includes: Flanged Washers
• Front of Base To Tip Of Toggle Bar (Decimal Inch): 3.8400
• Front of Base To Tip Of Toggle Bar (mm): 97.54
• Number Of Mounting Holes: 4
• Country of Origin: UNITED STATES
