De-Sta-Co Manual Hold-Down Toggle Clamp Vertical 2248.09 Lb Capacity 535-L

De-Sta-Co
Manual Hold-Down Toggle Clamp

MSRP: $220

• Handle Orientation: Vertical
• Bar Style: Solid
• Base Style: Flanged
• Bar End Type: Closed
• Holding Capacity (N): 10000.00
• Holding Capacity (Lb.): 2248.09
• Length Distance Between Mount Holes (mm): 44.96
• Length Distance Between Mount Holes: 1.77 in; 44.96 mm
• Length Distance Between Mount Holes (Inch): 1.77
• Width Distance Between Mount Holes (mm): 52.07
• Width Distance Between Mount Holes: 2.05 in; 52.07 mm
• Width Distance Between Mount Holes (Decimal Inch): 2.0500
• Height Under Bar (Decimal Inch): 2.6300
• Height Under Bar (mm): 66.80
• Overall Length (mm): 4064.0000
• Overall Length (Decimal Inch): 160.0000
• Overall Height (Decimal Inch): 10.3500
• Overall Height (mm): 262.89000
• Base Length (mm): 74.9300
• Base Width (Inch): 2.1300
• Base Width (mm): 54.10
• Handle Style: Straight
• Material: Forged Alloy Steel
• Handle Material: Forged Alloy Steel
• Handle Color: Red
• Mounting Hole Diameter (mm): 10.41
• Mounting Hole Diameter (Decimal Inch): 0.4100
• Bar Opening (Degrees): 120
• Handle Movement (Degrees): 90
• Bar Width (mm): 24.89
• Bar Width (Decimal Inch): 0.9800
• UNSPSC Code: 31162902
• Front Of Base To Toggle Tip: 3.35 in

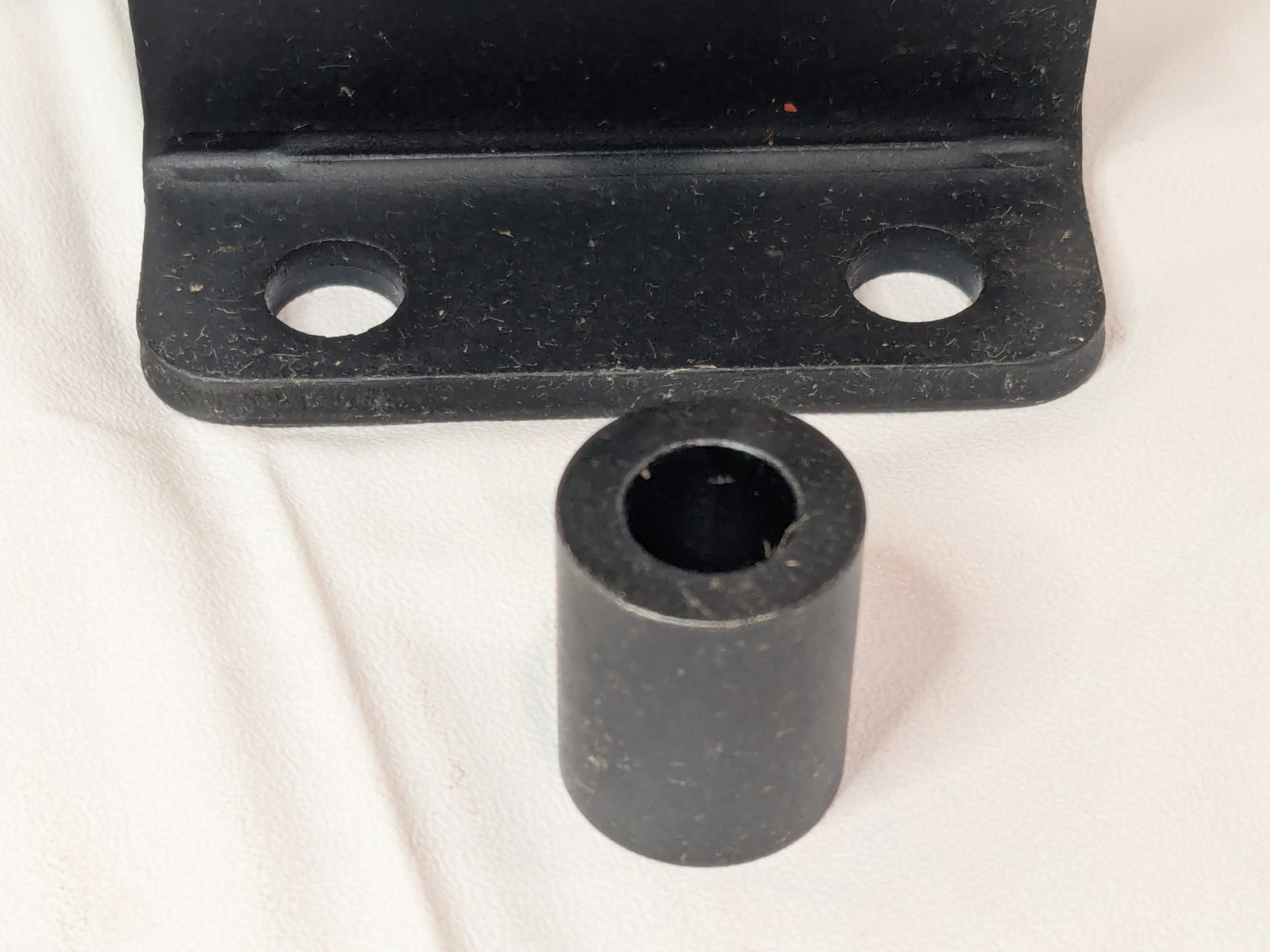

• Includes: Bolt Retainer
• Front of Base To Tip Of Toggle Bar (Decimal Inch): 3.3500
• Front of Base To Tip Of Toggle Bar (mm): 85.09
• Number Of Mounting Holes: 4.000
• Finish Coating: Oxide

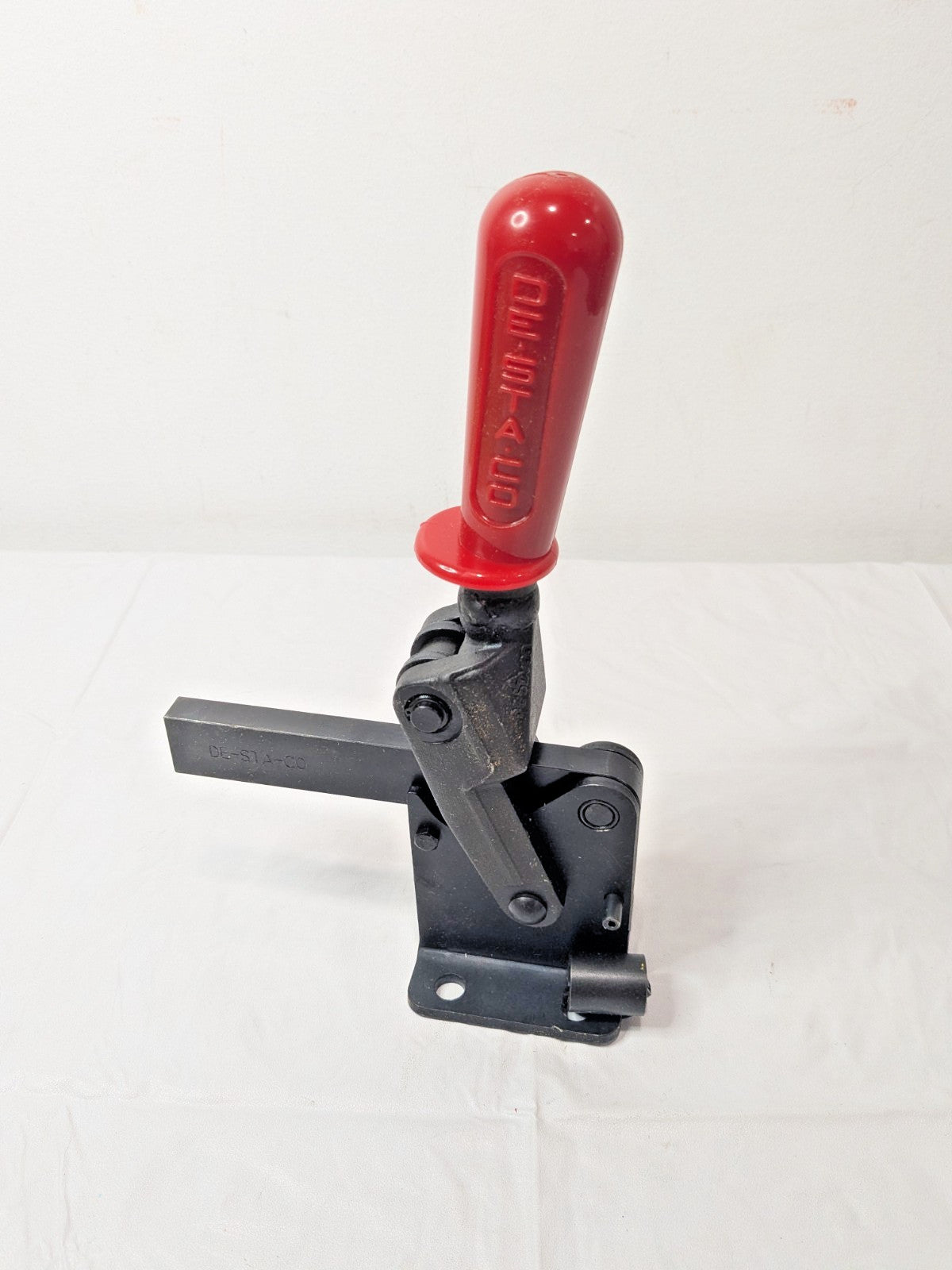

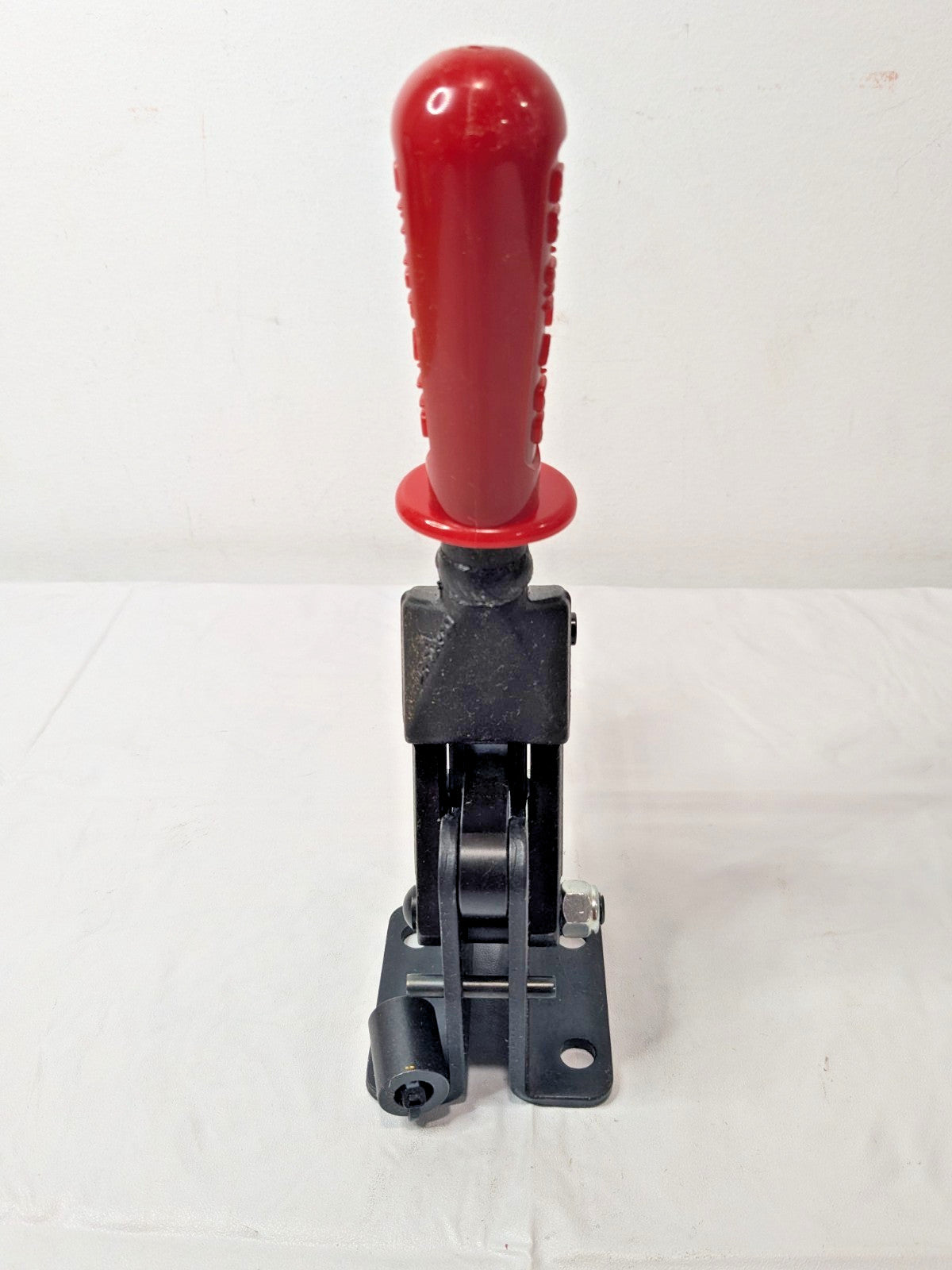

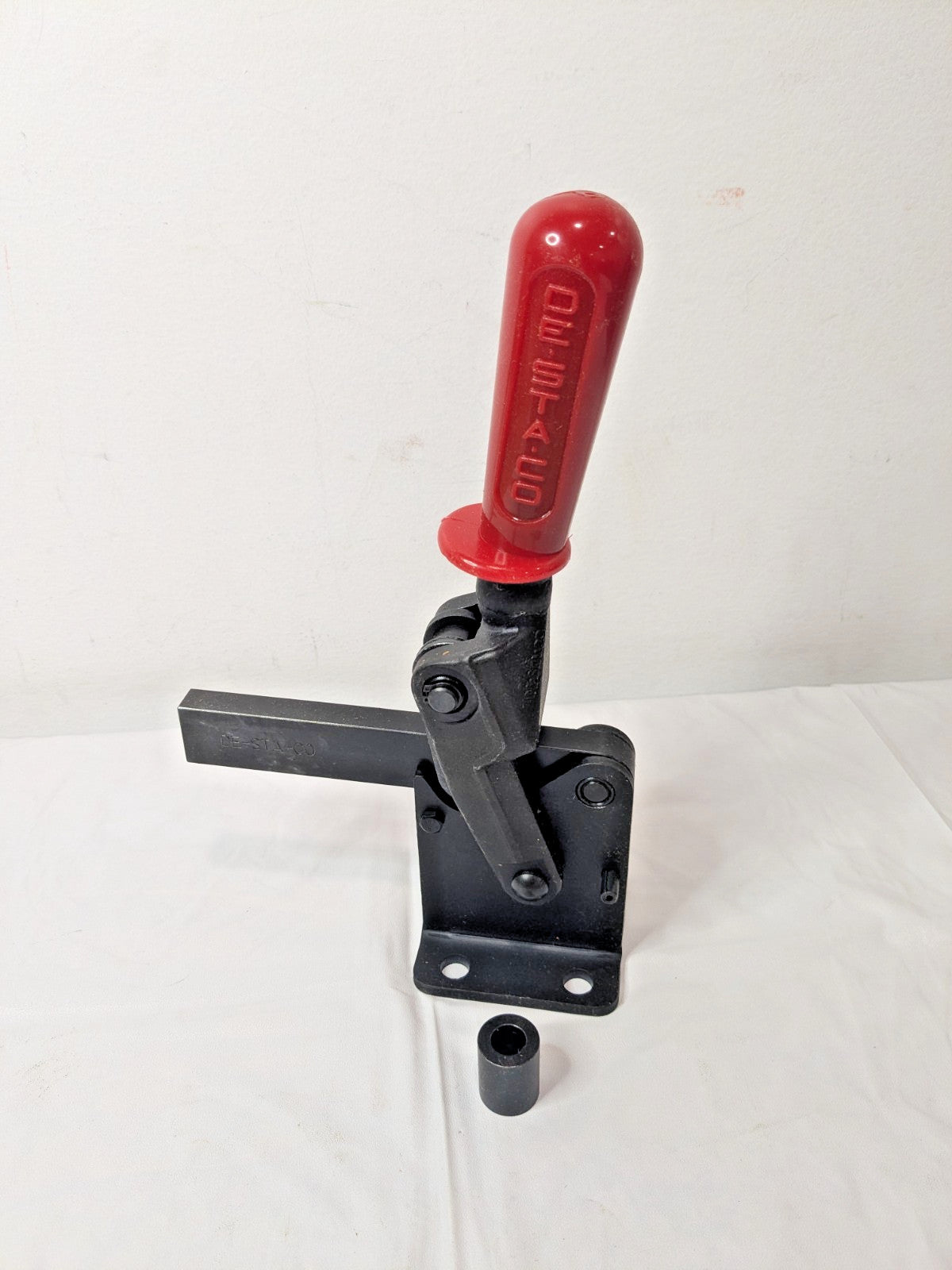

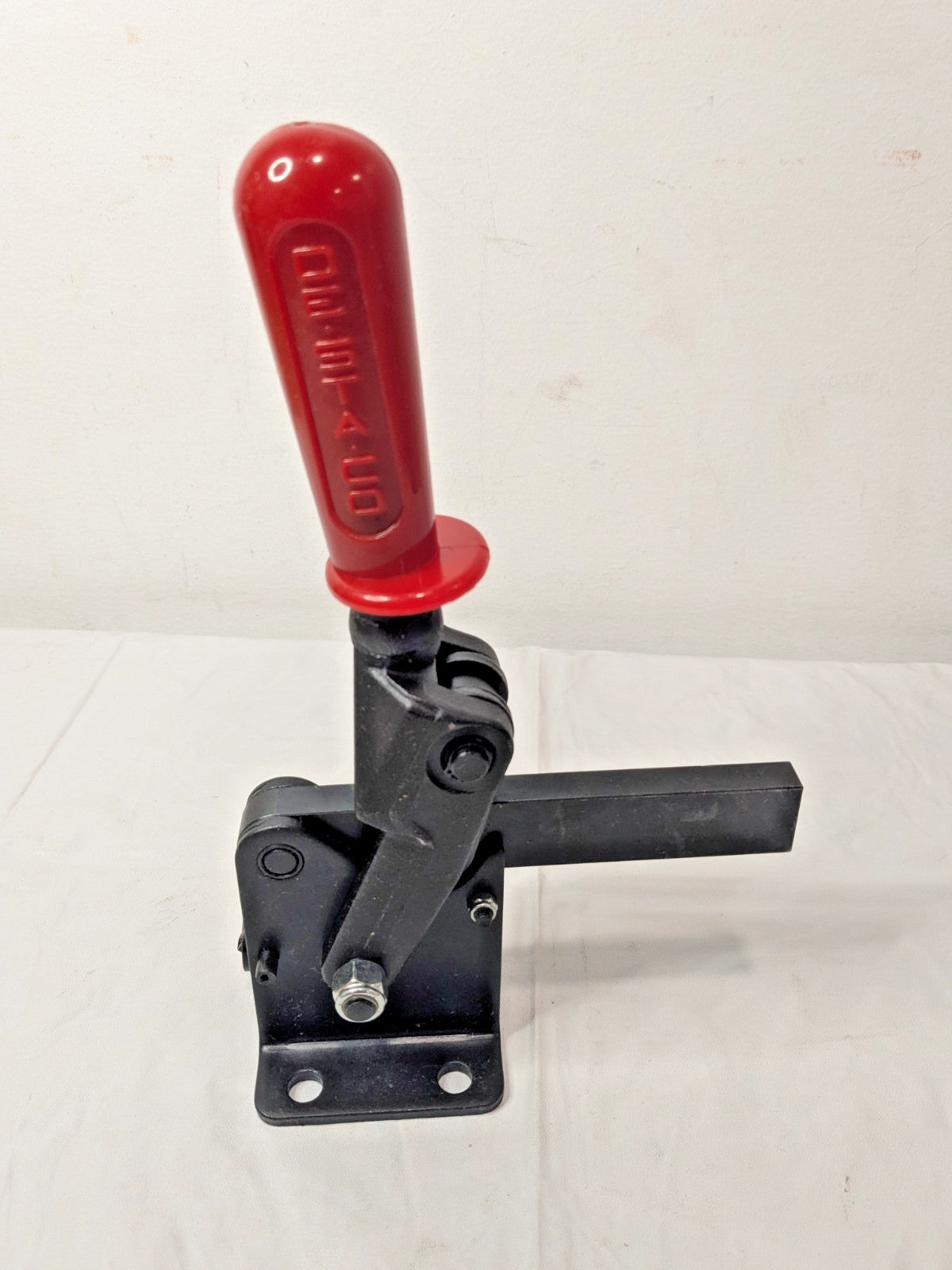

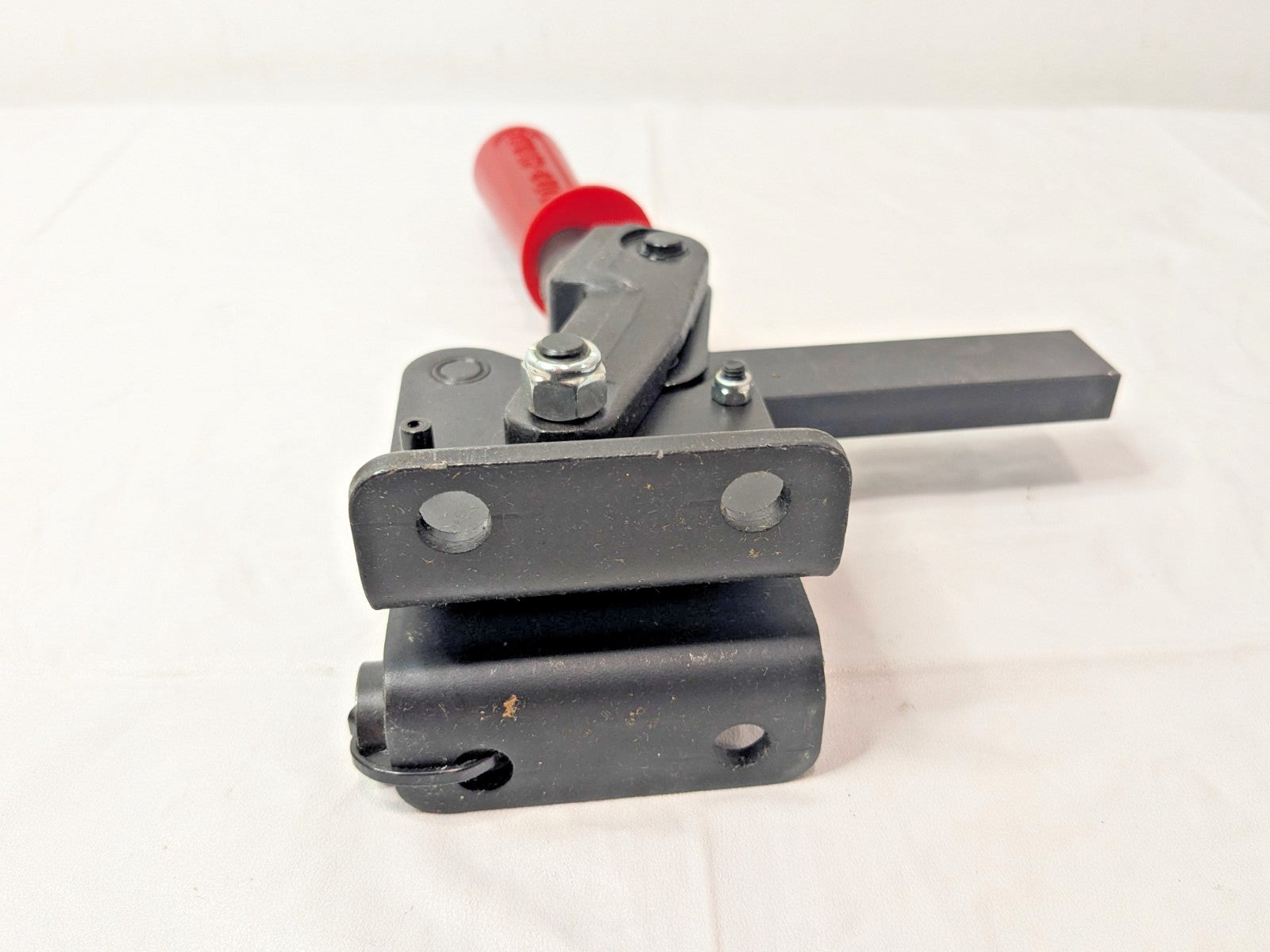

Please review photos, comes as shown.
