DE-STA-CO Manual Hold-Down Toggle Clamp: 600 lb Capacity Qty 2 210-25

De-Sta-Co

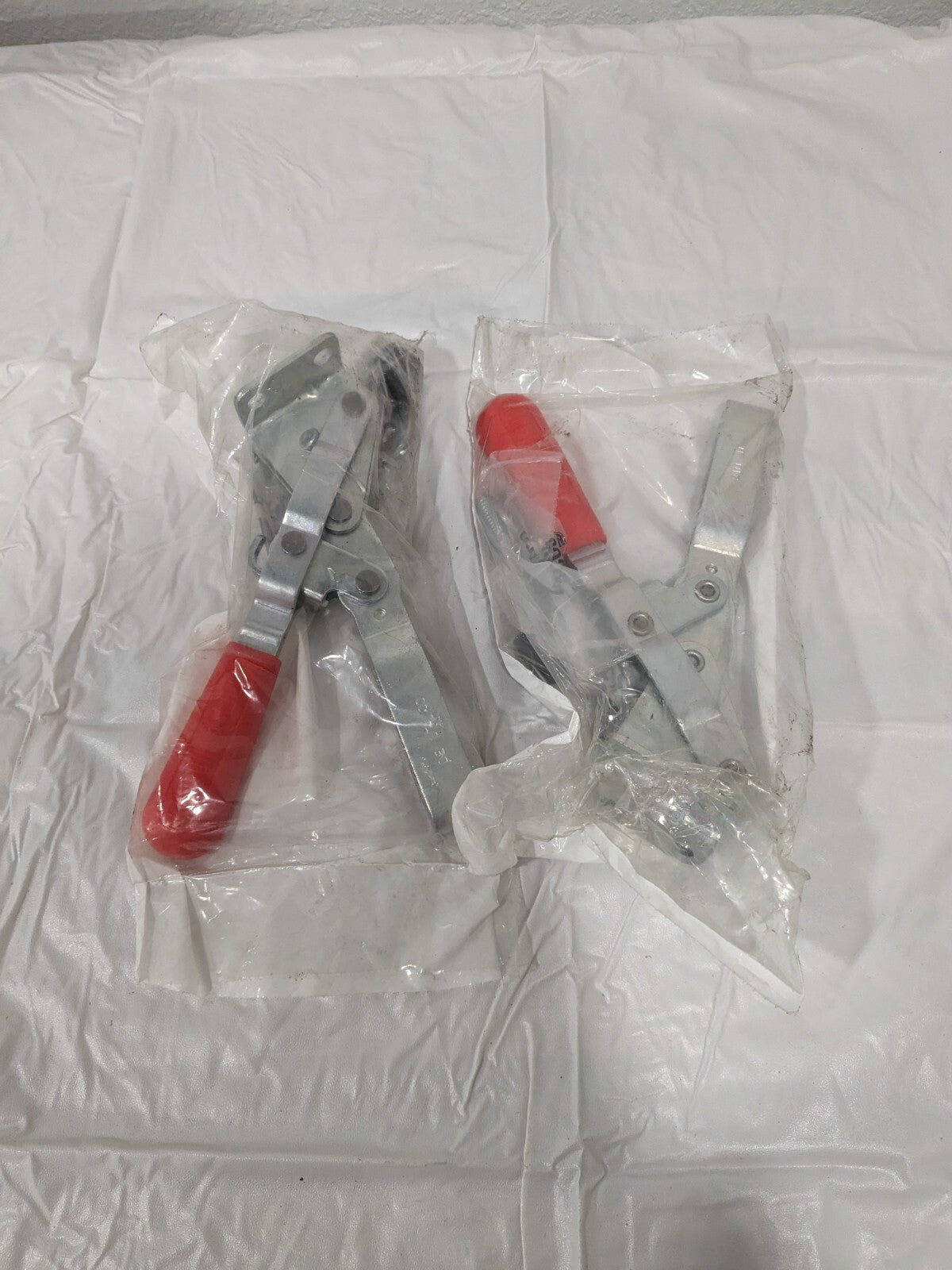

1 Lot of 2 Toggle Clamps

MSRP: $60.00

• Width Distance Between Mount Holes 1.77 in; 44.96 mm
• Height Under Bar (mm) 42.42
• Width Distance Between Mount Holes (mm) 44.96
• Overall Length (Decimal Inch) 5.5100
• Length Distance Between Mount Holes (Inch) 1.25
• Overall Height (Mm - 5 Decimals) 208.03
• Height Under Bar (Decimal Inch) 1.6700
• Spindle Thread Size 3/8-16
• Base Length (mm) 48.01
• Bar Opening (Degrees) 103
• Mounting Hole Diameter (Decimal Inch) 0.3300
• Length Distance Between Mount Holes (mm) 31.75
• Handle Orientation Vertical
• Front of Base To Tip Of Toggle Bar (mm) 92.71
• Bar Style U-Bar
• Includes (2) Nuts; Spindle; (2) Flanged Washers
• Handle Material Carbon Steel
• Base Style Flanged
• Width Distance Between Mount Holes (Decimal Inch) 1.7700
• Handle Movement (Degrees) 58
• Front of Base To Tip Of Toggle Bar (Decimal Inch) 3.6500
• Holding Capacity (Lb.) 600.00
• Mounting Hole Diameter (mm) 8.38
• Number Of Mounting Holes 4
• Bar Width (Decimal Inch) 0.7900
• UNSPSC Code 31162902
• Spindle Length 3-1/4
• Holding Capacity (N) 2670.00
• Handle Style Straight
• Front Of Base To Toggle Tip 3.65 in
• Overall Height (Decimal Inch) 8.1900
• Handle Color Red
• Material Carbon Steel
• Spindle Travel (Inch) 2.3500
• Bar End Type Fixed Spindle
• Base Width 65.02
• Overall Length (mm) 139.95
• Base Width (Inch) 2.5600
• Length Distance Between Mount Holes 31.75 mm; 1.25 in
• Finish Coating Zinc
• Bar Width (mm) 20.07
• Maximum Mechanical Advantage 14:01; 07:01
• Spindle Travel (mm) 59.69

These items appear to be new and in good condition. SOLD AS IS.

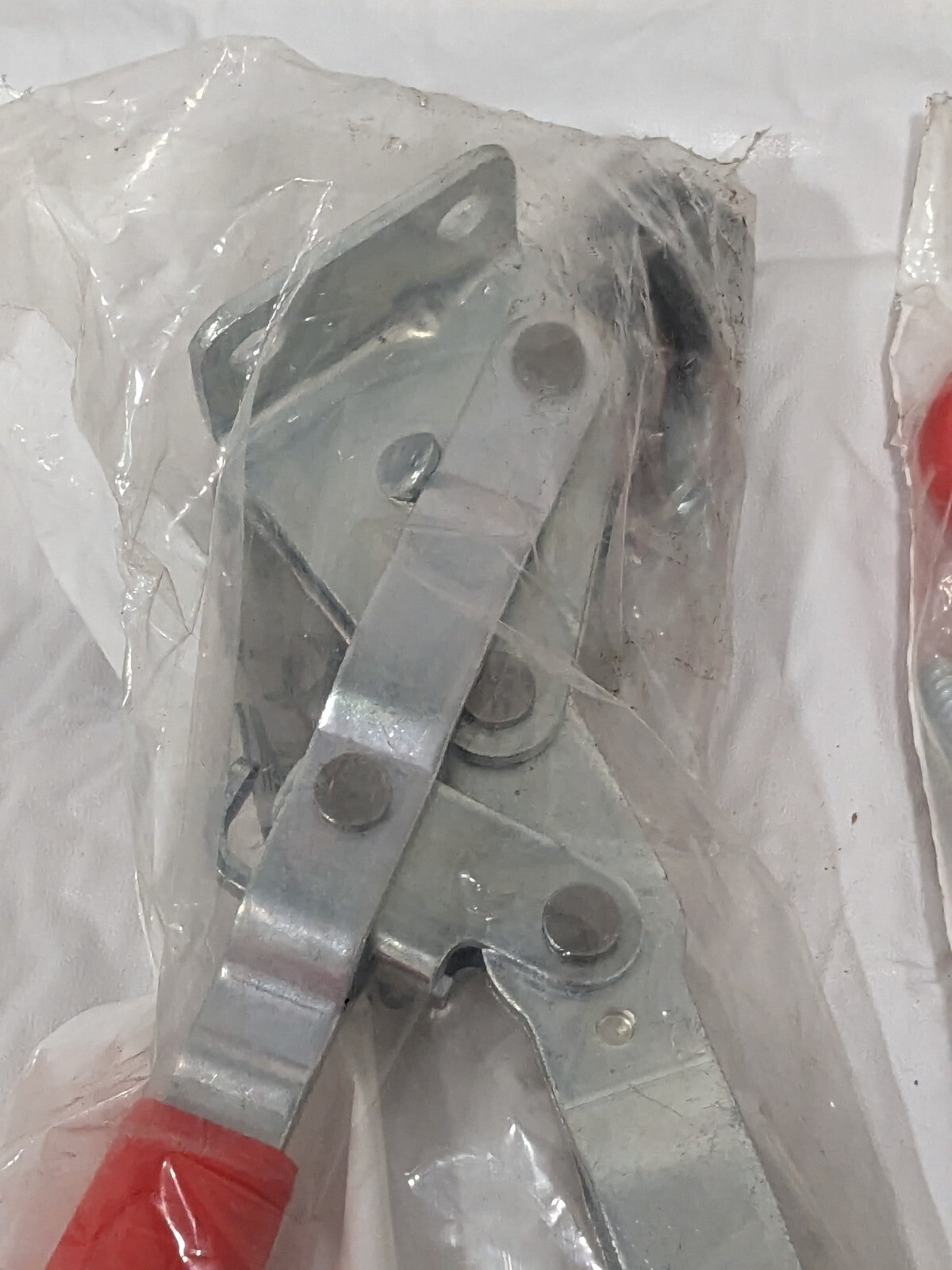

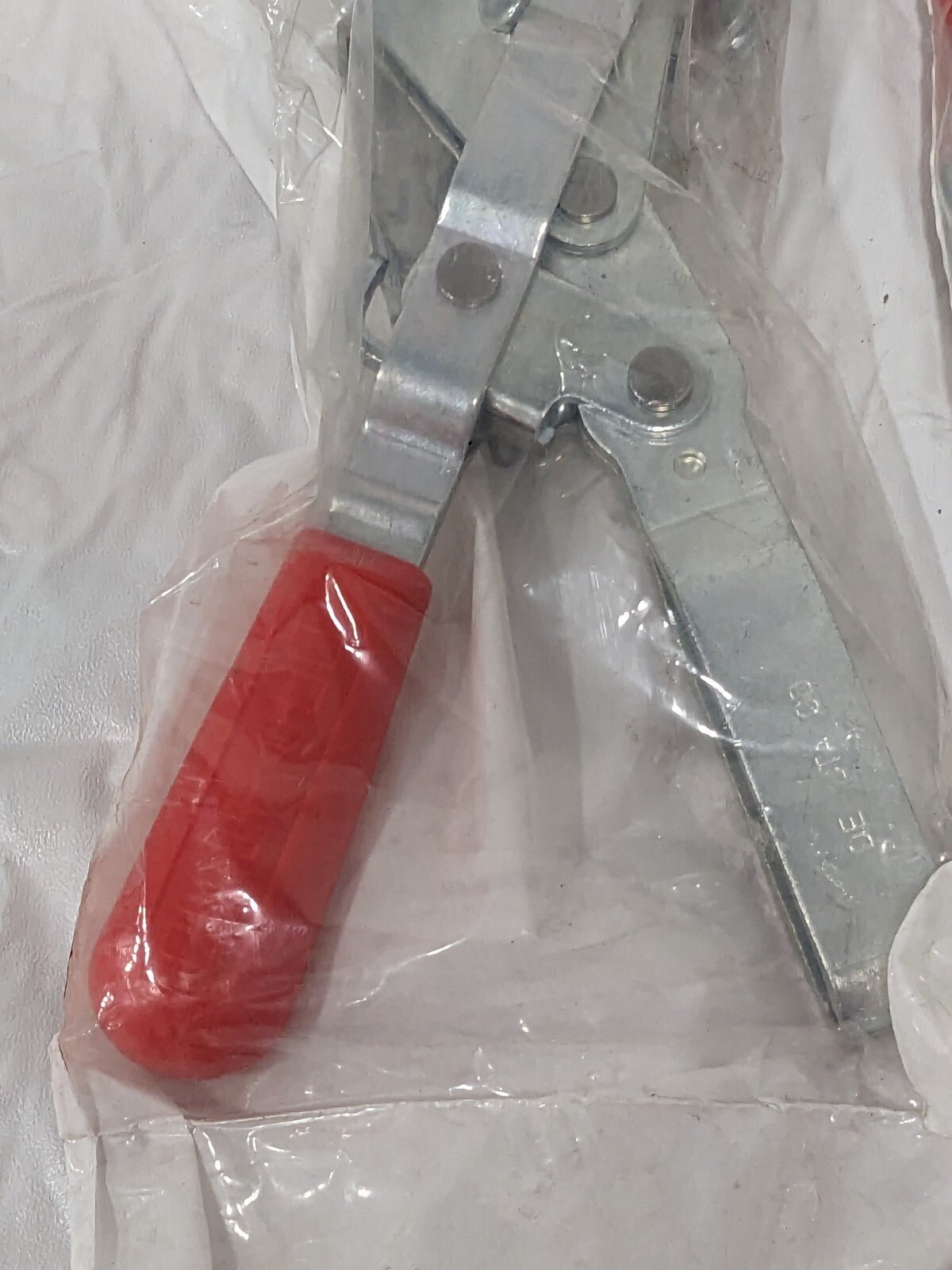

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
