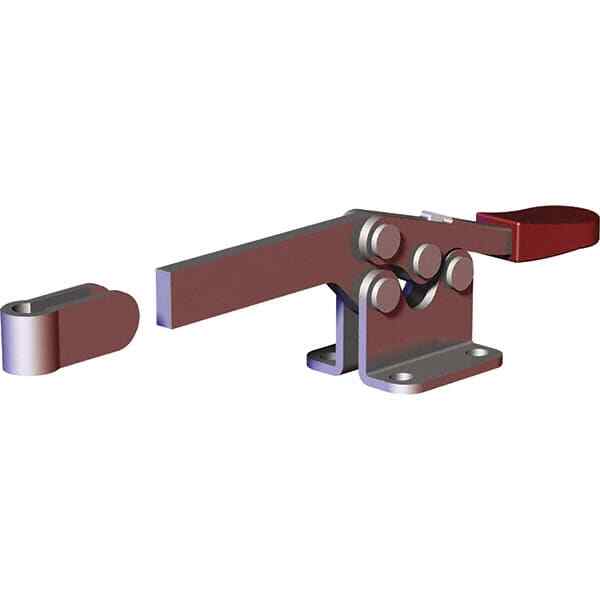

DE-STA-CO Horizontal Handle Hold Down Action Clamp 200Lb Holding Cap Qty 3 215-S

De-Sta-Co
1 Lot of 3 Toggle Clamps

MSRP: $60.00

• Handle Orientation Horizontal
• Bar Style Solid
• Base Style Flanged
• Bar End Type Closed
• Holding Capacity (N) 890.00
• Holding Capacity (Lb.) 200.00
• Length Distance Between Mount Holes (mm) 27.00
• Length Distance Between Mount Holes (Decimal Inch) 1.06
• Width Distance Between Mount Holes (mm) 22.10
• Width Distance Between Mount Holes (Decimal Inch) 0.8700
• Height Under Bar (mm) 25.40
• Height Under Bar (Decimal Inch) 1.0000
• Overall Length (mm) 138.68
• Overall Length (Decimal Inch) 5.4600
• Overall Height (mm) 38.86
• Overall Height (Decimal Inch) 1.5300
• Base Length (mm) 36.32
• Base Length (Decimal Inch) 1.4300
• Base Width (mm) 35.05
• Base Width (Decimal Inch) 1.3800
• Handle Style Straight
• Material Carbon Steel
• Handle Color Red
• Finish/Coating Electro-Plated Zinc
• Number of Mounting Holes 4
• Mounting Hole Diameter (Decimal Inch) 0.2000
• Front of Base To Tip Of Toggle Bar (mm) 57.15
• Front of Base To Tip Of Toggle Bar (Decimal Inch) 2.2500
• Bar Opening (Degrees) 87.00
• Handle Movement (Degrees) 78.00
• Maximum Mechanical Advantage 6:1
• Spindle Thread Size M6x1.0
• Spindle Length (mm) 44.00
• Bar Width (Decimal Inch) 0.5000
• Bar Width (mm) 12.70
• Bar Thickness (mm) 4.83
• Bar Thickness (Decimal Inch) 0.1900

These items are new and in great condition. SOLD AS IS.

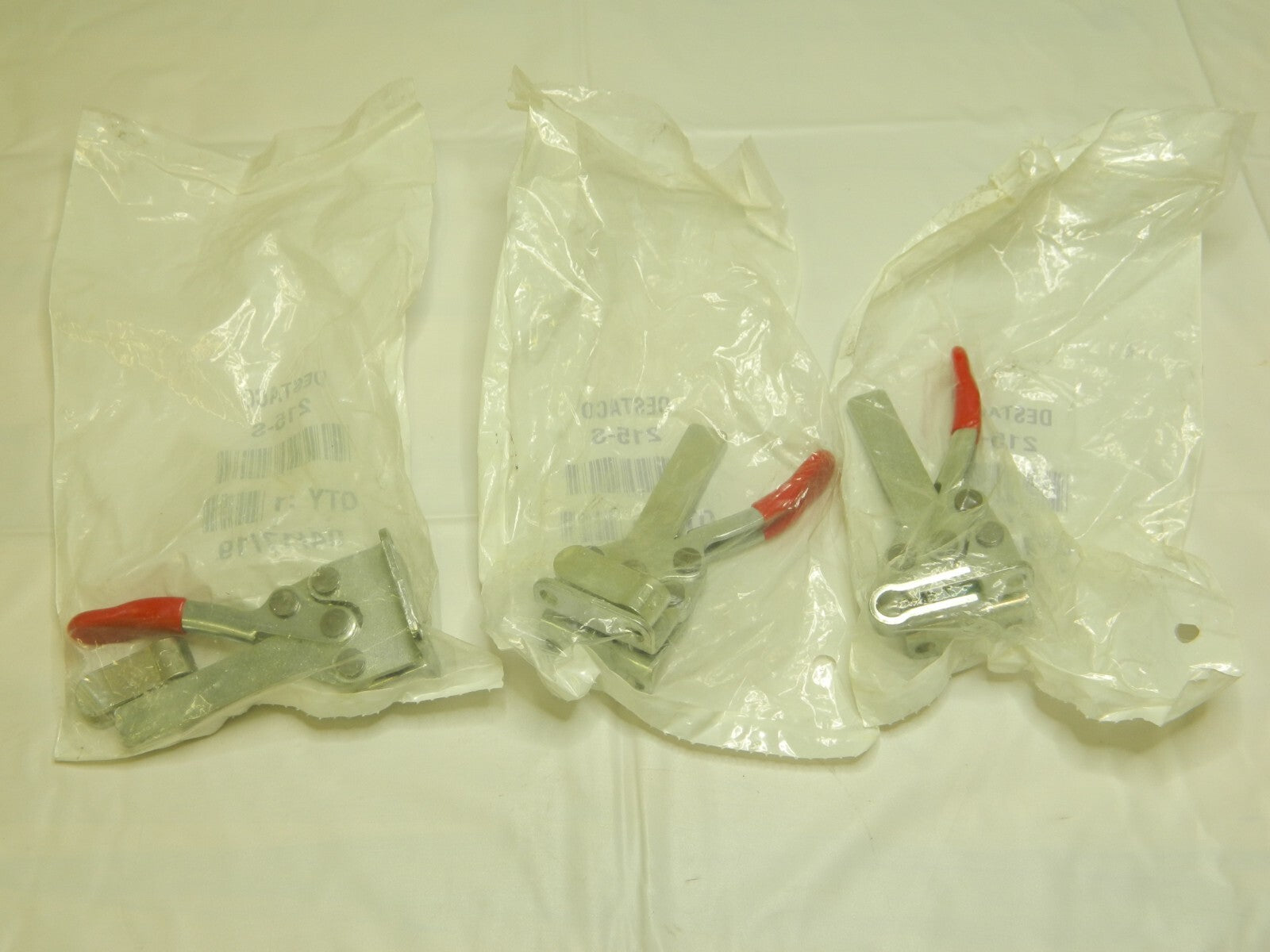

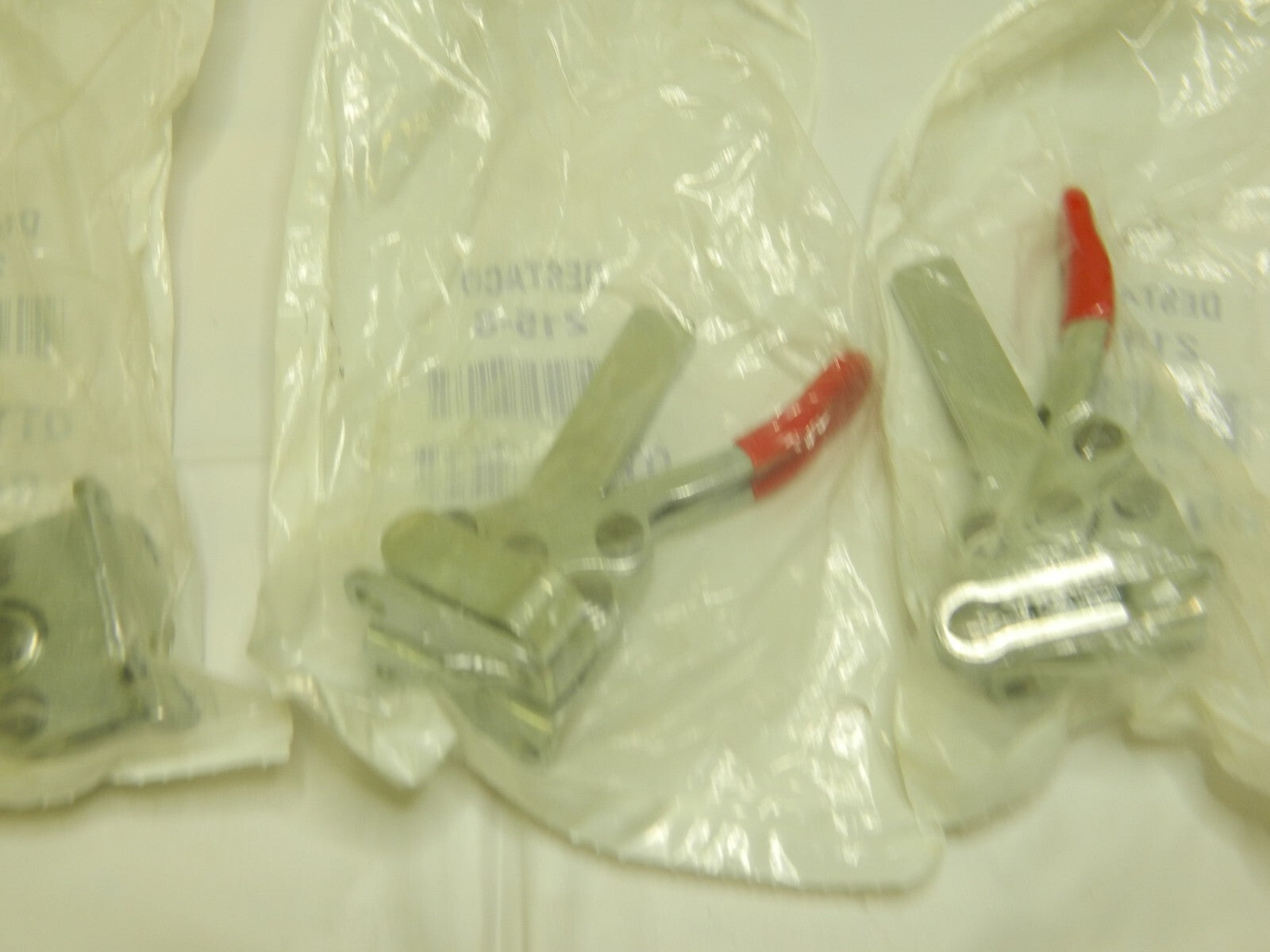

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
