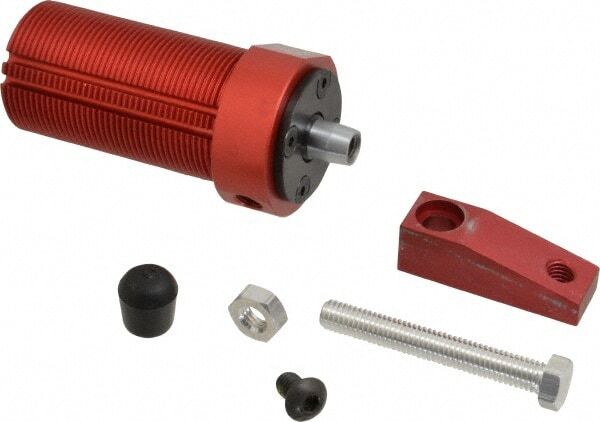

DE-STA-CO Air Swing Clamp: 67.44 lb Clamp Force, Left Hand Swing 8416

DE-STA-CO Air Swing Clamp: 67.44 lb Clamp Force, Left Hand Swing 8416

MSRP: $520

• Operation Type Air
• Action Type Single
• Swing Direction Left Hand
• Clamping Force (Lb.) 67.44
• Clamping Force (N) 300.00
• Operating Volume (cc) 23.27 (Unclamp); 19.17 (Clamp)
• Operating Volume (Cu. In.) 1.1700 (Clamp); 1.4200 (Unclamp)
• Mount Type Threaded Body
• Total Stroke Distance (mm) 31.75
• Total Stroke Distance (Decimal Inch) 1.2500
• Body Length (Decimal Inch) 3.1693
• Body Length 80.50
• Body Diameter (Decimal Inch) 2.1299
• Body Diameter (mm) 54.10
• Vertical Stroke Distance (Decimal Inch) 0.5000
• Vertical Stroke Distance (mm) 12.70
• Vertical Stroke Distance (Inch) 1/2
• Rod Diameter (mm) 12.70
• Rod Diameter (Decimal Inch) 0.5000
• Clamp Arm Compatibility 821512 Standard Clamping Arm; 841512 Standard Clamping Arm; 821555 T-Style Clamping Arm; 821554 T-Style Clamping Arm
• Body Thread Size 1-3/4-12
• Body Width/Diameter (mm) 54.10
• Body Width/Diameter (Decimal Inch) 2.1299
• Maximum Operating Pressure (psi) 130
• Minimum Operating Pressure (bar) 3.00
• Port Size 1/8 NPT
• Includes Clamping Arm; Spindle
• Features Threaded Body Mounted in a Tapped Hole
• K (In) 1.9400
• Bin 3.17
• Tapped Depth 0.3800
• Overall Open Length (Decimal Inch) 6.1400
• UNSPSC Code 27112100
• E (in) 2.1300
• F -In-- 0.9800

(Description).

Please review photos, comes as shown.
