DE-STA-CO 600 Lb CapacityAir Power Straight Line Action Clamp 803

DE-STA-CO 600 Lb CapacityAir Power Straight Line Action Clamp 803

MSRP: $240

• Power Type Pneumatic
• Plunger Travel 0.75 in; 19.05 mm
• Load Capacity (N) 600 lb; 2668.93; 2668.93 N
• Plunger Thread Size 5/16-18 in
• Load Capacity (Lb.) 600 lb; 600.00; 2668.93 N
• Plunger Travel (mm) 19.05
• Plunger Travel (Decimal Inch) 0.7500
• Port Size 1/8 NPT
• Clamping Force At 5 Bar 3015
• Plunger Thread Size 5/16-18
• Plunger Centerline Height 1.09 in; 27.69 mm
• Plunger Diameter (Inch) 5/16
• Overall Closed Length 9.86 in; 250.4 mm
• Overall Closed Height 74.3 mm; 2.93 in
• Length Distance Between Mount Holes 36.58 mm; 1.44 in
• Clamping Force @ 5 Bar (N) 3015.00
• Width Distance Between Mount Holes 1.3125 in
• Maximum Air Pressure 4.41 bar
• Plunger Centerline Height (mm) 27.69
• Plunger Centerline Height (Decimal Inch) 1.0900
• Overall Closed Length (mm) 250.40
• Overall Closed Length (Decimal Inch) 9.86
• Overall Closed Height (mm) 74.30
• Overall Closed Height (Decimal Inch) 2.93
• Length Distance Between Mount Holes (mm) 36.58
• Length Distance Between Mount Holes (Decimal Inch) 1.4400
• Width Distance Between Mount Holes (Decimal Inch) 1.3125
• Width Distance Between Mount Holes (Inch) 1-5/16
• Width Distance Between Mount Holes (mm) 33.34
• Maximum Air Pressure (psig) 64.00
• Maximum Air Pressure (bar) 4.41
• Sensor Compatibility Round; T-Slot
• Minimum Operating Temperature (F) 14.00; -10 C; 14 F
• Minimum Operating Temperature (C) -10.00
• Maximum Operating Temperature (F) 194.00
• UNSPSC Code 31162900
• Maximum Operating Temperature (C) 90.00

(Description).

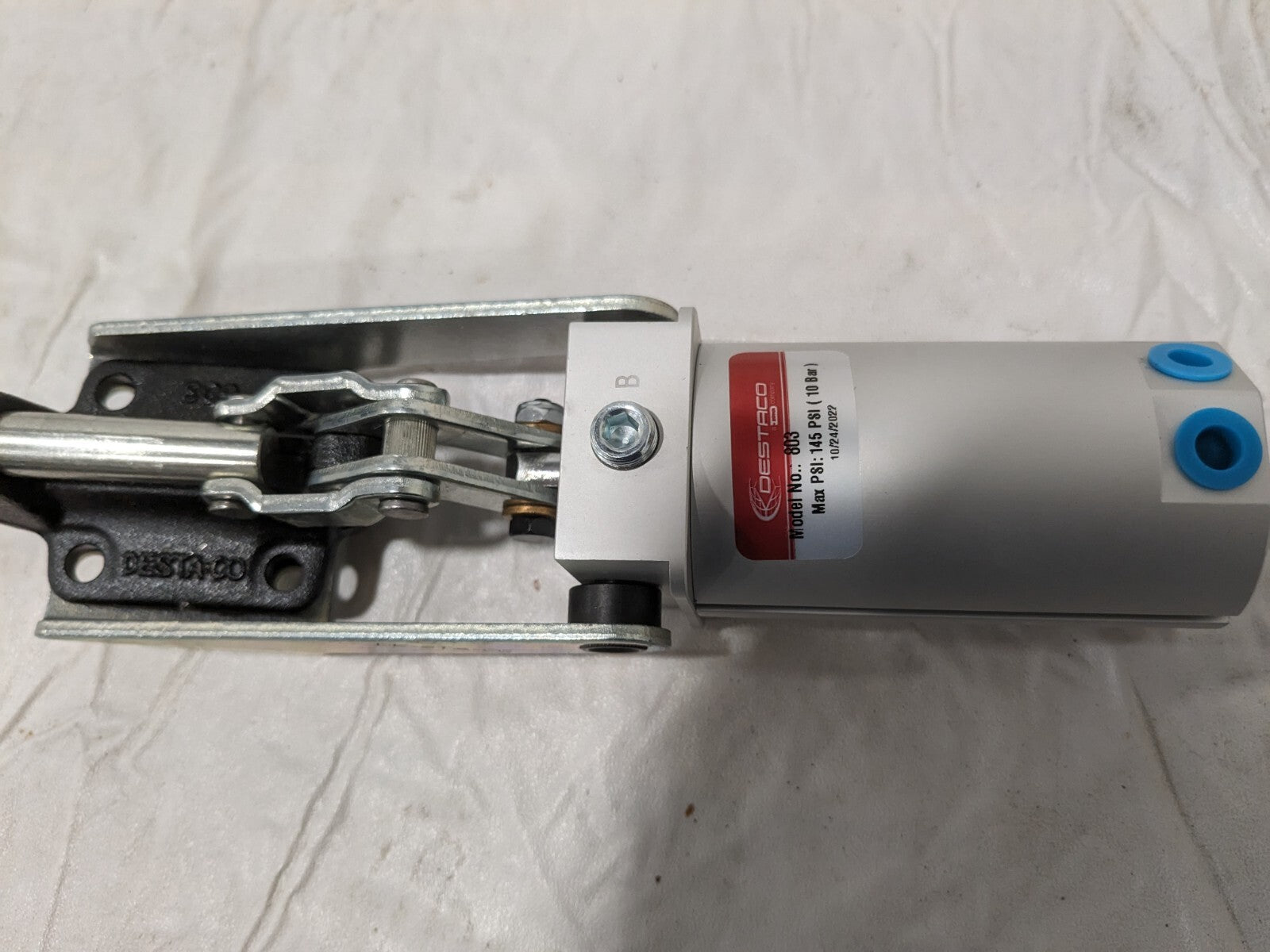

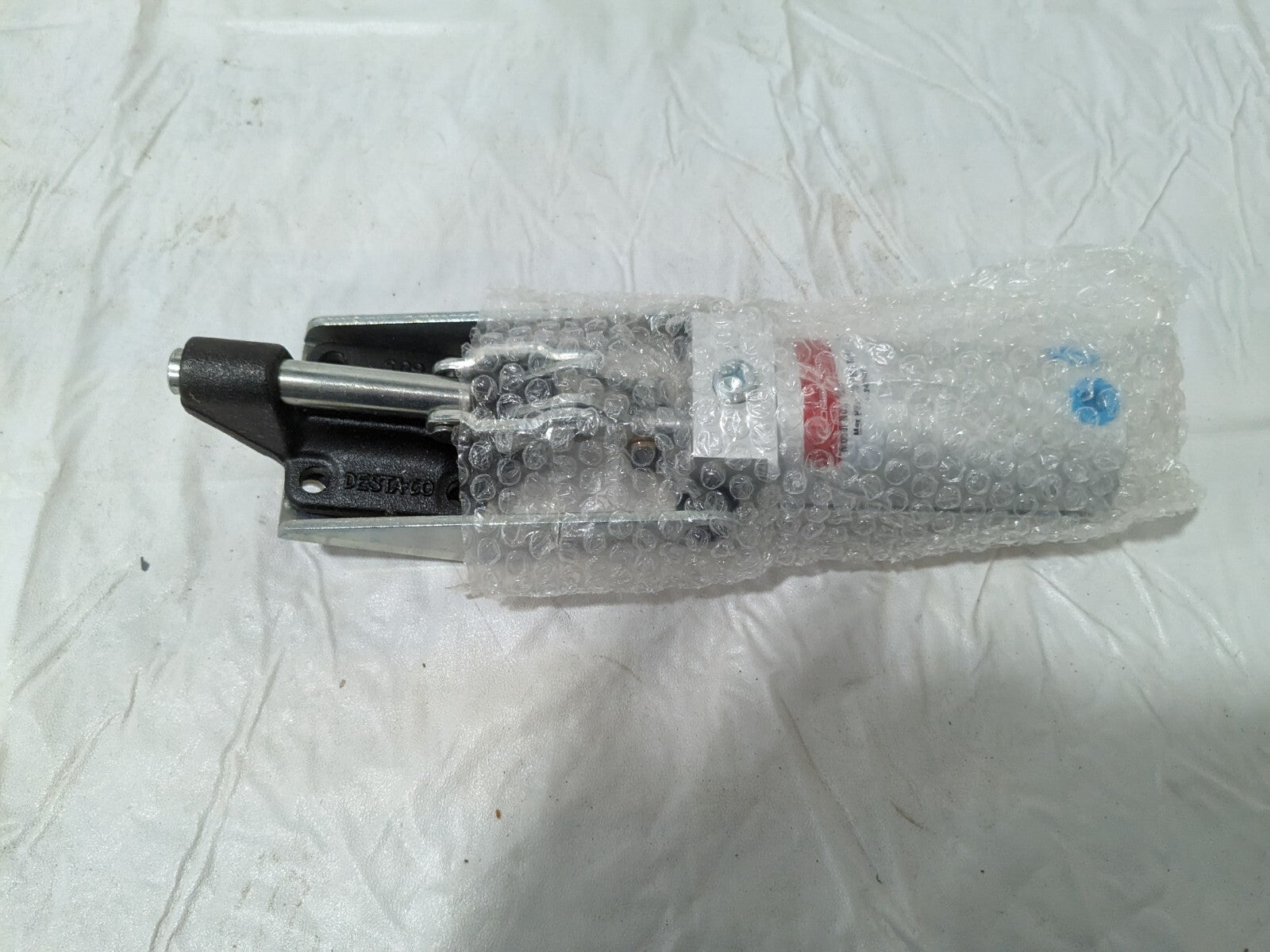

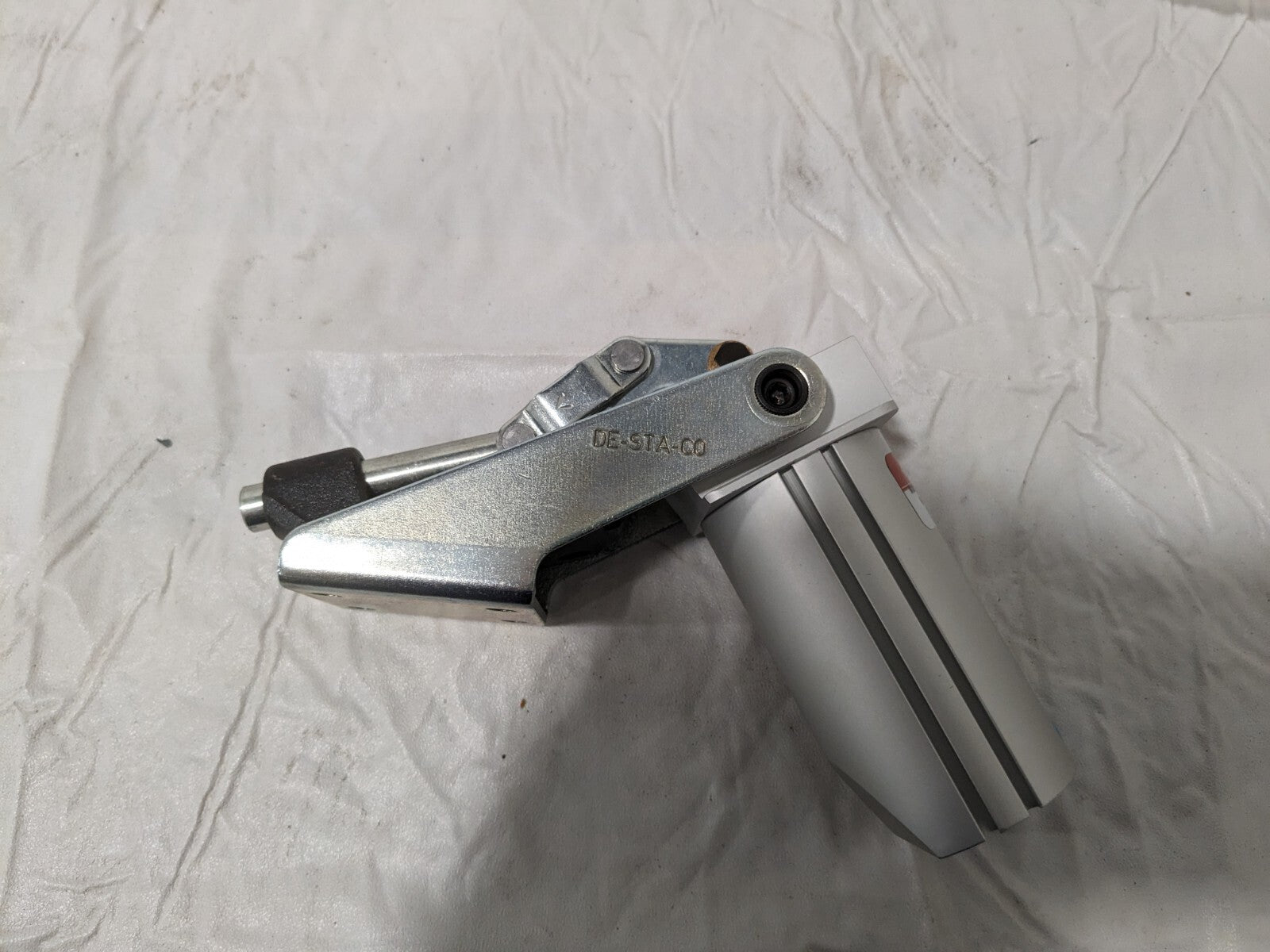

Please review photos, comes as shown.
