De-Sta-Co 375 Lb Holding Cap VH Manual Hold Down Toggle Clamp QTY 2 207-U-L
De-Sta-Co 375 Lb Holding Cap VH Manual Hold Down Toggle Clamp QTY 2 207-U-L
Regular price
$29.37 USD
Regular price
$60.00 USD
Sale price
$29.37 USD
Shipping calculated at checkout.
Couldn't load pickup availability
MSRP: $60.00
Model: 207-U-L
Description:
Handle Orientation Vertical
Bar Style U-Bar
Base Style Flanged
Bar End Type Open
Holding Capacity (N) 1670.00
Holding Capacity (Lb.) 375.43
Length Distance Between Mount Holes (mm) 19.05
Length Distance Between Mount Holes (Decimal Inch) 0.75
Width Distance Between Mount Holes (mm) 31.75
Width Distance Between Mount Holes (Decimal Inch) 1.2500
Height Under Bar (mm) 31.75
Height Under Bar (Decimal Inch) 1.2500
Overall Height (mm) 176.02
Overall Height (Decimal Inch) 6.9300
Base Length (mm) 35.05
Base Length (Decimal Inch) 1.3800
Base Width (mm) 43.94
Base Width (Decimal Inch) 1.7300
Handle Style Straight
Material Carbon Steel
Handle Color Red
Number of Mounting Holes 4
Mounting Hole Diameter (mm) 7.11
Mounting Hole Diameter (Decimal Inch) 0.2800
Front of Base To Tip Of Toggle Bar (mm) 97.54
Front of Base To Tip Of Toggle Bar (Decimal Inch) 1.8100
Bar Opening (Degrees) 99.00
Handle Movement (Degrees) 57.00
Maximum Mechanical Advantage 4:1; 7:1
Spindle Thread Size 5/16; M8
Spindle Travel (mm) 74.68
Spindle Travel (Decimal Inch) 2.9400
Bar Width (Decimal Inch) 0.6300
Bar Width (mm) 16.00
Includes Flanged Washers

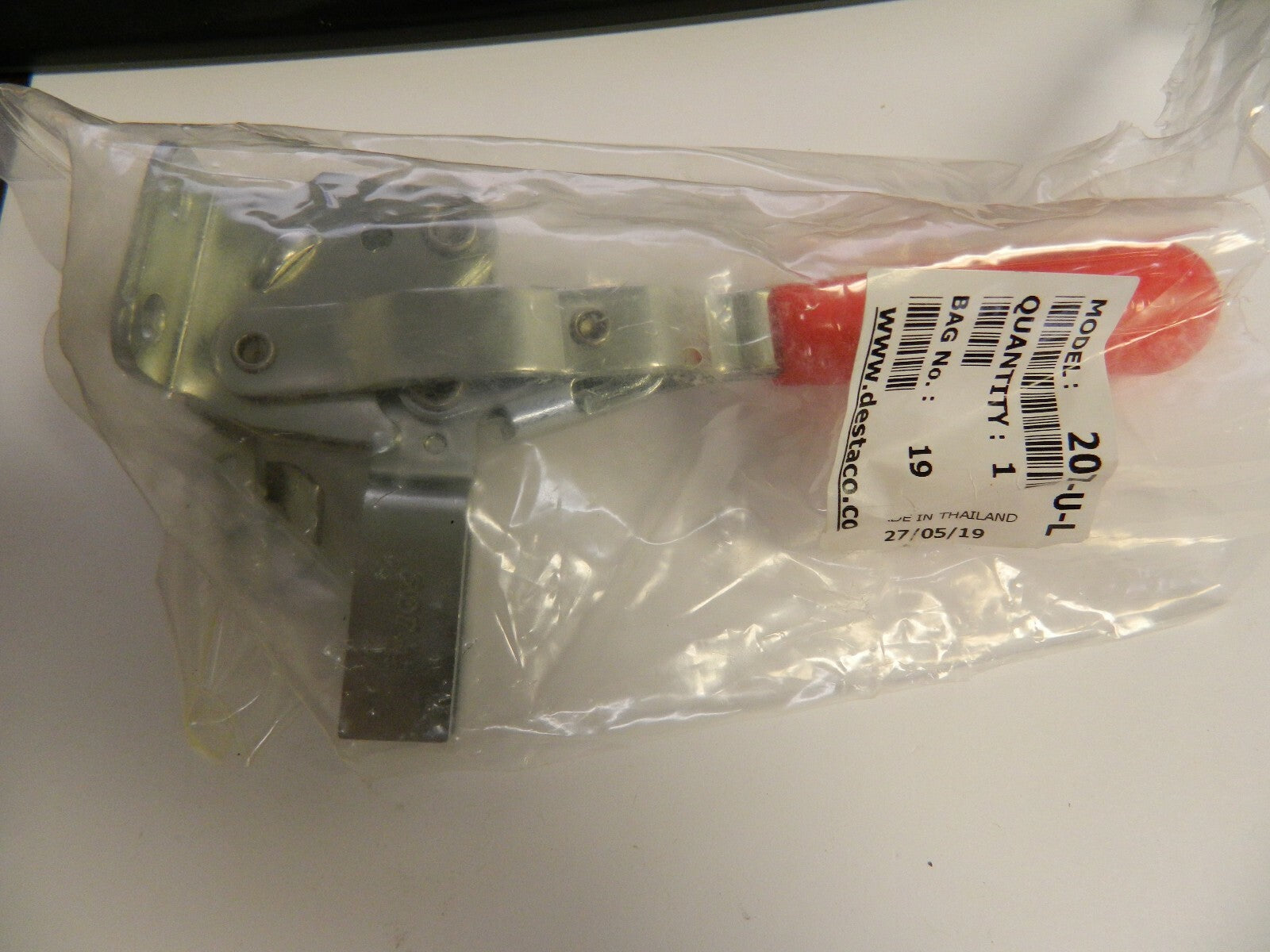

This listing is for One Lot of 2 that is in the picture as well as described. Please ask any questions prior to buying!
