CTT Milling Insert: ANSI 1215-060, ISO 1215-060, C2 Qty 10 1215-060 TICN

Cutting Tool Technologies
10 Inserts

MSRP: $125.00

• Insert Style 1215
• Insert Size 12
• Insert Material Solid Carbide
• Insert Shape Square
• Manufacturer Grade C1/C2
• Corner Radius (Decimal Inch) 0.0600
• Number Of Cutting Edges 4
• Thickness (Decimal Inch - 4 Decimals) 0.1250
• Coating/Finish TiCN
• Insert Size Code 1215
• Material Grade C1; C2
• Thickness (Inch) 1/8
• Inscribed Circle (Decimal Inch) 0.2150
• Thickness Range (Decimal Inch) 0.1250 to 0.1500
• Inscribed Circle Range (Decimal Inch) 0.0000 to 0.2500
• Insert Hand Neutral
• Maximum Depth of Cut (Decimal Inch) 0.1400
• Series 1215
• Coating Process PVD
• Rake Positive
• Primary Workpiece Material Non-Ferrous Metal
• Primary Workpiece Material Code N
• Secondary Workpiece Material Stainless Steel; Cast Iron; Steel
• Secondary Workpiece Material Code P; K; M
• Ansi Code 1215-060
• Iso Code 1215-060
• Standards ISO; ANSI
• Rake Angle 0
• Cutting Edge Style Radius
• Manufacturers Catalog Number 1215-060
• Cutter Series Compatibility DASC; TSC; W; KS; DSSC
• Chip Breaker Flat Top
• UNSPSC Code 23291601
• Material Application Non-Ferrous Metal
• Insert Holding Method Wedge
• Product Service Code 3455
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 90
• Width (Decimal Inch - 4 Decimals) 0.2150
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.2150

These items appear to be new and in good condition. SOLD AS IS.

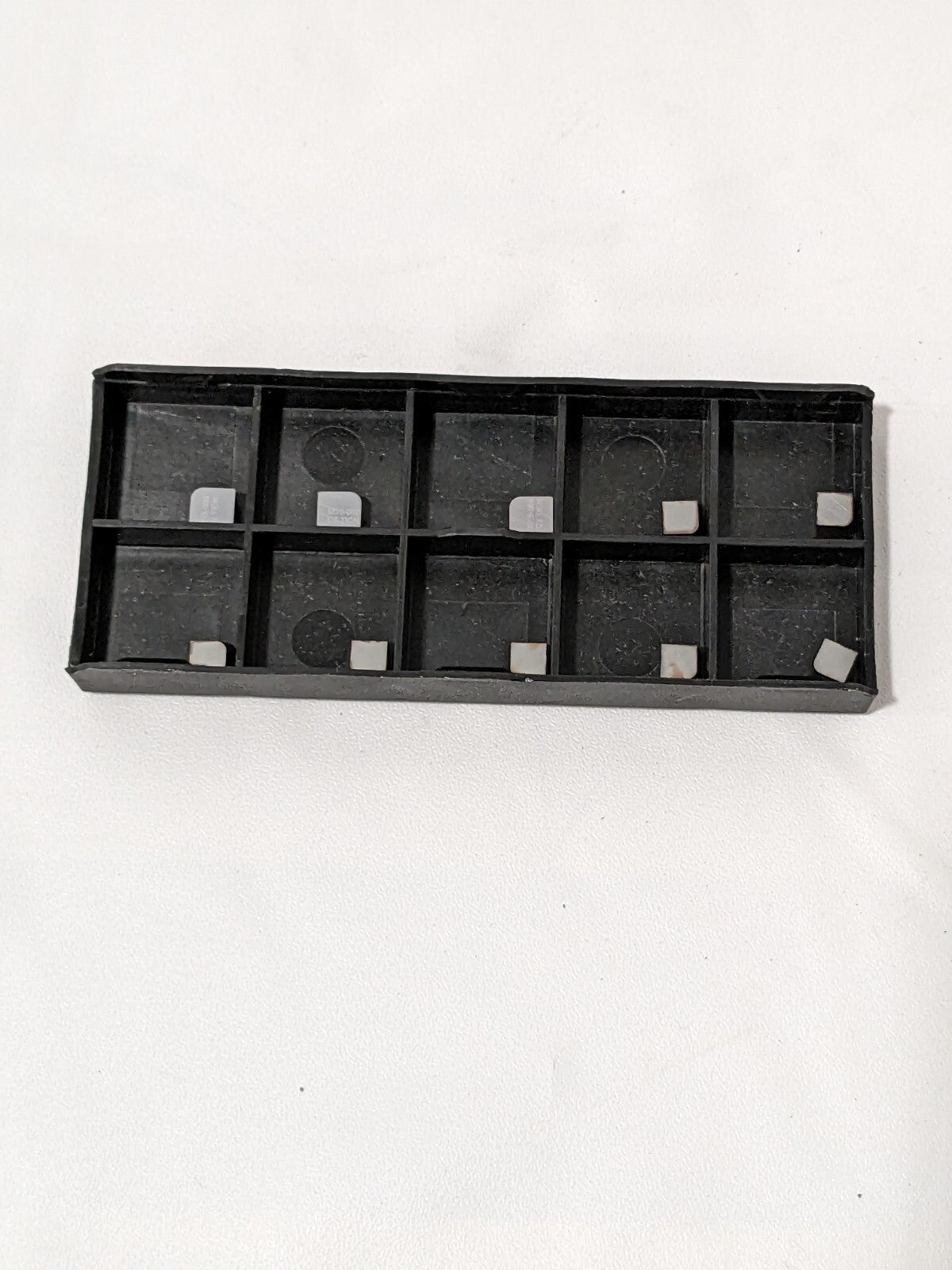

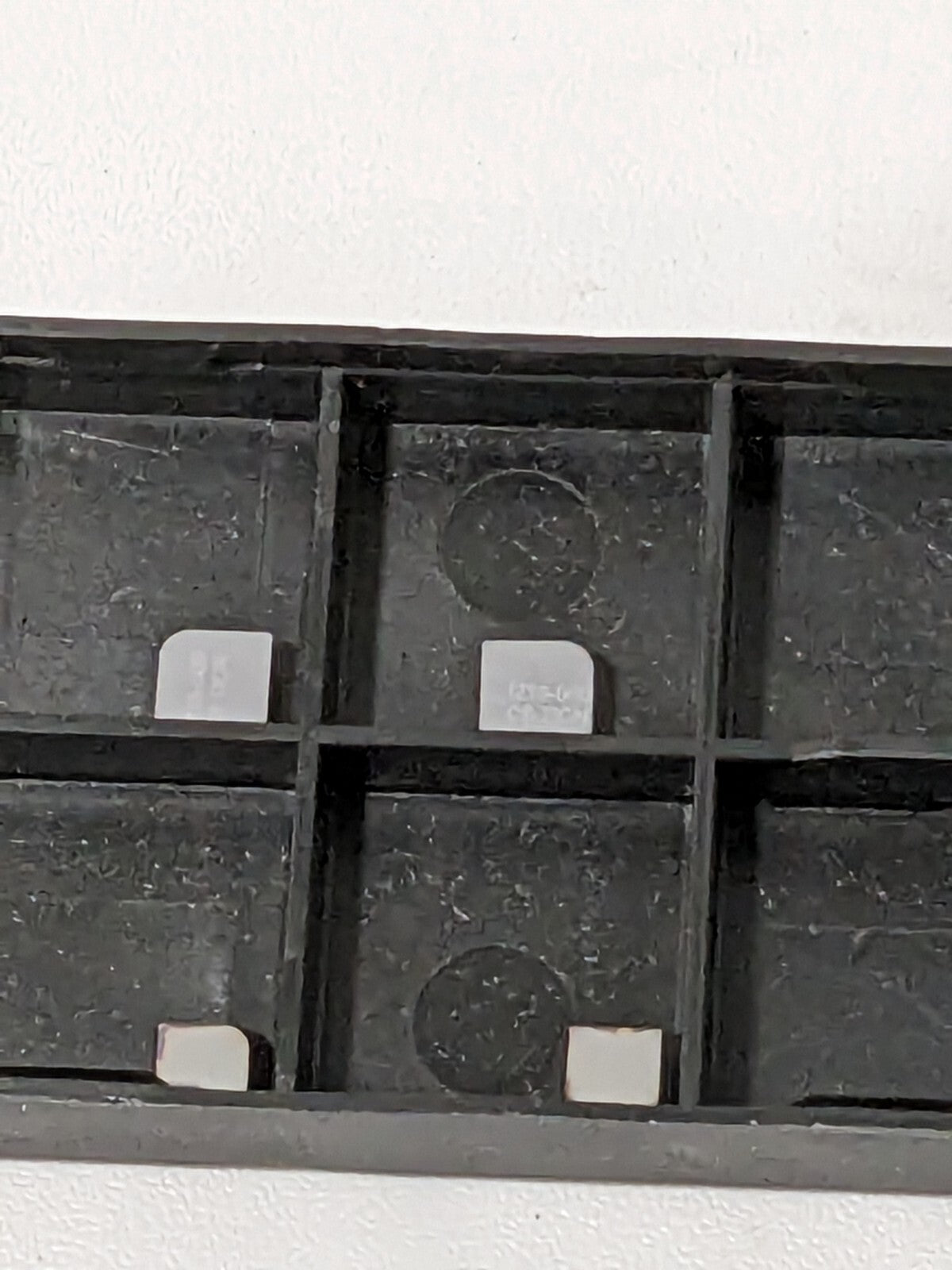

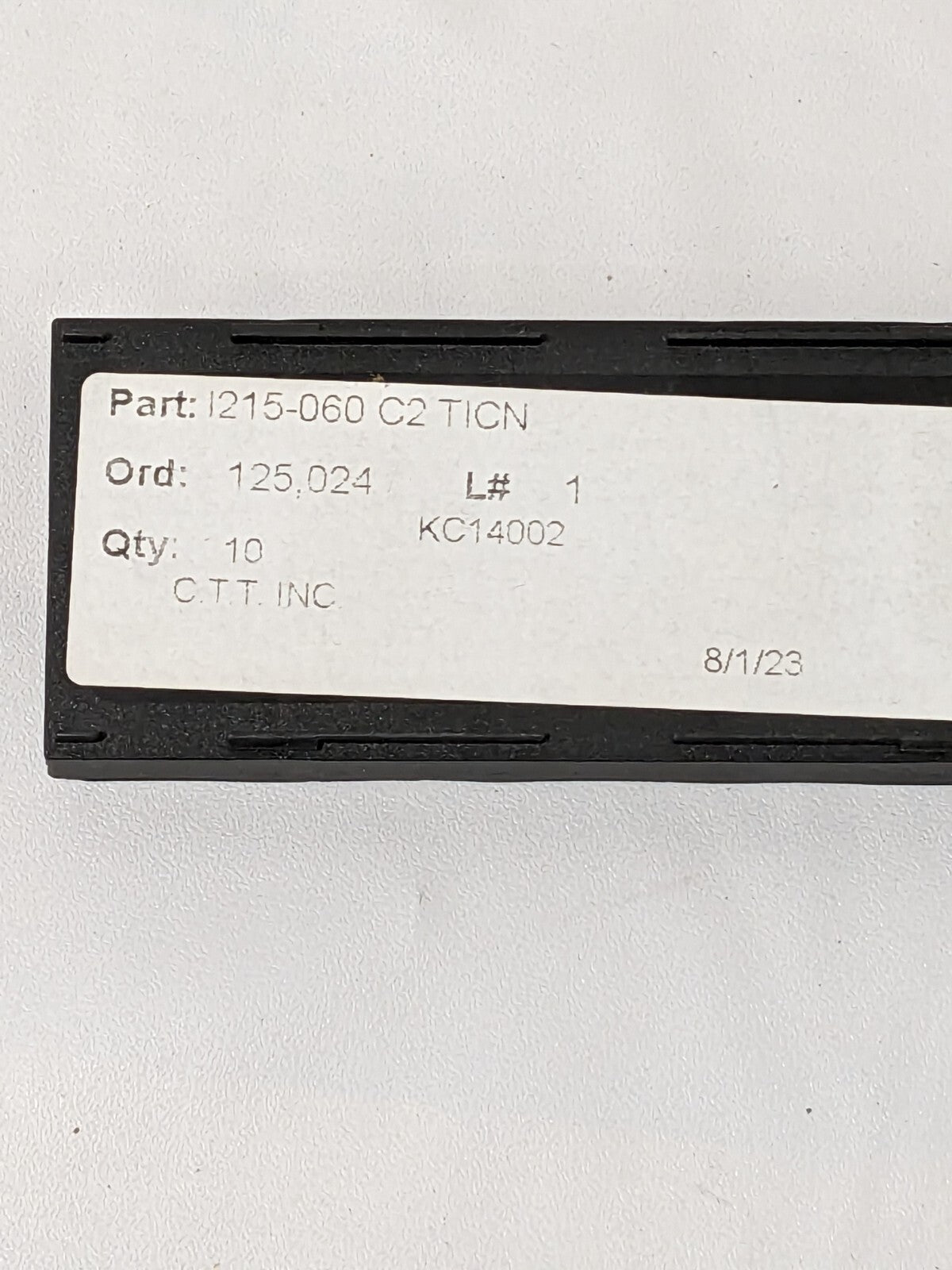

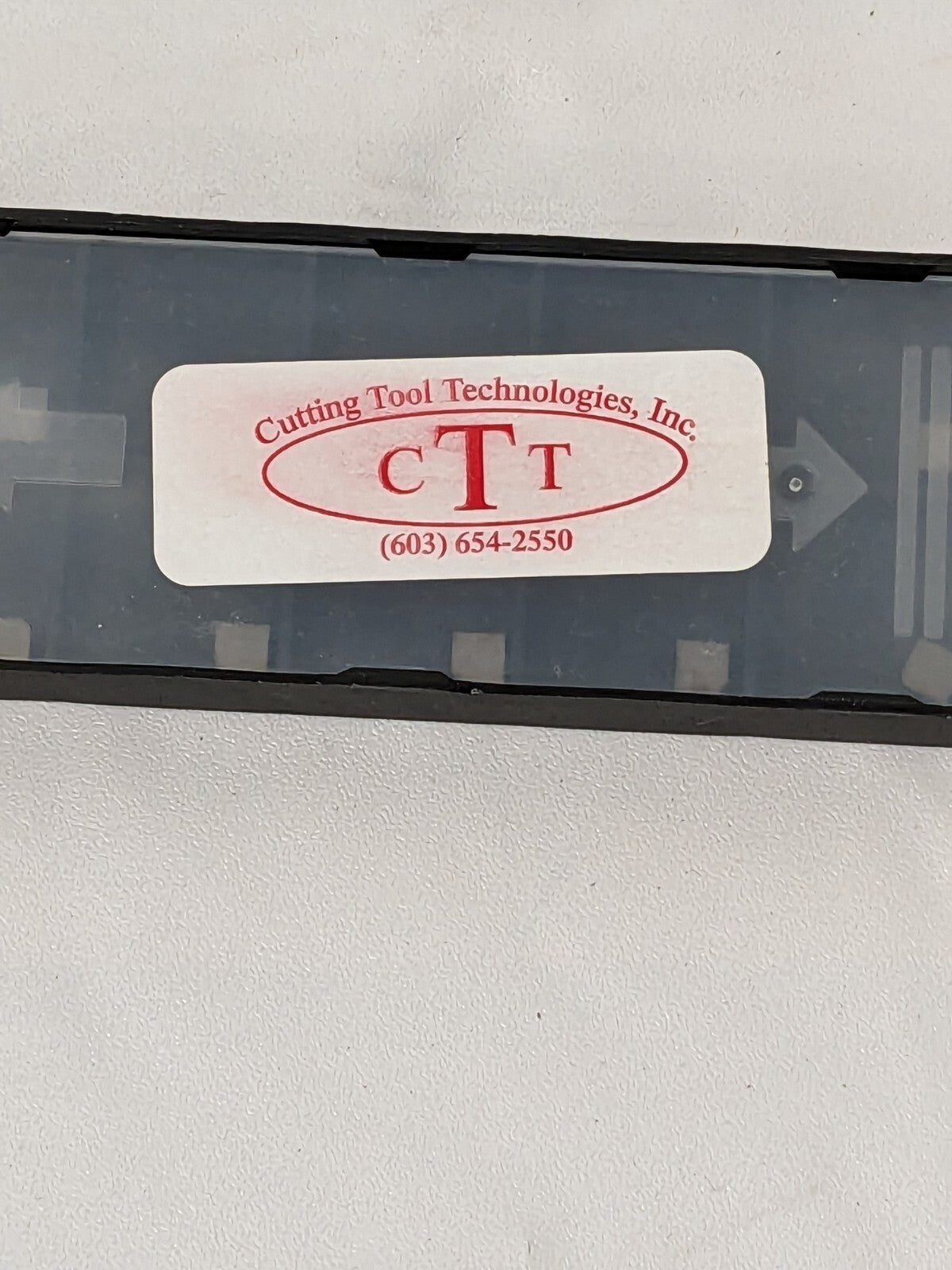

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
