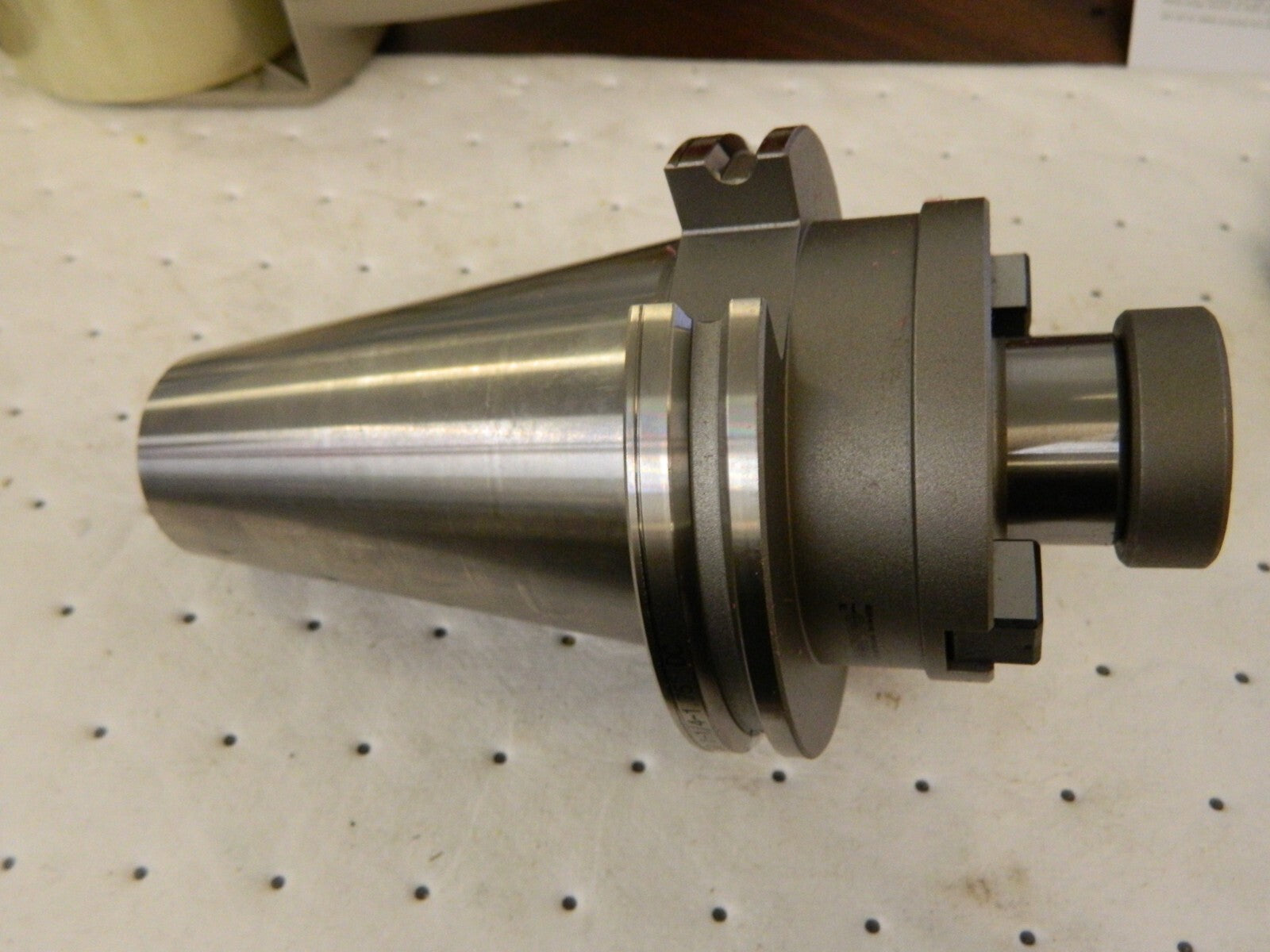

Collet Chuck: 0.5 to 10 mm Capacity, ER Collet, Dual Contact Taper Shank 771434

 Collet Chuck: 0.5 to 10 mm Capacity, ER Collet, Dual Contact Taper Shank 771434
MSRP: $300

•

• Collet System ER
• Collet Series ER16
• Shank Type Dual Contact Taper

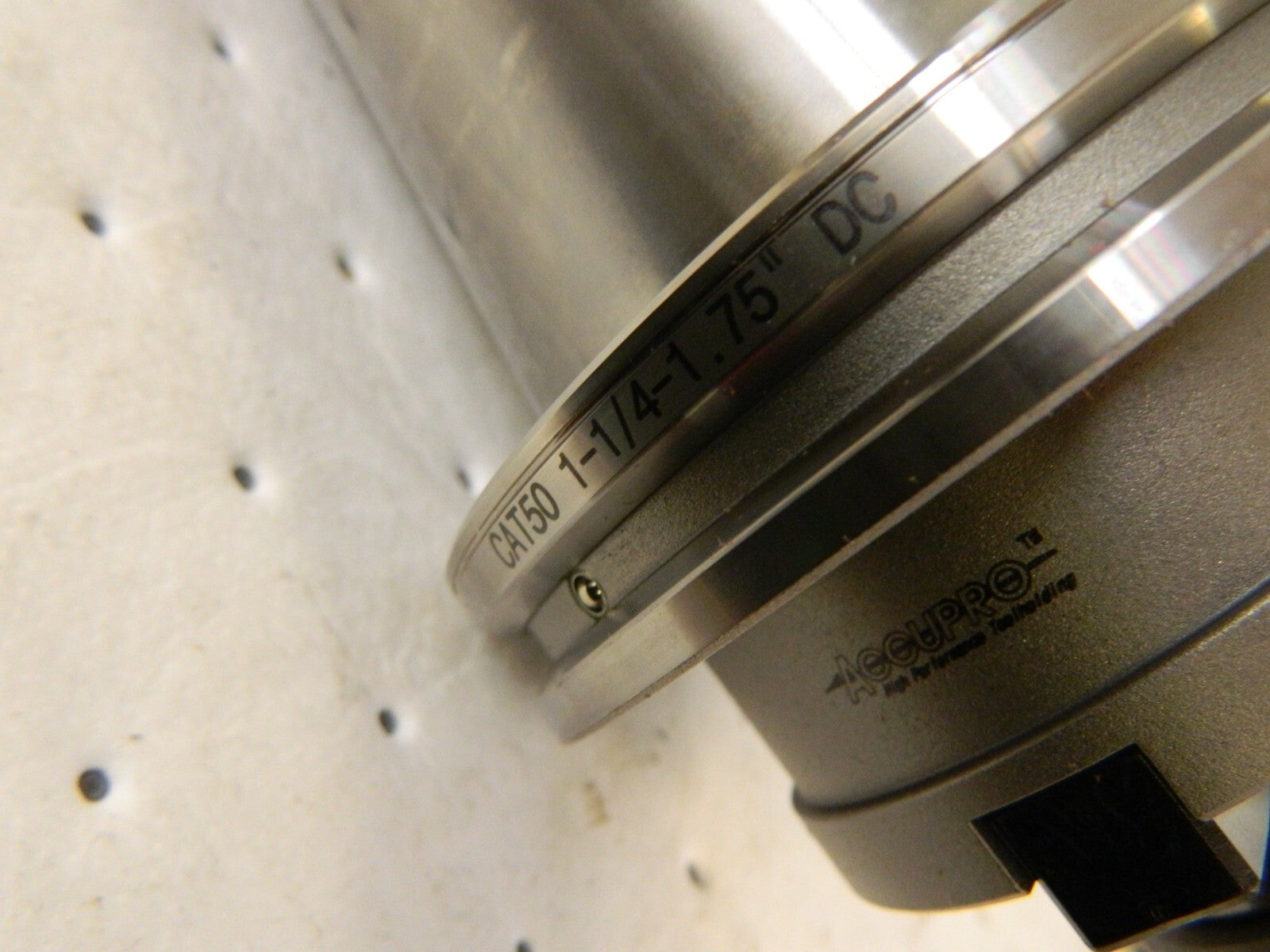

• Taper Size CAT50
• Projection (Decimal Inch) 6.0000
• Projection (Inch) 6
• Through Coolant Yes
• Minimum Collet Capacity (mm) 0.50
• Minimum Collet Capacity (Decimal Inch) 0.0190
• Maximum Collet Capacity (mm) 10.00
• Maximum Collet Capacity (Decimal Inch) 0.3930
• Overall Length (mm) 254.00
• Overall Length (Inch) 10
• Overall Length (Decimal Inch) 10.0000
• Nose Diameter (Decimal Inch - 4 Decimals) 1.2600
• Nose Diameter (Mm) ( - 2 Decimals) 32.00
• Maximum RPM 25000
• TIR (mm) 0.0050
• TIR (Decimal Inch) 0.000200
• Coolant Type Through-Spindle & DIN Flange
• Collet Nut Diameter (mm) 32.00
• Collet Nut Diameter (Decimal Inch) 1.2600
• Product Service Code 5136

 Please review photos, comes as shown.
