CLEVELAND Square End Mill 5/16"Dia 3 Fl HSS C39675

CLEVELAND

 Square End Mill 5/16"Dia 3 Fl HSS C39675

MSRP: $40

• Mill Diameter (Decimal Inch) 0.3125
• Mill Diameter (Inch) 5/16
• Number Of Flutes 3
• End Mill Material High Speed Steel
• Length of Cut (Decimal Inch) 0.7500
• Length of Cut (Inch) 3/4
• Shank Diameter (Inch) 3/8
• Shank Diameter (Decimal Inch) 0.3750
• Overall Length (Decimal Inch) 2.5000
• Overall Length (Inch) 2-1/2
• Single Or Double End Single
• Coating/Finish Family TiN
• Centercutting Yes
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach No
• Coolant Through No
• Helix Angle 30
• Primary Workpiece Material Aluminum & Non-Ferrous; Cast Iron; Steel
• Primary Workpiece Material Code P; K; N
• Coating/Finish TiN
• Variable Helix No
• Variable Index No
• Chipbreaker No
• Flute Type Spiral
• Shank Type Weldon Flat
• Length Type Regular
• Length Of Cut Range (Decimal Inch) 0.7000 - 0.8000
• Series HG-3-TN
• System Of Measurement Fractional Inch
• UNSPSC Code 27112803
• Country of Origin UNITED STATES
• Ordered as Part # C39675

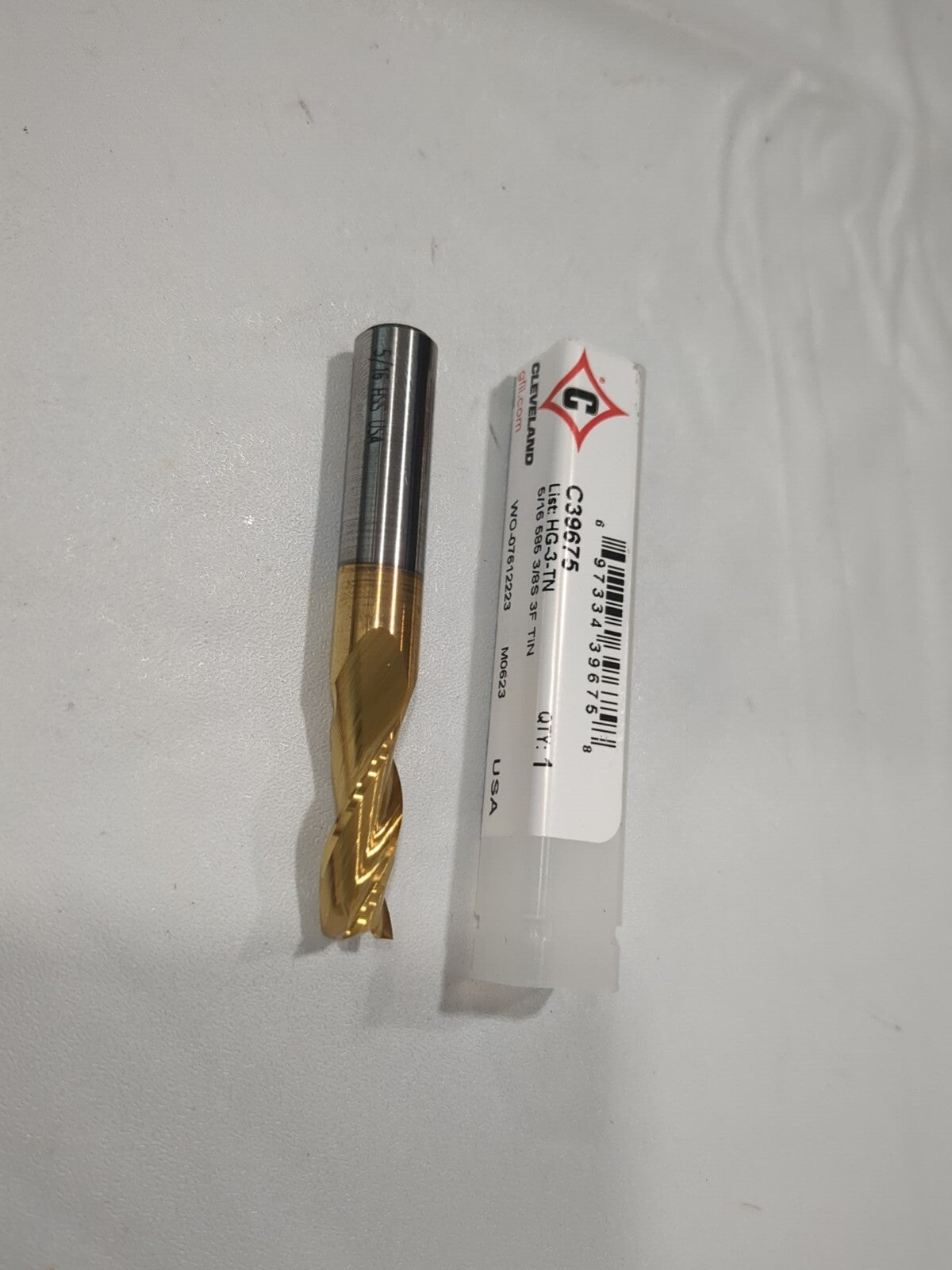

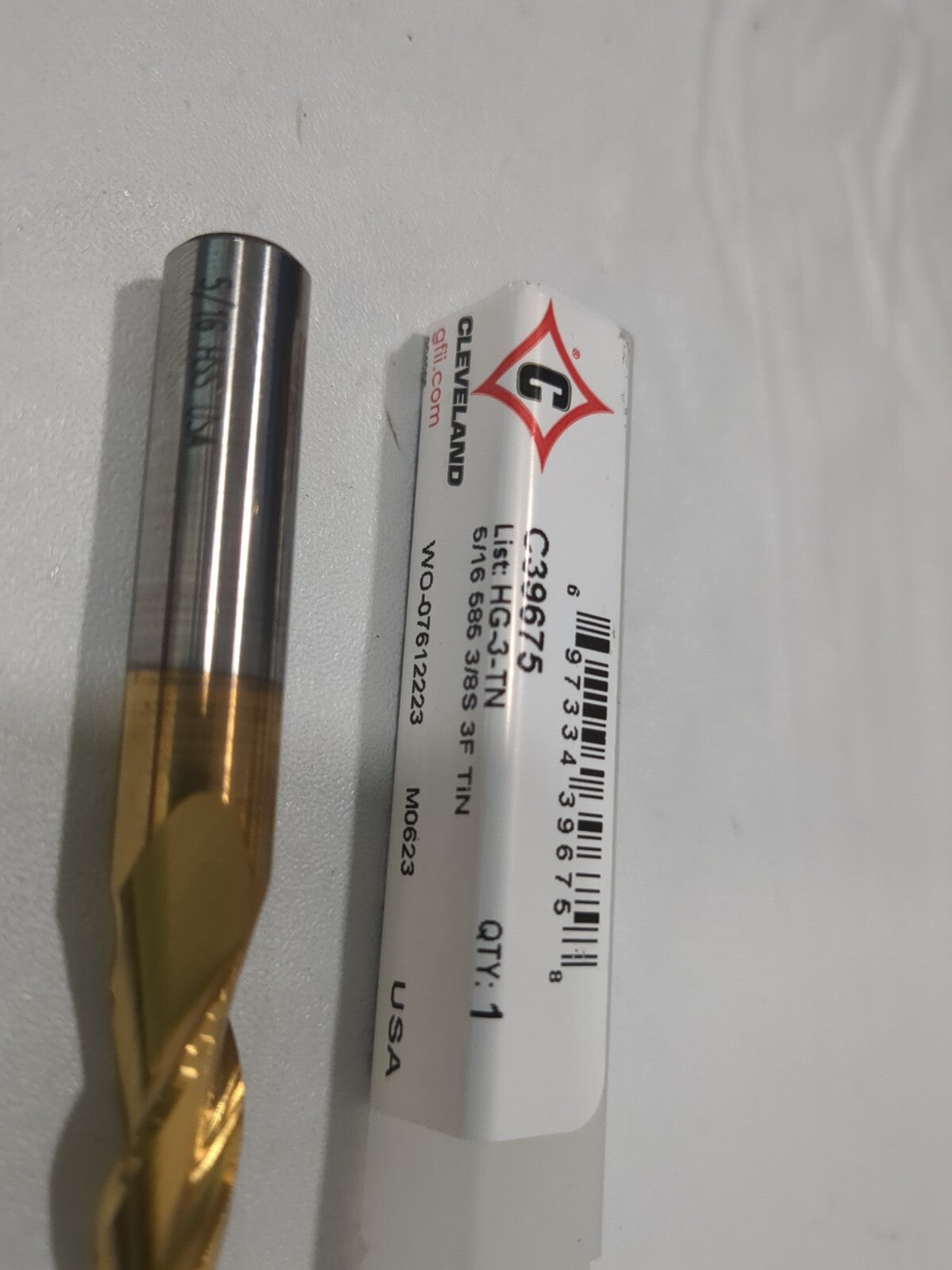

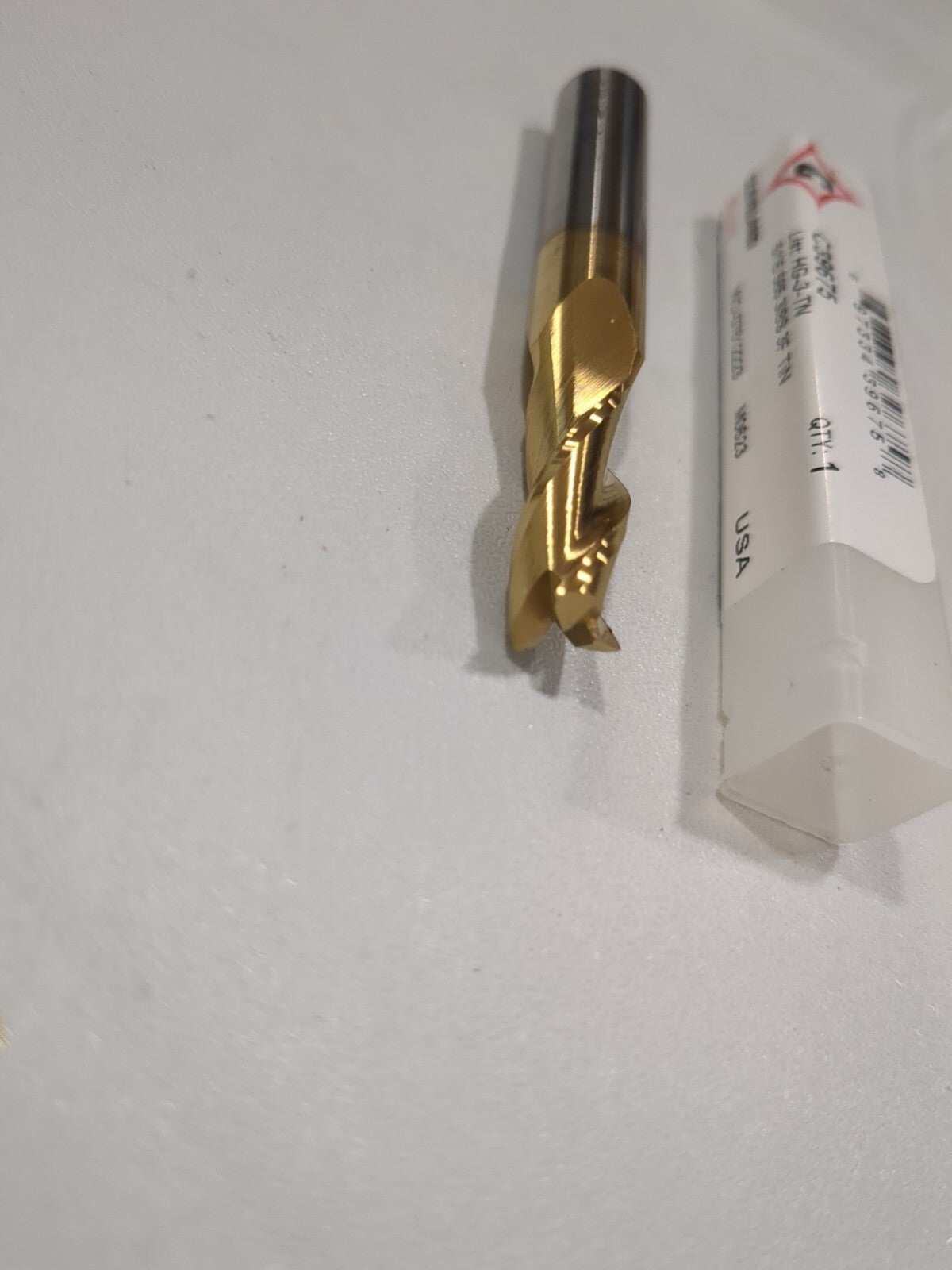

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
