CLEVELAND Spiral Point Tap: 5/16-18 UNC, 3 Flutes Qty 3 C57153

Cleveland
1 Lot of 3 Spiral Point Tap

MSRP: $50.00

• Thread Size (Inch) 5/16-18
• Thread Standard UNC
• Chamfer Bottoming
• Material High-Speed Steel
• Coating/Finish Bright/Uncoated
• Thread Direction Right Hand
• Coolant Through No
• Class Of Fit 3B
• Thread Limit H3
• Number Of Flutes 3
• Oversize No
• Threads per Inch 18
• Overall Length (Inch) 2-23/32
• Thread Length (Decimal Inch) 0.6900
• Thread Length (Inch) 11/16
• Overall Length (Decimal Inch) 2.7190
• Shank Diameter (mm) 8.08
• Shank Diameter (Decimal Inch) 0.3180
• Application Blind Hole Threading
• Neck Length (Decimal Inch) 0.4500
• Neck Length (Inch) 29/64
• Square Length (mm) 9.52
• Square Length (Inch) 3/8
• Square Length (Decimal Inch) 0.3750
• Square Size (Decimal Inch) 0.2380
• Square Size (mm) 6.05
• Material Application Low-Carbon Steel; Aluminum; Magnesium; Copper Alloy
• Series 1012

These items appear to be new and in good condition. SOLD AS IS.

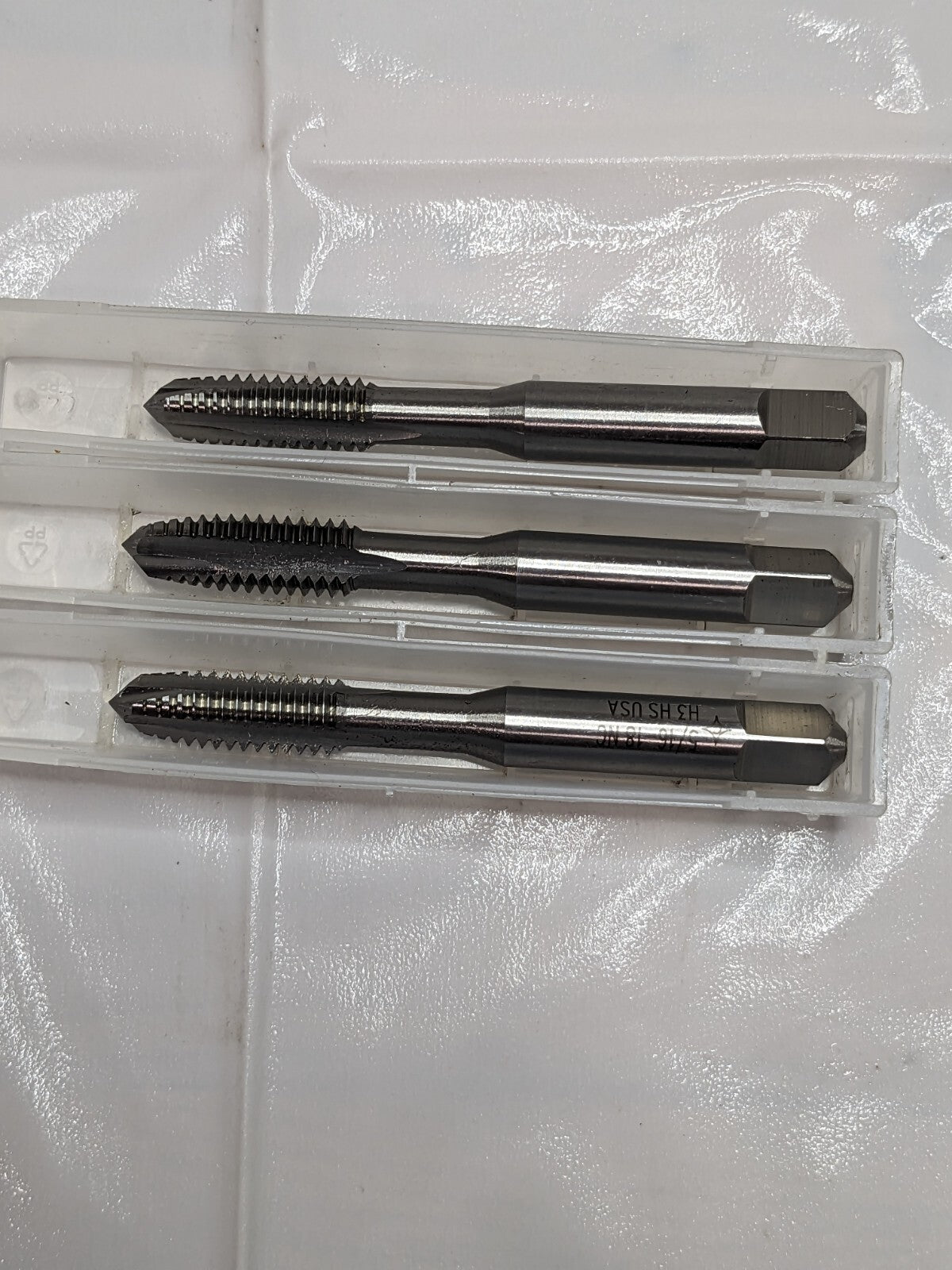

Please review photos, comes as shown.
