CLEVELAND Spiral Point Tap: 3/4-10 UNC, 3 Fl C57246

CLEVELAND Spiral Point Tap: 3/4-10 UNC, 3 Fl C57246
MSRP: $70

• Thread Size (Inch) 3/4-10
• Thread Standard UNC
• Chamfer Plug
• Material HSS
• Thread Limit H3
• Class Of Fit 2B
• Coating/Finish Bright/Uncoated
• Thread Direction Right Hand
• Coolant Through No
• Number Of Flutes 3
• Material Application Non-Ferrous Metal; Steel
• Oversize No
• Interrupted Thread No
• Threads per Inch 10
• Overall Length (Inch) 4-1/4
• Thread Pitch (Decimal Inch) 0.1
• Overall Length (Decimal Inch) 4.25
• Overall Length (mm) 107.95
• Thread Length (Decimal Inch) 1.2188
• Thread Length (Inch) 1-7/32
• Thread Length (mm) 50.80
• Shank Diameter (mm) 14.99
• Shank Diameter (Decimal Inch) 0.5900
• Application Through-Hole Threading
• Neck Length (Decimal Inch) 0.7900
• Measurement Type Fractional Inch
• Square Size (mm) 11.23
• Series 1011
• Style Spiral Point
• UNSPSC Code 23241600

(Description).

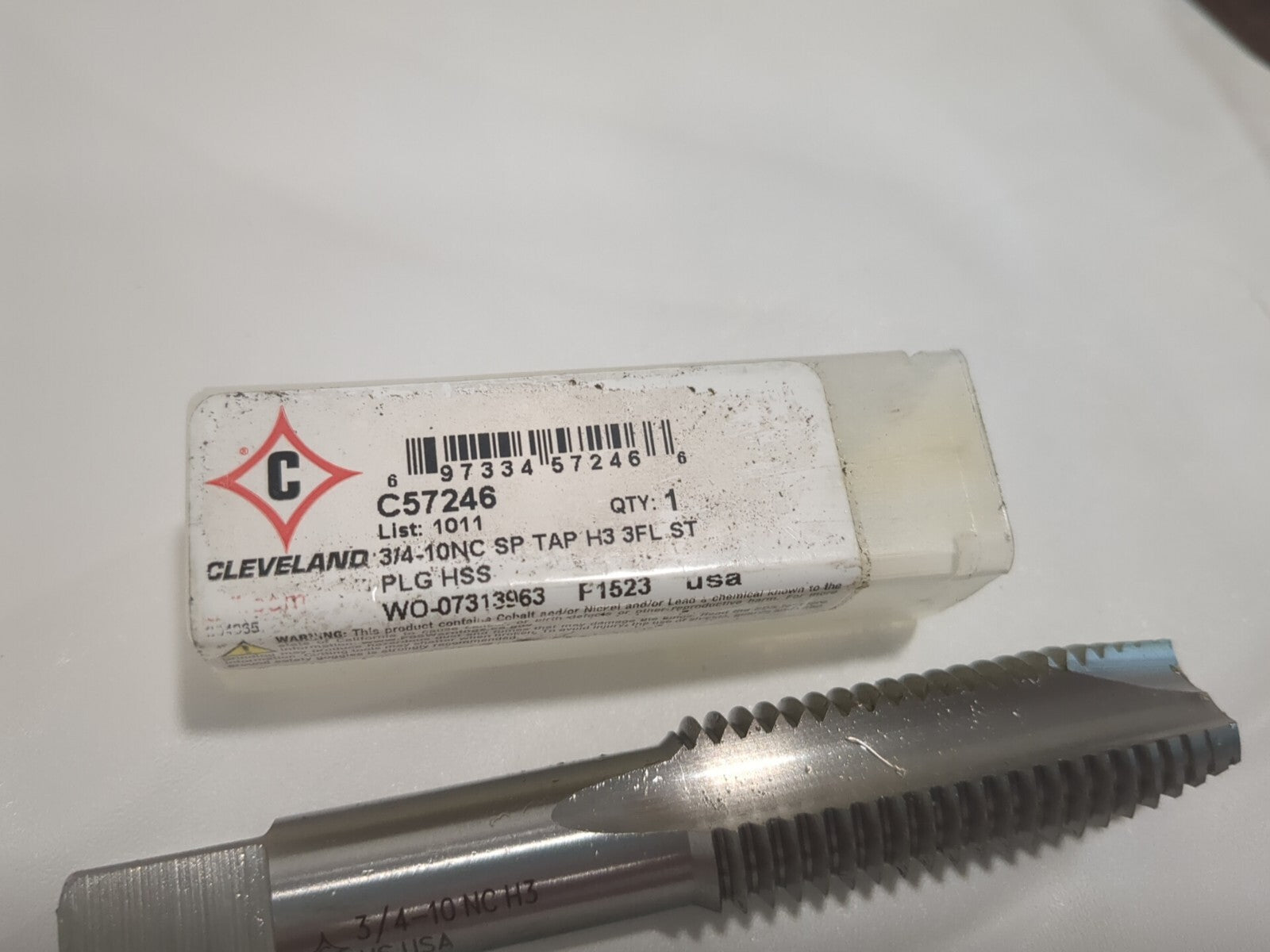

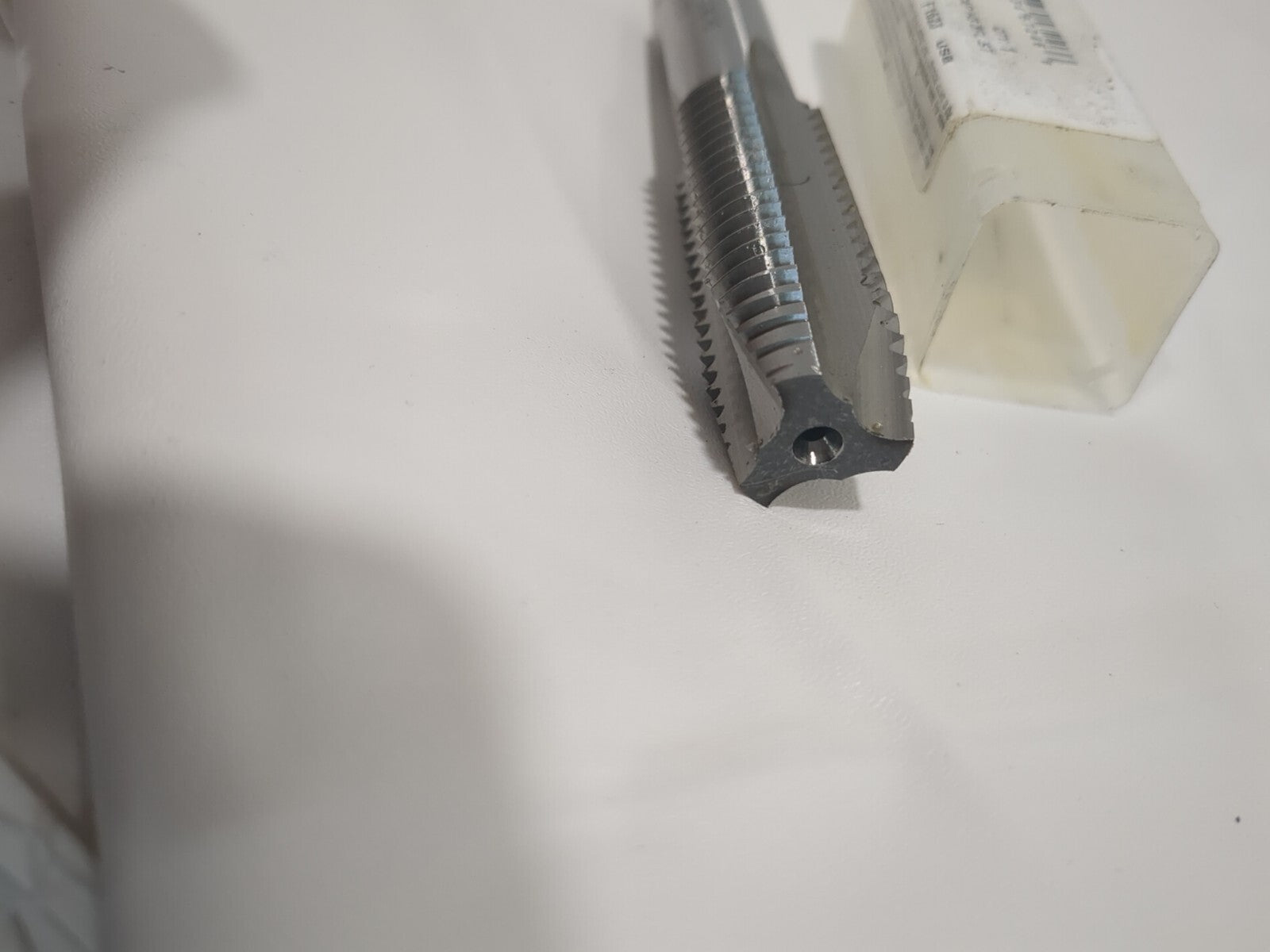

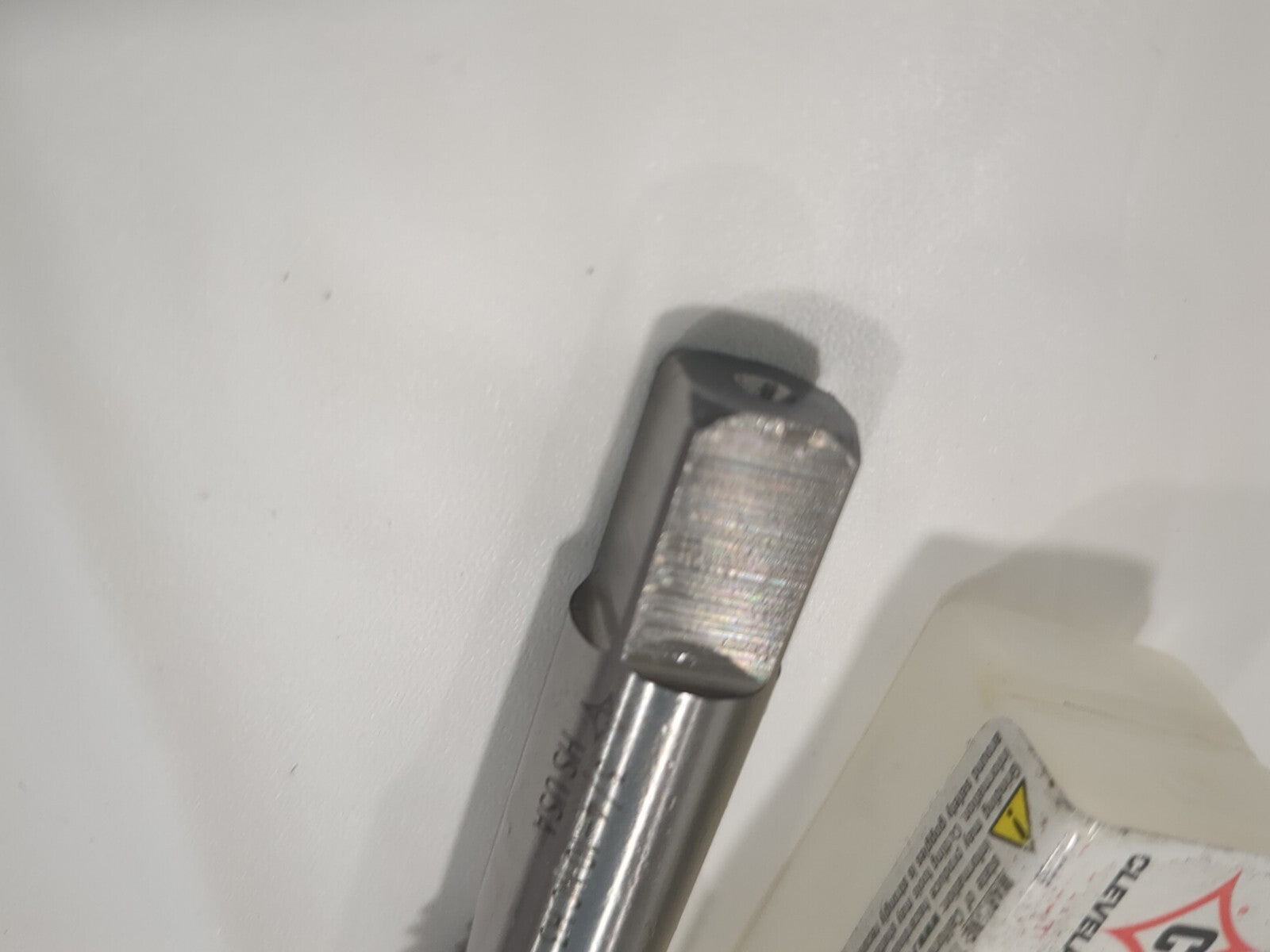

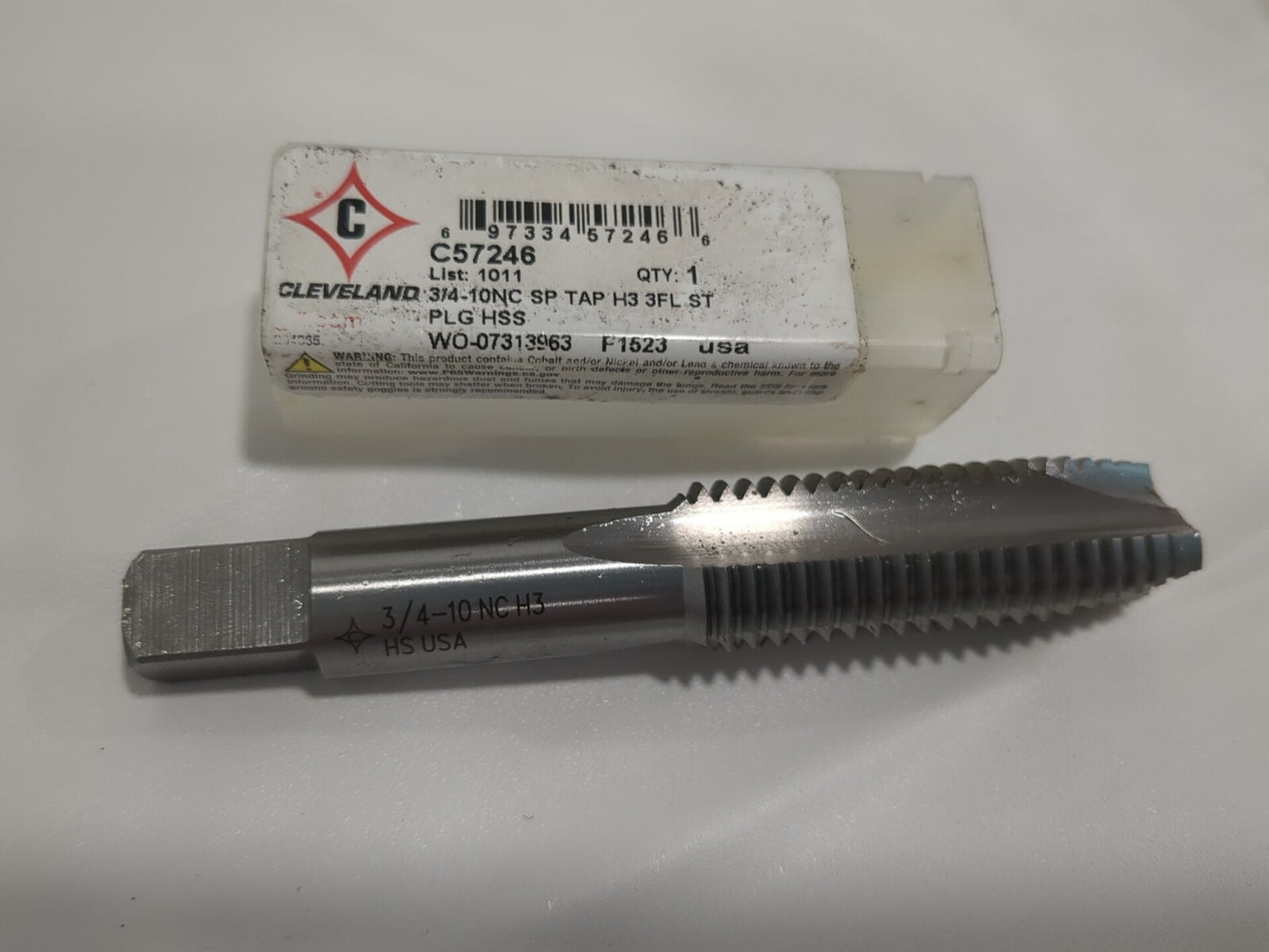

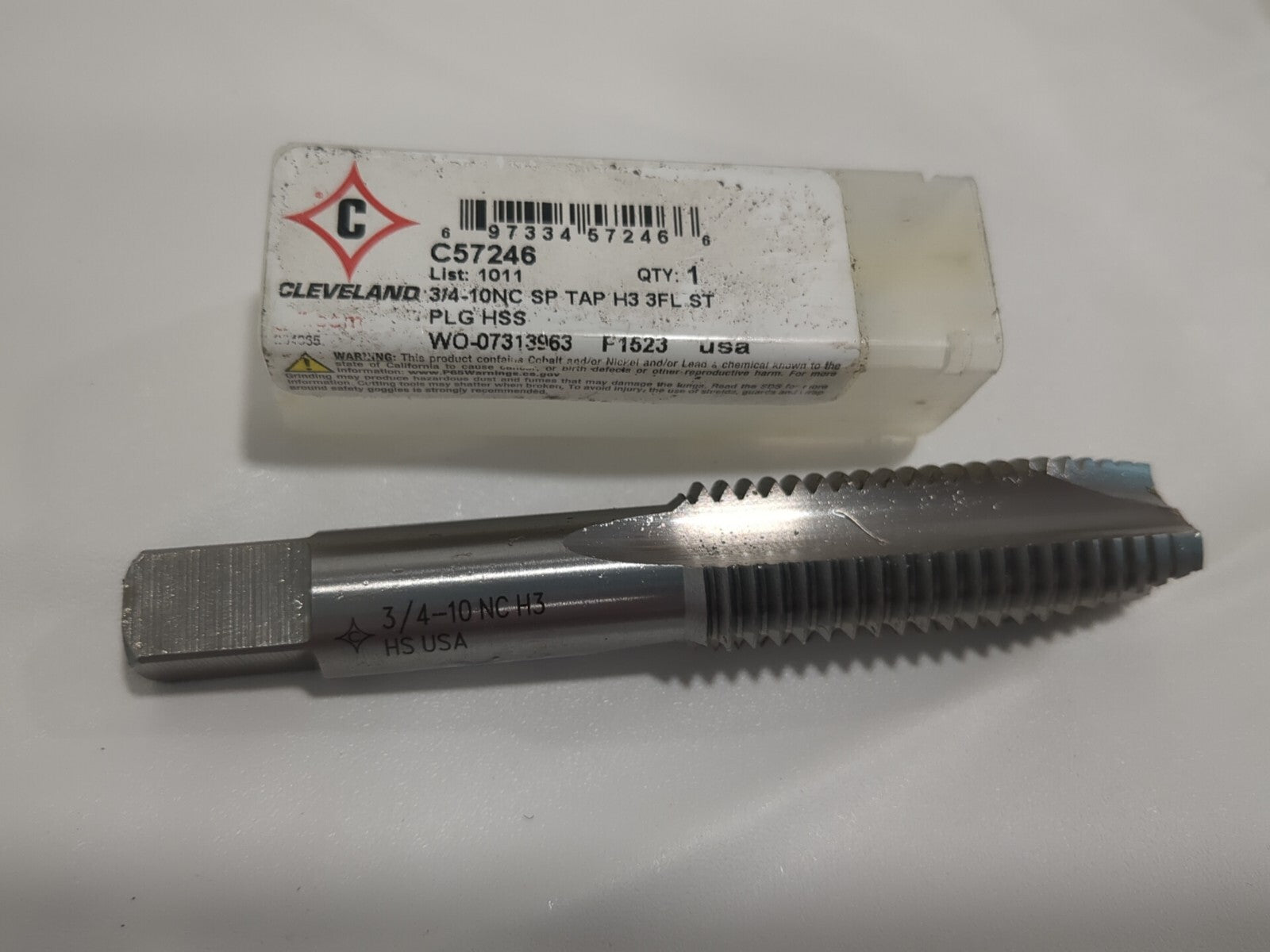

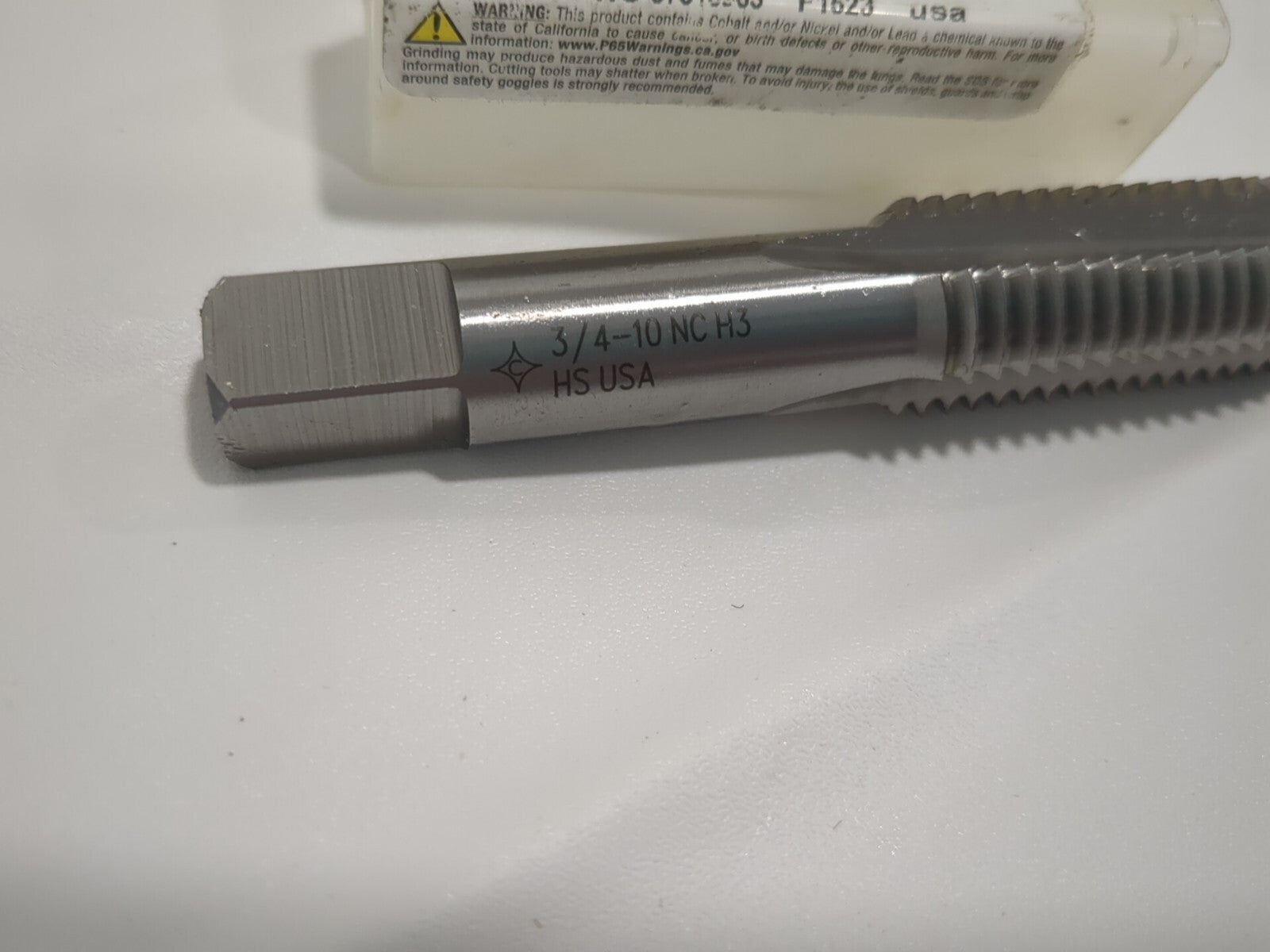

Please review photos, comes as shown.
