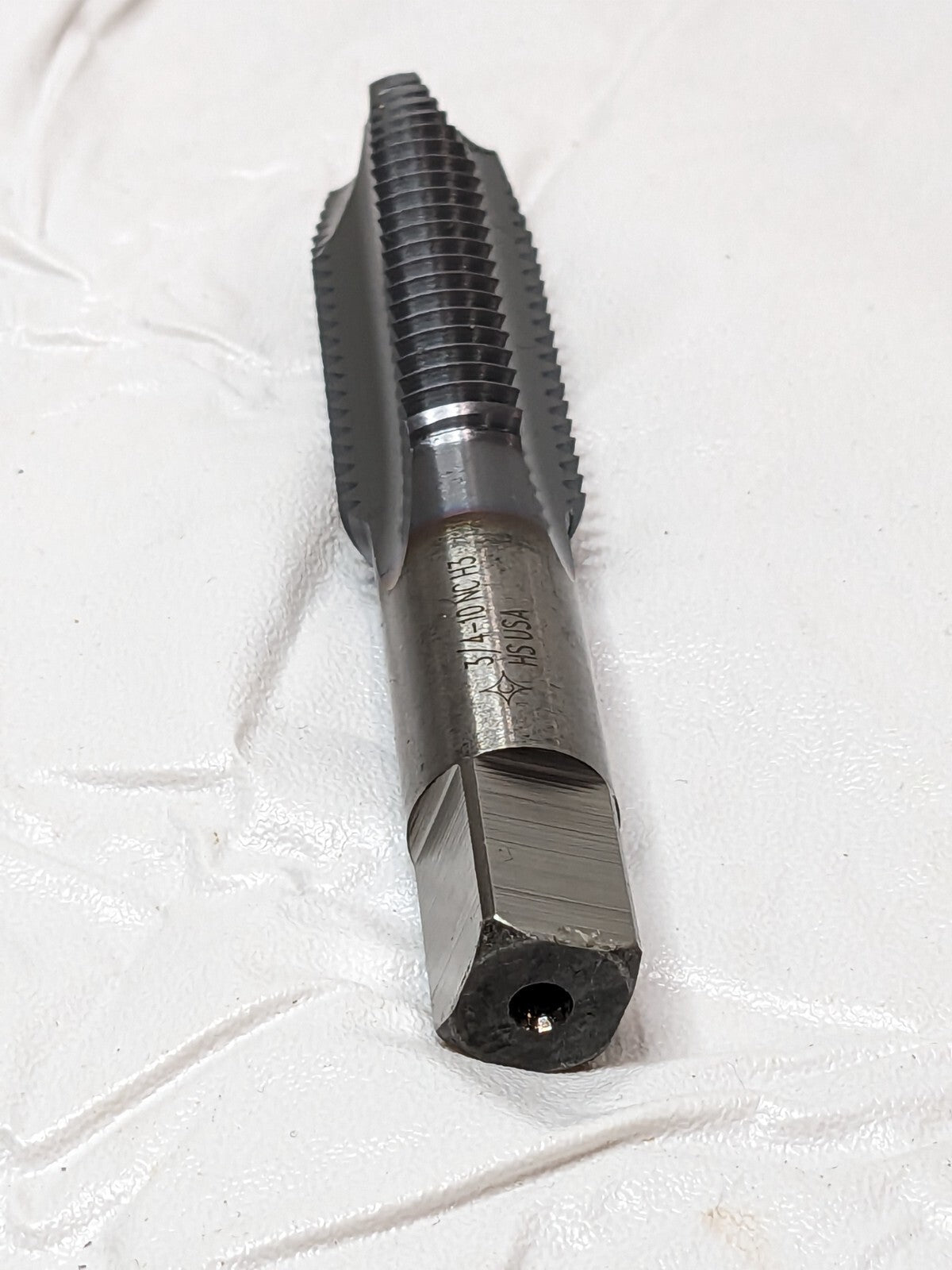

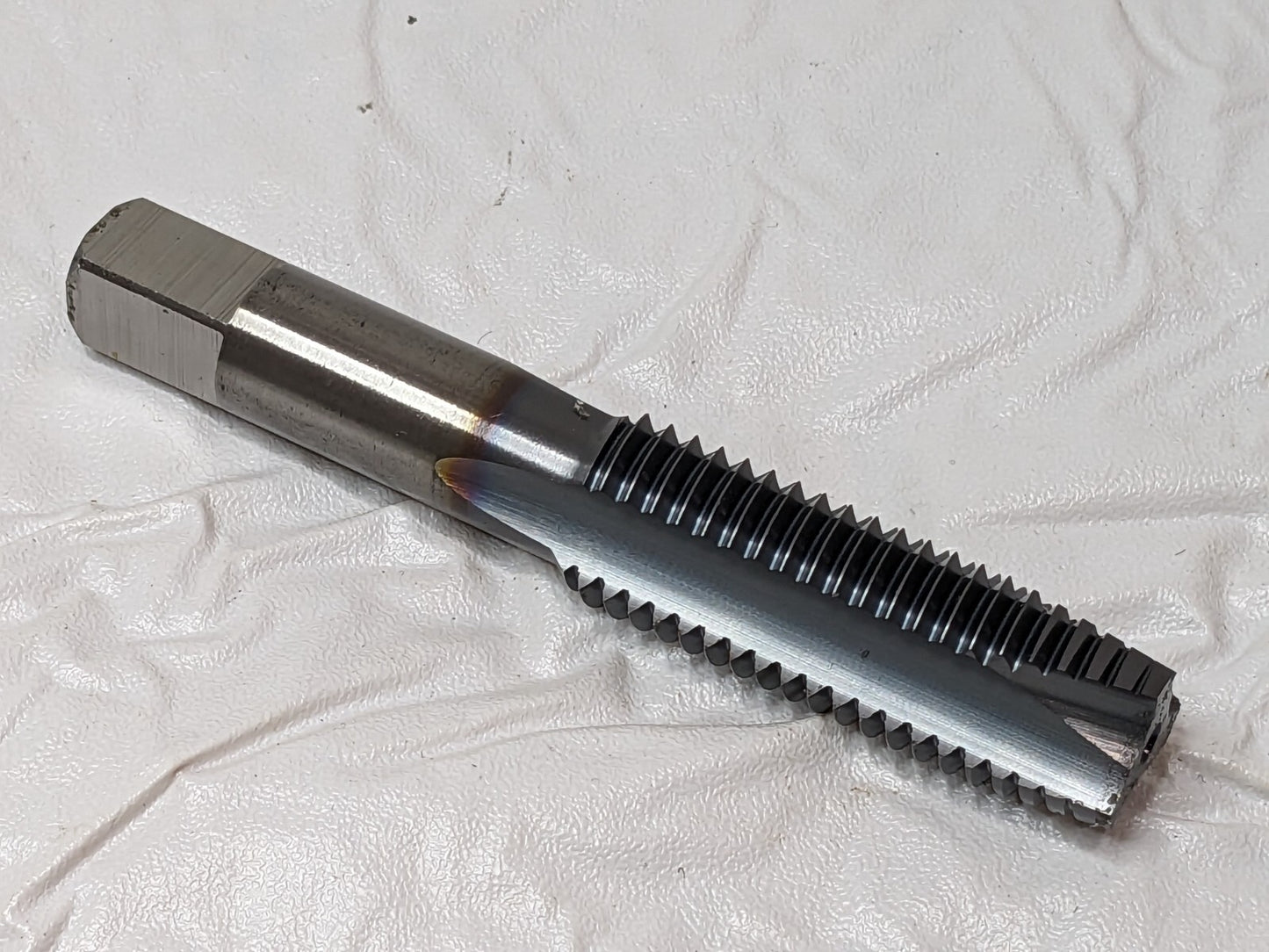

Cleveland Spiral Point Plug Tap HSS 3/4-10NC H3 3FL 1011-TC C55398

Cleveland
Spiral Point Plug Tap

MSRP: $90

• Thread Size (Inch) 3/4-10
• Thread Standard UNC
• Chamfer Plug
• Material HSS
• Coating/Finish TiCN
• Thread Direction Right Hand
• Coolant Through No
• Class Of Fit 2B
• Thread Limit H3
• Number Of Flutes 3
• Oversize No
• Interrupted Thread No
• Threads per Inch 10
• Overall Length (Inch) 4-1/4
• Thread Pitch (Decimal Inch) 0.1
• Thread Length (Decimal Inch) 1.2188
• Thread Length (Inch) 1-7/32
• Overall Length (Decimal Inch) 4.25
• Overall Length (mm) 107.95
• Cnc Shank Yes
• Shank Diameter (mm) 14.99
• Shank Diameter (Decimal Inch) 0.5900
• Application Through-Hole Threading
• Neck Length (Decimal Inch) 0.7900
• Tapping Depth (Fractional Inch) 1-7/32
• Tapping Depth (Decimal Inch) 1.2188
• Square Length (mm) 17.46
• Square Length (Inch) 11/16
• Square Length (Decimal Inch) 0.6875
• Square Size (Decimal Inch) 0.442
• Square Size (mm) 11.23
• Material Application Stainless Steel; Cast Iron; Steel
• Series 1011-TC
• Style Spiral Point
• UNSPSC Code 23241600

Please review photos, comes as shown.
