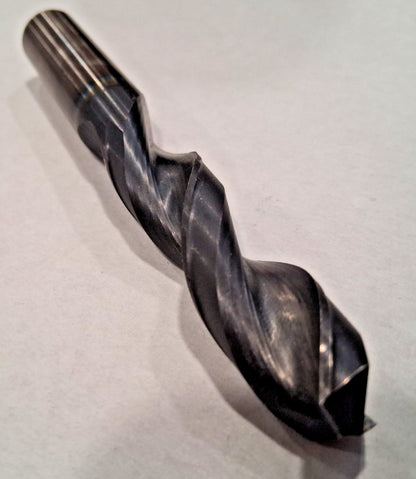

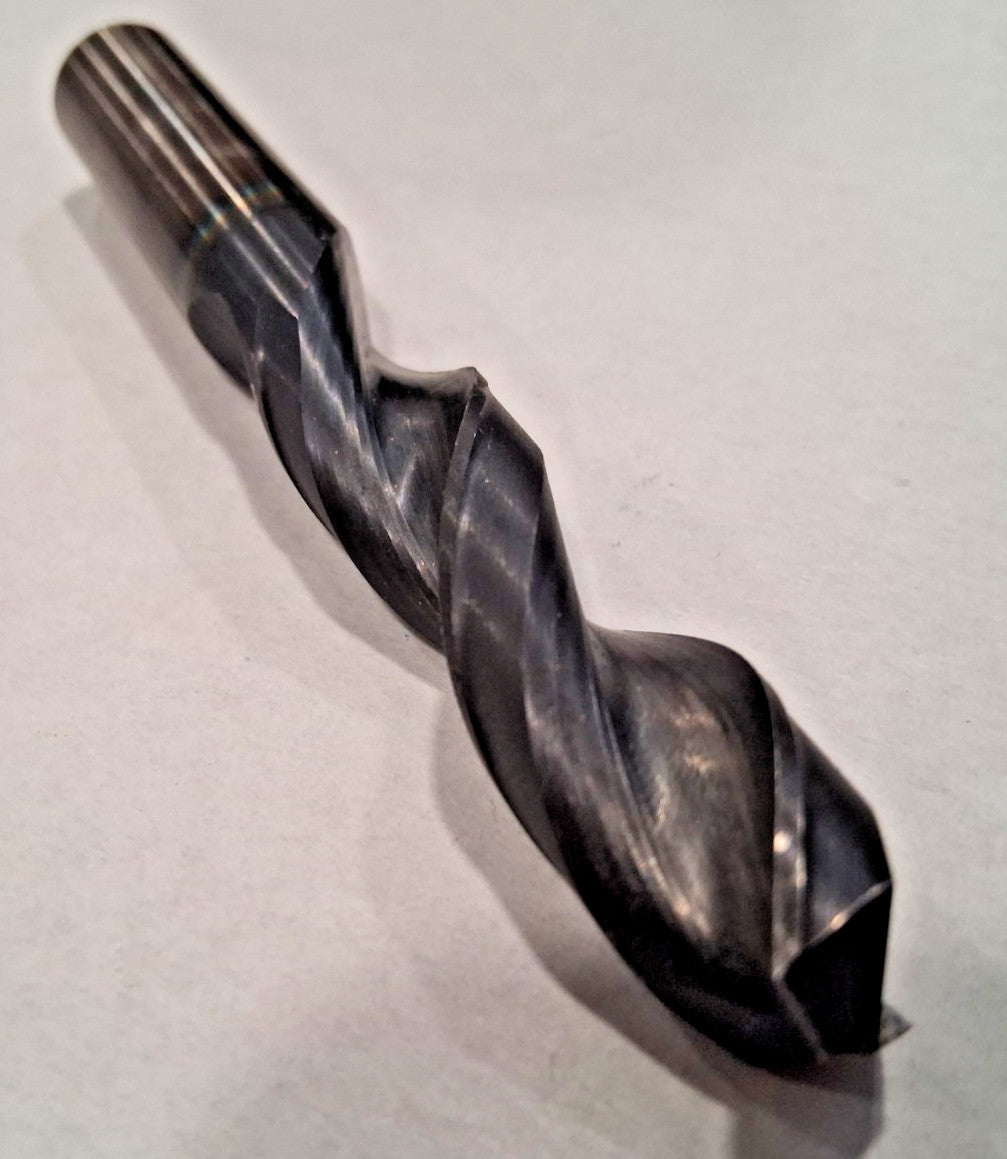

Cleveland Screw Machine Drill Bit 41/64" Dia 135 deg Cobalt C15087

Cleveland
Screw Machine Drill Bit

MSRP: $125.00

• Drill Bit Size (Inch): 41/64
• Drill Bit Size (Decimal Inch): 0.6406
• Tool Material: Cobalt
• Cutting Direction: Right Hand
• Coating/Finish: TiAlN
• Number Of Flutes: 2
• Spiral Type: Fast
• Flute Type: Parabolic
• Flute Length (Decimal Inch): 2.8750
• Drill Point Angle: 135
• Coolant Through: No
• Shank Type: Straight
• Point Type: Split Point
• Primary Workpiece Material: Aluminum; Alloy
• Shank Diameter (Decimal Inch): 0.6406
• Overall Length (mm): 114.30
• Overall Length (Decimal Inch): 4.5000
• Overall Length (Inch): 4-1/2
• Series: 2175-TA
• Web Thinning: Web-Thinned
• Web Configuration: Parallel
• Drill Length Type: Screw Machine
• Shank Length (Inch): 1-5/8
• Shank Length (Decimal Inch): 1.6250
• Shank Length (mm): 41.27
• Drill Bit Diameter Tolerance: +0.0000 to -0.0012 in
• Standards: ASME B94.11M
• Flute Length (Inch): 2-7/8
• Drill Bit Size Range (Decimal Inch): 0.6000+
• Specification Designation: ANSI
• Material Grade: M42
• UNSPSC Code: 23241635

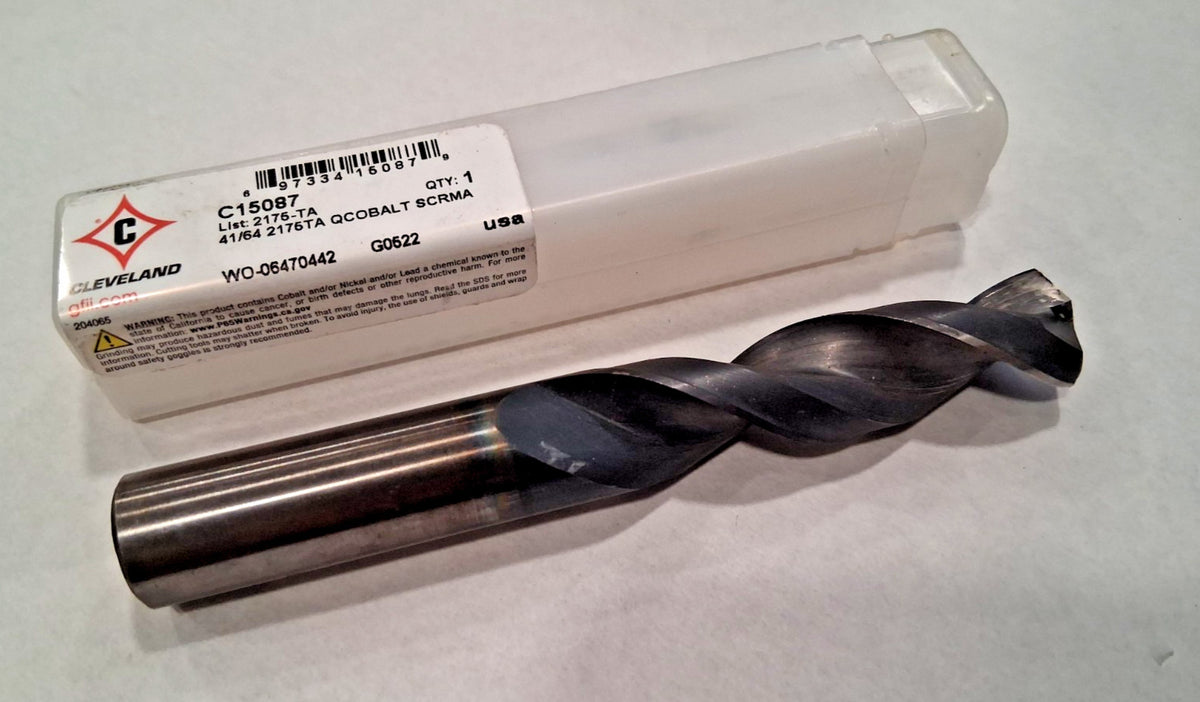

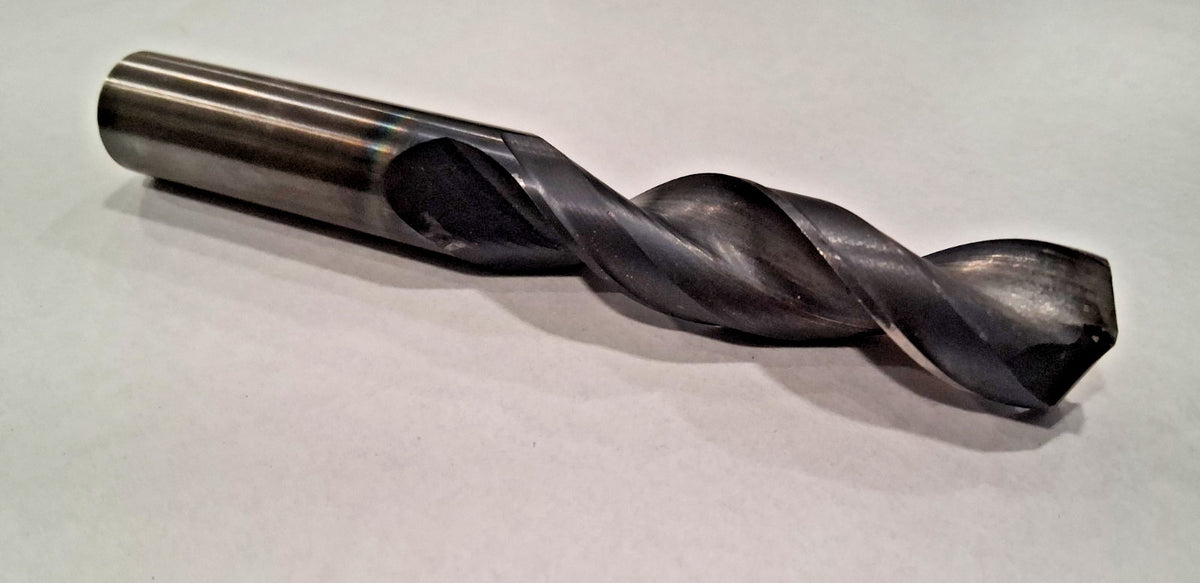

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
