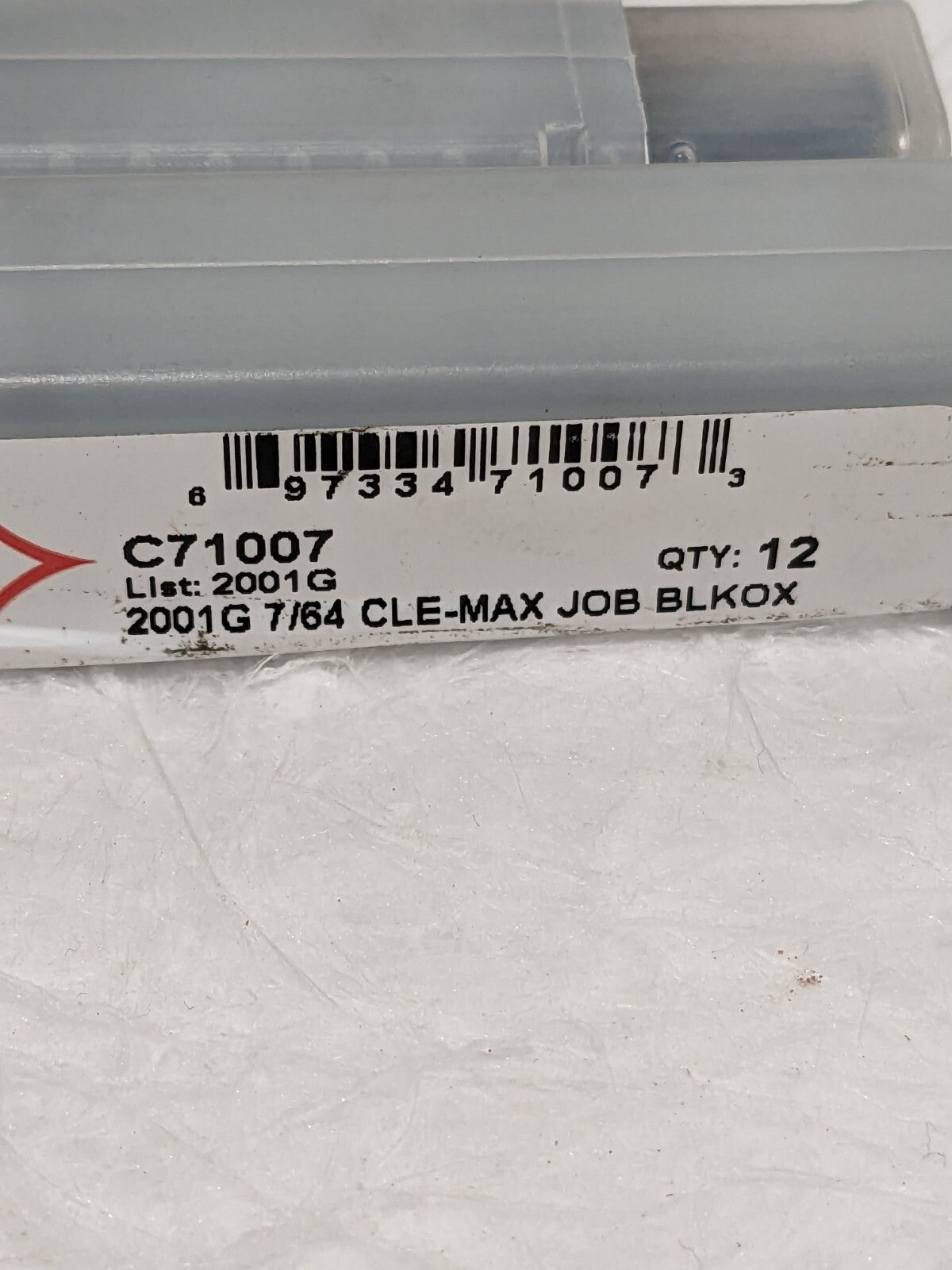

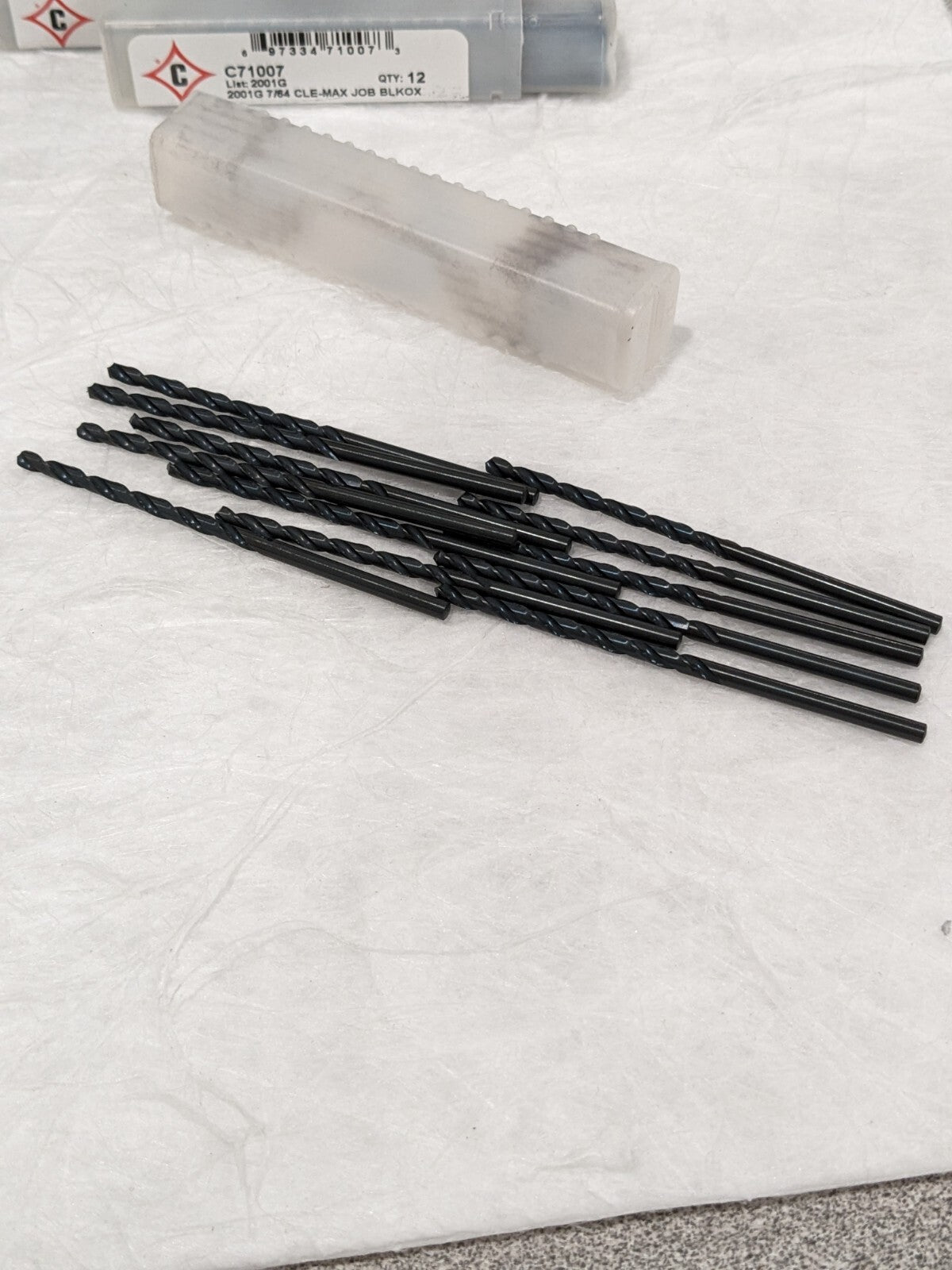

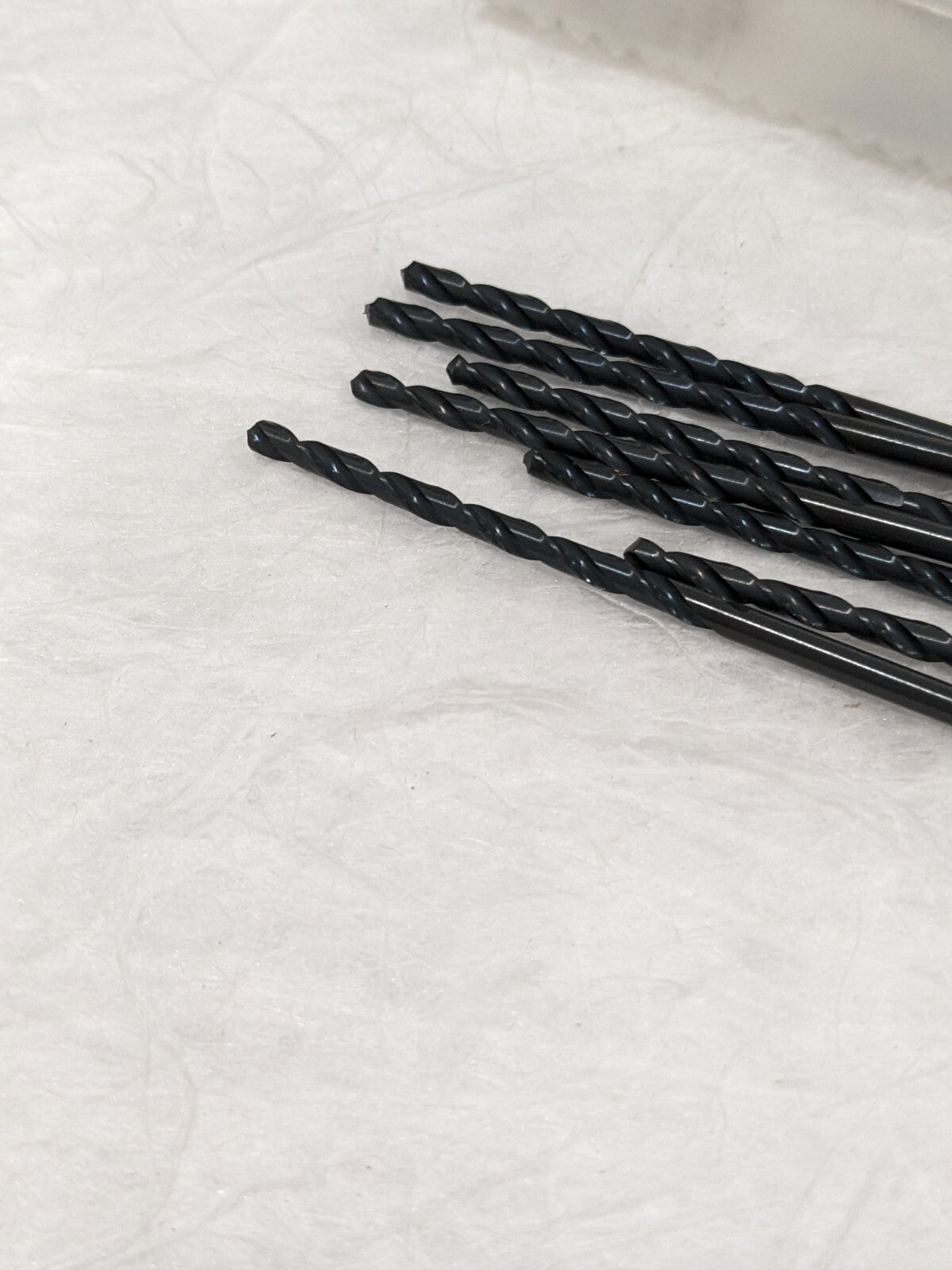

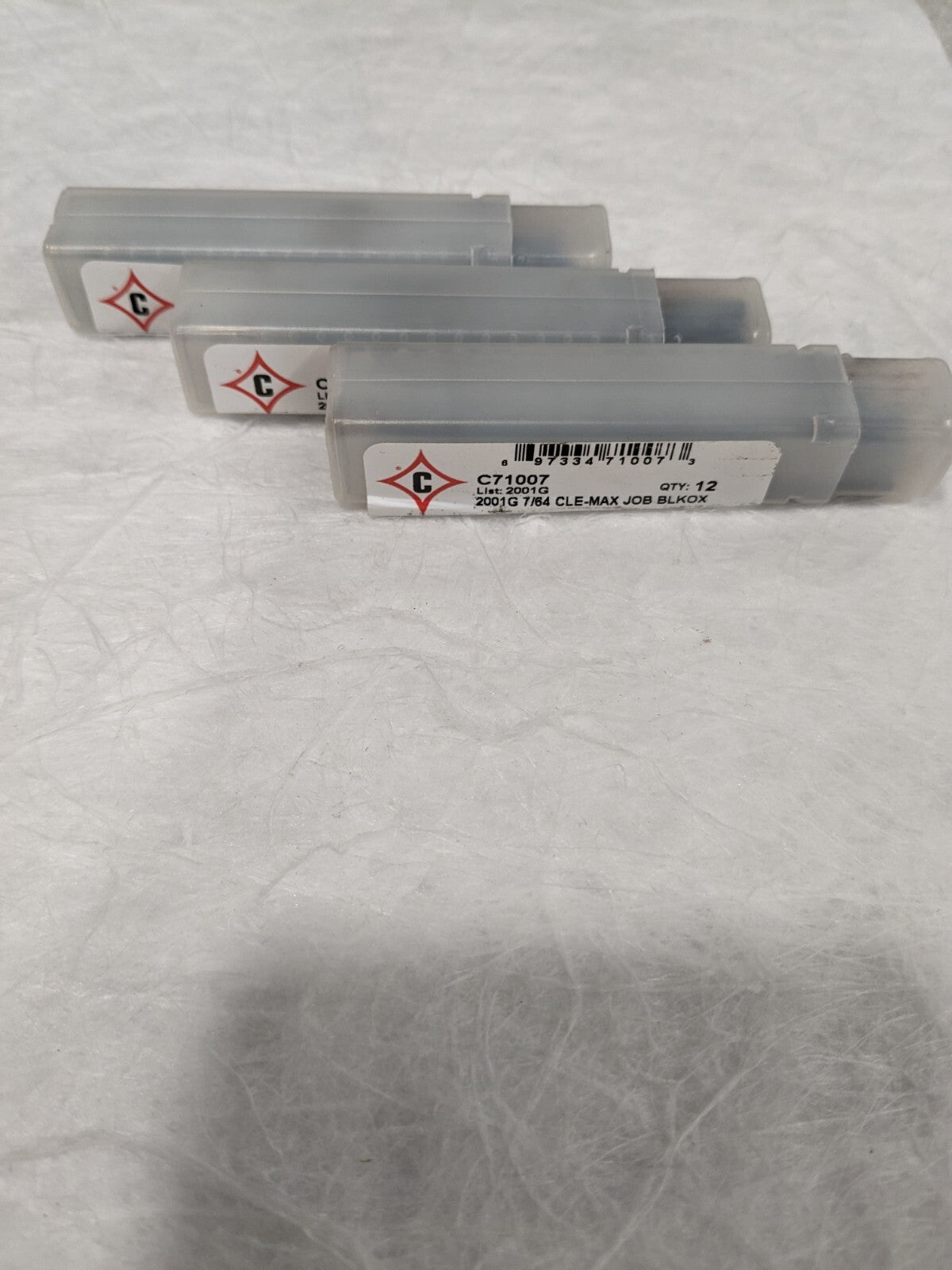

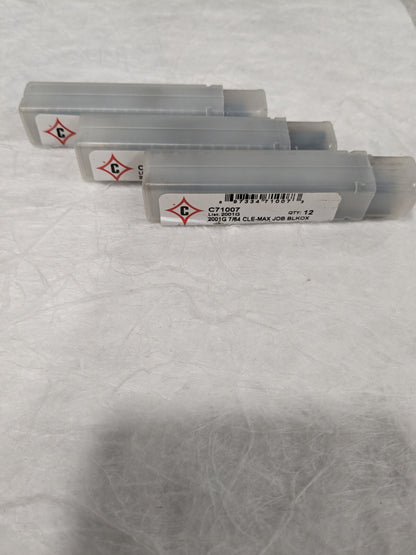

CLEVELAND Jobber Drill: 7/64" Dia, 118 deg Point, High Speed Steel Qty 36 C71007

Cleveland
1 Lot of 36 Jobber Drills

MSRP: $70.00

• Drill Bit Size (Inch) 7/64
• Drill Bit Size (Decimal Inch) 0.1094
• Drill Bit Material High Speed Steel
• Cutting Direction Right Hand
• Coating/Finish Oxide
• Number of Flutes 2
• Spiral Type Regular
• Flute Type Spiral
• Point Type Standard
• Drill Point Angle (Degrees) 118
• Coolant Through No
• Shank Type Straight-Cylindrical
• Flute Length (Inch) 1-1/2
• Shank Diameter (Decimal Inch) 0.1094
• Overall Length (Inch) 2-5/8
• Flute Length (mm) 38.10
• Flute Length (Decimal Inch) 1.5000
• Series 2001G
• Flute By Diameter Ratio 4xD
• Shank Length (mm) 28.57
• Shank Length (Decimal Inch) 1.1250
• Drill Bit Diameter Tolerance -0.0005 to 0.0000 in
• Web Thinning Web-Thinned
• Web Configuration Tapered
• Tool Performance General Purpose
• Standards DIN 338; ASME B94.11M
• Drill Bit Grade General Purpose
• Drill Bit Size Range (Decimal Inch) 0.1000 - 0.1500
• Specification Designation ANSI
• UNSPSC Code 23241634

These items are new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
