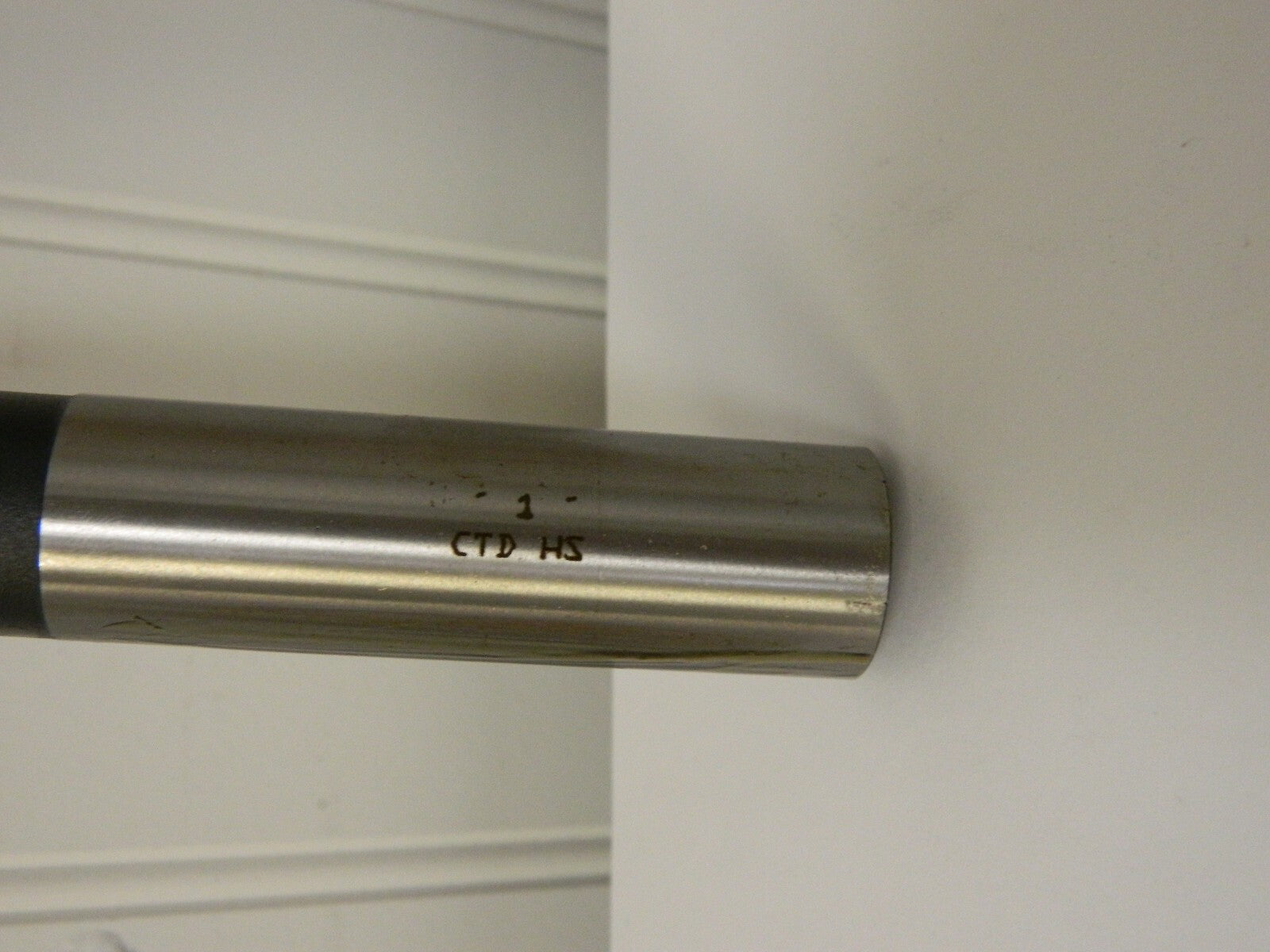

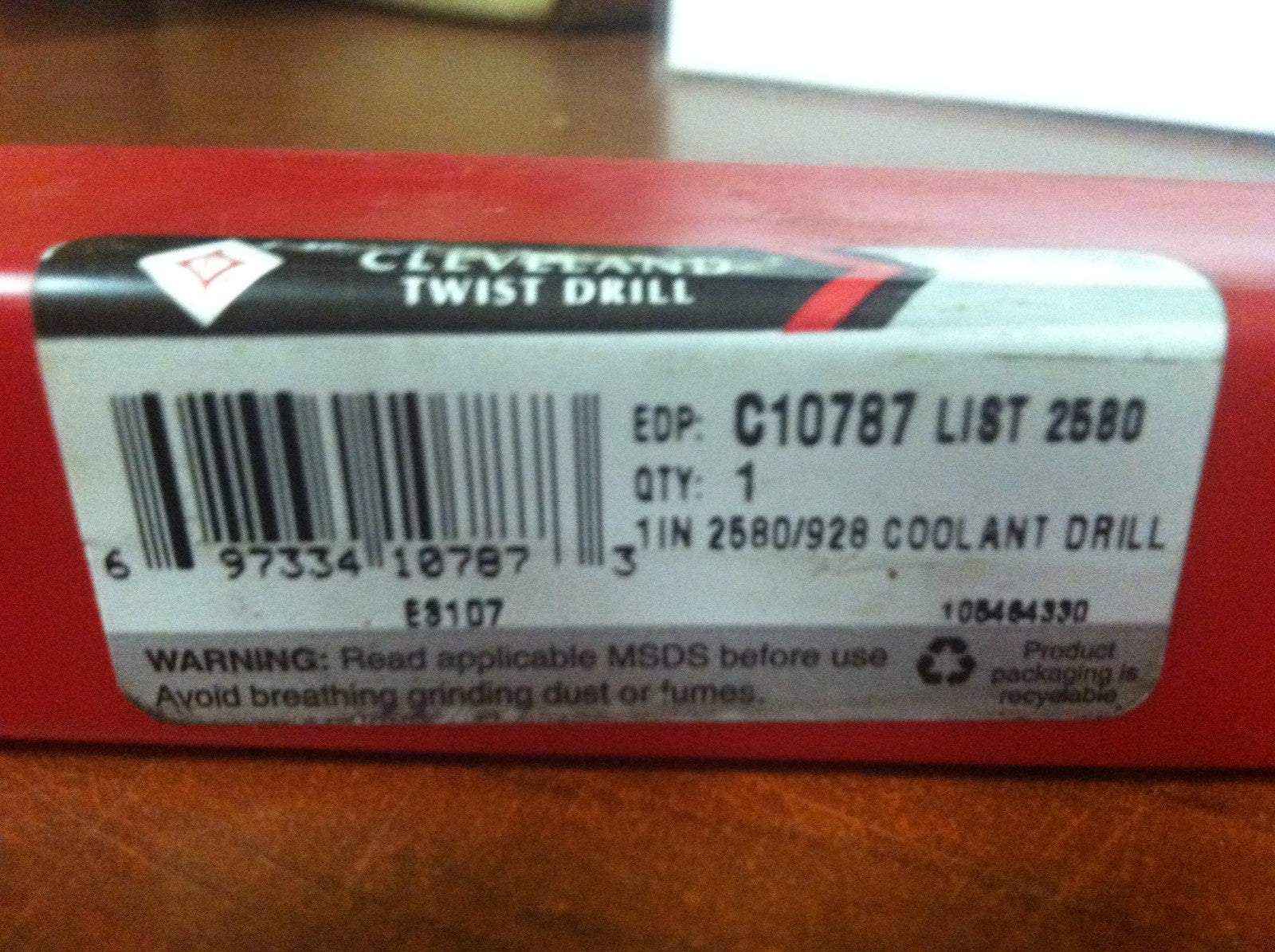

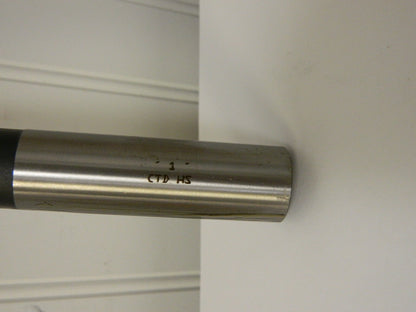

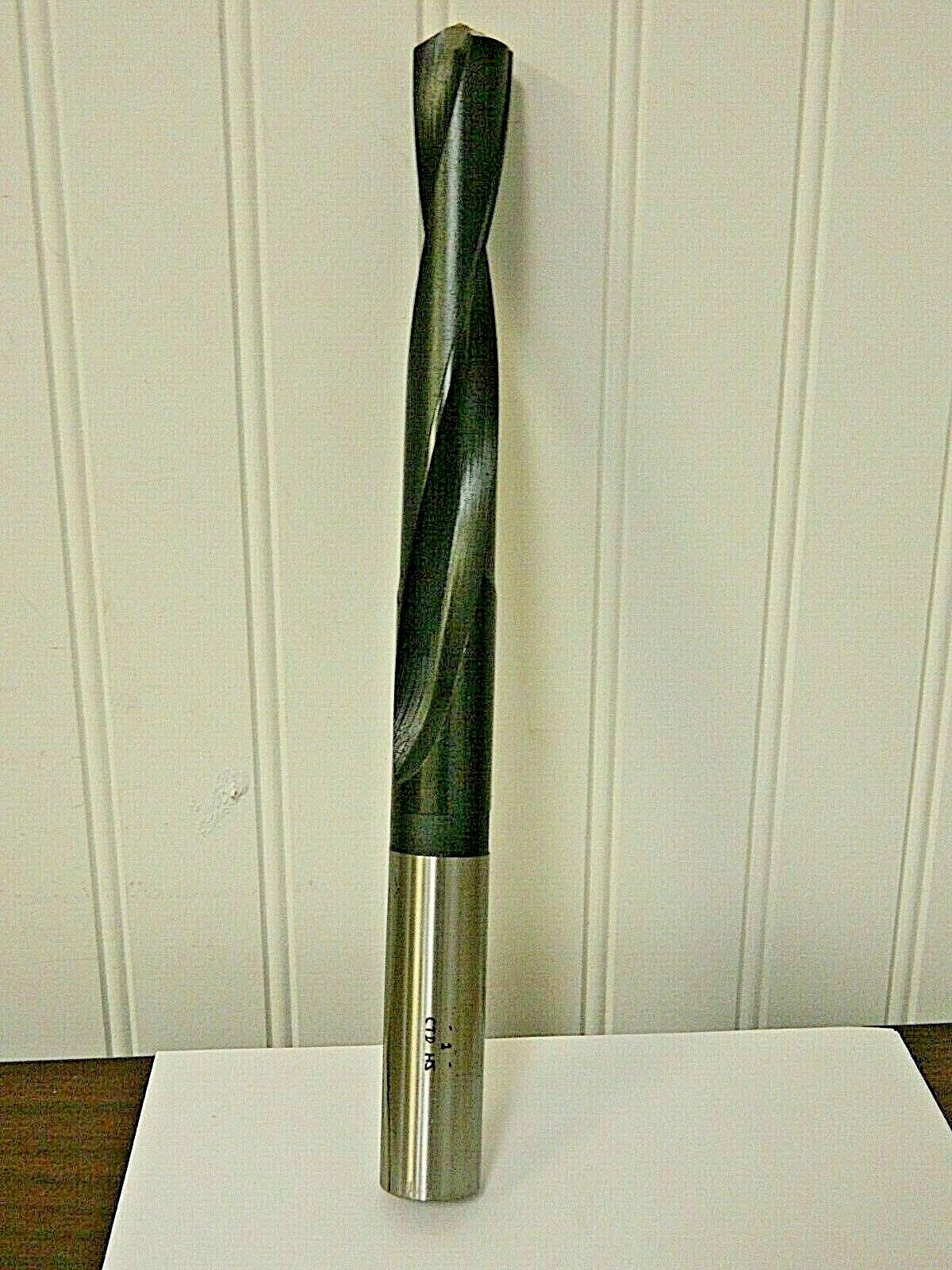

Cleveland 1" 118° Spiral Flute High Speed Steel Taper Length Drill Bit C10787

Manufacturer:

Cleveland

Mfr Part #:

C10787

Shank Type:

Straight

Spiral Type:

Slow Spiral

Web Configuration:

Tapered

Through Coolant (Yes/No):

Yes

Web Thinning:

Web-Thinned

Drill Bit Diameter Tolerance (Decimal Inch):

+0.0000" to -0.0012"

Cutting Direction:

Right Hand

Drill Bit Material:

High Speed Steel

Drill Bit Finish/Coating:

Oxide

Series/List:

2580

Drill Bit Size (Decimal Inch) :

1.0000"

Drill Bit Size (Inch) :

1"

Drill Point Angle:

118

Drill Bit Size (mm) :

25.40

Flute Length (Inch) :

7-3/16"

Flute Type:

Spiral

Overall Length (Decimal Inch) :

11.0000"

Overall Length (mm) :

279.40mm

Overall Length (Inch) :

11"

Point Type:

Standard

Shank Diameter (Inch):

1"
