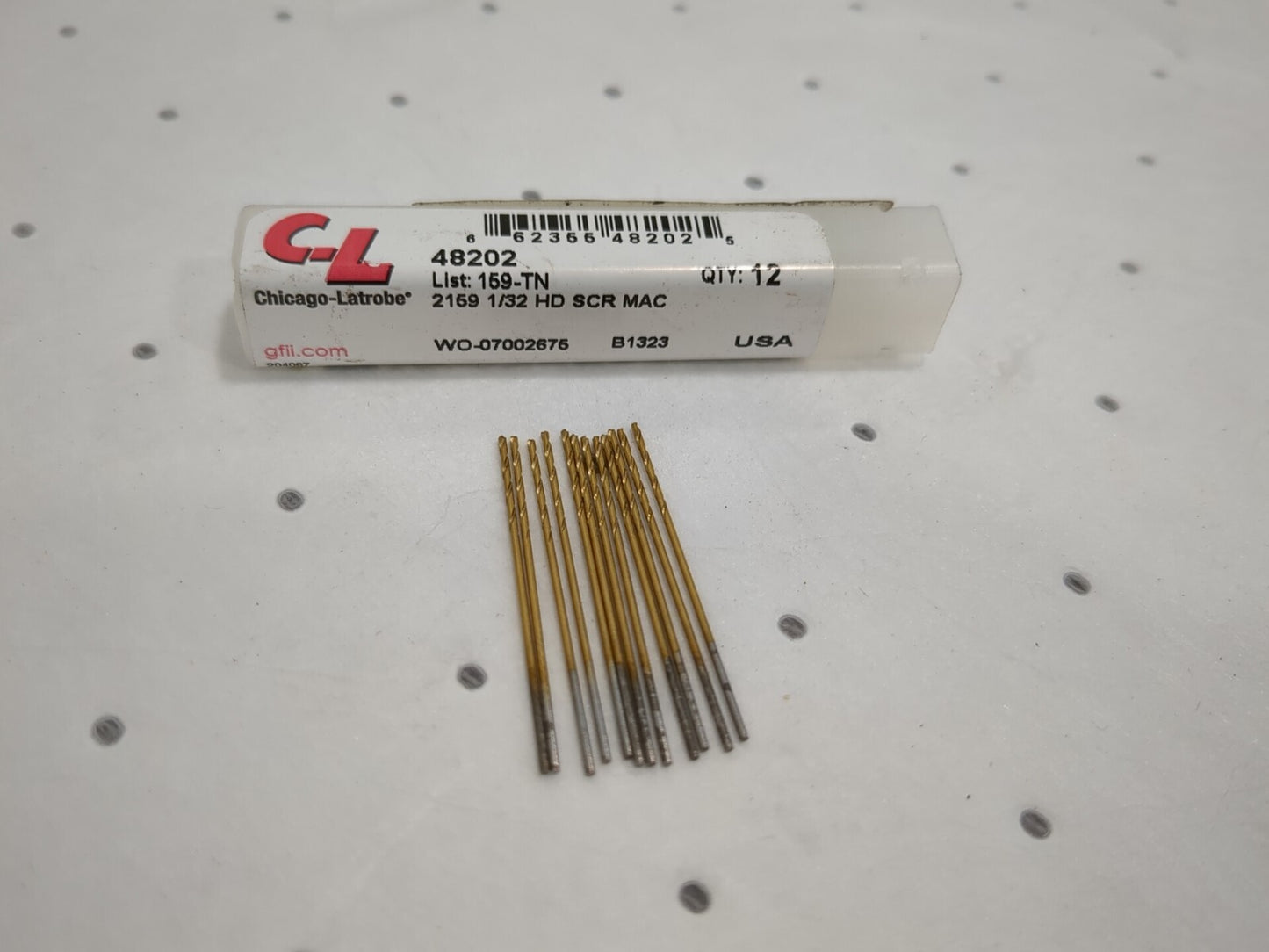

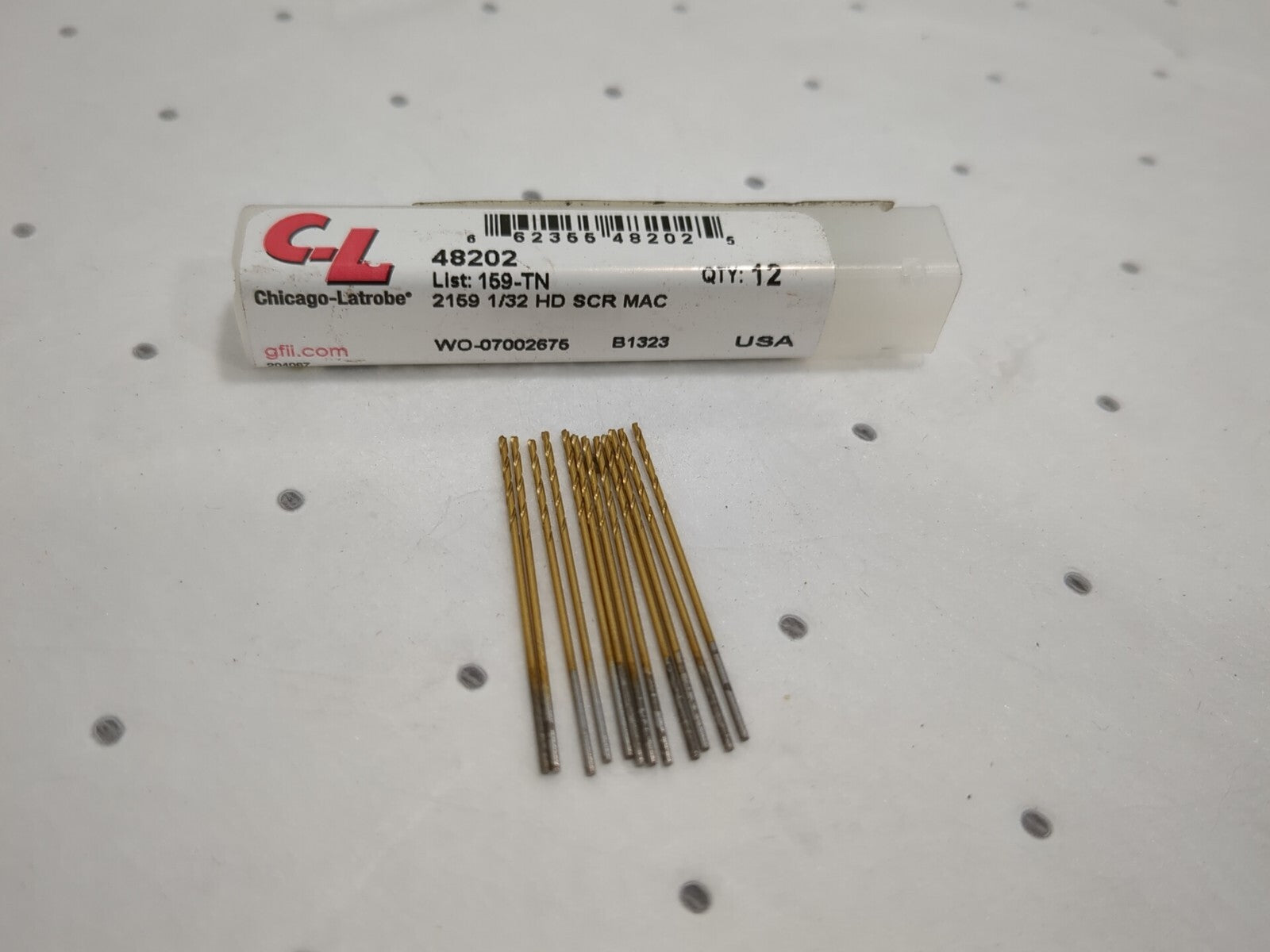

CHICAGOLATROBE 12 pk Screw Machine Length Drill Bit1/32"Dia 135 deg Pt HSS 48202

CHICAGOLATROBE 12 pk Screw Machine Length Drill Bit1/32"Dia 135 deg Pt HSS 48202

MSRP: $55

• Drill Bit Size (Inch) 1/32
• Drill Bit Size (Decimal Inch) 0.0313
• Tool Material HSS
• Cutting Direction Right Hand
• Coating/Finish TiN
• Number Of Flutes 2
• Spiral Type Regular
• Flute Type Regular Spiral
• Drill Point Angle 135
• Coolant Through No
• Primary Workpiece Material Cast Iron; Steel
• Point Type Split Point
• Shank Type Straight
• Shank Diameter (Decimal Inch) 0.0938
• Overall Length (Inch) 1-3/8
• Series 2159
• Web Thinning Web-Thinned
• Web Configuration Parallel
• Drill Length Type Screw Machine
• Shank Length (Inch) 7/8
• Shank Length (Decimal Inch) 0.8750
• Shank Length (mm) 22.22
• Tool Performance Heavy-Duty
• Drill Bit Diameter Tolerance +0.0000 to -0.0005 in
• Standards ISO
• Flute Length (Inch) 1/2
• Drill Bit Size Range (Decimal Inch) 0.0000 to 0.1000
• Specification Number NAS 907
• Specification Designation NAS
• UNSPSC Code 23241635

This Chicago-Latrobe screw machine length drill bit is a high-quality tool perfect for your metalworking needs. With a diameter of 1/32" and a length of 135 degrees, it is designed to provide precision and efficiency in your drilling operations. Made of durable HSS material, this drill bit is built to last and withstand the rigors of heavy-duty use. The item is a unit type and is manufactured in the United States. It is ideal for use in other metalworking drills, drills, metalworking supplies, and CNC, metalworking & manufacturing applications. Order yours today and take your metalworking projects to the next level!

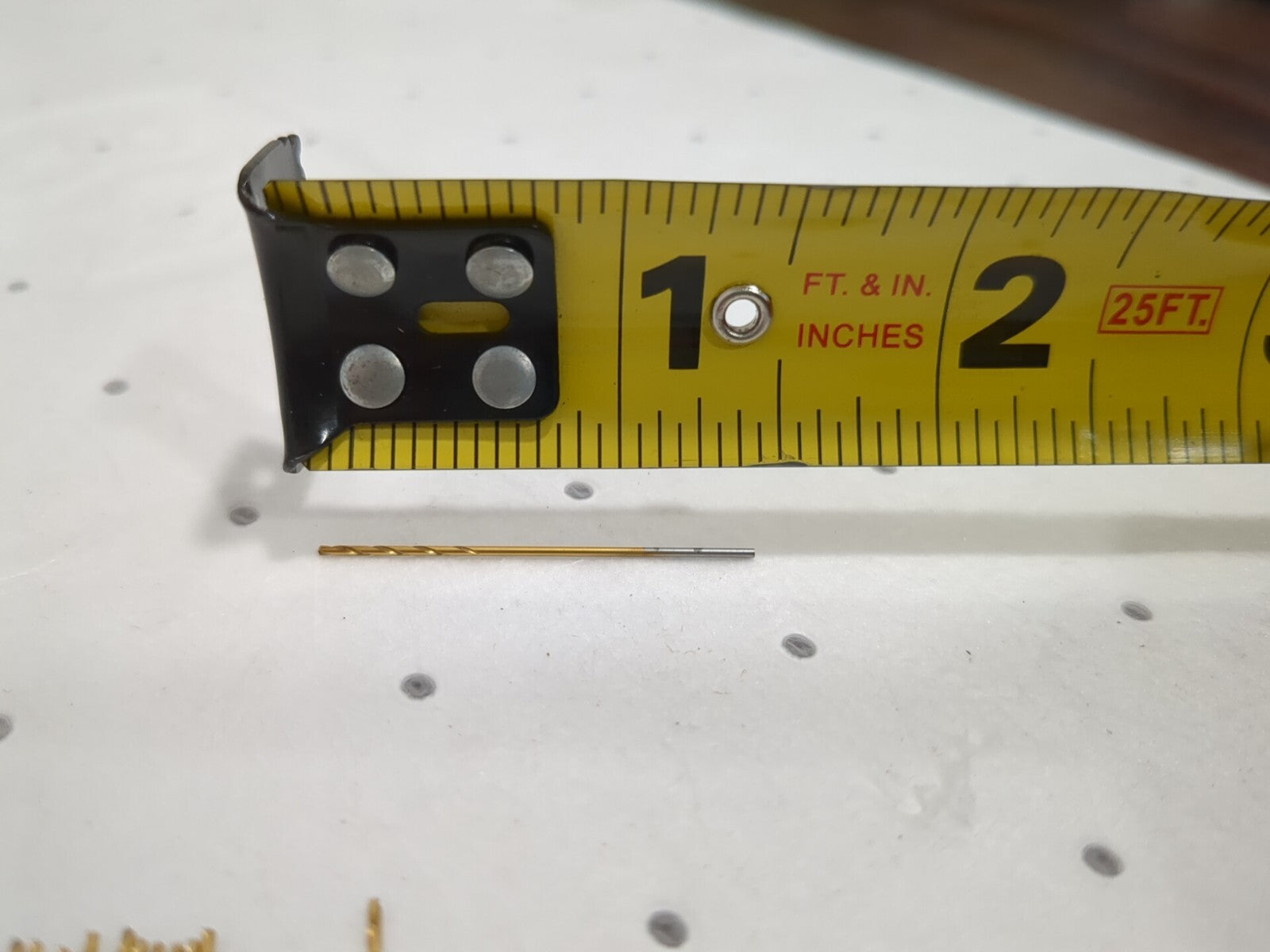

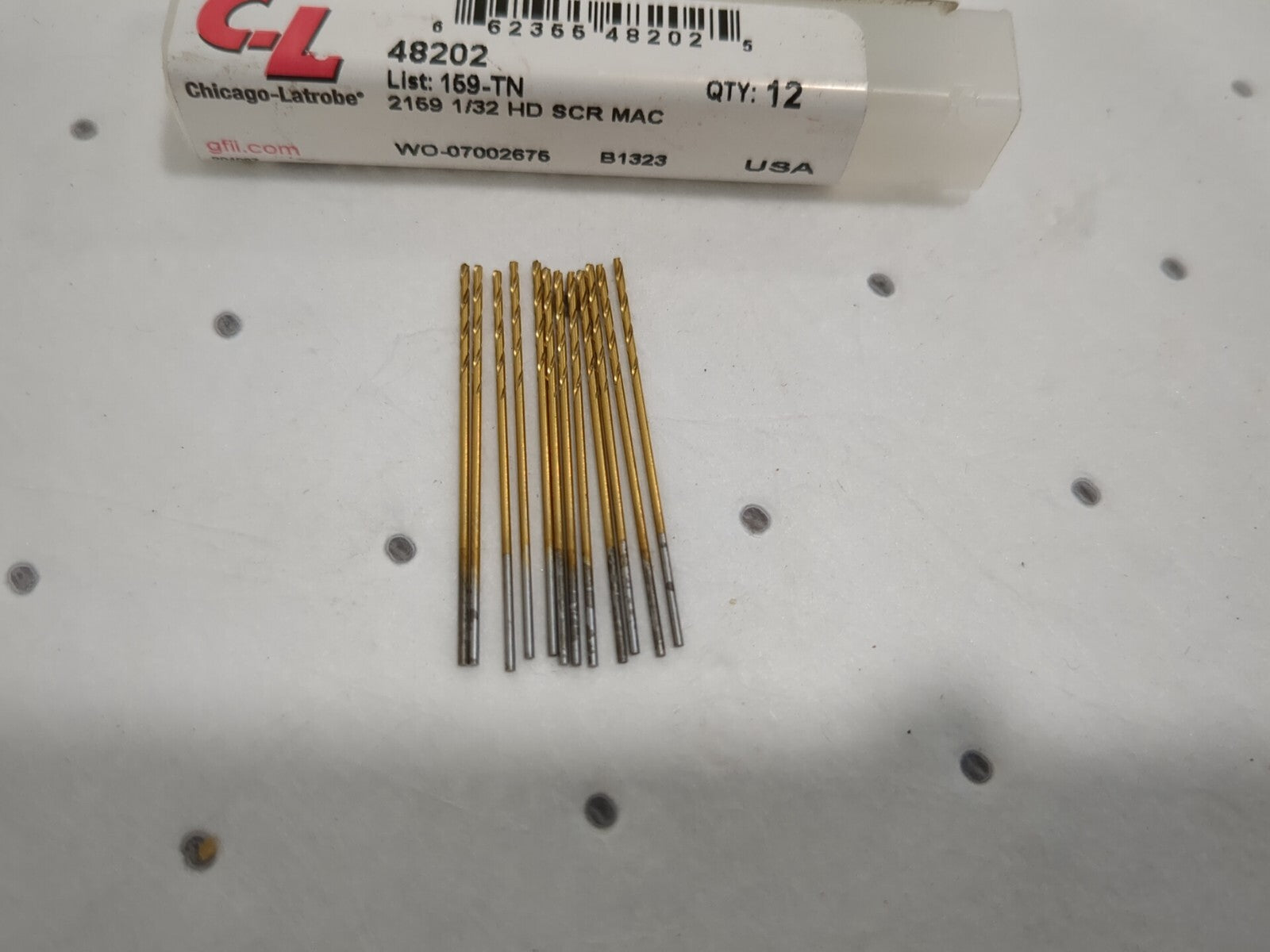

Please review photos, comes as shown.
