Chicago-Latrobe Cobalt Jobber Length Drill Bits QTY6 5/16"Dia 135 deg 46620

Chicago-Latrobe
Cobalt Jobber Length Drill Bits 1 pack of 6

MSRP: $80

• Drill Bit Size (Inch) 5/16
• Drill Bit Size (Decimal Inch) 0.3125
• Drill Bit Material Cobalt
• Drill Point Angle (Degrees) 135
• Coating/Finish Straw
• Flute Type Regular Spiral
• Cutting Direction Right Hand
• Point Type Split Point
• Primary Workpiece Material Stainless Steel; Steel
• Specification Number NAS 907
• Coolant Through No
• Number of Flutes 2
• Flute Length (mm) 80.96
• Flute Length (Decimal Inch) 3.1875
• Flute Length (Inch) 3-3/16
• Shank Diameter (Decimal Inch) 0.3125
• Overall Length (mm) 114.30
• Overall Length (Inch) 4-1/2
• Spiral Type Regular
• Overall Length (Decimal Inch) 4.5000
• Series 550
• Shank Diameter (Inch) 5/16
• Shank Diameter (mm) 7.94
• Shank Length (mm) 33.34
• Shank Length (Decimal Inch) 1.3125
• Drill Bit Diameter Tolerance -0.0010 to 0.0000 in
• Web Thinning Web-Thinned
• Web Configuration Tapered
• Shank Type Straight
• Tool Performance High Performance
• Standards DIN 338; NAS 907 Type J
• Drill Bit Grade Heavy Duty
• Drill Bit Size Range (Decimal Inch) 0.3000 - 0.3500
• Material Grade M42
• Specification Designation NAS

(Description).

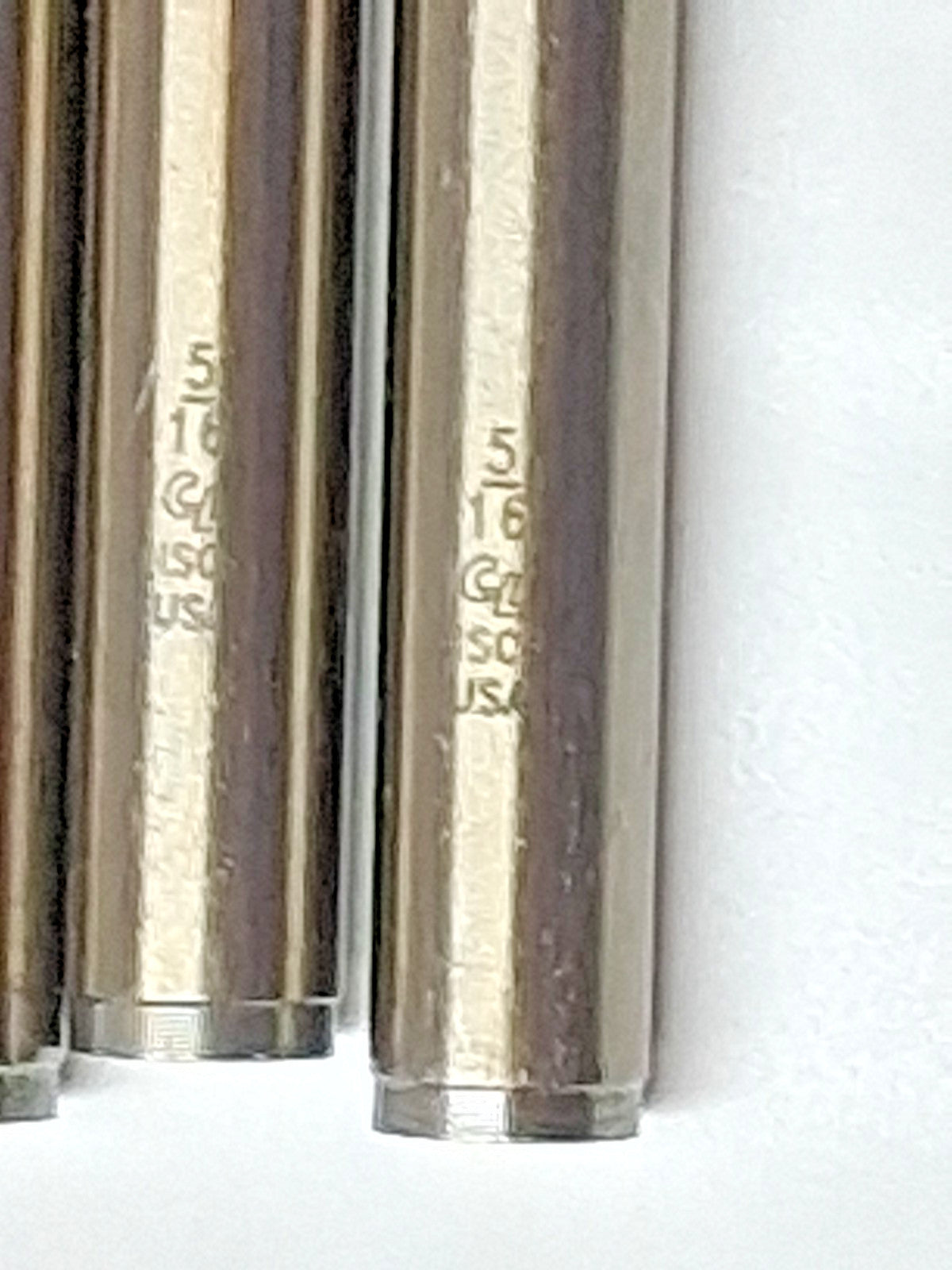

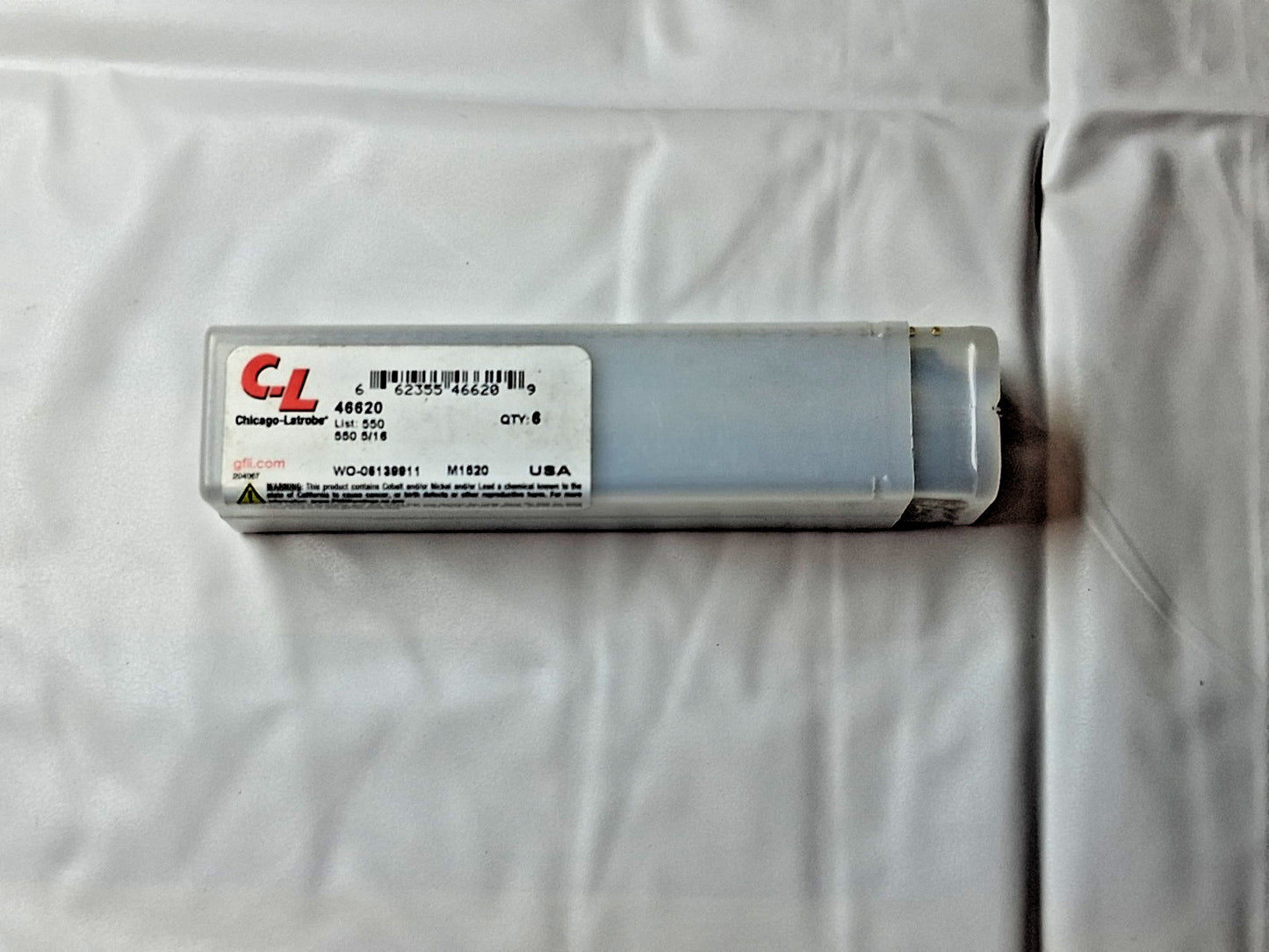

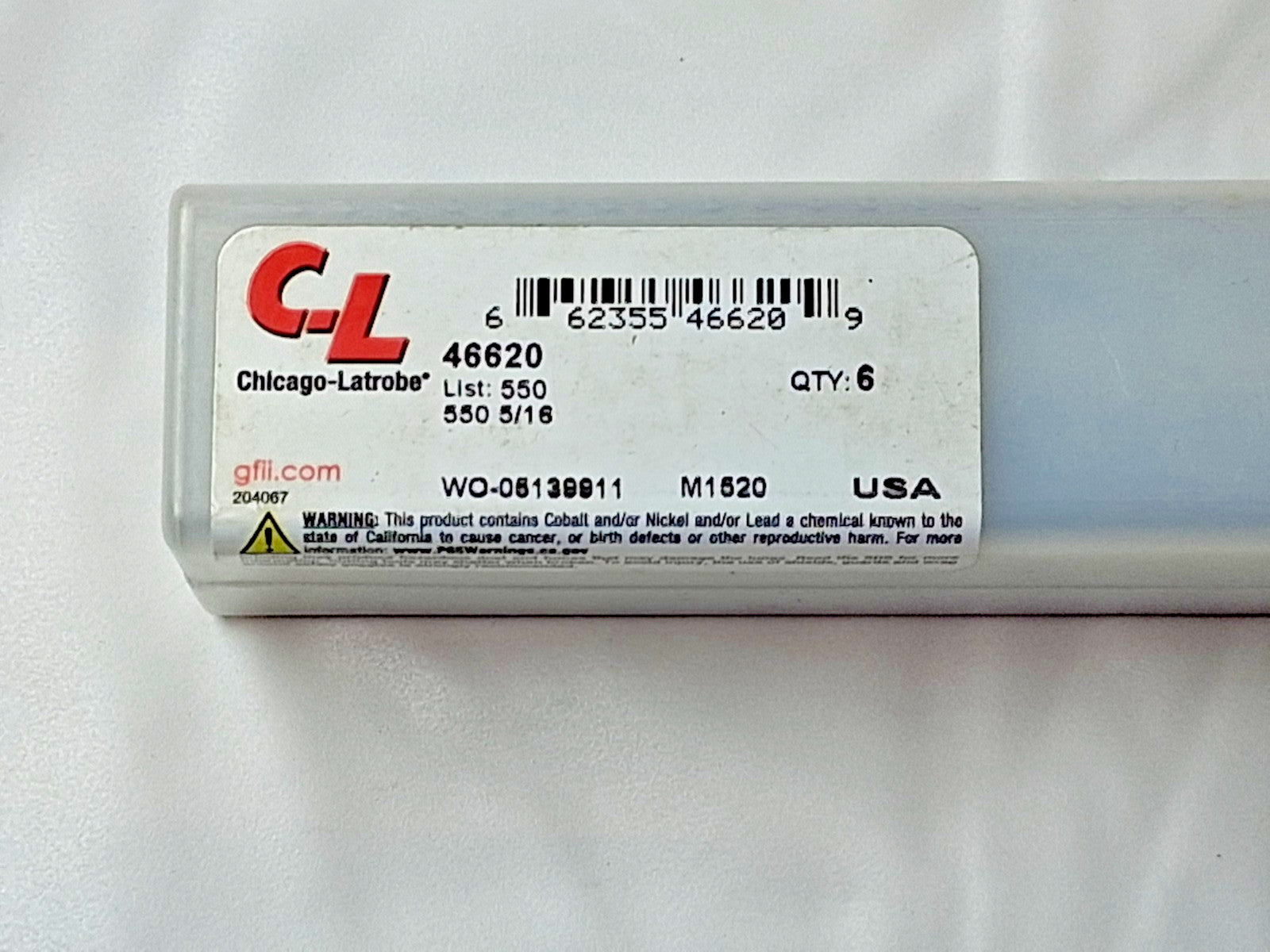

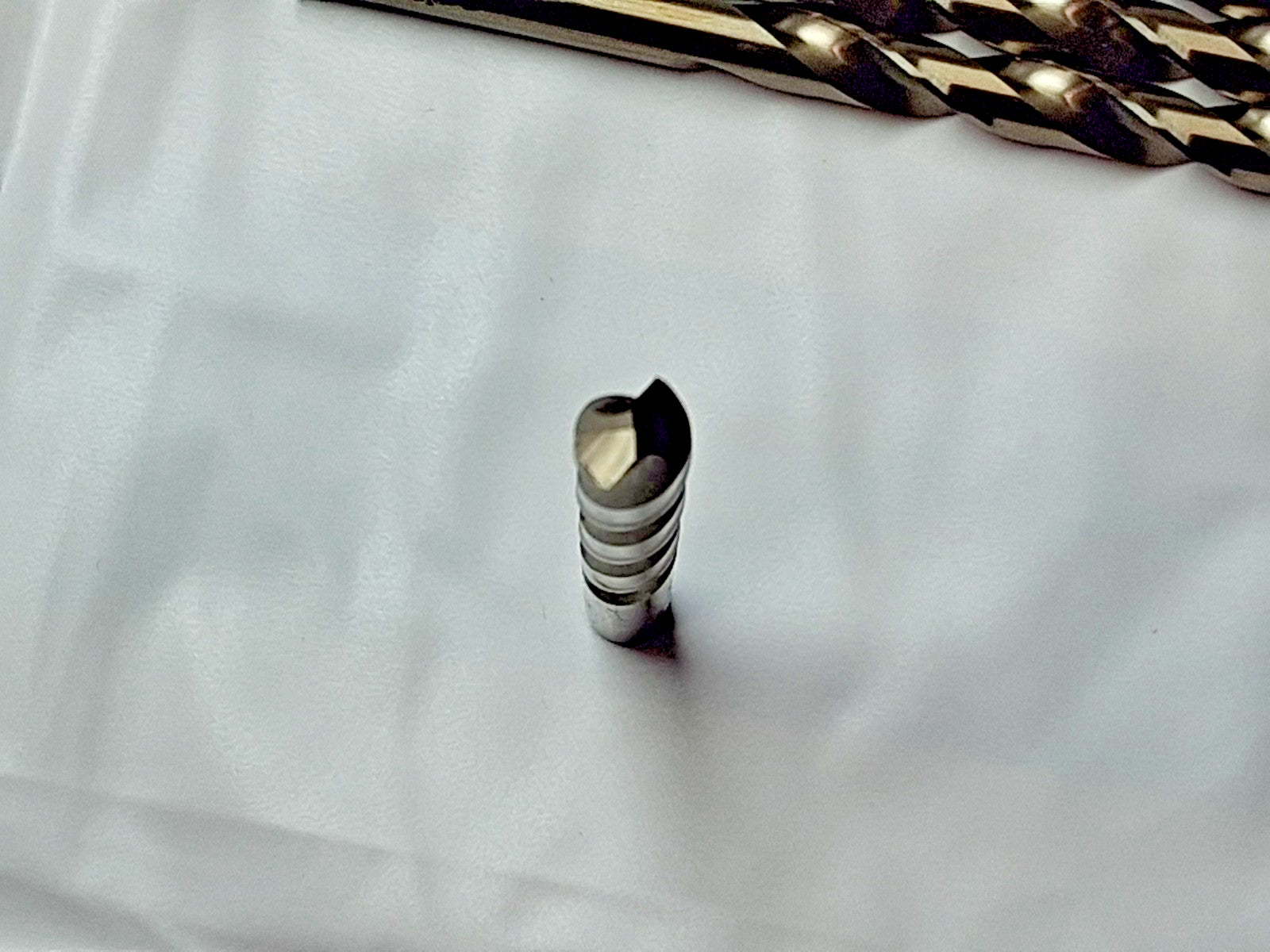

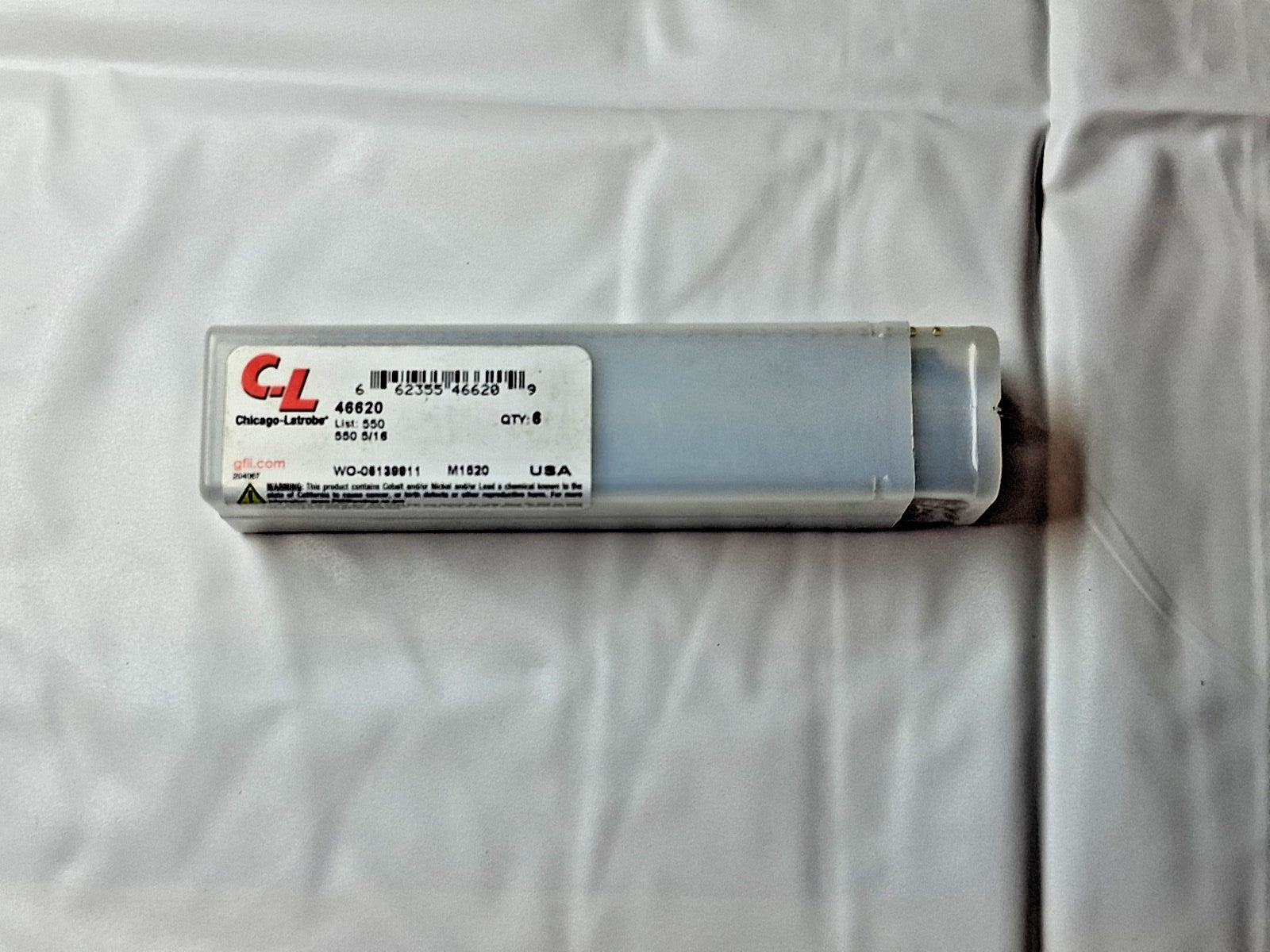

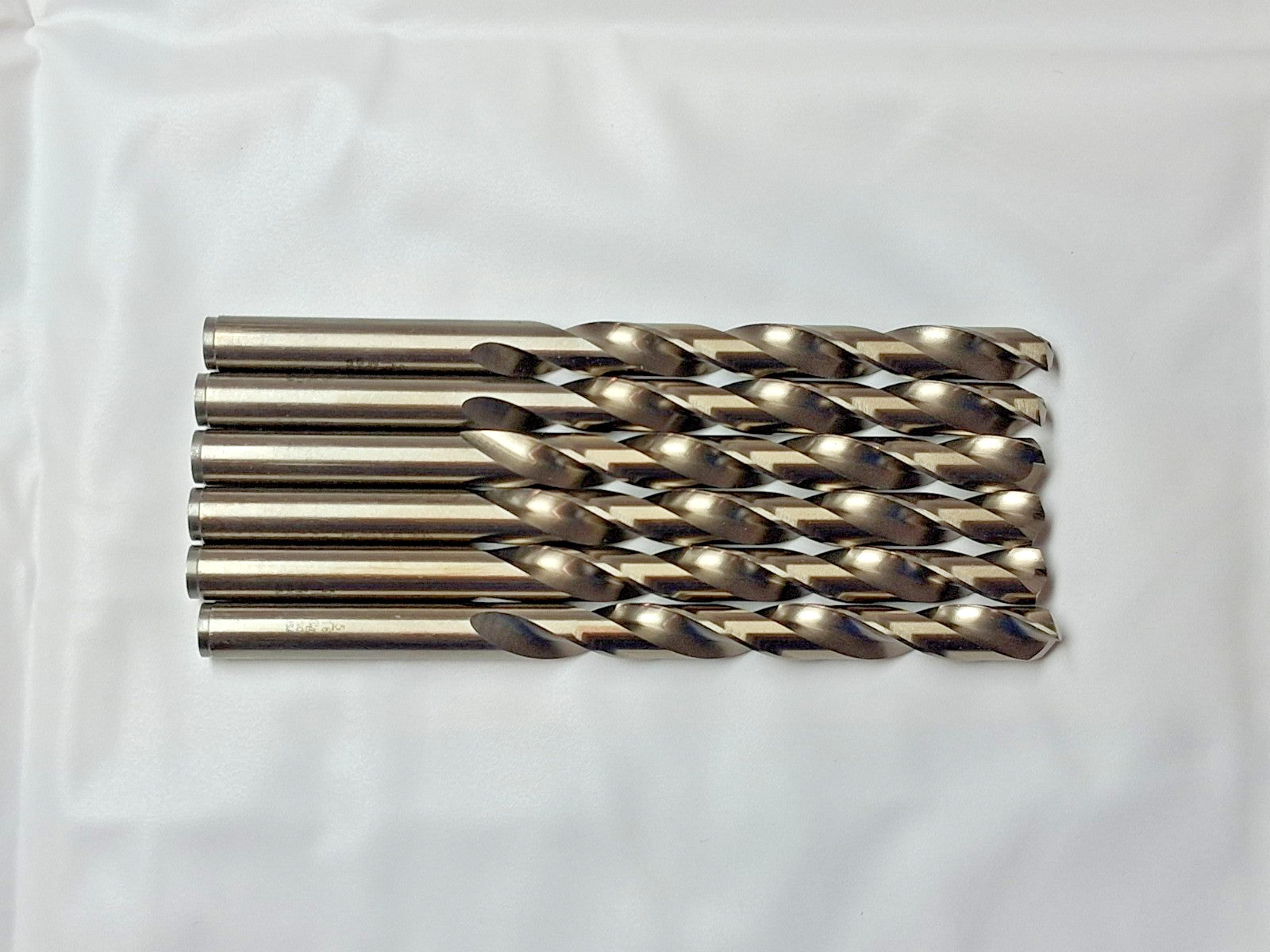

Please review photos, comes as shown.
