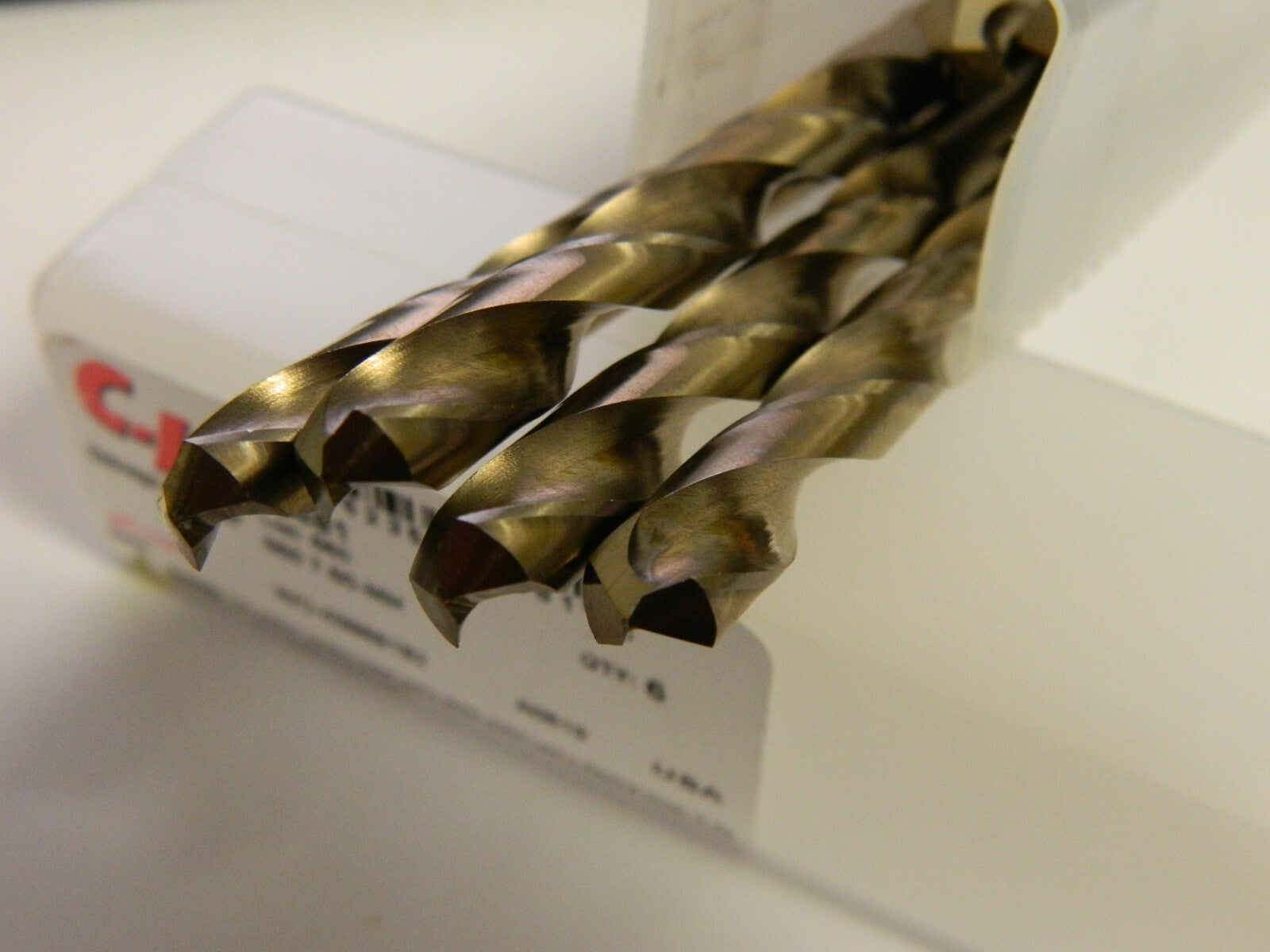

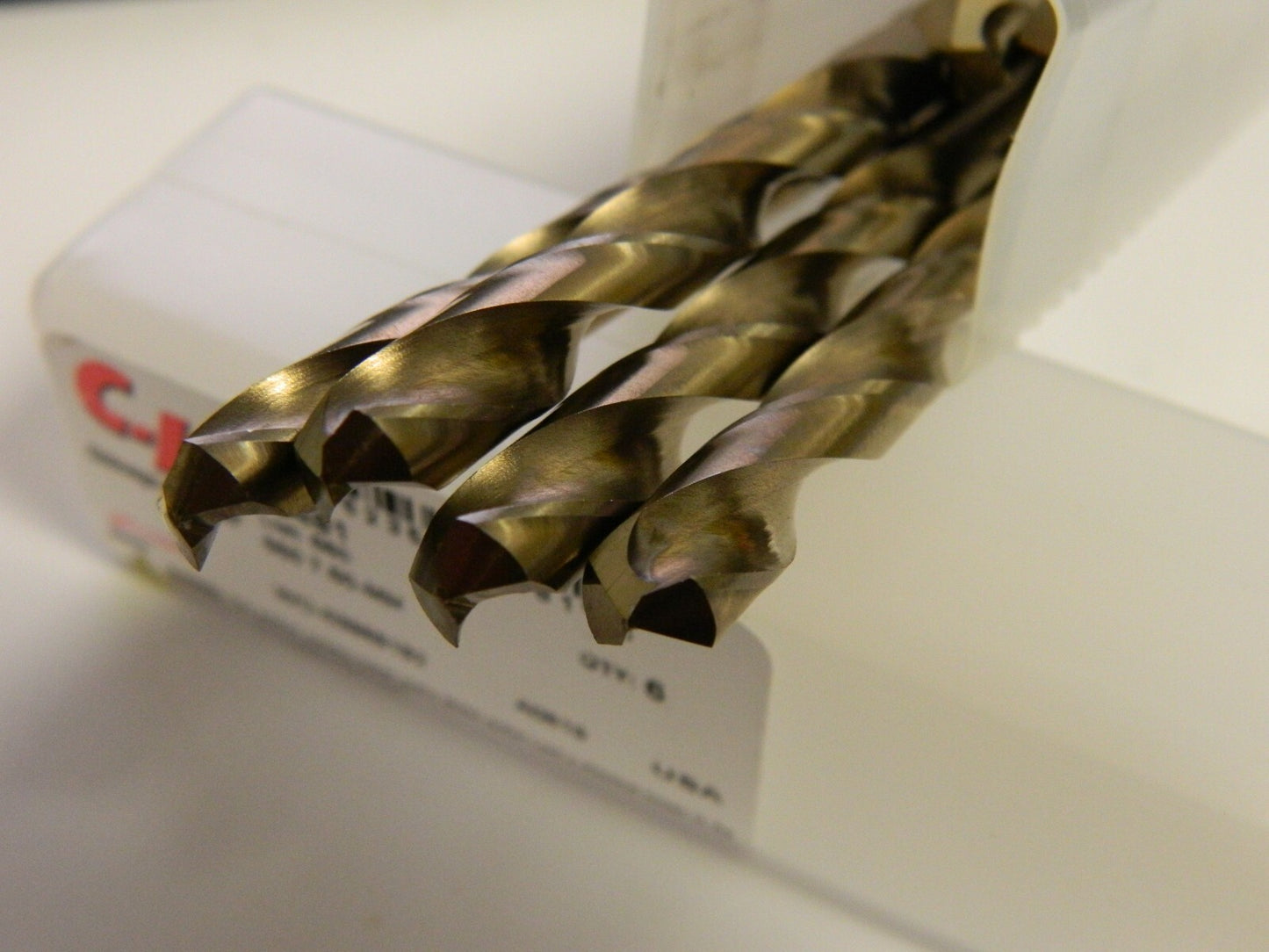

Chicago-Latrobe 7.5mm 135° Cobalt Jobber Drill QTY 6 46481

BRAND Chicago
Item Drills QTY 6

• specs

• Drill Bit Size (mm) 7.50
• Drill Bit Size (Decimal Inch) 0.2953
• Drill Point Angle 135
• Drill Bit Material Cobalt
• Drill Bit Finish/Coating Gold Finish
• Flute Type Spiral
• Cutting Direction Right Hand
• Shank Type Straight
• Coolant Through No
• Flute Length (mm) 69.00
• Flute Length (Decimal Inch) 2.7165
• Overall Length (mm) 109.00
• Overall Length (Decimal Inch) 4.2913
• Point Type Split Point
• Shank Diameter (mm) 7.50
• Shank Diameter (Decimal Inch) 0.2953
• Spiral Type Regular Spiral
• Shank Length (mm) 40.00
• Shank Length (Decimal Inch) 1.5748
• Specification Designation DIN; NAS
• Web Configuration Tapered
• Drill Bit Diameter Tolerance (Decimal Inch) +0.0000 to -0.0010
• Web Thinning Web-Thinned
• Specification Number NAS 907-J
• Drill Bit Grade Heavy Duty
• Series/List 550
