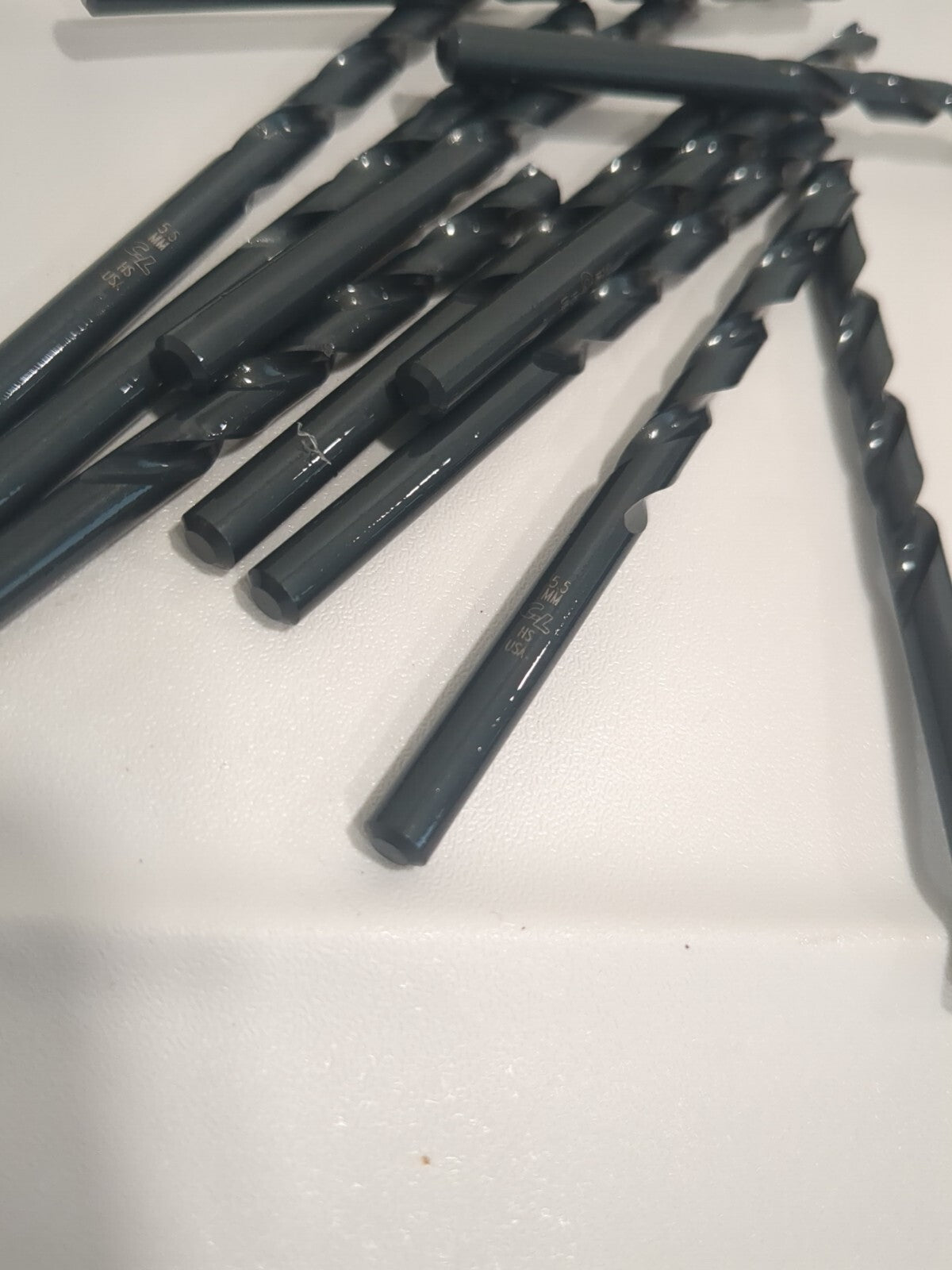

CHICAGO-LATROBE 12pk Jobber Drill: 5.50 mm Dia, 118 deg Point HSS 47289

CHICAGO-LATROBE 12pk Jobber Drill: 5.50 mm Dia, 118 deg Point HSS 47289

MSRP: $35

• Drill Bit Size (mm) 5.50
• Drill Bit Size (Decimal Inch) 0.2165
• Drill Bit Material HSS
• Drill Point Angle (Degrees) 118
• Coating/Finish Oxide
• Flute Type Regular Spiral
• Cutting Direction Right Hand
• Point Type Standard
• Primary Workpiece Material Cast Iron; Steel
• Specification Number DIN 338
• Coolant Through No
• Number of Flutes 2
• Shank Diameter (Decimal Inch) 0.2165
• Overall Length (mm) 93.00
• Overall Length (Decimal Inch) 3.6614
• Spiral Type Regular
• Flute Length (mm) 57.00
• Flute Length (Decimal Inch) 2.2441
• Proprietary Coating/Finish Black Oxide
• Series 150
• Shank Length (mm) 36
• Shank Length (Decimal Inch) 1.4173
• Drill Bit Diameter Tolerance -0.0007 to 0.0000 in
• Web Thinning Web-Thinned
• Web Configuration Tapered
• Shank Type Straight
• Tool Performance General Purpose
• Standards DIN 338
• Drill Bit Grade General Purpose
• Drill Bit Size Range (Decimal Inch) 0.2000 - 0.2500
• Drill Bit Size Range (mm) 5.00 - 6.00
• Specification Designation DIN
• UNSPSC Code 23241634

(Description).

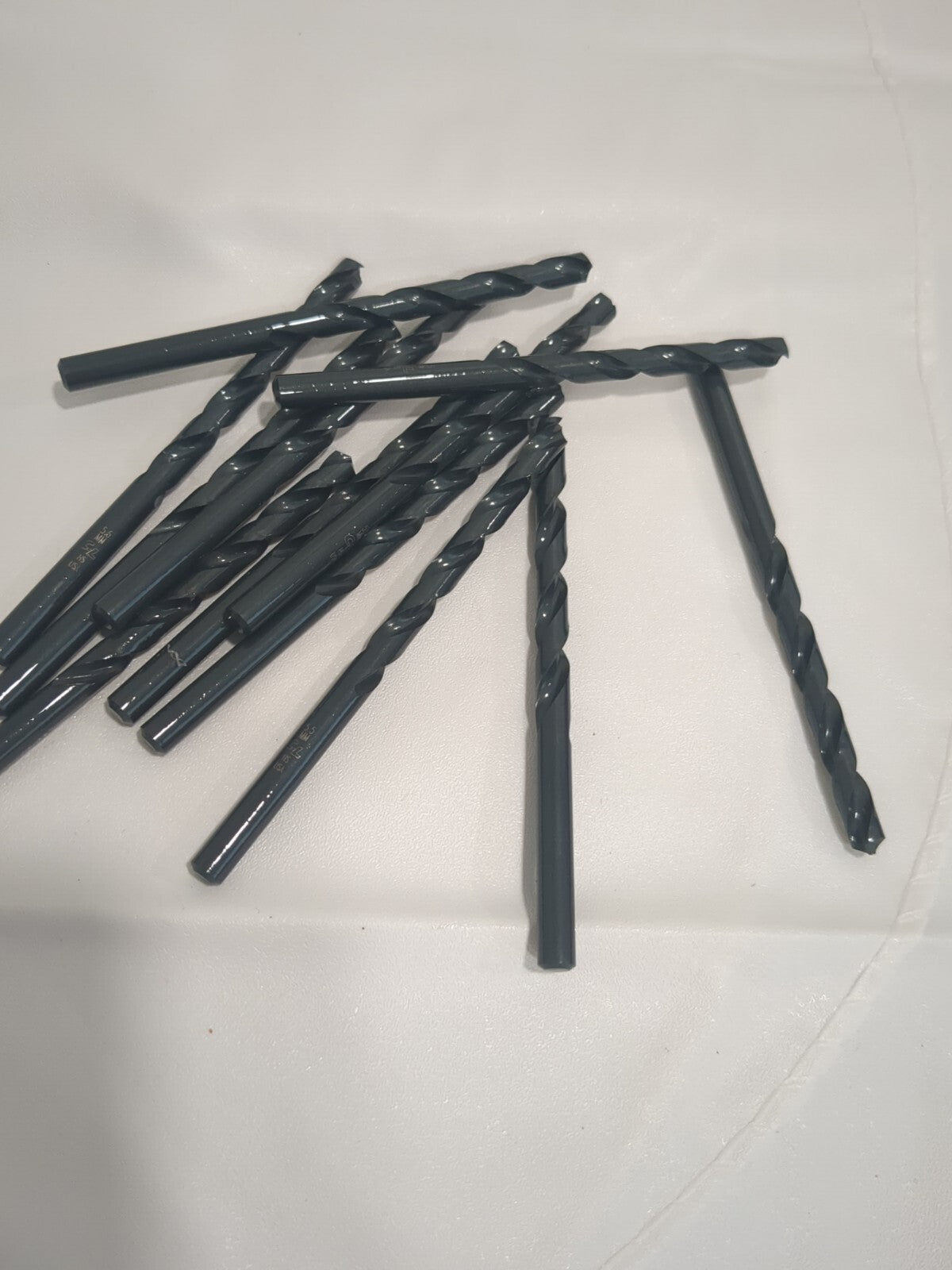

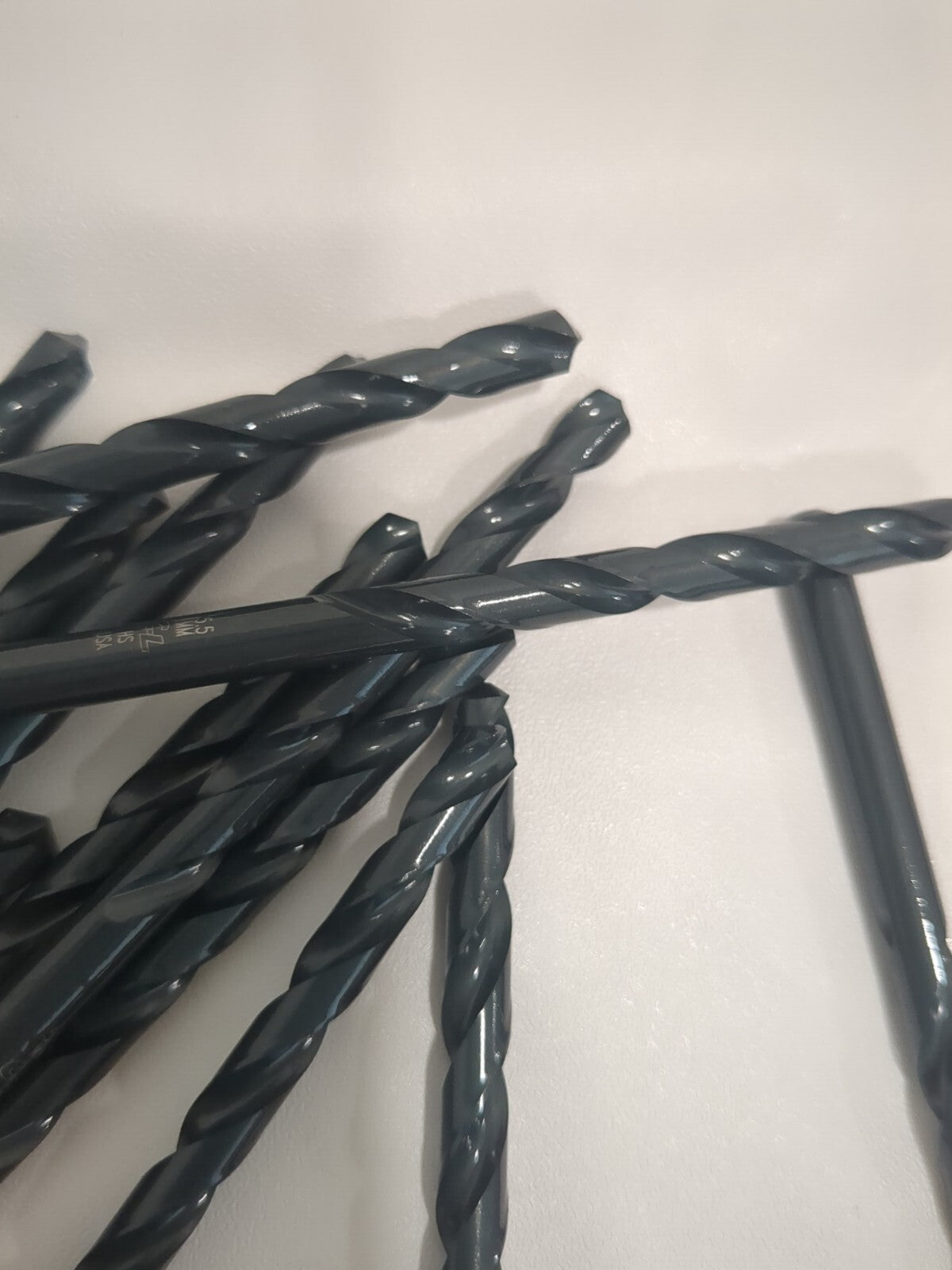

Please review photos, comes as shown.
