CERATIZIT Milling Insert: XDKT 11T316ER-F40 Solid Carbide 51113466

CERATIZIT

 Milling Insert: XDKT 11T316ER-F40 Solid Carbide 51113466
MSRP: $180

• Insert Style XDKT
• Insert Size 11
• Insert Material Solid Carbide
• Insert Shape Parallelogram
• Manufacturer Grade CTPM245
• Corner Radius (Decimal Inch) 0.0630
• Number Of Cutting Edges 2
• Thickness (Decimal Inch - 4 Decimals) 0.1496
• Coating/Finish TAN; TiAl
• Relief Angle 15
• Maximum Depth of Cut (Decimal Inch) 0.2835
• Insert Size Code 11T316
• Material Grade S45
• Inscribed Circle (Decimal Inch) 0.2677
• Thickness Range (Decimal Inch) 0.1250 to 0.1500
• Inscribed Circle Range (Decimal Inch) 0.2500 to 0.3000
• Length Range (Decimal Inch) 0.4000 to 0.4500
• Insert Hand Right Hand
• Series XDKT
• Coating Process PVD
• Hole Diameter (Decimal Inch) 0.1102
• Cutting Edge Effective Length (Decimal Inch) 0.4173
• Rake Positive
• Primary Workpiece Material Stainless Steel
• Primary Workpiece Material Code M
• Secondary Workpiece Material Steel
• Secondary Workpiece Material Code P
• Ansi Code XDKT 11T316ER-F40 CTPM245
• Iso Code XDKT 11T316ER-F40 CTPM245
• Standards ISO; ANSI
• Cutting Edge Style Honed
• Manufacturers Catalog Number XDKT 11T316ER-F40 CTPM245
• Cutter Series Compatibility 211-11
• Chip Breaker F40
• Material Application Stainless Steel
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 90
• Width (Decimal Inch - 4 Decimals) 0.2677
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.4173

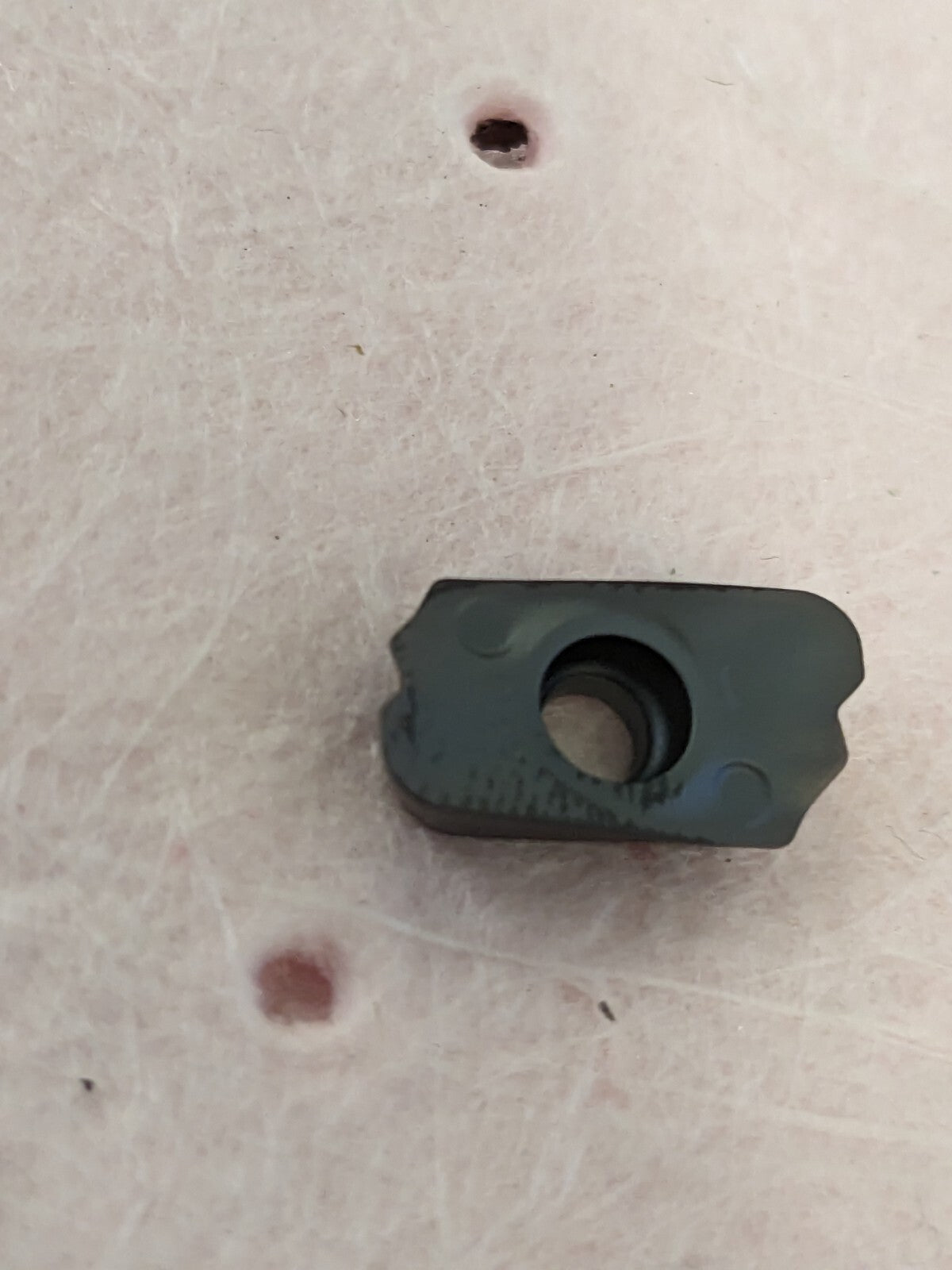

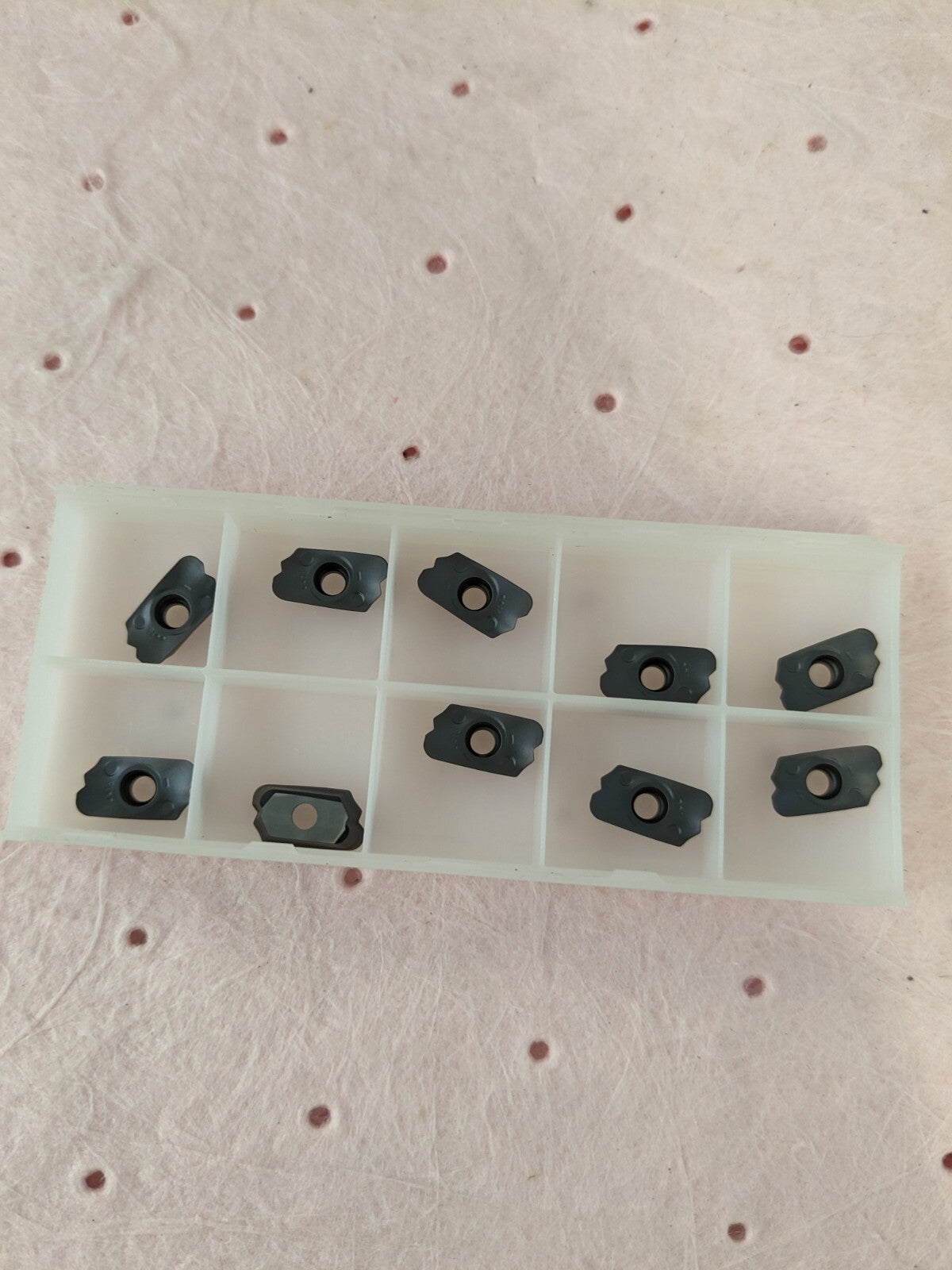

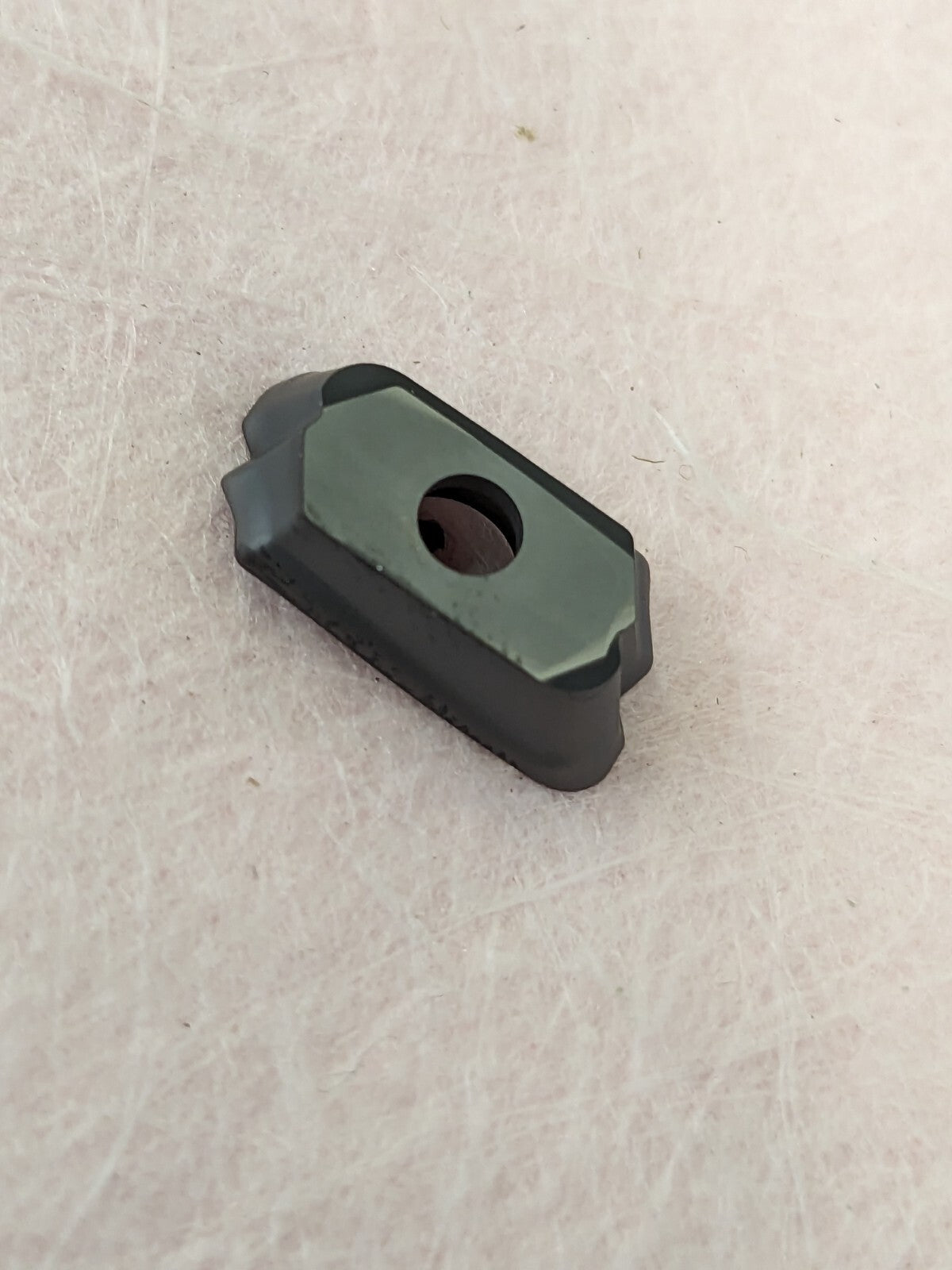

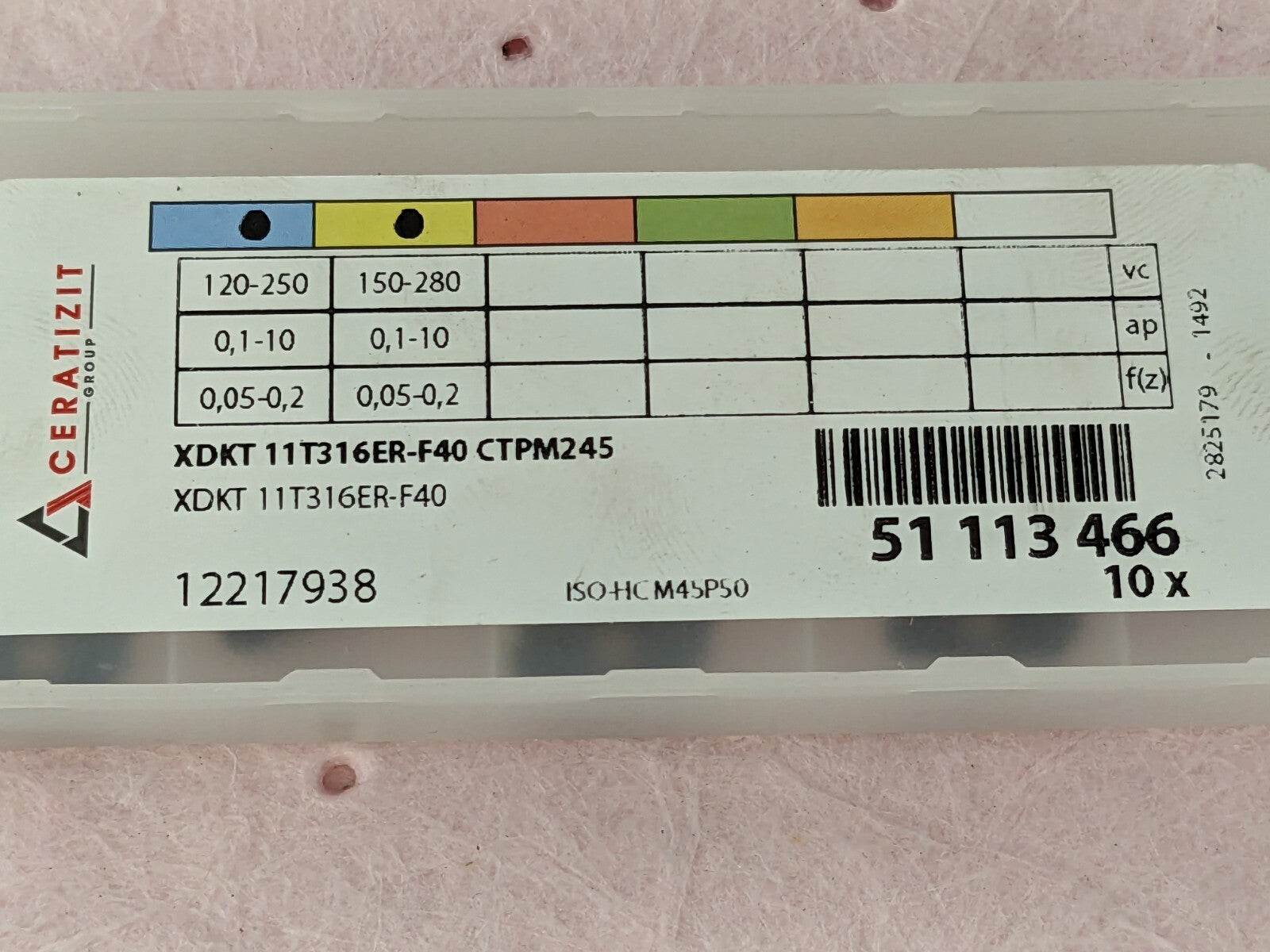

 Please review photos, comes as shown.
