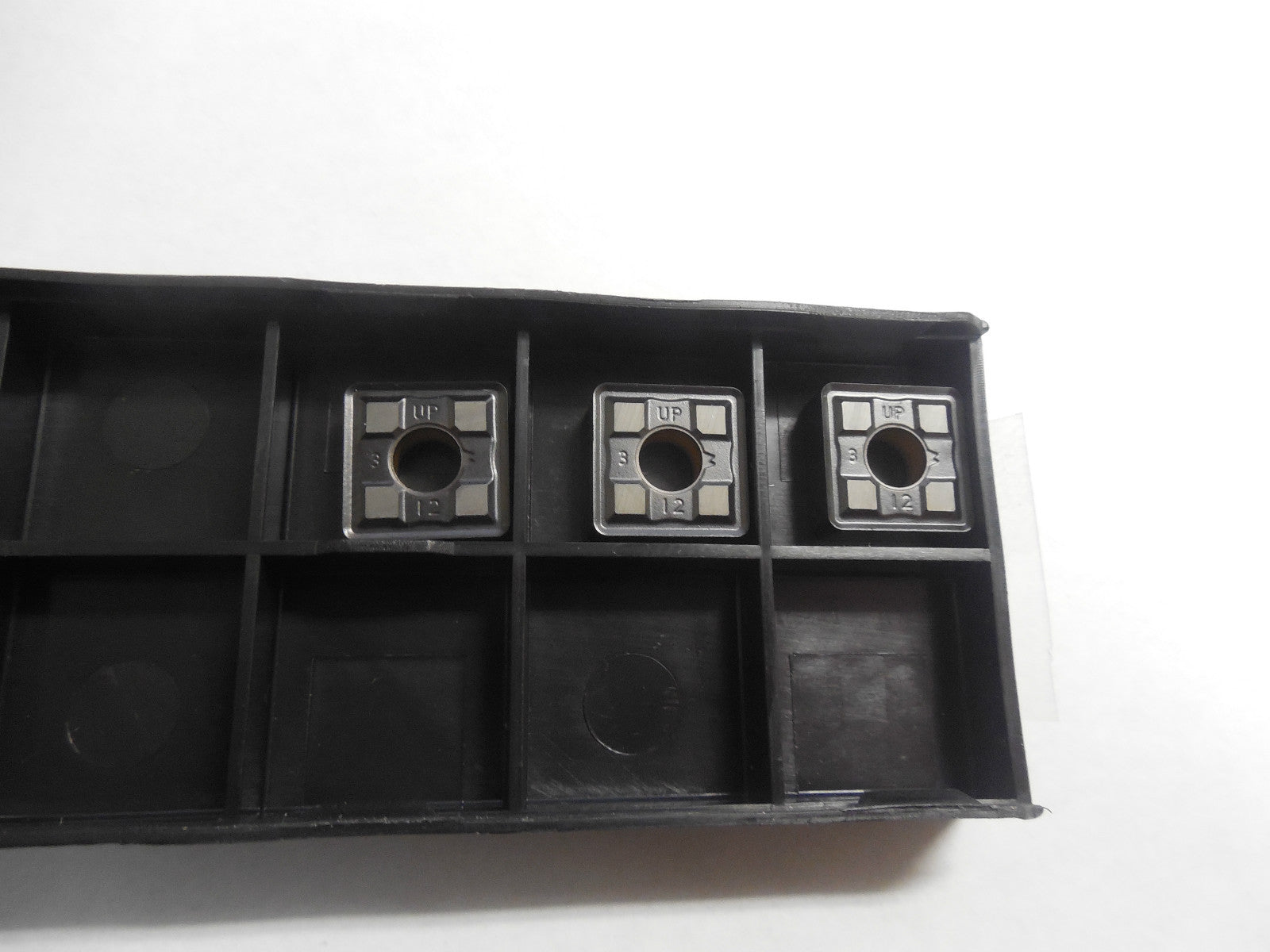

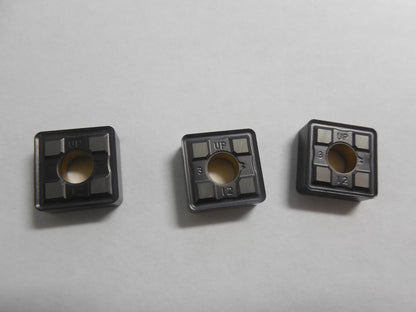

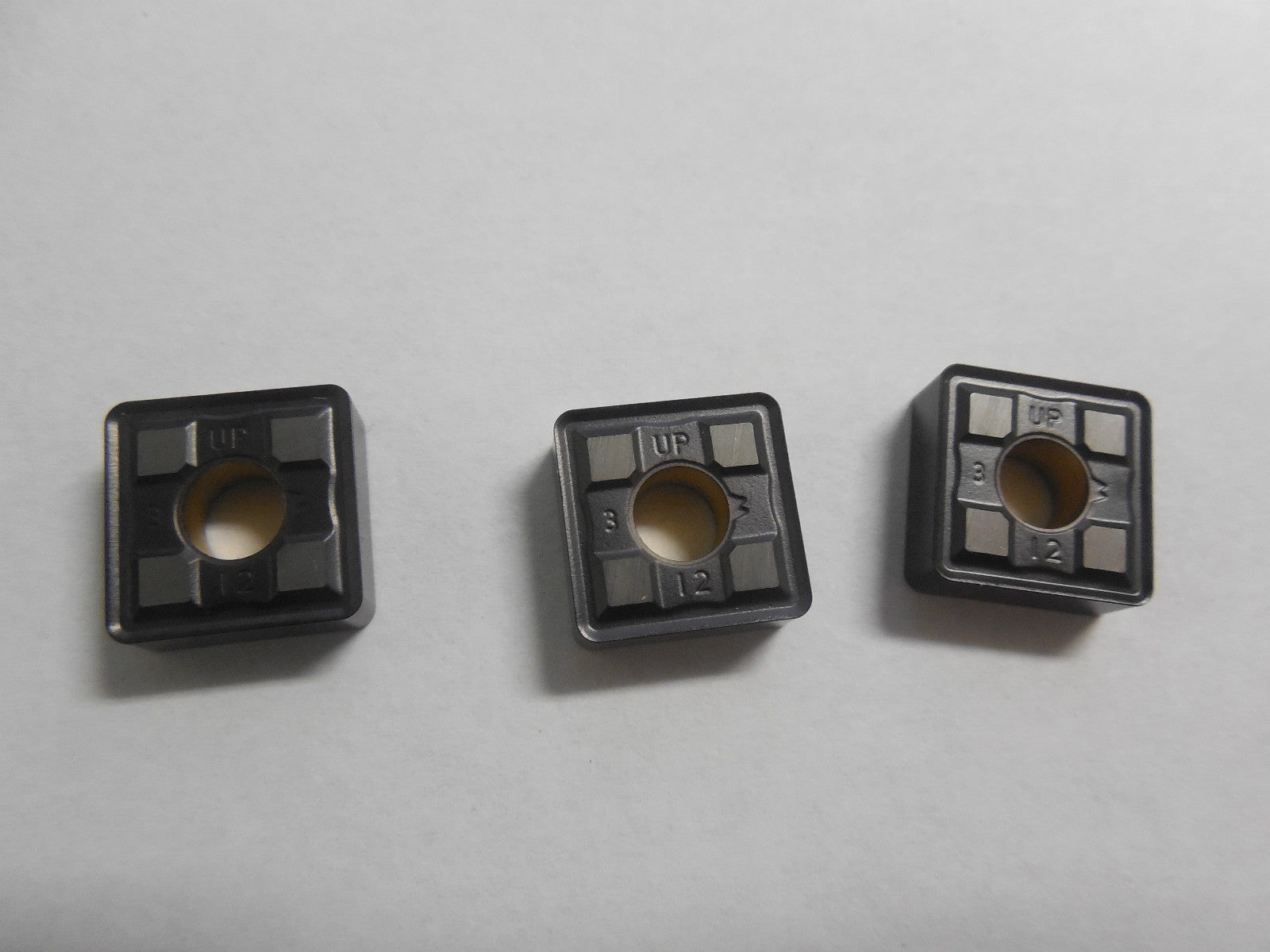

Beyond by Kennametal SNMG433UP KCM25 Carbide Inserts - Box of 3

Beyond by Kennametal SNMG433UP KCM25 Carbide Inserts - Box of 3

MSRP: $25

• Material
•

• Carbide
•

• Insert Style
•

• SNMG
•

• Insert Size
•

• 433
•

• Manufacturer's Grade
•

• KCM25
•

• Chipbreaker
•

• UP
•

• Shape
•

• Square
•

• Inscribed Circle (mm)
•

• 12.70
•

• Inscribed Circle (Decimal Inch)
•

• 0.5000
•

• Inscribed Circle (Inch)
•

• 1/2
•

• Thickness (Inch)
•

• 3/16
•

• Thickness (Decimal Inch)
•

• 0.1875
•

• Thickness (mm)
•

• 4.76
•

• Corner Radius (Inch)
•

• 3/64
•

• Corner Radius (mm)
•

• 1.19
•

• Corner Radius (Decimal Inch)
•

• 0.0469
•

• Relief Angle (Degree)
•

• Hole Diameter (mm)
•

• 5.16
•

• Hole Diameter (Decimal Inch)
•

• 0.2031
•

• Rake
•

• Positive
•

• Material Grade
•

• C1/C2
•

• Coating
•

• TiN/TiCN/Al2O3
•

• Coating Process
•

• CVD
•

• Primary Workpiece Material
•

• M
•

• Secondary Workpiece Material
•

• S
•

• Included Angle (Degree)
•

• 90
•

• Series
•

• KENLOC®
•

• Maximum Depth of Cut (mm)
•

• 1.25
•

• Maximum Depth of Cut (Decimal Inch)
•

• 0.0492
•

• Rake Angle (Degree)
•

• 15
•

• Insert Holding Method
•

• Screw or Clamp

Enhance your machining operations with the Beyond by Kennametal SNMG433UP KCM25 Carbide Inserts. This box of 3 inserts is designed to provide superior performance and durability for your turning insert needs. Made with high-quality carbide material and coated with TiN/TiCN/AI2O3, these inserts are perfect for use in a variety of applications. The square shape of the inserts ensures maximum contact with the workpiece, while the KCM25 grade guarantees excellent performance and wear resistance. Whether you're working in the manufacturing industry or holding a key position in your company, these inserts are a must-have for your toolholding needs. Order now and take your machining operations to the next level!

Please review photos, comes as shown.
