Ball End Mill: 7/16" Dia, 7/8" LOC, 4 Flute, Solid Carbide
Ball End Mill: 7/16" Dia, 7/8" LOC, 4 Flute, Solid Carbide
Regular price
$55.31 USD
Regular price
$113.00 USD
Sale price
$55.31 USD
Shipping calculated at checkout.
BRAND Niagara
Item
MSRP: $113.00
- specs
| Mill Diameter (Inch) | 7/16 |
| Mill Diameter (Decimal Inch) | 0.4375 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.8750 |
| Length of Cut (Inch) | 7/8 |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Shank Diameter (Inch) | 7/16 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 40 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Hardened Materials |
| Primary Workpiece Material Code | S; H; M |
| Coating/Finish | AlTiN |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Weldon Flat |
| Material Grade | Micrograin |
| Length Type | Extended |
| Coating Classification | PVD |
| Helix Style | Variable |
| Nose Radius (Decimal Inch) | 0.2188 |
| Neck Length (Decimal Inch) | 0.4380 |
| Neck Diameter (Decimal Inch) | 0.4200 |
| Neck Diameter (mm) | 0.42 |
| Reach Length (Inch) | 1-5/16 |
| Reach Length (Decimal Inch) | 1.3130 |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Overall Length Tolerance | +0.0600/-0.0600 in |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| TIR Maximum (Decimal Inch) | 0.0005 |
| Series | STBN440.2 |
| System Of Measurement | Fractional Inch |
| Manufacturers Catalog Number | STBN440.2-0.438-E2-B.3-Z4 |
| Material Removal Type | Roughing & Finishing |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
(Description).

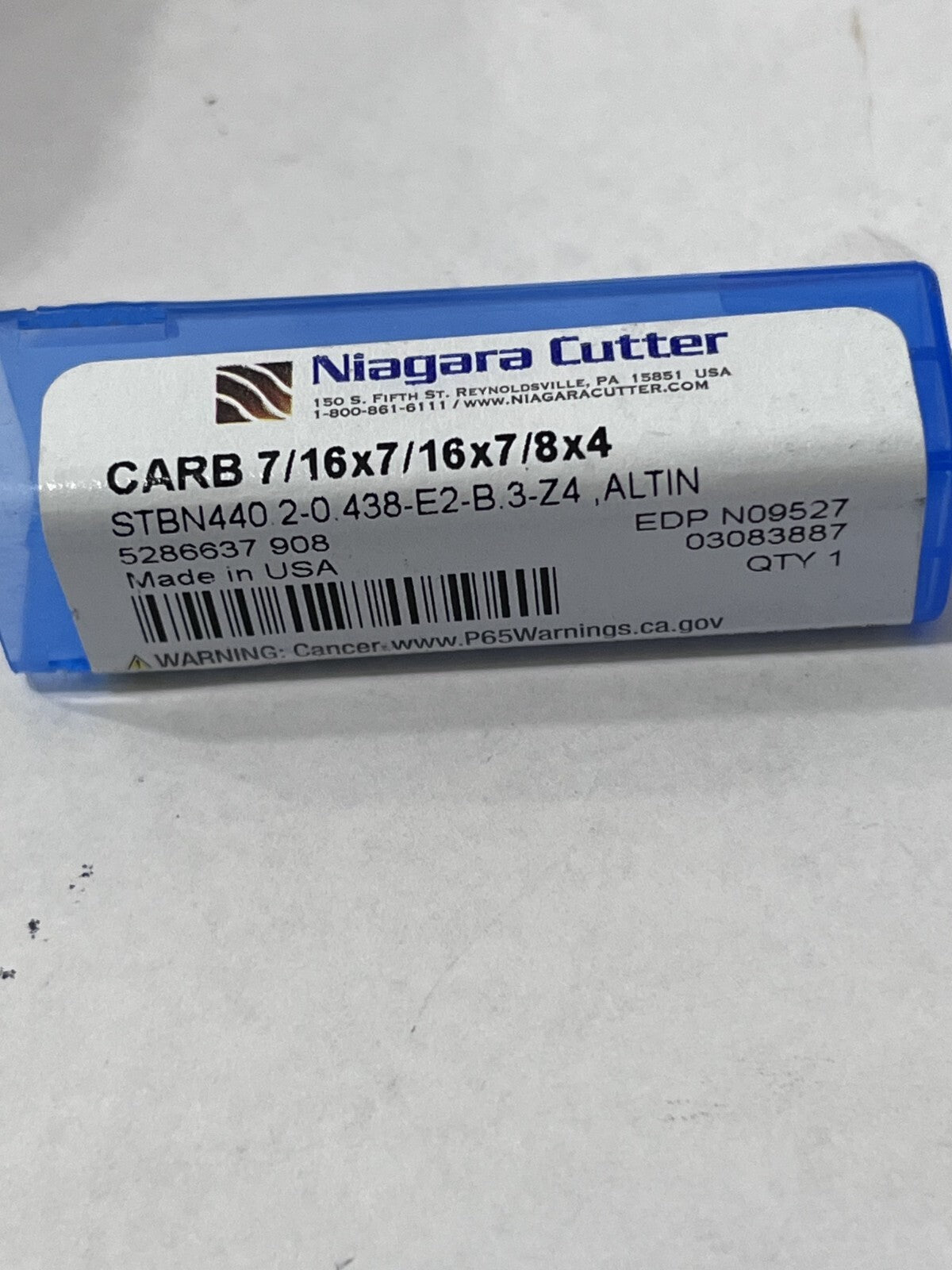

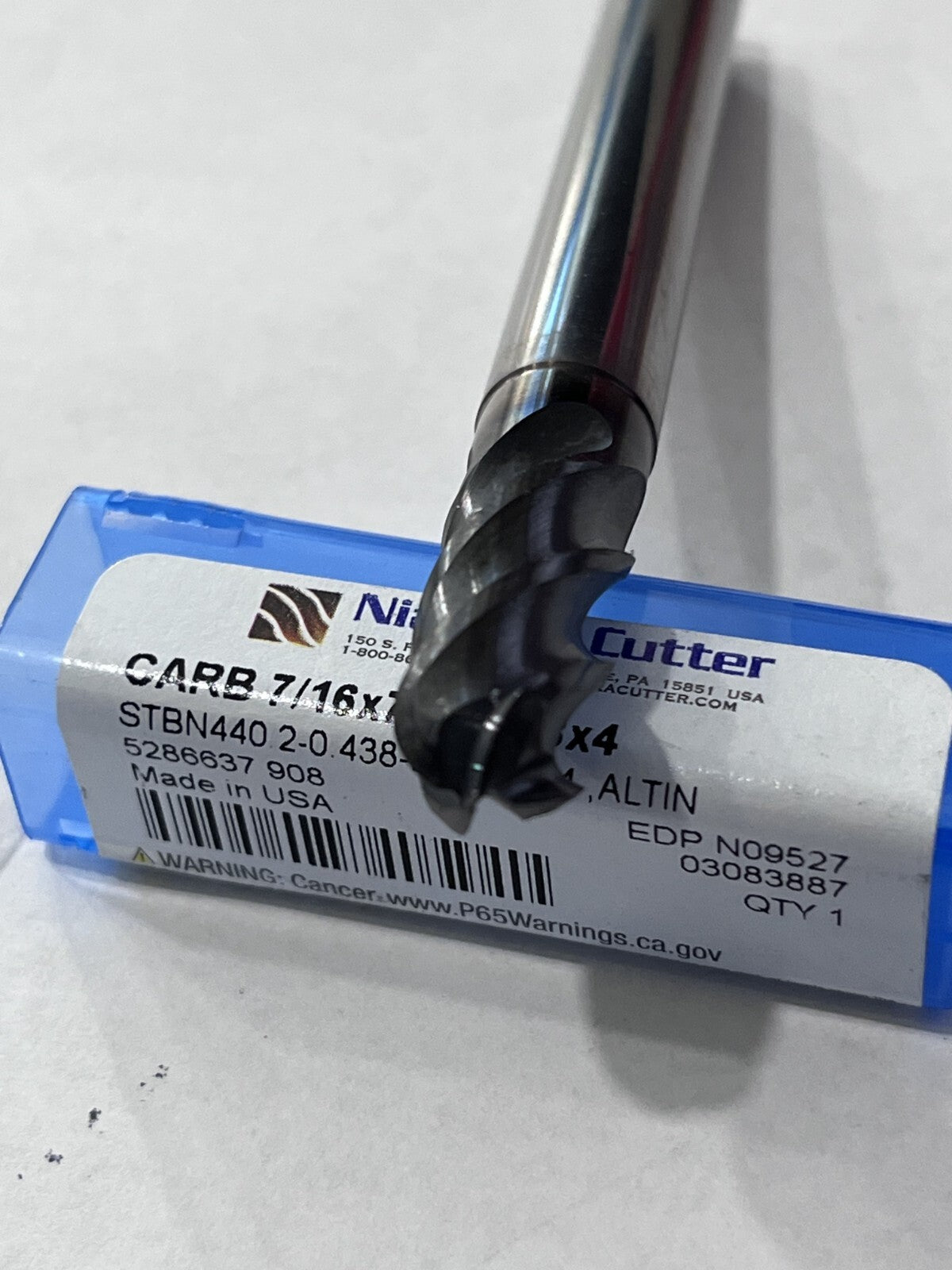

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
